Accessories included -
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS -
Bluetooth Interface - Yes
Brand - MSI
BrandPartCode - MAG X870E TOMAHAWK WIFI
Category - Motherboards
Category Code - MBA
Chipset - AMD X870E
Chipset manufacturer - AMD
Chipset type - AMD X870E
COM connector / port - No
CPU socket - Socket AM5
Description - MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
Description - Msi X870 Tomahawk wifi title
MAG X870E TOMAHAWK WIFI został zaprojektowany dla graczy, którzy chcą mieć stabilną, trwałą i przyjazną dla majsterkowiczów podstawę do budowy komputerów. Wyposażony w prawdziwe rozwiązanie Wi-Fi 7, 5G LAN, USB 40 Gb/s, rozwiązania PCIe 5.0, dodatkowe zasilanie PCIe i ekskluzywne funkcje EZ DIY, jest gotowy na pole bitwy procesorów AMD Ryzen serii 9000. Seria MAG firmy MSI to kwintesencja stabilności i trwałości, zbudowana tak, aby wytrzymać najbardziej intensywne sesje gier. Cała linia charakteryzuje się solidną konstrukcją o metalicznej twardości i doskonałym rozpraszaniu ciepła, zapewniając stabilność wszystkich krytycznych komponentów do gier.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
M.2_1 slot (From CPU)
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
M.2_2 slot (From CPU)
Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
*USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.
RAID Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
dimensionalWeight - 1443
dimension depth - 70 mm
dimension height - 340 mm
Dimensions - 243.84 mm x 304.8 mm
dimension weight - 2230 g
dimension width - 270 mm
ean - 4711377291927
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 4
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 4 x M.2
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 22110
Expansion slots - 2nd M.2 highest PCI Express generation - 5.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - 3rd M.2 highest PCI Express generation - 4.0
Expansion slots - 3rd M.2 largest key size - 2280
Expansion slots - 4th M.2 highest PCI Express generation - 4.0
Expansion slots - 4th M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x Flash BIOS Button
External connectors - 1 x HDMI
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x RJ-45
External connectors - 1 x S/PDIF
External connectors - 1 x USB 3.2 Gen 2 Type-C
External connectors - 2 x SMA
External connectors - 2 x Thunderbolt 4
External connectors - 2 x USB 3.2 Gen 2 Type-A
External connectors - 3 x USB 3.2 Gen 1 Type-A
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - CPU
Features - PC health monitoring - CPU, Fan, Temperature, Voltage
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Product colour - Black
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 5500/7467/5000/6666/8400/6200/5400/5133/4933/8266/7600/8200/5333/6600/7000/7400/6400/7200/5300/7500/8000/6800/4800/5066/7900/4866/5800/5600/5100/6000/5200/7800/7950 MHz
Full Description Line - AMD X870E|SAM5|ATX|DDR5|8400/8266/8200/8000/7950/7900/7800/7600/7500/7467/7400/7200/7000/6800/6666/6600/6400/6200/6000/5800/5600/5500/5400/5333/5300/5200/5133/5100/5066/5000/4933/4866/4800 MHz|Memory slots 4|3xPCI-Express 16x|4xM.2|1xAudio-In|1xAudio-Out|4xUSB 2.0|2xUSB 3.2|3xUSB-C|1xRJ45|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|SATA 3.0|Video Depending on CPU|Audio|LAN 5 Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Graphics - On-board graphics card - No
GTIN - 4711377291927
guarantee - 36
guarantee_type - normal
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Total number of SATA connectors - 4
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 4
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
LongDesc - Msi X870 Tomahawk wifi titleMAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.MAG msi arsenal gamingMSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
LongProductName - MPG X870E, 4 DIMMs DDR5 - 8400+MT/s (OC), Socket AM5, Ultra Performance: 14+2+1 Duet Rail Power System, 5Gbps LAN, Wi-Fi 7, 2x USB4
LongSummaryDescription - MSI MAG X870E TOMAHAWK WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 4
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8400 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5600,8400 MHz
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 8400
Memory - Supported memory types - DDR5-SDRAM
Memory bus frequency - 4800 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 8400 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - MAG X870E TOMAHAWK WIFI
name - Motherboard MAG X870E TOMAHAWK WIFI AM5 4DDR5 ATX
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8126
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - LAN 1x Realtek 8126 5G LAN WIRELESS LAN & BLUETOOTH Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 6
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x EZ Conn-header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 2x2 Type-C
Onboard connectors - 2 x 4pin wentylator CPU
Onboard connectors - 2 x System panel header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 4 x USB 3.2 Gen 1 Type-A
Onboard connectors - 6 x 4pin wentylator obudowy
Other information -
PCI-Express 16x Expansion slots - 3
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Compatible processor series - AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Processor - Compatible processor series - AMD Ryzen 8000 Series
Processor - Compatible processor series - AMD Ryzen 9000 Series
Processor - Maximum internal memory supported by processor - 256 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - MSI
producerCode - MAG X870E TOMAHAWK WIFI
ProductName - MAG X870E TOMAHAWK WIFI
productName - MSI MAG X870E TOMAHAWK WIFI motherboard AMD X870E Socket AM5 ATX
productSize - Normal
RAID - SATA 0, 1, 10
RAID - Yes

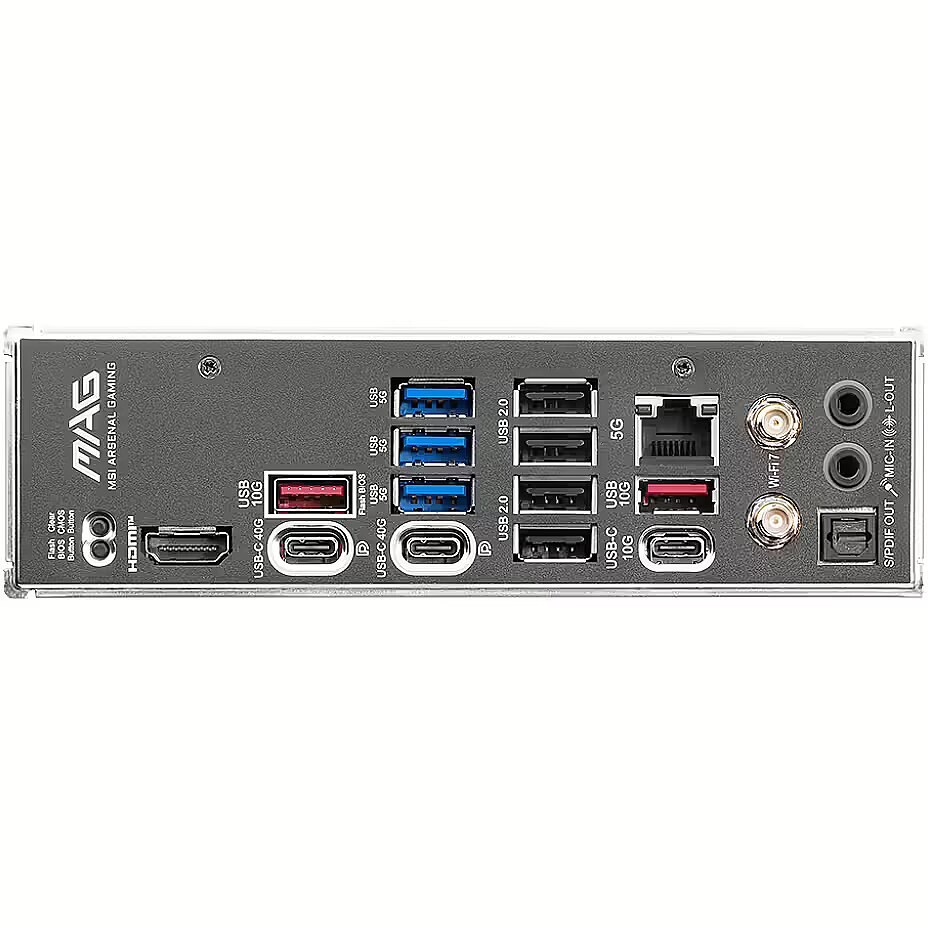

Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 34.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 27.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.248 kg
Shipping Box Width Shipping/Package Box Dimensions - 7 cm
ShortSummaryDescription - MSI MAG X870E TOMAHAWK WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, 256 GB, DDR5-SDRAM
sizeX - 350
sizeY - 275
sizeZ - 75
Socket - SAM5
Software -
Sound card - Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Title - MSI MAG X870E TOMAHAWK WIFI motherboard AMD X870E Socket AM5 ATX
TPM - Header
Unit Box Height - 0.275
Unit Box Length - 0.345
Unit Box Width - 0.07
Unit Brutto Volume - 0.006641 cubm
Unit Gross Weight - 2.25 kg
Unit Net Weight - 1.8 kg
URL - https://www.msi.com/Motherboard/MAG-X870E-TOMAHAWK-WIFI
USB-C Input/Output connectors - 3
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 2
USB 3.2 Interface - Yes
USB ports at back panel - 12
USB ports on motherboard - 9
Vendor Homepage - www.msi.com/Motherboard/MAG-X870E-TOMAHAWK-WIFI
vendpn - MAG X870E TOMAHAWK WIFI
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 2240
Weight & dimensions - Depth - 304.8 mm
Weight & dimensions - Width - 243.8 mm
WiFi Interface - Yes
