BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.5
Brand - MSI
BrandPartCode - B650M PROJECT ZERO
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
code - 7E09-003R
ean - 4711377126649
EAN_code - 4711377126649
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x1 slots - 1
Expansion slots - PCI Express x16 slots - 1
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Product colour - White
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
GTIN - 4711377126649
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1

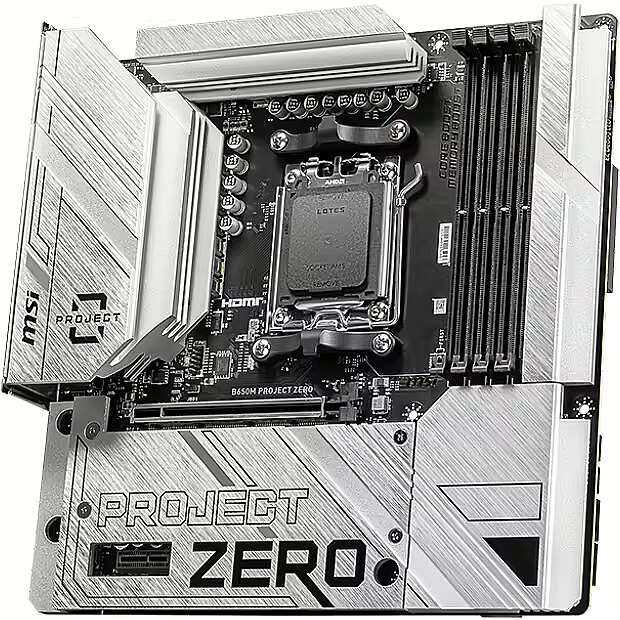

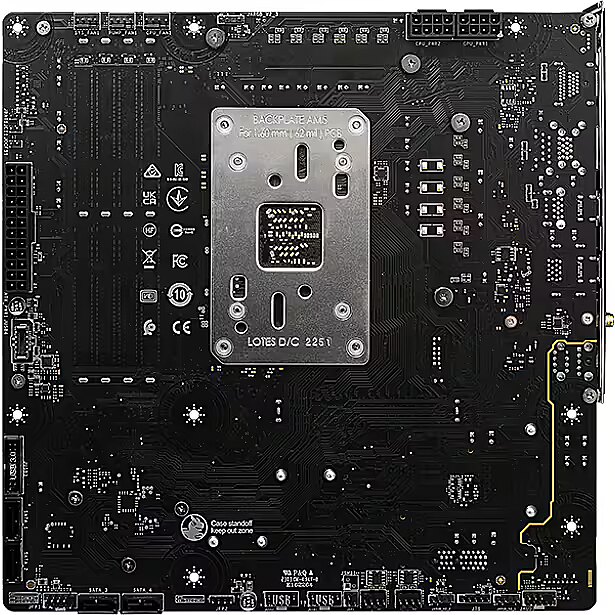

LongDesc - ABSOLUTE SIMPLICITYB650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.REINFORCED,HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
LongProductName - Intel B650M, 4x DDR5 7600Hz (OC), 1x HDMI, 1x DisplayPort, 2x M.2, 2.5Gbps LAN, AMD Wi-Fi 6E
LongSummaryDescription - MSI B650M PROJECT ZERO. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Manufacturer - MSI
Manufacturer_code - 7E09-003R
Memory - ECC сompatibility - Non-ECC
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7600 MHz
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7400,7600 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Name - MSI B650M PROJECT ZERO - Socket AM5 - motherboard
name - MSI Pro B650M Project Zero, AMD B650 Mainboard - Sockel AM5, DDR5
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Packaging content - Cables included - SATA
Processor - Maximum internal memory supported by processor - 128 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
ProductName - B650M PROJECT ZERO

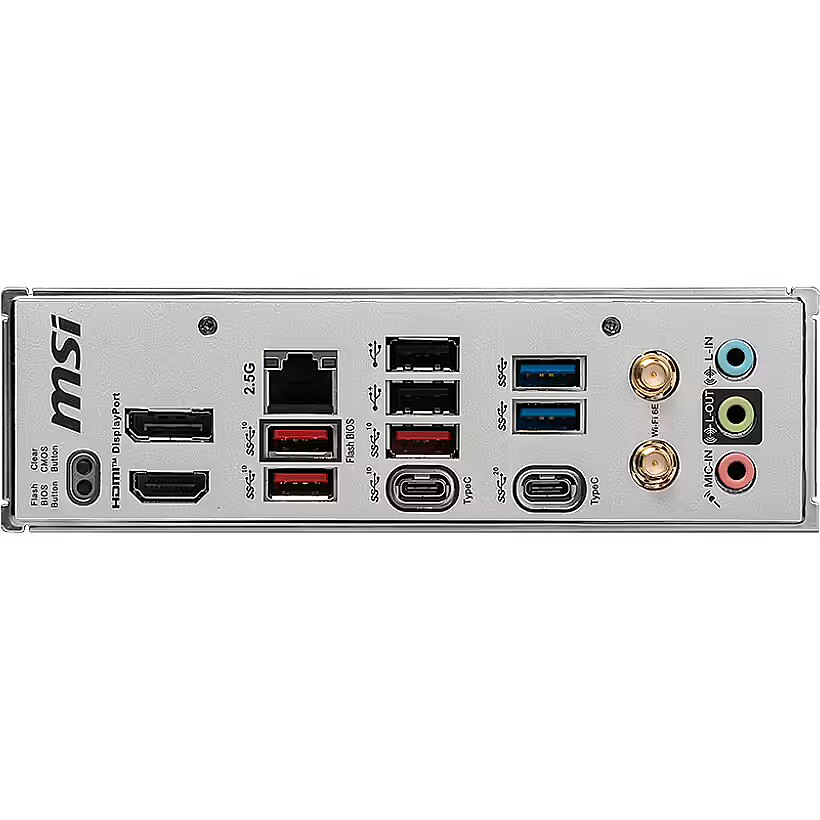

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
ShortSummaryDescription - MSI B650M PROJECT ZERO, AMD, Socket AM5, Socket AM5, 128 GB, DDR5-SDRAM, 128 GB
Storage controllers - RAID levels - 0, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express
Storage controllers - Supported storage drive types - HDD & SSD
Technical_details - The B650M PROJECT ZERO motherboard is based on the AMD B650 chipset and supports AMD processors for socket AM5. It has four DDR5 DIMM slots in dual-channel operation for up to 128 GB of RAM. The B650M PROJECT ZERO's additional features include a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The B650M PROJECT ZERO also has 8-channel sound, a 2.5 Gigabit LAN interface, Wi-Fi6E, Bluetooth, four SATA3 ports, two M.2 ports and a range of USB interfaces.Art. -No.: 100031425 Mainboard type EAN 4711377126649 Manufacturer no. 7E09-003R Socket AM5 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael ), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael) Chipset AMD B650 Slots PCIe x16 1x (of which: 1x PCIe x16) AMD Wi-Fi 6E, Bluetooth 5.3 Form factor µATX Use PC Memory maximum 128 GB Ports (external) USB-C 3.2 Gen 2x2 (20 Gbit/s) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 SATA controller AMD B650 Directly usable RAID levels 0, 1, 10 USB controller AMD B650 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek ALC897 Codec LAN Realtek RTL8125BG 2.5Gbps LAN Further information The M.2 slots support PCIe 4.0 x4 Accessories available: SATA CABLE, WLAN antennas, instructions, cable sticker Dimensions Width: 243.84mm x Height: 243.84mm
Title - MSI B650M PROJECT ZERO motherboard AMD B650 Socket AM5 micro ATX
URL - https://www.msi.com/Motherboard/B650M-PROJECT-ZERO
WarrantyInfo -
Weight - 1,91
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 243.8 mm
