Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Brand - GIGABYTE
BrandPartCode - B650E AORUS ELITE X AX ICE
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
code - B650E A ELITE X ICE
ean - 4719331860554
EAN - 4719331860554
EAN_code - 4719331860554
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x16 slots - 3
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage
Features - Product colour - White
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Gross Weight Kg - 3,26
GTIN - 4719331860554
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - Thunderbolt headers - 2
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - AMD Socket AM5, AMD B650, 4 x DDR5, 2.5GbE, ATX, PCI-Express
LongSummaryDescription - GIGABYTE B650E AORUS ELITE X AX ICE Motherboard - Supports AMD Ryzen 8000 CPUs, 12+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 M2 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 7. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Manufacturer - GigaByte
Manufacturer Code - B650E AORUS ELITE X ICE
Manufacturer Name - Gigabyte
Manufacturer_code - B650E A ELITE X AX ICE
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 8000, 7800, 7600, 7200, 7000, 6800, 6666, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Name - GigaByte B650E A ELITE X ICE - Socket AM5 - motherboard
name - GIGABYTE B650E Aorus Elite X ICE, AMD B650E Mainboard - Sockel AM5, DDR5
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Network - WLAN controller model - AMD RZ616
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.19 kg
Packaging data - Package width - 335 mm
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
ProductName - B650E AORUS ELITE X AX ICE Motherboard - Supports AMD Ryzen 8000 CPUs, 12+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 M2 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2

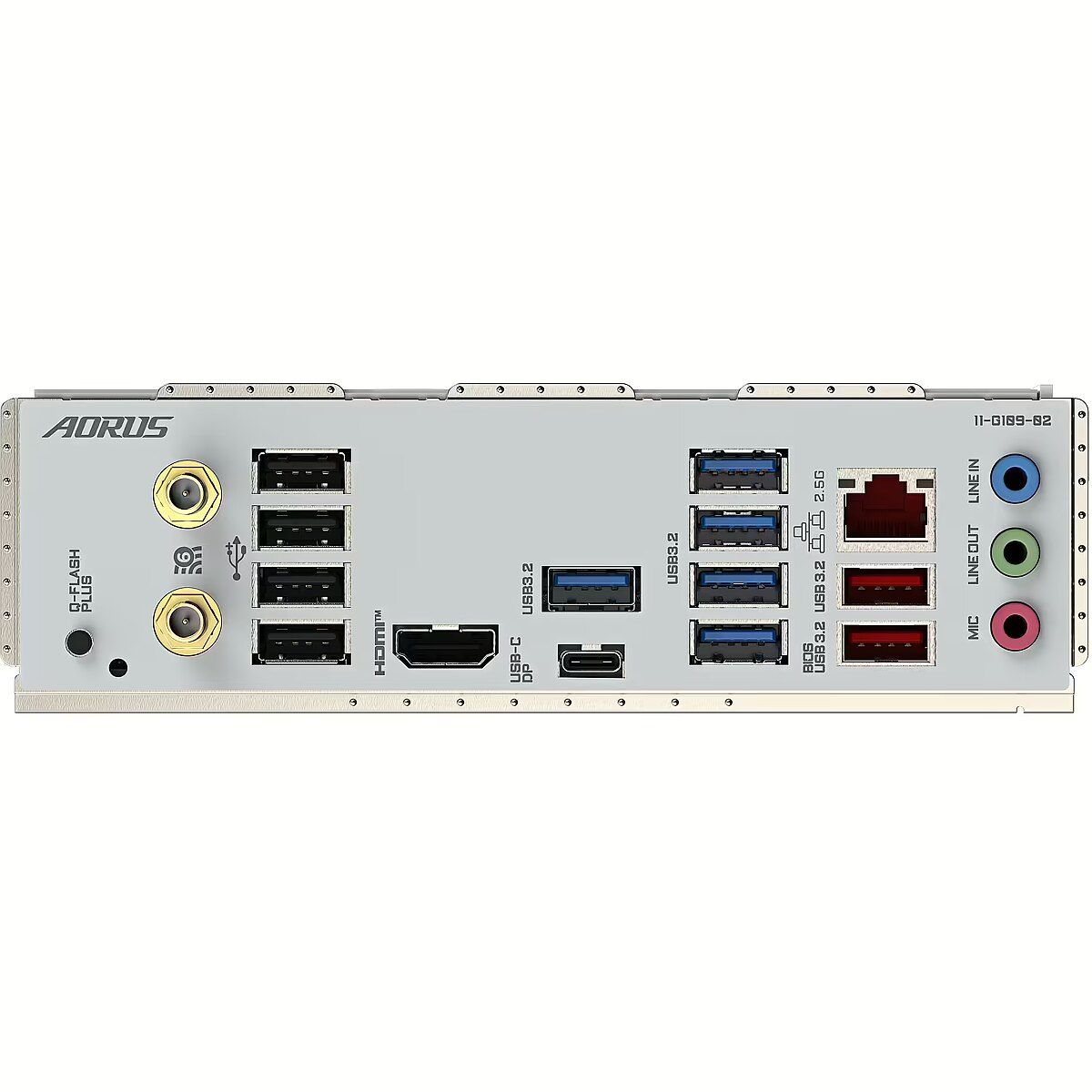

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 5
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
Short description - GIGA B650E AORUS ELITE X ICE AM5/DDR5/ATX
ShortSummaryDescription - GIGABYTE B650E AORUS ELITE X AX ICE Motherboard - Supports AMD Ryzen 8000 CPUs, 12+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 M2 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2, AMD, Socket AM5, AMD Ryzen™ 7, Socket AM5, 192 GB, DDR5-SDRAM
Storage controllers - Number of HDDs supported - 3
Storage controllers - Number of storage drives supported - 7
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical_details - The GIGABYTE B650E A ELITE X ICE is based on the AMD B650 chipset and supports AMD processors for Socket AM5. It has four DDR5 slots for up to 128 GB of memory. The GIGABYTE B650E AORUS MASTER's additional features include a PCIe 5.0 x16 slot and two PCIe 3.0 x16 slots. The GIGABYTE B650E A ELITE -No.: 100038247 Mainboard type EAN 4719331860554 Manufacturer no. B650E A ELITE X ICE Socket AM5 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael ), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael) Chipset AMD B650 Slots PCIe x16 3x (of which: 1x PCIe x16, 1x PCIe x4, 1x PCIe x2) BIOS 256MB Flash ROM, UEFI AMI BIOS Realtek Wi-Fi 6E RTL8852CE + Bluetooth Form factor ATX Use PC Power supply ATX12V (24-pin + 8-pin + 4-pin) Memory maximum 192 GB Connections (external) Keyboard (PS/2) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 RGB Standard AURA Sync SATA controller AMD B650 Directly usable RAID levels 0, 1, 10 USB controller AMD B650 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek Audio CODEC LAN Realtek 2.5GbE LAN Features USB-C with DisplayPort 1.4 + HDR support Further information In order to support the latest processor cores, a BIOS update may be required. Dimensions Width: 244mm x Height: 305mm
Title - GIGABYTE B650E AORUS ELITE X AX ICE Motherboard - Supports AMD Ryzen 8000 CPUs, 12+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 M2 + 2xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
URL - https://www.gigabyte.com/uk/Motherboard/B650E-AORUS-ELITE-X-AX-ICE#kf
WarrantyInfo - 3 years
Weight - 2,19
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
