15pin D-sub Input/Output connectors - 1
Accessories included -
Audio port Input/Output connectors - 3
BIOS -
BIOS - ACPI version - 6.4
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.5
Brand - MSI
BrandPartCode - PRO B650M-B
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD B650
Chipset manufacturer - AMD
Chipset type - AMD B650
code - 7E28-005R
Code - PRO B650M-B
COM connector / port - Yes
CPU socket - Socket AM5
Description - PRO B650M-B Supports AMD Ryzen 8000/7000 series desktop processors Supports DDR5 memory, dual-channel DDR5 6800+MHz (OC) Core Boost: With superior layout and digital power design to support more cores and deliver better performance Memory Boost: Advanced technology to ensure clean data signals for the best performance, stability and compatibility Lightning-fast gaming: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 connector 2.5G LAN: an enhanced networking solution for professional and multimedia applications. Provides a safe, stable and fast network connection AUDIO ENHANCEMENT: Reward your ears with studio-quality sound for the most immersive gaming experience Steel Armor: Protects VGA cards against bending and electromagnetic interference for improved performance, stability and durability
Description - PRO B650M-B Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC) Core Boost : With premium layout and digital power design to support more cores and provide better performance Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Detailed data on disk/drive interfaces - Sockets 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (from CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (from chipset) Storage 1x M.2 M.2_1 source (from CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4xSATA6G Raid Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
dimension depth - 55 mm
dimension height - 260 mm
Dimensions - 215 x 243.84 mm
dimension weight - 840 g
dimension width - 260 mm
EAN - 4711377144797
ean - 4711377144797
EAN_code - 4711377144797
Expansion slots - 1 x M.2
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe x 1
Expansion slots - 1 x PCIe x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 1
External connectors - 1 x D-Sub
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard
External connectors - 1 x PS/2 Mouse
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD B650
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan
Features - Windows operating systems supported - Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 MHz
Full Description Line - AMD B650|SAM5|Micro-ATX|DDR5|6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|1x15pin D-sub|1xHDMI|2xUSB 2.0|4xUSB 3.2|2xPS/2|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Serial|Video Depending on CPU|Audio Realtek ALC897|LAN 2.5 Gigabit|RAID SATA 0, 1, 10|TPM Header
Graphics - 1x HDMI HDMITM 2.1 support, maximum resolution 4K 60 Hz* 1x VGA VGA support, maximum resolution 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed processor.
GTIN - 4711377144797
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Realtek ALC897
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - USB 2.0 connectors - 4
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - M.2, SATA
Link - https://www.msi.com/Motherboard/PRO-B650M-B/Overview
LongDesc - BUSINESS ELEGANCEThe PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Chipset HeatsinkThe chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.LIGHTNING GEN 4 PCI-EMSI lightning Gen 4 PCI-E represents the bandwidth of a x16 interface to 64GB/s that has doubled compared to its previous generation.REINFORCED,HEAVY SOLDERED CONNECTIONSMSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points and support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor shields the point of contact from electromagnetic interference.
LongProductName - AMD B650, 2x DDR5, 6800MHz, 1x HDMI, 1x VGA, 1x M.2, 4x SATA 6G, mATX
LongSummaryDescription - MSI PRO B650M-B. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Supported memory clock speeds: 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz. Supported storage drive interfaces: M.2, SATA, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 1
Manufacturer - MSI
Manufacturer_code - 7E28-005R
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 96 GB
Memory - Maximum internal memory - 96 GB
Memory - Number of memory slots - 2
Memory - Supported memory clock speed (max) - 6800 MHz
Memory - Supported memory clock speeds - 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory > Supported memory types - DDR5
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory slots - 2
Memory type - DDR5
Memory type - DDR5
Model - PRO B650M-B
name - MSI Pro B650M-B, AMD B650 Mainboard - Sockel AM5, DDR5
Name - MSI PRO B650M-B - Socket AM5 - motherboard (black)
Name - MSI | PRO B650M-B | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces M.2, SATA | Number of SATA connectors 4
name - PRO B650M-B AM5 2DDR5 HDMI mATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125-BG
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Realtek RTL8125BG 2.5G LAN
Number of DDR5 slots - 2
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Addressable LED
Onboard connectors - 1 x Chassis intrusion header
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x 4pin Chassis fan
Onboard connectors - 2 x System panel header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 4 x EZ Debug LED
Onboard connectors - 4 x USB 2.0/1.1
Other information -
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 275.00 mm
Package features > Gross width (mm) - 80.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 117 pc(s)
Package features > Paper/Pasteboard - 250.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > TI weight (kg) - 0.02 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 7000 Series
Processor - Maximum internal memory supported by processor - 96 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
producer - MSI
Producer product name - PRO B650M-B
ProductName - PRO B650M-B
PS/2 Input/Output connectors - 2
RAID - SATA 0, 1, 10
RAID - Yes

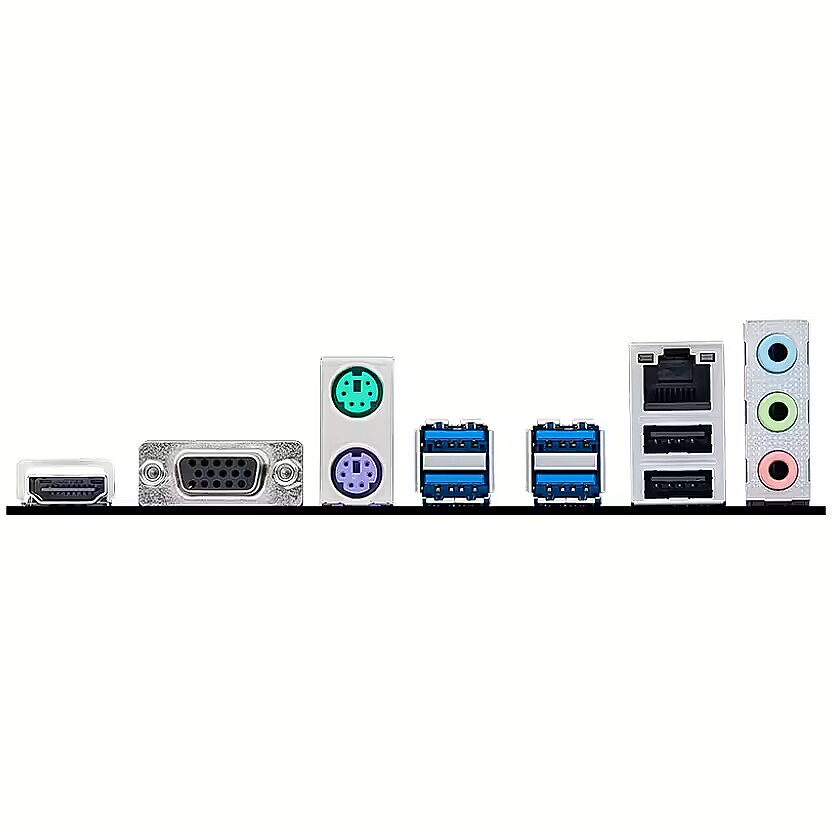

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Serial Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 59.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 29 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 18.45 kg
Shipping Box Width Shipping/Package Box Dimensions - 54 cm
ShortSummaryDescription - MSI PRO B650M-B, AMD, Socket AM5, AMD Ryzen 7000 Series, Socket AM5, 96 GB, DDR5-SDRAM
Socket - SAM5
Software -
Sound card - Realtek ALC897 Codec 7.1-Channel High Definition Audio
Special functions -
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - Supported storage drive interfaces - M.2, SATA
Supported operating systems - Windows 11
Technical details > Gross weight - 1.27 kg
Technical details > Net weight - 0.97 kg
Technical details > Producer - MSI
Technical details > Warranty - 36 month(s)
Technical_details - The MSI PRO B650M-B motherboard is based on the AMD B650 chipset and supports AMD processors for socket AM5. It has two DDR5 slots for up to 96 gigabytes of RAM. The PRO B650M-B's additional features include a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot. The MSI B650M-P also has 8-channel sound, a 2.5 Gigabit LAN interface, four SATA3 ports, an M.2 port, and a number of USB interfaces. Item no.: 100031627 Mainboard type Color: Black EAN 4711377144797 Manufacturer no. 7E28-005R Socket AM5 Max. supported CPUs 1 Operating system support Windows 10 ready, Windows 11 ready Processor Supported Models Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 8xxxG (Phoenix), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael ), Ryzen 7 8xxxG (Phoenix), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael) Chipset AMD B650 Slots PCIe x16 1x (of which: 1x PCIe x16) TPM Yes Form factor µATX Use PC Power supply ATX12V (24-pin + 8-pin) Memory maximum 128 GB Connections (external) Keyboard (PS/2) 1 Connectors (internal) SATA 4 Ports (optional) USB 3.2 Gen 1 (5 Gbit/s) 2 SATA controller AMD B650 Directly usable RAID levels 0, 1, 10 USB controller AMD B650 Onboard graphics The graphics connections on the mainboard can only be used when using a CPU with an integrated graphics chip. Sound Realtek ALC897 Codec LAN Realtek RTL8125BG 2.5G LAN Further information the M.2 slot supports PCIe 4.0 x4 Accessories available: SATA cable, M.2 mounting material, I/O cover Dimensions Width: 215mm x Height: 243.84mm

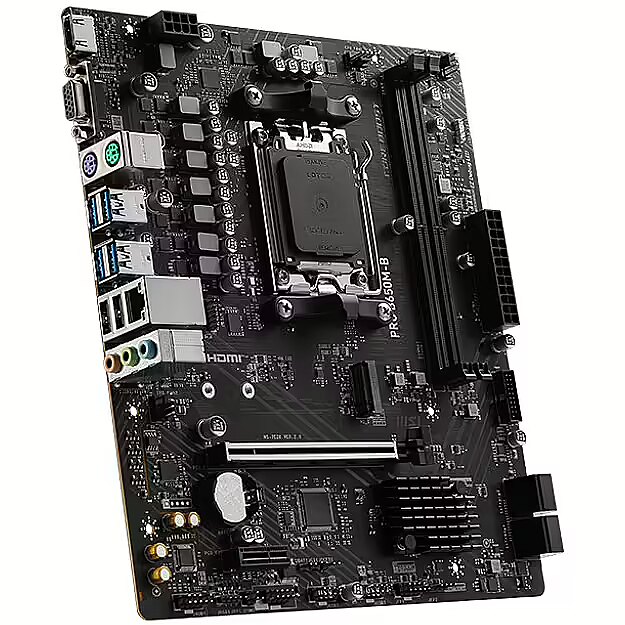

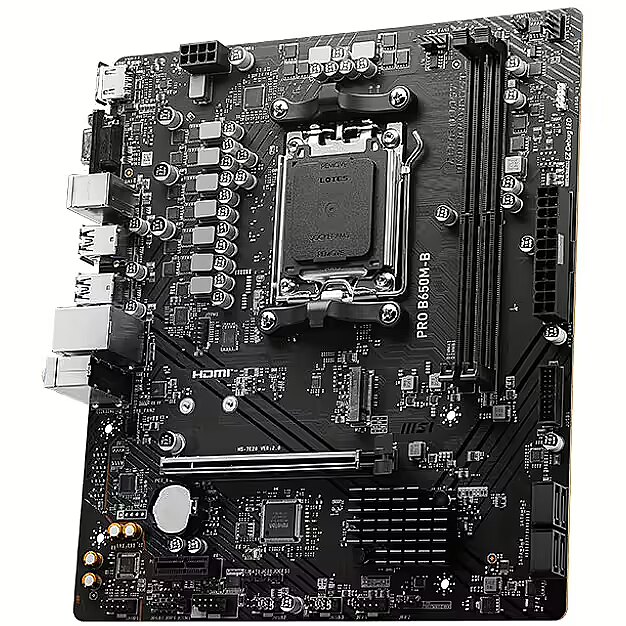

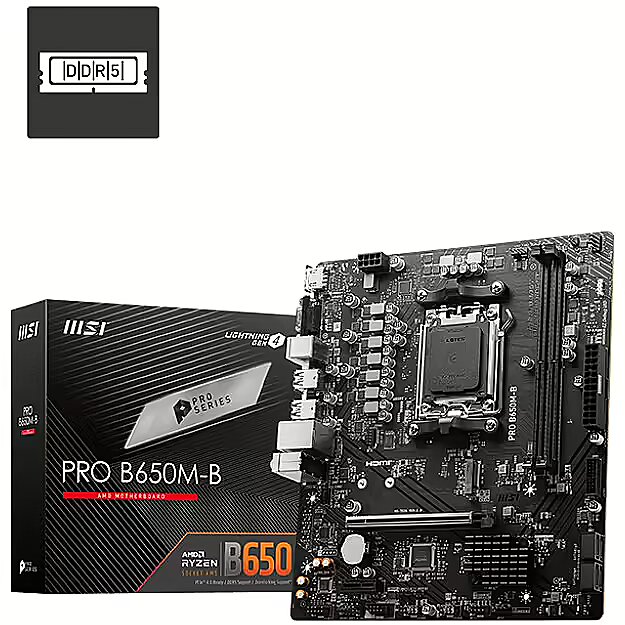

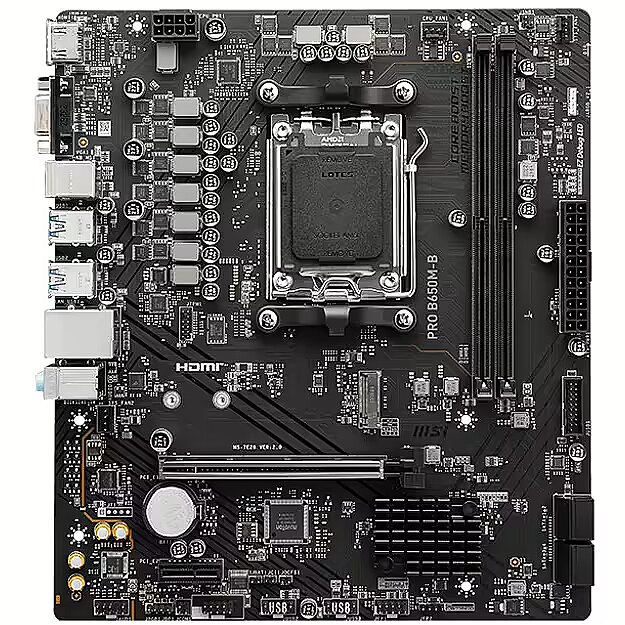

Title - MSI PRO B650M-B motherboard AMD B650 Socket AM5 micro ATX
TPM - Header
Unit Brutto Volume - 0.004659 cubm
Unit Gross Weight - 0.922 kg
Unit Net Weight - 0.8 kg
URL - https://www.msi.com/Motherboard/PRO-B650M-B
USB 2.0 Input/Output connectors - 2
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 6
Vendor Homepage - www.msi.com/Motherboard/PRO-B650M-B
vendpn - PRO B650M-B
Warranty - 36
Warranty - 36 months
WarrantyInfo -
Weight - 0,80
Weight & dimensions - Depth - 243.8 mm
Weight & dimensions - Width - 215 mm
