Cooler Master Hyper 212 Evo V2

Air flow - 62 cfm
Air flow rates - 62 cfm
Category - Root/Electronics/PC parts/Cooling/Processor fans
Category Code - COC
Category_1 - Computer Cases and Cooling
Category_2 - Coolers for CPU
Code - RR-2V2E-18PK-R2
Cooler base material - Aluminum
Cooling technology - Air
CPU socket - LGA775
CPU socket - LGA1150
CPU socket - LGA1151
CPU socket - LGA1155
CPU socket - LGA1156
CPU socket - LGA1200
CPU socket - LGA1366
CPU socket - LGA1700
CPU socket - LGA2011
CPU socket - LGA2011-3
CPU socket - LGA2066
CPU socket - Socket AM2
CPU socket - Socket AM2+
CPU socket - Socket AM3
CPU socket - Socket AM3+
CPU socket - Socket AM4
CPU socket - Socket FM1
CPU socket - Socket FM2
CPU socket - Socket FM2+
Description - Cooler Master Hyper 212 EVO V2 is redesigned with an Asymmetrical tilt to guarantee RAM Clearance, along with revised brackets to assure the ease of installation. It is also paired with Cooler Masters' new SickleFlow 120 fan to improve cooling and acoustic performances.
100% RAM CLEARANCE
The asymmetrical heat pipe design ensures RAM compatibility and clearance space
ONLY 155MM HEIGHT
Low heatsinks for better chassis clearance
X-VENTS DESIGN
Positioned in a 45-degree angle and surrounding the heatpipe, each fin-blade features X-shaped vents that create areas of high and low air pressure, resulting in several controlled vortices. These small and chaotic turbulences produce strong gusts that reduce overall airflow but improve airflow where it matters the most - next to the heatpipes

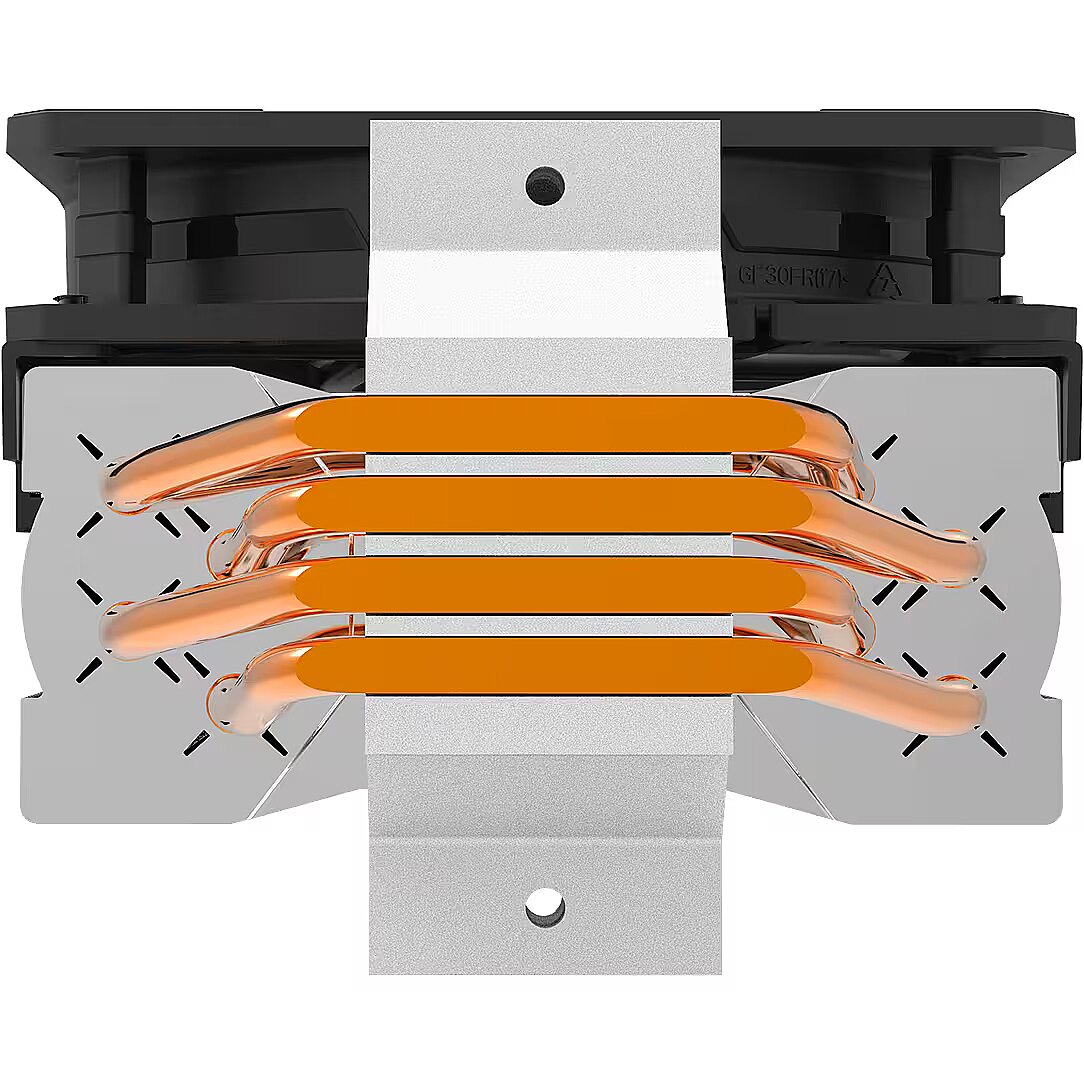

DIRECT CONTACT TECHNOLOGY
4 heatpipes with Direct Contact Technology creates a sleek contact surface area for maximize heat dissipation
SICKLEFLOW 120 FAN
Newly Optimized blade design with updated curve that provides best balance between airflow and static pressure to take the heat away while remain extremely silence.
QUIET OPERATION
Low vibrations and quiet fan allows for nearly inaudible levels. More than 10% decreased of fan noise level from previous model.
EASY INSTALLATION
Tool-free mounting system ensures hassle-free installation. Universal retention brackets are compatible with latest Intel and AMD socket CPU.
Description - HYPER 212 EVO V2 WITH LGA1700 (NEW PACKAGING) Cooler Master Hyper 212 EVO V2 is redesigned with an Asymmetrical tilt to guarantee RAM Clearance, along with revised brackets to assure the ease of installation. It is also paired with Cooler Masters' new SickleFlow 120 fan to improve cooling and acoustic performances.
Design - Fan connector - 4-pin
Design - Fins material - Aluminium
Design - Number of fans - 1 fan(s)
Design - Number of heat pipes - 4
Design - Product colour - Black
Design - Product colour - Silver
Design > Colour of product - Silver
dimensionalWeight - 750
dimension depth - 100 mm
dimension height - 230 mm
Dimensions - 120 X 80 X 154 mm
Dimensions - 155 x 80 x 120 mm
dimension weight - 990 g
dimension width - 160 mm
EAN - 4719512123478
ean - 4719512123478
Eans - 4719512123478
EAN_code - 4719512123478
Fan - 12 cm
Fan size group - 120mm
Fan speed - 650-1800 RPM (PWM) ± 5%
Fan speed (max) - 1800 rpm
Fan speed (min) - 650 rpm
Full Description Line - RR-2V2E-18PK-R2|LGA1150/LGA1151/LGA1155/LGA1156/LGA1200/LGA1700/LGA2011/LGA2011-3/LGA2066/SA/SAM2/SAM2+/SAM3/SAM3+/SAM4/SF/SFM1/SFM2/SFM2+|Fan speed 650-1800 RPM (PWM) ± 5%|Air flow 62 cfm|TDP 1.8 Watts|Noise level, max 27 dB|Dimensions 120 X 80 X 154 mm|Weight 0.8 kg
guarantee - 24
guarantee_type - normal
Link - https://www.coolermaster.com/catalog/coolers/cpu-air-coolers/hyper-212-evo-v2-with-lga1700/
Mainboard connection - 4-pin
Manufacturer - Cooler Master
Manufacturer_code - RR-2V2E-18PK-R2
Model name - RR-2V2E-18PK-R2
Name - Cooler Master Hyper 212 EVO V2 LGA 1700
Name - Cooler Master Hyper 212 EVO V2, CPU cooler (silver/black, with socket 1700 support)
Name - Cooler Master | Hyper 212 EVO V2 WITH LGA1700 | Silver | Air Cooler
name - CPU cooling Hyper 212 EVO V2 with LGA1700
Noise level, max - 27 dB
Number of fans - 1
Other features -
Other features - Mean time to failure (MTTF) - 160000 h
Other features > Air pressure - 2.52 mmH2O (Max)
Other features > Dimensions (WxDxH) - 80 x 120 x 154 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 227.00 mm
Package features > Gross height (mm) - 96.00 mm
Package features > Gross width (mm) - 156.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 508 pc(s)
Package features > Paper/Pasteboard - 140.00 g
Package features > Plastic (No PET) - 57.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 62 cfm
Performance - Maximum air pressure - 2.52 mmH2O
Performance - Noise level (high speed) - 27 dB
Performance - Noise level (low speed) - 8 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 1800 RPM
Performance - Rotational speed (min) - 650 RPM
Performance - Supported processor sockets - LGA 775 (Socket T)
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1151 (Socket H4)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1156 (Socket H)
Performance - Supported processor sockets - LGA 1200
Performance - Supported processor sockets - LGA 1366 (Socket B)
Performance - Supported processor sockets - LGA 1700
Performance - Supported processor sockets - LGA 2011 (Socket R)
Performance - Supported processor sockets - LGA 2011-v3 (Socket R)
Performance - Supported processor sockets - LGA 2066
Performance - Supported processor sockets - Socket AM2
Performance - Supported processor sockets - Socket AM3
Performance - Supported processor sockets - Socket AM3+
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket FM1
Performance - Supported processor sockets - Socket FM2
Performance - Supported processor sockets - Socket FM2+
Performance - Type - Cooler
Performance > Maximum airflow - 62 cfm
Performance > Noise level (high speed) - 27 dB
Performance > Noise level (low speed) - 8 dB
Performance > Number of heat pipes - 4
Performance > Supported processor sockets - LGA1700, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
Performance > Type - Air Cooler
Power - Rated current - 0.15 A
Power - Rated voltage - 12 V
Power > Rated current - 0.15 A
Power > Voltage - 12 V
producer - Cooler Master
Producer - CoolerMaster
producerCode - RR-2V2E-18PK-R2
ProducerCode - RR-2V2E-18PK-R2
productName - Cooler Master Hyper 212 HYPER 212 EVO V2 LGA1700
productSize - Normal
Radiator - Aluminium
Shipping Box Depth Shipping/Package Box Dimensions - 53 cm
Shipping Box Height Shipping/Package Box Dimensions - 26.5 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 10.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 34 cm
ShortDescription - wentylator CPU o wymiarach 120x80x155
sizeX - 230
sizeY - 160
sizeZ - 102
Socket - LGA1150/LGA1151/LGA1155/LGA1156/LGA1200/LGA1700/LGA2011/LGA2011-3/LGA2066/SA/SAM2/SAM2+/SAM3/SAM3+/SAM4/SF/SFM1/SFM2/SFM2+
Stand / CPU block - Aluminium
Technical details > Fan connector - 4-Pin (PWM)
Technical details > Fan speed (max) - 1800 RPM
Technical details > Fan speed (min) - 650 RPM
Technical details > Gross weight - 1.00 kg
Technical details > Net weight - 0.80 kg
Technical details > Producer - Cooler Master
Technical details > Producer product name - Hyper 212 EVO V2 WITH LGA1700
Thermal Design Power (TDP) - 1.8 Watts
Type of cooling - Active
Unit Box Height - 0.102
Unit Box Length - 0.23
Unit Box Width - 0.16
Unit Brutto Volume - 0.004775 cubm
Unit Gross Weight - 1.06 kg
Unit Net Weight - 0.8 kg
Vendor Homepage - www.coolermaster.com/catalog/coolers/cpu-air-coolers/hyper-212-evo-v2-with-lga1700/#specifications
vendpn - RR-2V2E-18PK-R2
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
warrantyLength - 24
warrantyType - G
Weight - 0,99
weight - 975
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Height - 155 mm
Weight & dimensions - Package depth - 157 mm
Weight & dimensions - Package height - 228 mm
Weight & dimensions - Package width - 99 mm
Weight & dimensions - Weight - 760 g
Weight & dimensions - Width - 80 mm
Weight & dimensions > Fan dimensions (W x D x H) - 120 x 120 x 25 mm
