Aerocool Rave 3 PWM FRGB

Brand - Aerocool
BrandPartCode - AEROPGSRAVE3-FRGB-4P
Category - Computer Cooling Systems
Design - Airflow - 24,1-58 CFM
Design - Backlight - Yes
Design - Base plate material - Aluminium
Design - Fan connector - 3-pin
Design - Fan connector - 4-pin
Design - Fins material - Aluminium
Design - Illumination colour - Multi
Design - Illumination LED - Yes
Design - LED backlighting type - ARGB
Design - Material - Aluminium
Design - Maximum air pressure - 0,6-1,6 mmH2O
Design - Mean time between failures (MTBF) - 60000 h
Design - Noise level - 18-27 dBA
Design - Number of fan blades - 9
Design - Number of fans - 1 fan(s)
Design - Number of heat pipes - 3
Design - Number of heat pipes - 4
Design - Number of LEDs - 8
Design - Product colour - Black
Design - Product colour - Black, White
Design - Radiator material - Aluminum
dimensionalWeight - 327
GTIN - 4711099472222
LongDesc - FRGB CPU AIR COOLERPWM air cooling solution with a 12cm FRGB fan with translucent fan blades to deliver superior cooling with style. Powered by Heat Core Touch Technology (HCTT) with 3 ultra-efficient thermal heat pipes. Black coating on fins increases heat dissipation area and improves efficiency of dissipation.EQUIPPED WITH 12CM FRGB FANComes equipped with a 12cm FRGB fan to add a stylish flair to your rig. Translucent fan blades allow you to fully appreciate the beauty of this cooler’s RGB lighting.HEAT CORE TOUCH TECHNOLOGY (HCTT)Three ultra-efficient thermal heat pipes provide a perfectly flat and smooth surface to maximize contact surface area.This allows for minimal heat transfer loss while in direct contact with the CPU to increase the efficiency of heat dissipation.PWM HIGH-PRESSURE FAN120mm high-pressure fan provides a stronger airflow to push heat away from the aluminum fins faster.HIGH EFFICIENCY FINSUpgraded high efficiency aluminum fins for maximum thermal performance.Black thermal coating on fins increases the cooler’s thermal conductivity and heat dissipation capabilities.COMPATIBILITYCompatible with most current motherboard designs.Socket compatibility:LGA 1200/115X/775AM4/AM3+/AM3/AM2+/AM2/FM2/FM1COMES WITH PWM 4-PIN CONNECTOR
LongProductName - Rave 3 FRGB, Intel/AMD, 900-1800 rpm, 120 mm, 6 mm x 3, PWM, 0.6-1.6 mm-H2O, 24.1-58.0 CFM, 130 TDP, 125 x 75 x 135 mm
LongSummaryDescription - Aerocool Rave 3 FRGB. Type: Air cooler, Fan diameter: 12 cm, Minimum air pressure: 0.6 mmH2O, Maximum air pressure: 1.6 mmH2O, Bearing type: Hydraulic. Width: 125 mm, Depth: 75 mm, Height: 135 mm. Product colour: Black, White
Packaging content - CPU bracket(s) - Yes

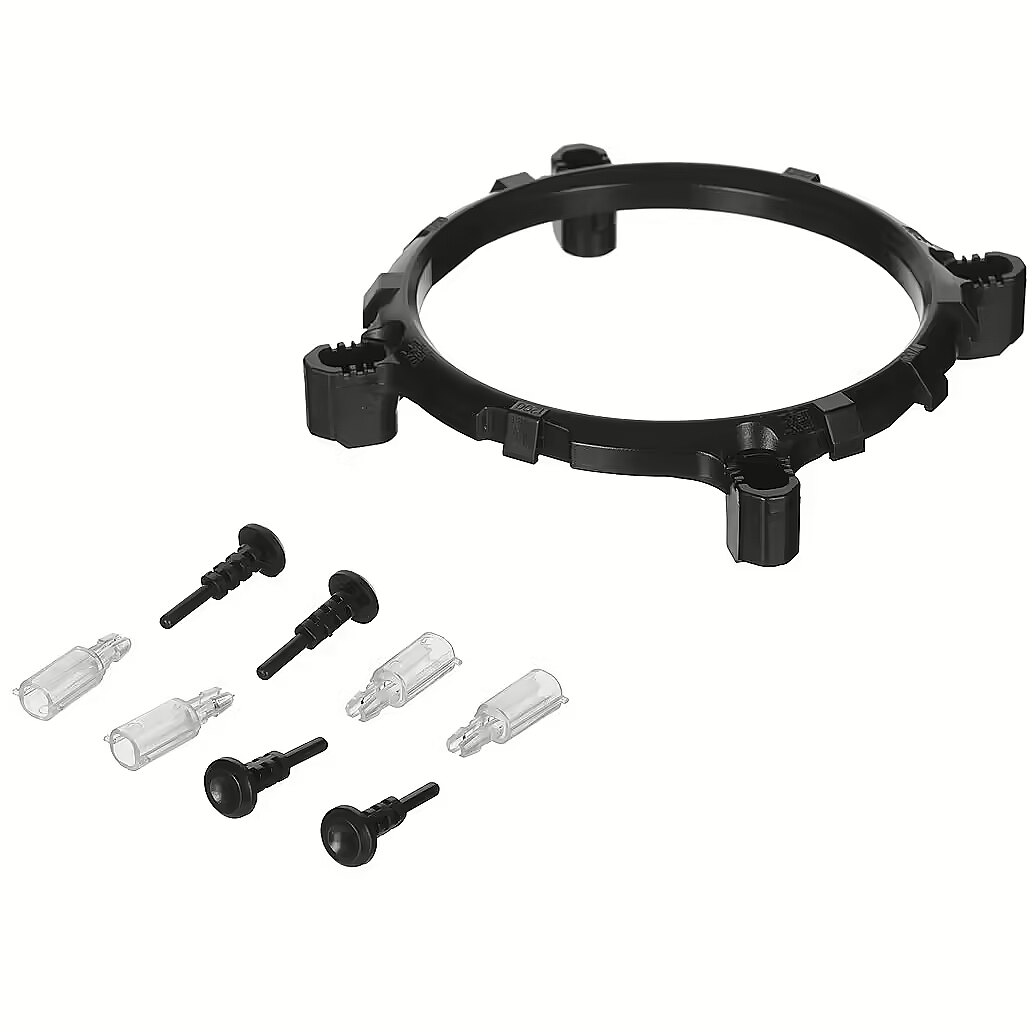

Packaging content - Mounting kit - Yes
Packaging content - Package type - Hanging box
Performance - Bearing type - Hydraulic
Performance - Fan diameter - 12 cm
Performance - Fan noise level (max) - 27 dB
Performance - Fan noise level (min) - 18 dB
Performance - Fan speed (max) - 1800 RPM
Performance - Fan speed (min) - 900 RPM
Performance - Maximum airflow - 58 cfm
Performance - Maximum air pressure - 1.6 mmH2O
Performance - Mean time between failures (MTBF) - 60000 h
Performance - Minimum air pressure - 0.6 mmH2O
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 1800 RPM
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 775
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket 755, Socket AM2, Socket AM2+, Socket AM3, Socket AM4, Socket AM5, Socket FM1, Socket FM2
Performance - Supported processor sockets - LGA 1151 (Socket H4)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1156 (Socket H)
Performance - Supported processor sockets - LGA 1200
Performance - Supported processor sockets - LGA 1700
Performance - Supported processor sockets - Socket AM2
Performance - Supported processor sockets - Socket AM2+
Performance - Supported processor sockets - Socket AM3
Performance - Supported processor sockets - Socket AM3+
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket AM5
Performance - Supported processor sockets - Socket FM1
Performance - Supported processor sockets - Socket FM2
Performance - Type - Air cooler
Performance - Type - Cooler
Power - Power consumption (typical) - 6 W
Power - Rated current - 0.5 A
Power - Rated voltage - 12 V
Power - Starting voltage - 5 V
Power - Thermal Design Power (TDP) - 130 W
producerCode - AEROPGSRAVE3-FRGB-4P
productName - Aerocool PGS Rave 3 FRGB PWM 4P
ProductName - Rave 3 FRGB
productSize - Normal
ShortSummaryDescription - Aerocool Rave 3 FRGB, Air cooler, 12 cm, Black, White
sizeX - 140
sizeY - 130
sizeZ - 90
Title - Aerocool Rave 3 FRGB Processor Air cooler 12 cm Black, White 1 pc(s)
URL - https://aerocool.io/product/rave-3-frgb/
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 405
Weight & dimensions - Depth - 75 mm
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Heat pipes diameter - 6 mm
Weight & dimensions - Height - 135 mm
Weight & dimensions - Width - 125 mm
