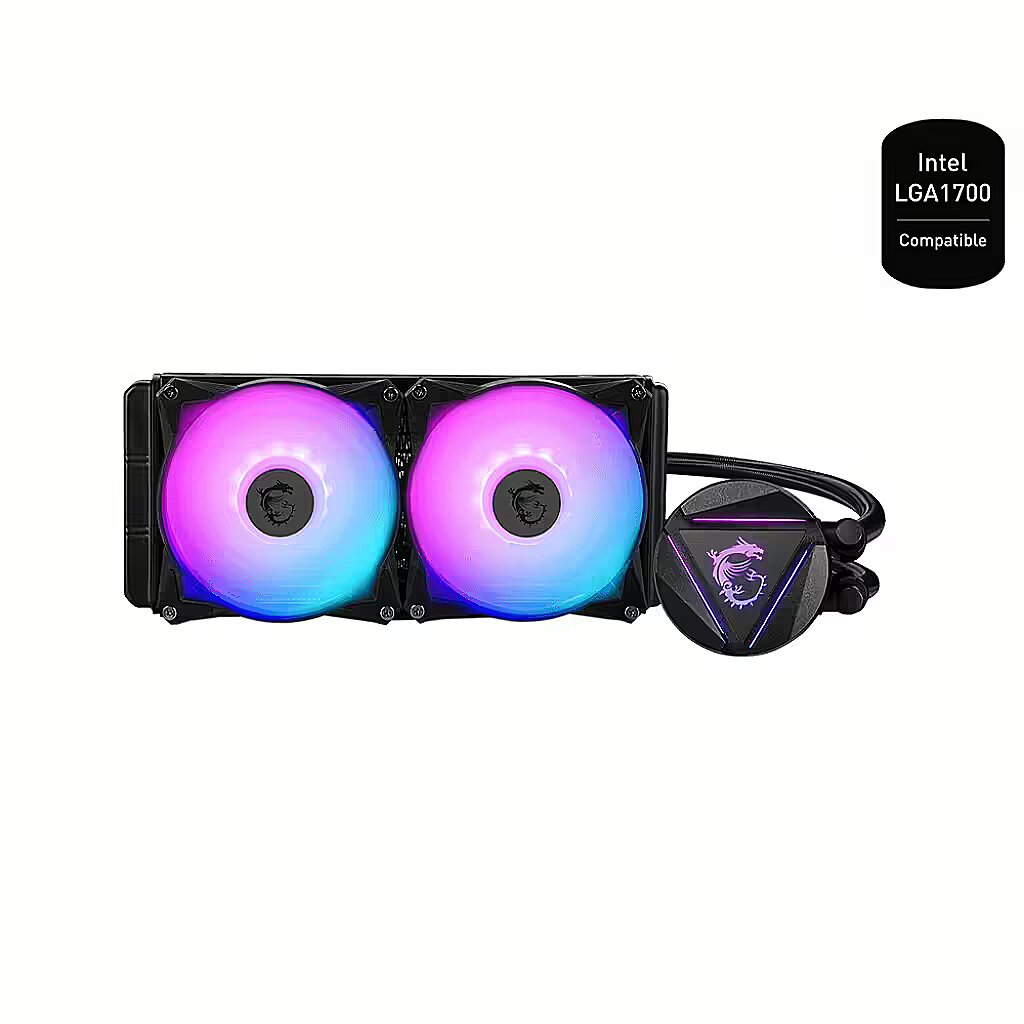

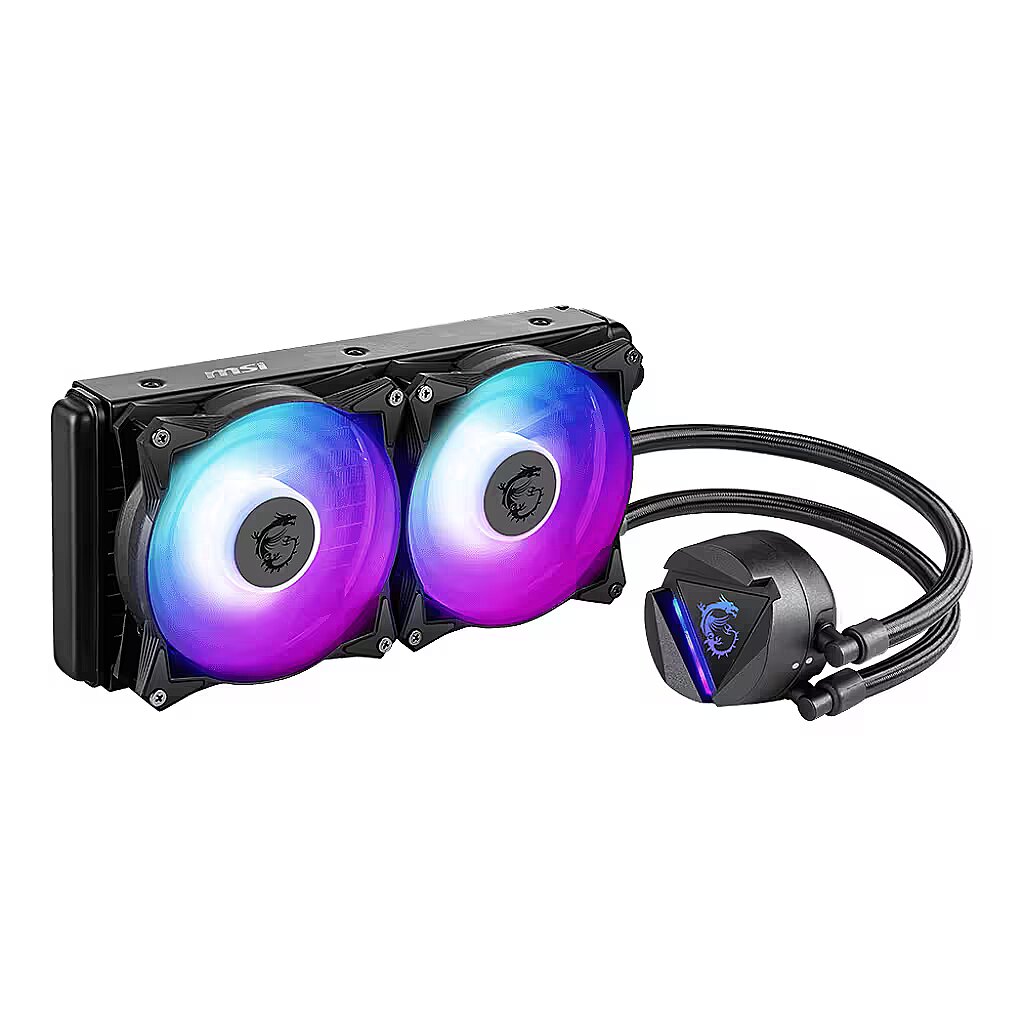

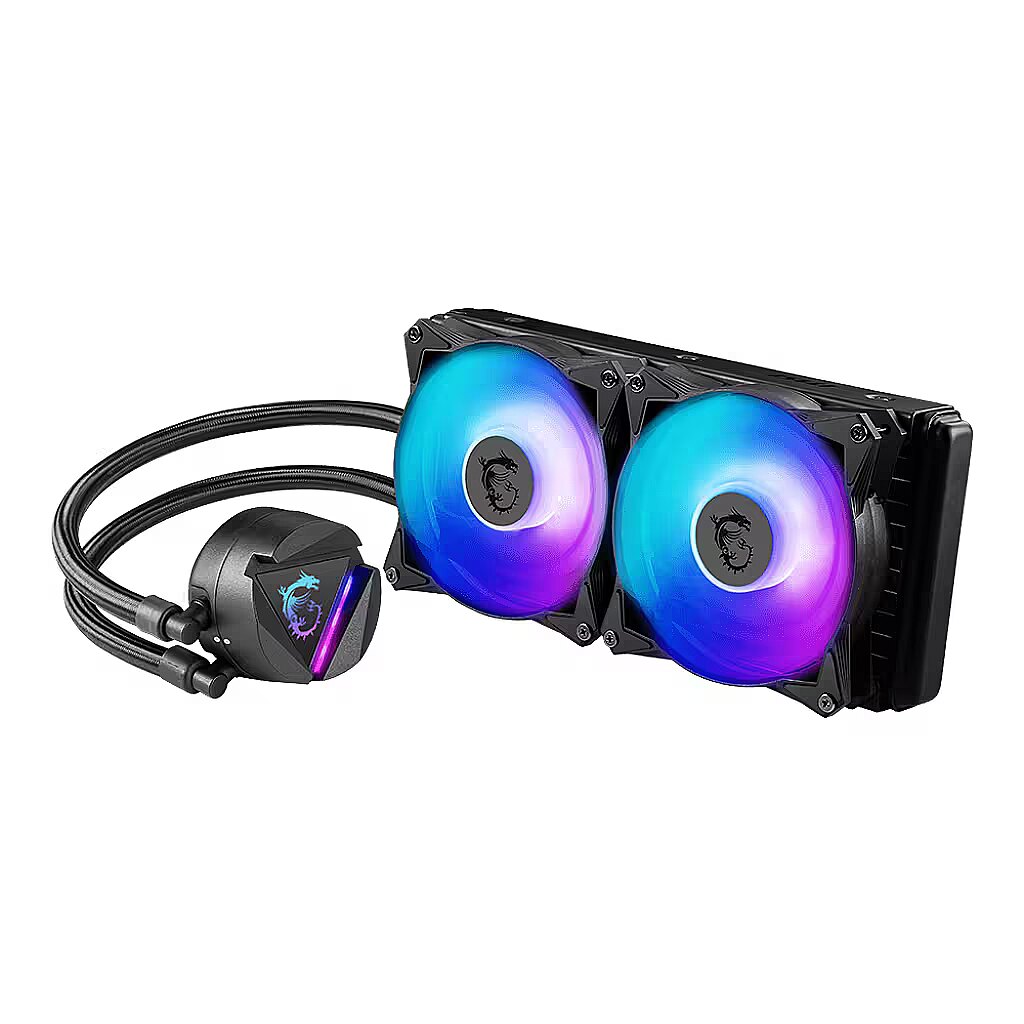

MSI MAG CoreLiquid 240R V2

Air flow rates - 78.73 cfm
Brand - MSI
BrandPartCode - MAG-CRLQD-240R2
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Processor fans
Cooling technology - Air
CPU socket - LGA1151
CPU socket - LGA1152
CPU socket - LGA1155
CPU socket - LGA1156
CPU socket - LGA1200
CPU socket - LGA1366
CPU socket - LGA2011
CPU socket - LGA2011-3
CPU socket - Socket AM1
CPU socket - Socket AM4
CPU socket - Socket FM1
CPU socket - Socket FM2
CPU socket - Socket FM2+
Description - ZAWŁADNIJ POLEM BITWY Sprzęt, komputery i podzespoły z serii MAG narodziły się w wyniku rygorystycznych testów jakości i zostały zaprojektowane tak, aby stać się symbolem wytrzymałości i trwałości. Nasi konstruktorzy skoncentrowali się na zapewnieniu jak największego komfortu użytkowania sprzętu, dzięki czemu produkty z serii MAG charakteryzują się prostym procesem instalacji, który, w połączeniu z przyjaznym interfejsem użytkownika, czyni z nich sprzęt będący najlepszym wyborem dla początkujących graczy. OBROTOWY BLOK GŁOWICY Zamontuj płytkę chłodzącą w dowolnym położeniu, obróć głowicę o 270 stopni i przytrzymaj ją prosto. POMPA WBUDOWANA W RADIATOR Pompę zintegrowano z radiatorem w celu wytłumienia wydawanych przez nią podczas pracy dźwięków i redukcji hałasu. Dodatkowo, umieszczenie pompy wewnątrz konstrukcji radiatora zwiększa również jej żywotność pompy, odsuwając ją od źródła ciepła. ELIMINACJA DRGAŃ REZONANSOWYCH SILNIKA POMPY Wytrzymały, trójfazowy silnik umieszczony w rdzeniu pompy generuje minimalne drgania, dzięki czemu przystosowany jest on do długotrwałej pracy. WYSOKA EFEKTYWNOŚĆ ROZPRASZANIA CIEPŁA Rozdzielenie drogi przepływu ciepła wewnątrz radiatora pozwala szybko odprowadzać i rozpraszać ciepło. Schłodzona ciecz jest następnie przepompowywana z powrotem do układu chłodzenia.
Design - Fan connector - 4-pin
Design - Illumination colour - Blue
Design - Illumination colour - Blue, Pink
Design - Illumination colour - Green
Design - Illumination colour - Red
Design - Illumination LED - Yes
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design - Radiator material - Aluminium
Design - Radiator material - Aluminum
dimensionalWeight - 1932
dimension depth - 148 mm
dimension height - 213 mm
Dimensions - WYMIARY BLOKU 80,57 x 66,82 x 48,58 mm DŁUGOŚĆ RURY CHŁODZENIA WODY W GRZEJNIKU 400mm
dimension weight - 1860 g
dimension width - 308 mm
ean - 4719072864071
Eans - 4719072864071
Fan - 12 cm
Fan speed (max) - 500 rpm
Fan speed (min) - 2000 rpm
guarantee - 36
guarantee_type - normal
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.ROTATABLE BLOCKHEADMount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.RADIATOR PUMP DESIGNThe pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.LGA 1700 COMPATIBLEThe MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.PUMP MOTOR RESONANCE ELIMINATIONA durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.HIGH THERMAL DISSIPATIONA split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.EVAPORATION PROOF TUBINGConstructed with three layers of netted plastic tubing and a reinforced mesh exterior.DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENTConnect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
LongProductName - MSI MAG CORELIQUID 240R V2 Liquid CPU Cooler '240mm Radiator, 2x 120mm ARGB PWM Fan, ARGB lighting, MSI Center Supported, Compatible with Intel and AMD Platforms, Latest LGA 1700 ready'
LongSummaryDescription - MSI MAG-CRLQD-240R2. Type: Cooler, Noise level (low speed): 14.3 dB, Noise level (high speed): 34.3 dB, Maximum airflow: 78.73 cfm. Product colour: Black
name - MAG Core Liquid 240R V2 240mm ARGB CPU Cooler
Name - MSI MAG CORELIQUID 240R V2
Number of fans - 2
Number of Heatpipe tubes - 2
Other features - AKCESORIA 1 do 2 Kabel PWM wentylatora x 1 Kabel wentylatora zasilacza Molex 4-Pin do 4-Pin (2-pinowy) x 1
Performance - Fan's mean time to failure (MTTF) - 70000 h
Performance - Fan noise level (max) - 34.3 dB
Performance - Fan noise level (min) - 14.3 dB
Performance - Fan speed (max) - 2000 RPM
Performance - Fan speed (min) - 500 RPM
Performance - Maximum airflow - 78.73 cfm
Performance - Maximum air pressure - 2.39 mmH2O
Performance - Minimum airflow (imperial) - 21.63 cfm
Performance - Minimum air pressure - 0.23 mmH2O
Performance - Noise level (high speed) - 34.3 dB
Performance - Noise level (low speed) - 14.3 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Pump's mean time to failure (MTTF) - 100000 h
Performance - Pump connector - 3-pin
Performance - Pump motor speed - 4200 RPM
Performance - Pump noise level - 18 dB
Performance - Rotational speed (max) - 2000 RPM
Performance - Rotational speed (min) - 500 RPM
Performance - Suitable location - Computer case
Performance - Suitable location - Processor
Performance - Supported processor sockets - LGA 1150 (Socket H3)
Performance - Supported processor sockets - LGA 1151 (Socket H4)
Performance - Supported processor sockets - LGA 1155 (Socket H2)
Performance - Supported processor sockets - LGA 1156 (Socket H)
Performance - Supported processor sockets - LGA 1200 (Socket H5)
Performance - Supported processor sockets - LGA 1366 (Socket B)
Performance - Supported processor sockets - LGA 1700
Performance - Supported processor sockets - LGA 2011 (Socket R)
Performance - Supported processor sockets - LGA 2011-v3 (Socket R)
Performance - Supported processor sockets - LGA 2066
Performance - Supported processor sockets - Socket AM2
Performance - Supported processor sockets - Socket AM2+
Performance - Supported processor sockets - Socket AM3
Performance - Supported processor sockets - Socket AM3+
Performance - Supported processor sockets - Socket AM4
Performance - Supported processor sockets - Socket FM1
Performance - Supported processor sockets - Socket FM2
Performance - Supported processor sockets - Socket FM2+
Performance - Type - Cooler
Power - Fan current - 0.15 A
Power - Fan power consumption - 1.8 W
Power - Fan voltage - 12 V
Power - Power consumption (typical) - 5.88 W
Power - Pump current - 340 mA
Power - Pump power consumption - 4.08 W
Power - Pump voltage - 12 V
Power - Rated voltage - 12 V
producer - MSI
Producer - MSI
producerCode - 306-7ZW1B41-813
ProducerCode - 306-7ZW1B41-813
ProductName - MAG-CRLQD-240R2
productName - Water cooling MSI MAG CORELIQUID 240R V2 CPU AIO Cooler
productSize - Normal
Radiator - Aluminium
ShortDescription - wentylator CPU - chłodzenie wodne |
ShortSummaryDescription - MSI MAG-CRLQD-240R2, Cooler, 14.3 dB, 34.3 dB, 78.73 cfm, Black
sizeX - 310
sizeY - 215
sizeZ - 145
Title - MSI MAG-CRLQD-240R2 computer cooling system Computer case Cooler Black
Type of cooling - Active
URL - https://www.msi.com/Liquid-Cooling/MAG-CORELIQUID-240R-V2
vendpn - MAG CORELIQUID 240R V2
Warranty - 24 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
weight - 1905
Weight & dimensions - Radiator depth - 12 cm
Weight & dimensions - Radiator height - 2.7 cm
Weight & dimensions - Radiator width - 27.4 cm
Weight & dimensions - Tube length - 40 cm
Weight & dimensions - Waterblock depth - 6.68 cm
Weight & dimensions - Waterblock height - 4.86 cm
Weight & dimensions - Waterblock width - 8.06 cm
