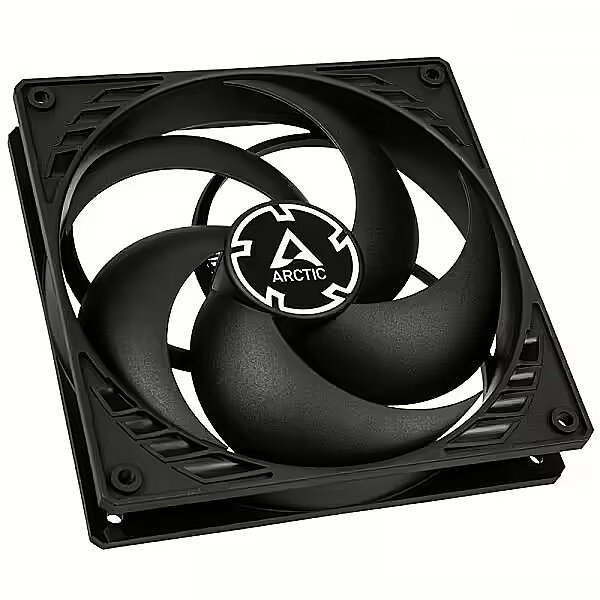

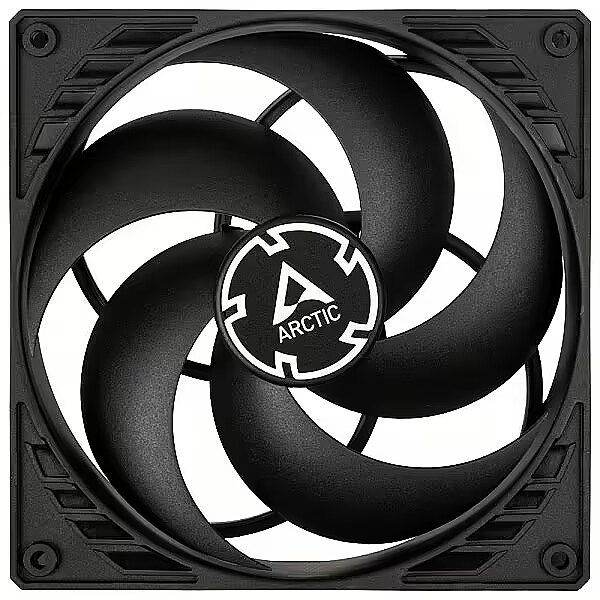

Arctic P14 PWM PST, Black

Air flow - 72.8 cfm
Bearing type - Fluid
Brand - ARCTIC
BrandPartCode - ACFAN00125A
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category - Datortehnika :: Datoru komponentes :: Korpusa ventilatori
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Category Code - COS
Code - ACFAN00125A
code - ACFAN00125A
Colour - Black
Desc - Ligdza (socket): 4-pin, Diametrs: 140 mm, Ventilators ātrums (apgr.min.): 1700 apgr. min., Apgaismojums: Nav, Skaits komplektācijā: 1, Garantija: 2 gadi
Description - P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.
Design - Fan connector - 4-pin + 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Dimensions - 140x140x27mm
EAN - 4895213701563
ean - 4895213701563
Eans - 4895213701563
Fan connector - 4 Pin (PWM)
Fan height - 27 mm
Fan size group - 140mm
Fan speed - 200 - 1700 rpm
Full Description Line - P14 PWM PST|Air flow 72.8 cfm|Colour Black|Dimensions 140x140x27mm
GTIN - 0872767009509
GTIN - 872767009509
GTIN - 4895213701563
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_115030_1.png
LargeDescHTML -
Lighting - no
Logistics data - Harmonized System (HS) code - 84733080
LongDesc - Our coolers have pushed the limits further every year - and all that at dropping noise levels. We have put our utmost effort into innovative technologies and fair prices, what made us well known for products with an unparalleled price/performance ratio. We provide you headroom for over-clocking and guarantee you lowest noise levels at affordable prices.
LongProductName - 140 mm, 200 - 1700 RPM, PWM, 72.8 CFM, 123.76 m3/h, 12 V DC, 4-pin + 4-pin, 194 g
LongSummaryDescription - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 200 RPM, Rotational speed (max): 1700 RPM, Noise level: 0.3 sone, Airflow: 123.76 m³/h, Maximum air pressure: 2.4 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 140 mm, Height: 27 mm. Product colour: Black
Mainboard connection - 4-pin
Manufacturer - ARCTIC
max. Air volume - 100 - 124 m³/h
max. Air volume (exact) - 123,76 m³/h
max. Noise level - 20 - 24 dB(A)
max. Noise level (exact) - 23,5 dB(A), 0,3 Sone
max. RPM - 1,500 - 1,999 rpm
max. RPM (exact) - 1,700 rpm
min. RPM - 0 - 249 U/min
min. RPM (exact) - 200 U/min
Model name - P14 PWM PST
Mounting holes - 140 mm
MPN - ACFAN00125A
Name - 140mm Arctic P14 PWM PST black/black
name - Arctic P14 PWM PST Lüfter, schwarz - 140mm
Name - Arctic P14 PWM PST wentylator, czarny - 140mm
Name - Dzesētājs Arctic P14 PWM PST Black
Other features - Country of origin - China
Packaging content - Number of screws - 4
Packaging content - Package type - Box
Packaging content - Screws included - Yes
Performance - Airflow - 123.76 m³/h
Performance - Bearing type - Fluid Dynamic Bearing (FDB)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 14 cm
Performance - Maximum airflow - 72.8 cfm
Performance - Maximum air pressure - 2.4 mmH2O
Performance - Noise level - 0.3 sone
Performance - Noise level (high speed) - 24.5 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1700 RPM
Performance - Rotational speed (min) - 200 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Power consumption (typical) - 1.44 W
Power - Rated current - 0.12 A
Power - Starting voltage - 3.9 V
Power - Voltage - 12 V
Primary colour - black
Producer - Arctic
ProducerCode - ACFAN00125A
ProductName - P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
Rotor diameter - 140 mm
Secondary colour - black
Shipping Box Depth Shipping/Package Box Dimensions - 52 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 68
Shipping Box Weight Shipping/Package Box Dimensions - 16.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 31 cm
ShortDescription -
ShortSummaryDescription - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST, Fan, 14 cm, 200 RPM, 1700 RPM, 0.3 sone, 123.76 m³/h
Title - ARCTIC P14 PWM PST Pressure-optimised 140 mm Fan with PWM PST
Unit Box Height - 0.03
Unit Box Length - 0.14
Unit Box Width - 0.14
Unit Brutto Volume - 0.0007112 cubm
Unit Gross Weight - 0.238 kg
Unit Net Weight - 0.194 kg
URL - https://www.arctic.ac/eu_en/p14-pwm-pst.html
Vendor Homepage - www.arctic.de/en/P14-PWM-PST/ACFAN00125A/
Warranty - 24 months
WarrantyInfo - 10 years
Weight - 0.229
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Package depth - 143 mm
Weight & dimensions - Package height - 29 mm
Weight & dimensions - Package weight - 234 g
Weight & dimensions - Package width - 143 mm
Weight & dimensions - Weight - 194 g
Weight & dimensions - Width - 140 mm
