ID: 159007
Tuotekoodi: NF-A12x15 PWM
Voidaan tilata 58 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 2 vuotta

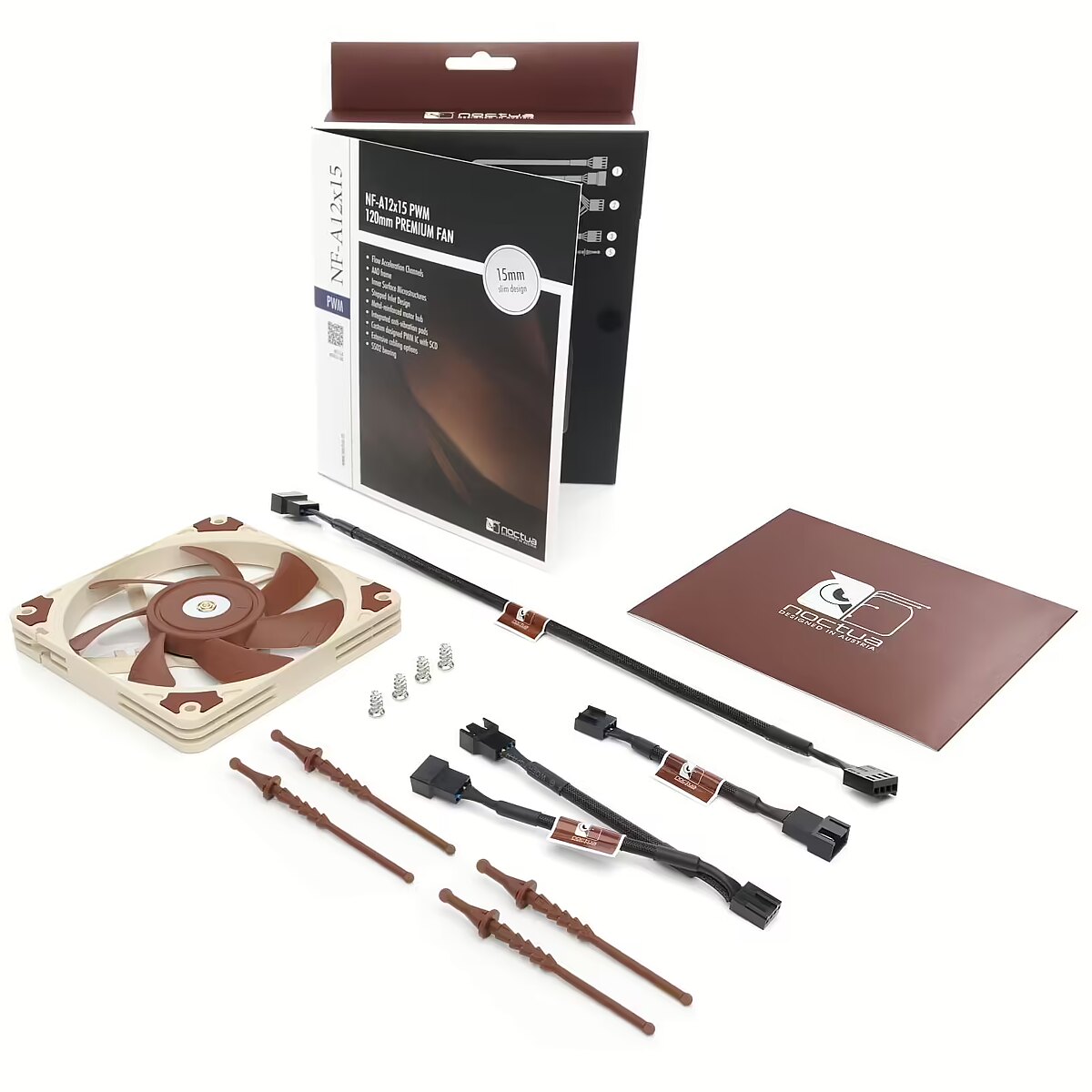

Noctua NF-A12x15 PWM
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Toimitusvaihtoehdot
- Toimitus Smartpost-pakettiautomaattiin 6,99 €: 27.11.2024
- Kuriiritoimitus 11,99 €: 27.11.2024
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Noctua
- Kierrokset (MIN), rpm: 450
- Koko, mm: 120
- LED-taustavalon väri: Ei ole
- Lähtöliitäntä: 4-pin (PWM)
- RPM (MAX), rpm: 1850
- Yksiköt pakkauksessa: 1
- Äänitaso (MAX), dB(A): 23.9
Kaikki parametrit
Tuottaja
: Noctua
Valaistustyyppi
: Bez apgaismojuma
Perustiedot
Koko, mm
: 120
LED-taustavalon väri
: Ei ole
Lähtöliitäntä
: 4-pin (PWM)
RPM (MAX), rpm
: 1850
Yksiköt pakkauksessa
: 1
Äänitaso (MAX), dB(A)
: 23.9
Yksityiskohtaisempi erittely
category - Aircooling|Fans|PWM Fans
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - NF-A12X15 PWM
Design - Fan connector - 4-pin
Design - Product colour - Beige
Design - Product colour - Bronze
dimensionalWeight - 220
ean - 9010018100082
Eans - 9010018100082
EAN_code - 9010018100082
Logistics data - Harmonized System (HS) code - 84733080
Manufacturer - Noctua
Manufacturer_code - NF-A12x15 PWM
Name - Noctua NF-A12x15 PWM
Name - Noctua NF-A12x15 PWM - 120mm
name - Noctua NF-A12x15 PWM Lüfter - 120mm
Other features - Mean time to failure (MTTF) - 150000 h
Other features - Mounting hole pattern (W x D) - 105 x 105 mm
Packaging content - Cables included - Fan
Packaging content - Low-noise adaptor (LNA) - Yes
Packaging content - Screws included - Yes
Performance - Airflow - 94.2 m³/h
Performance - Airflow with LNA (max) - 70.8 m³/h
Performance - Bearing type - Self-Stabilising Oil-pressure Bearing (SSO)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum air pressure - 1.53 mmH2O
Performance - Minimum air pressure - 0.9 mmH2O
Performance - Noise level (high speed) - 23.9 dB
Performance - Noise level with LNA (max) - 16.8 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1850 RPM
Performance - Rotational speed (min) - 450 RPM
Performance - Rotational speed with LNA (max) - 1400 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Maximum current - 0.13 A
Power - Power supply - 1.56 W
Power - Voltage - 5 - 12 V
Producer - Noctua
producerCode - NF-A12X15 PWM
ProducerCode - NF-A12x15 PWM
productName - Noctua NF-A12x15 PWM Computer case Fan 12 cm Beige, Brown
productSize - Normal
ShortDescription - Wentylator|120|PWM|12V|
sizeX - 35
sizeY - 150
sizeZ - 210
Technical_details - Dimensions: 120x120x15mm revolutions: 450-1850rpm Air flow: 94.2m3/?h air pressure: 1.53mmH2O Volume: 23.9dB(A) Fan bearing: hydrodynamic Slide bearing (SSO2) Connector: 4-Pin PWM Voltage Range: 12V Power consumption: 1.56W Special features: 7V adapter, vibration damper, 4-Pin cable, 30cm cable extension Warranty: six years
warrantyLength - 24
warrantyType - G
Weight - 0,27
weight - 290
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 15 mm
Weight & dimensions - Width - 120 mm
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category_1 - Computer Cases and Cooling
Category_2 - Fans
code - NF-A12X15 PWM
Design - Fan connector - 4-pin
Design - Product colour - Beige
Design - Product colour - Bronze
dimensionalWeight - 220
ean - 9010018100082
Eans - 9010018100082
EAN_code - 9010018100082
Logistics data - Harmonized System (HS) code - 84733080
Manufacturer - Noctua
Manufacturer_code - NF-A12x15 PWM
Name - Noctua NF-A12x15 PWM
Name - Noctua NF-A12x15 PWM - 120mm
name - Noctua NF-A12x15 PWM Lüfter - 120mm
Other features - Mean time to failure (MTTF) - 150000 h
Other features - Mounting hole pattern (W x D) - 105 x 105 mm
Packaging content - Cables included - Fan
Packaging content - Low-noise adaptor (LNA) - Yes
Packaging content - Screws included - Yes
Performance - Airflow - 94.2 m³/h
Performance - Airflow with LNA (max) - 70.8 m³/h
Performance - Bearing type - Self-Stabilising Oil-pressure Bearing (SSO)
Performance - Compatible processor series - Not supported
Performance - Fan diameter - 12 cm
Performance - Maximum air pressure - 1.53 mmH2O
Performance - Minimum air pressure - 0.9 mmH2O
Performance - Noise level (high speed) - 23.9 dB
Performance - Noise level with LNA (max) - 16.8 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Rotational speed (max) - 1850 RPM
Performance - Rotational speed (min) - 450 RPM
Performance - Rotational speed with LNA (max) - 1400 RPM
Performance - Suitable location - Computer case
Performance - Supported processor sockets - Not supported
Performance - Type - Fan
Power - Maximum current - 0.13 A
Power - Power supply - 1.56 W
Power - Voltage - 5 - 12 V
Producer - Noctua
producerCode - NF-A12X15 PWM
ProducerCode - NF-A12x15 PWM
productName - Noctua NF-A12x15 PWM Computer case Fan 12 cm Beige, Brown
productSize - Normal
ShortDescription - Wentylator|120|PWM|12V|
sizeX - 35
sizeY - 150
sizeZ - 210
Technical_details - Dimensions: 120x120x15mm revolutions: 450-1850rpm Air flow: 94.2m3/?h air pressure: 1.53mmH2O Volume: 23.9dB(A) Fan bearing: hydrodynamic Slide bearing (SSO2) Connector: 4-Pin PWM Voltage Range: 12V Power consumption: 1.56W Special features: 7V adapter, vibration damper, 4-Pin cable, 30cm cable extension Warranty: six years
warrantyLength - 24
warrantyType - G
Weight - 0,27
weight - 290
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 15 mm
Weight & dimensions - Width - 120 mm
