ID: 1002907
Tuotekoodi: ACFAN00286A
Varastossa 30 yksiköt
Takuu: 2 vuotta

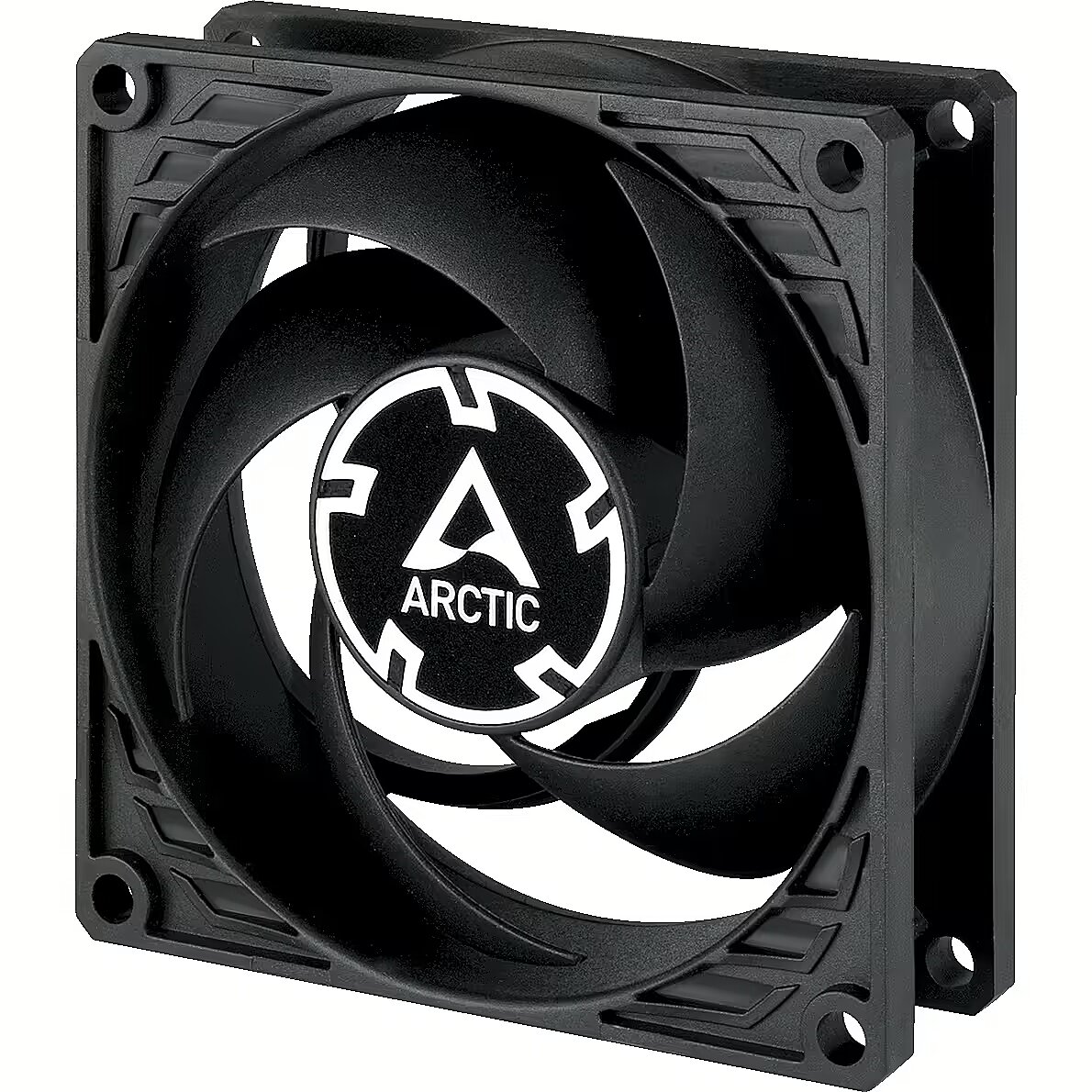

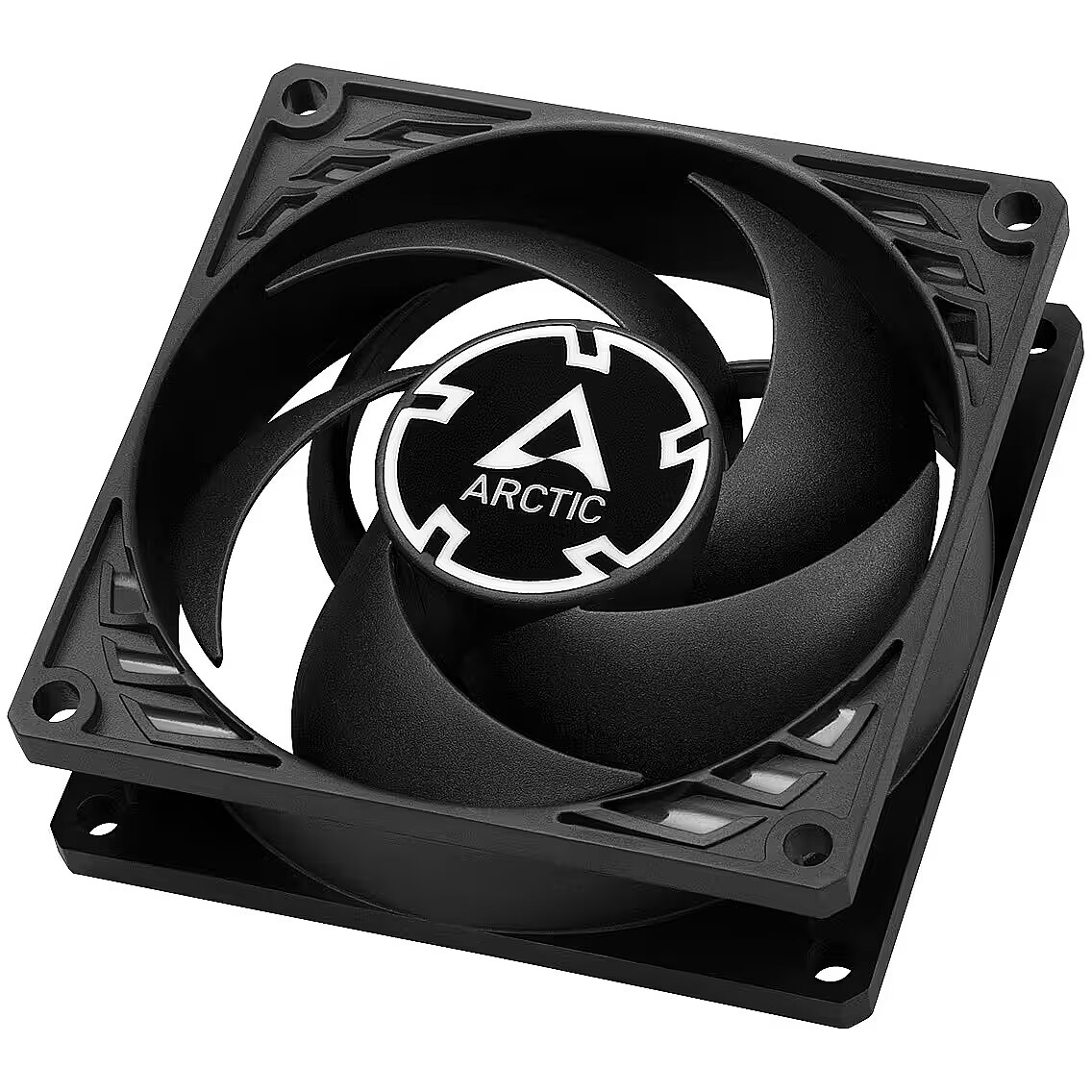

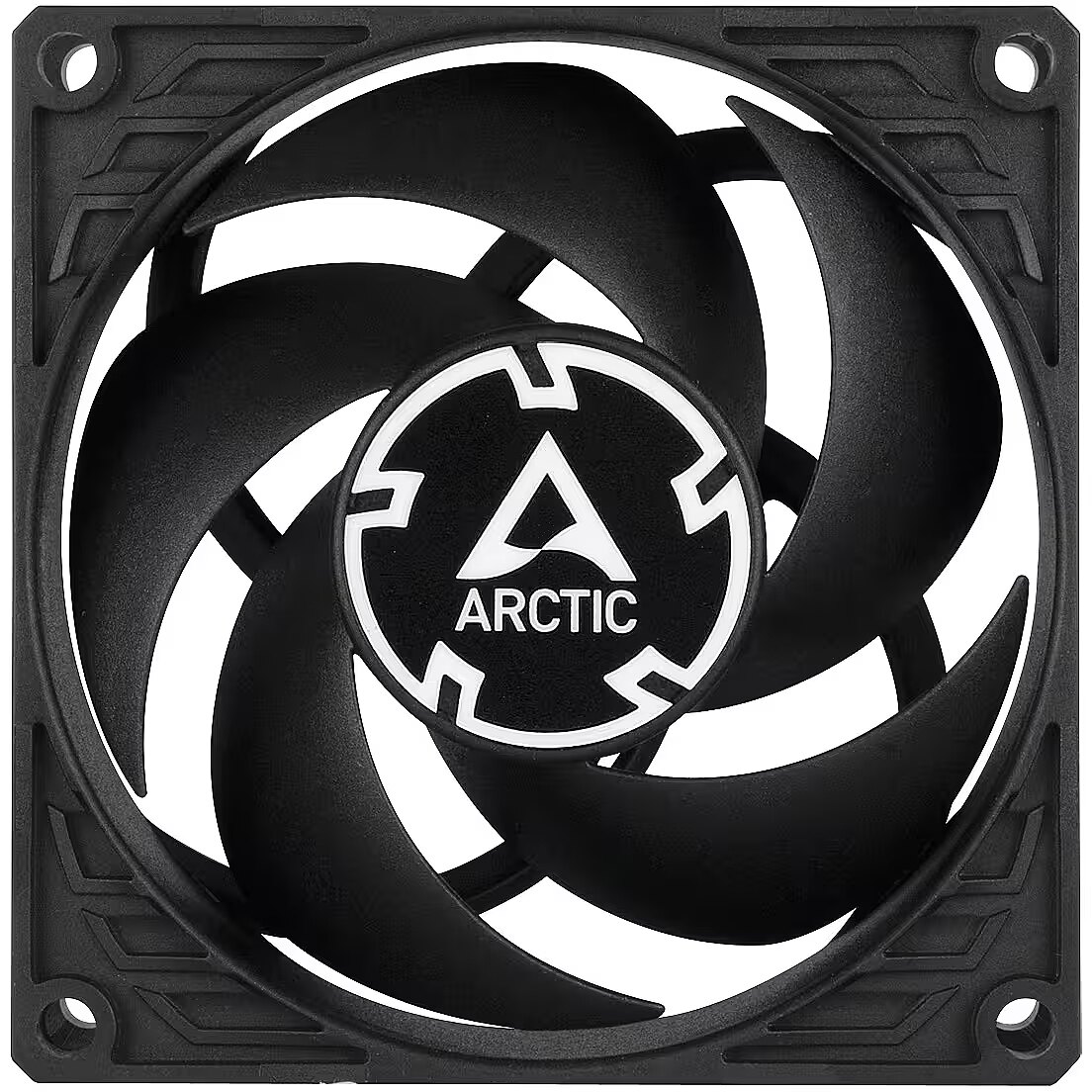

Arctic P8 PWM MAX, Black
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Toimitusvaihtoehdot
- Toimitus Smartpost-pakettiautomaattiin 6,99 €: torstaina, 28.11.2024
- Kuriiritoimitus 11,99 €: torstaina, 28.11.2024
Tärkeimmät tuoteparametrit Kaikki parametrit
- Tuottaja: Arctic
- Kierrokset (MIN), rpm: 500
- Koko, mm: 80
- LED-taustavalon väri: Ei ole
- Lähtöliitäntä: 4-pin (PWM)
- RPM (MAX), rpm: 5000
- Yksiköt pakkauksessa: 1
- Äänitaso (MAX), dB(A): Ei määritelty
Kaikki parametrit
Tuottaja
: Arctic
Valaistustyyppi
: Bez apgaismojuma
Perustiedot
Koko, mm
: 80
LED-taustavalon väri
: Ei ole
Lähtöliitäntä
: 4-pin (PWM)
RPM (MAX), rpm
: 5000
Yksiköt pakkauksessa
: 1
Äänitaso (MAX), dB(A)
: Ei määritelty
Yksityiskohtaisempi erittely
Air flow - 40 cfm
Bearing type - Ball
Brand - ARCTIC
BrandPartCode - ACFAN00286A
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category Code - COS
code - ACFAN00286A
Colour - Black
Description - P8 Max 80 mm High Speed PWM Fan The P8 Max is a powerful fan with 500 to 5000 rpm.The fan delivers a static pressure of 5.3 mmH2O and generates an airflow of up to 40 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is extremely efficient at 0.19 A. The P8 Max is ideal for 2U server racks, which often require a high airflow to effectively dissipate heat. In addition, it has a 0 dB mode for silent operation in IDLE.
Design - Fan connector - 4-pin
Design - Number of fan blades - 5
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Design - Rack capacity - 2U
Dimensions - 80x80x25mm
ean - 4895213704090
Fan size group - 80mm
Fan speed - 500–5000 rpm
Full Description Line - P8 Max|Number of fans 1|Nominal voltage 12 V|Air flow 40 cfm|Colour Black|Dimensions 80x80x25mm
GTIN - 4895213704090
LongSummaryDescription - ARCTIC P8 Max - High-Performance 80 mm PWM Fan. Type: Fan, Fan diameter: 8 cm, Noise level: 0.6 sone, Maximum airflow: 40 cfm, Airflow: 67.96 m³/h. Product colour: Black
Mainboard connection - 4-pin
Model - ACFAN00286A
Model name - P8 Max
name - Arctic P8 PWM MAX Lüfter - 80mm
Nominal voltage - 12 V
Number of fans - 1
Packaging content - Mounting kit - Yes
Packaging content - Screws included - Yes
Performance - Airflow - 67.96 m³/h
Performance - Fan's mean time to failure (MTTF) - 500000 h
Performance - Fan bearing technology - Double ball bearing
Performance - Fan diameter - 8 cm
Performance - Fan speed (max) - 5000 RPM
Performance - Fan speed (min) - 500 RPM
Performance - Fan static pressure - 5.3 mmH2O
Performance - Maximum airflow - 40 cfm
Performance - Noise level - 0.6 sone
Performance - Operating temperature (T-T) - 0 - 40 °C
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Suitable location - Computer case
Performance - Type - Fan
Power - Fan current - 0.19 A
Power - Fan voltage - 12 V
Power - Starting voltage - 3.2 V
ProductName - P8 Max - High-Performance 80 mm PWM Fan
Shipping Box Depth Shipping/Package Box Dimensions - 44 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 150
Shipping Box Weight Shipping/Package Box Dimensions - 15.8 kg
Shipping Box Width Shipping/Package Box Dimensions - 27 cm
ShortSummaryDescription - ARCTIC P8 Max - High-Performance 80 mm PWM Fan, Fan, 8 cm, 0.6 sone, 40 cfm, 67.96 m³/h, Black
Title - ARCTIC P8 Max - High-Performance 80 mm PWM Fan
Unit Box Height - 0.03
Unit Box Length - 0.085
Unit Box Width - 0.085
Unit Brutto Volume - 0.0002376 cubm
Unit Gross Weight - 0.105 kg
Unit Net Weight - 0.084 kg
Vendor Homepage - www.arctic.de/en/P8-Max/ACFAN00286A
Warranty - 24 months
Weight & dimensions - Cable length - 0.4 m
Weight & dimensions - Fan dimensions (W x D x H) - 80 x 80 x 25 mm
Weight & dimensions - Fan weight - 84 g
Weight & dimensions - Package depth - 82.5 mm
Weight & dimensions - Package height - 26 mm
Weight & dimensions - Package weight - 89 g
Weight & dimensions - Package width - 82.5 mm
