Samsung OH46B-S

Accessories included - Quick Setup Guide Warranty Card Power cable Remote control + batteries
Audio - Built-in speaker(s) - No
Auto Pivot - Yes
Bezel width, mm - 24.9
Bluetooth - No
Brand - Samsung
BrandPartCode - LH46OHBESGBXEN
Brightness - 3500 nits
Built-in speakers - Yes
Category - Signage Displays
Certificates - EMC
Certificates - Certification - Class A
60950-1, 62368-1
Color - Black
Computer system - Built-in processor - Yes
Computer system - Computer system - Yes
Computer system - Computer system type - System on Chip (SoC)
Computer system - Operating system installed - Tizen 6.5
Connections - Audio (3.5mm)
Connections - Ethernet (RJ-45)
Connections - HDMI
Connections - RS-232C
Connections - USB-A (USB 2.0)
Contrast ratio (typical) - 6000:1
Depth - 85 mm
Description - SAMSUNG 46" OH46B FHD 3500 NITS 24/7 OUTDOOR HIGH BRIGHTNESS.
Description - UL certified for outdoor visibility with greater than 3500 nits brightness and 24/7 performance Advanced color accuracy and brightness to create vibrant content Better visibility thanks to Magic Protection Glass anti-reflective technology Easy all-in-one installation in built-in power box
Design - Bezel colour - Black
Design - Bezel width (bottom) - 2.49 cm
Design - Bezel width (side) - 2.49 cm
Design - Bezel width (top) - 2.49 cm
Design - Orientation - Horizontal/Vertical
Design - Panel mounting interface - 995 x 500 mm
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - Screen shape - Flat
Design - VESA mounting - Yes
dimension depth - 200 mm
dimension height - 700 mm
Dimensions W x D x H, mm - 1069 x 85 x 623.6
dimension weight - 40000 g
dimension width - 1150 mm
Display - Colour gamut - 72%
Display - Contrast ratio (typical) - 6000:1
Display - Display brightness - 3500 cd/m²
Display - Display diagonal - 116.8 cm (46")
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - Dynamic contrast ratio marketing name - Mega Contrast
Display - Glass film - AG/AR Film
Display - Glass thickness - 5 mm
Display - HD type - Full HD
Display - Horizontal scan range - 15 - 135 kHz
Display - Panel type - VA
Display - Pixel pitch - 0.53 x 0.53 mm
Display - Response time - 6 ms
Display - RGB colour space - NTSC
Display - Touchscreen - No
Display - Vertical scan range - 24 - 75 Hz
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display brightness, cd/m² - 3500
Display diagonal, " - 46
Display resolution, pixels - 1920 x 1080
Display surface - Glare
Dot pitch - 0.53 mm
ean - 8806094726541
Energy class - not applicable
GTIN - 8806094726541
guarantee - 36
guarantee_type - external
Height - 623.6 mm
Height - 705.000000

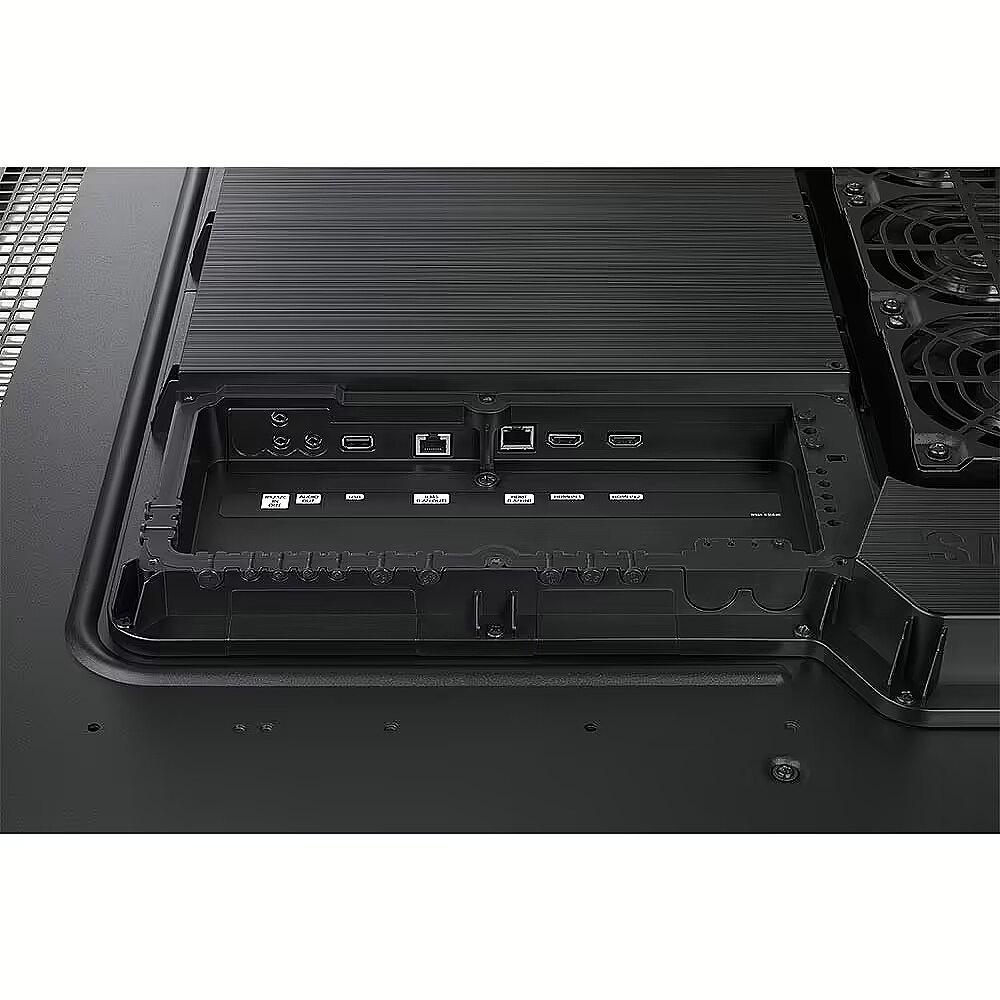

I/O connectors - 1 x 3,5 mm minijack
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
I/O connectors - 2 x HDMI
I/O connectors - 2 x RJ-45 LAN
IK classification - IK10
Internal player - Yes
IP classification - IP56
Length - 1154.000000
LongSummaryDescription - Samsung OH46B-S. Product design: Digital signage flat panel. Display diagonal: 116.8 cm (46"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 3500 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Operating system installed: Tizen 6.5. Product colour: Black
Manufacturer - SAMSUNG
ManufacturerPartNumber - LH46OHBESGBXEN
Matrix type - VA
Model - OH46B-S
name - Professional monitor OH46B-S 46 inches glossy 24h/7 3500(cd/m2) 3840x2160 (UHD) S7 Player (Tizen 6.5) 3 years On-Site (LH46OHBESGBXEN)
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - -30 - 50 °C
Operation time - 24/7
Optional accessory -
Other features -
Other features - Flash memory - 8000 MB
Other features - Glass protection - Yes
Packaging data - Package depth - 200 mm
Packaging data - Package height - 713 mm
Packaging data - Package weight - 40.5 kg
Packaging data - Package width - 1156 mm
Panel type - VA
Performance - HDCP - Yes
Performance - HDCP version - 2.2
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Universal
PeriodofWarranty - 36 M
Pivot - Yes
Pixel pitch, mm - 0.53 x 0.53
Ports & interfaces - Audio (L/R) out - 1
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 1
Ports & interfaces - Wi-Fi - No
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (sleep) - 0.5 W
Power - Power consumption (typical) - 430 W
Power consumption - 203 W
Power consumption (standby), W - 0.5
Power consumption, W - 205
producer - Samsung
ProductName - OH46B-S
Resolution - 1920 x 1080 (FHD 1080)
Screen size (diag.) - 46"
ShortSummaryDescription - Samsung OH46B-S, Digital signage flat panel, 116.8 cm (46"), LCD, 1920 x 1080 pixels, 24/7
Speakers built-in - No
Static contrast - 6 000:1
Title - Samsung OH46B-S Digital signage flat panel 116.8 cm (46") LCD 3500 cd/m² Full HD Black Built-in processor Tizen 6.5 24/7
Touch screen - No
Touch sensitive screen - No
Transreflective technology - LED
TV tuner built-in - No
vendpn - LH46OHBESGBXEN
VESA - 995 x 500
VESA - 1000 x 400
VESA-standard, mm - 995 x 500
VESA-standard, mm - 1000 x 400
Visible area, horizontal - 1018.08 mm
Visible area, vertical - 572.67 mm
Warranty -
Web camera - None
Weight - 36 kg
Weight - 40.500000
Weight & dimensions - Display depth - 85 mm
Weight & dimensions - Display height - 623.6 mm
Weight & dimensions - Display weight - 36 kg
Weight & dimensions - Display width - 1069 mm
Weight, g - 36000
Width - 205.000000
Width - 1069 mm
WiFi - No
