Intellinet

Brand - Intellinet
BrandPartCode - 561389
Category - PoE Adapters
Category - Root/Electronics/Networks and communication/Network accessories/Accessories and switch modules
Eans - 766623561389
Features - LED indicators - PoE, Power
Features - Product colour - Black
GTIN - 766623561389
GTIN - 0766623561389
LongDesc - Get power and data over your existing LAN cable._x000D__x000D_The Intellinet Network Solutions Industrial Gigabit High-Power PoE+ Injector connects your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The PoE Injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 60 watts, enough even for power-hungry PoE devices._x000D__x000D_Reduce Wiring Costs_x000D__x000D_This smart solution avoids the need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing LAN cabling to deliver DC power as well as transfer data.

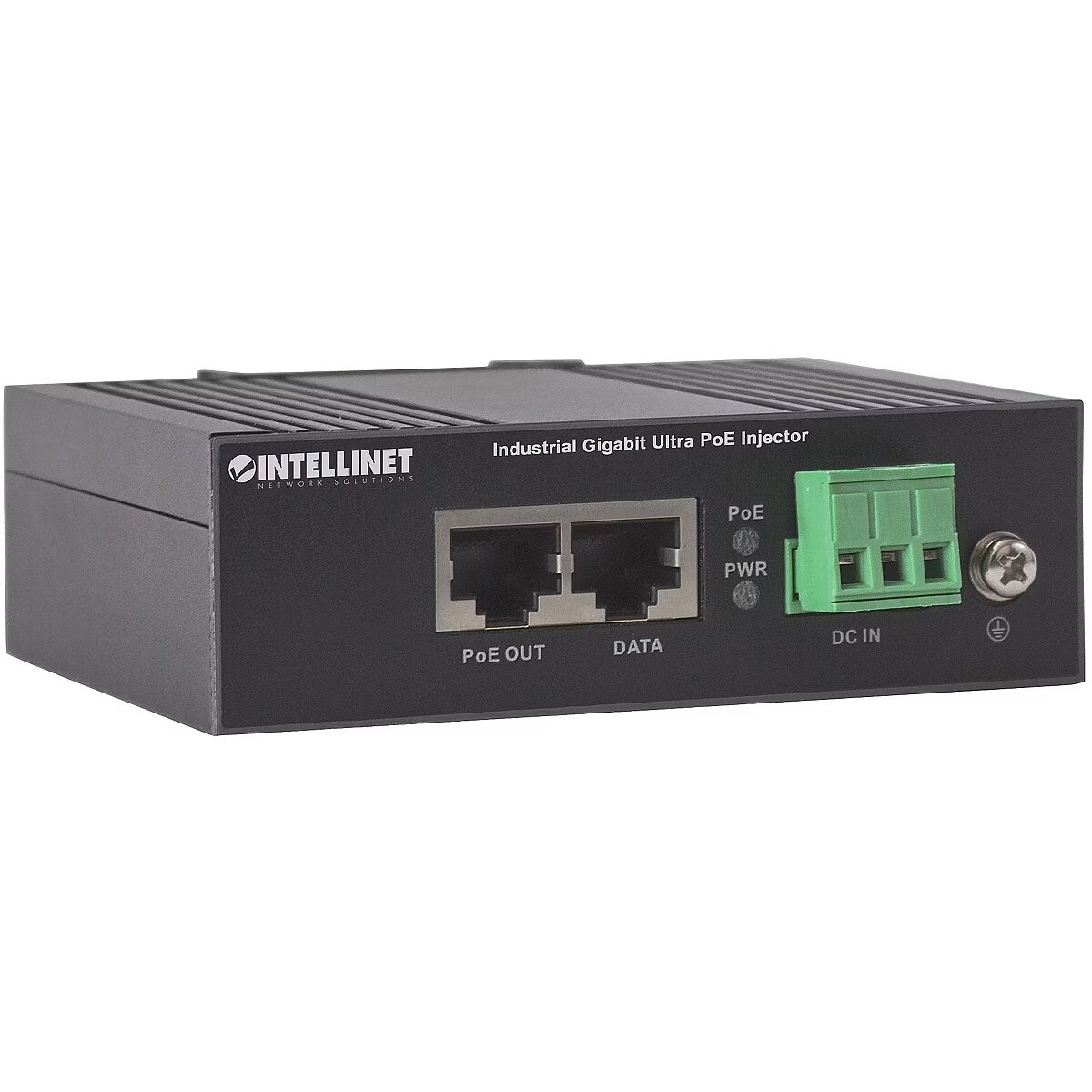

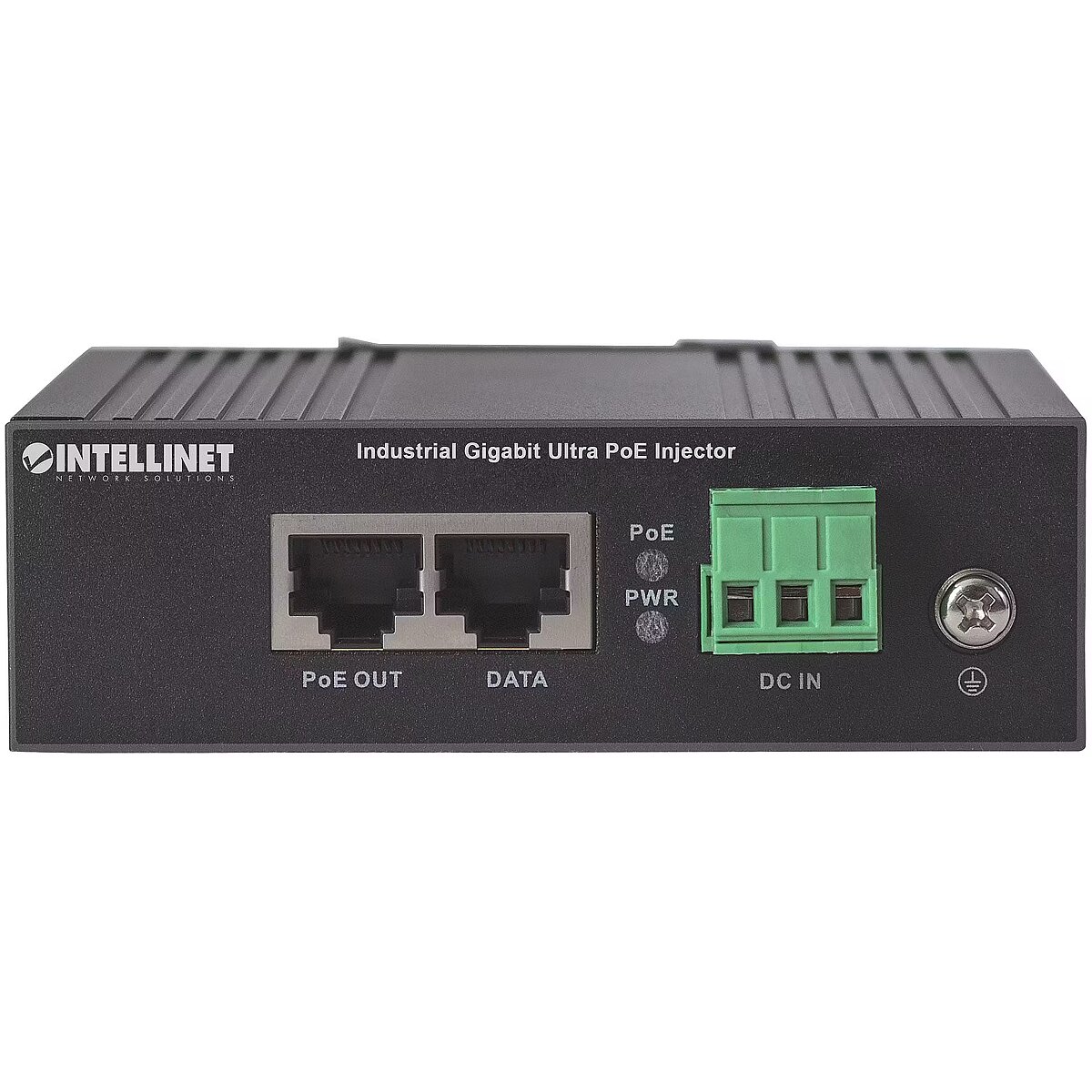

LongProductName - Industrial Gigabit Ultra PoE Injector, 1 x 60 W Port, IEEE 802.3bt/at/af Power over Ethernet (Ultra POE/PoE+/PoE), Metal Housing
LongSummaryDescription - Intellinet Industrial Gigabit Ultra PoE Injector, 1 x 60 W Port, IEEE 802.3bt/at/af Power over Ethernet (Ultra POE/PoE+/PoE), Metal Housing. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u. Product colour: Black, LED indicators: PoE, Power. Output power: 60 W, Input voltage: 45 - 56 V, Total Power over Ethernet (PoE) budget: 60 W. Width: 32 mm, Depth: 78 mm, Height: 103 mm. Number of products included: 1 pc(s)
Name - Intellinet 561389 Przemysłowy Injector Ultra PoE Gigabit, od -40 do +75°C, 60W, IP30
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Network - Power over Ethernet (PoE) - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 75 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging content - Manual - Yes
Packaging content - Number of products included - 1 pc(s)
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Power - Input voltage - 45 - 56 V
Power - Output power - 60 W
Power - Total Power over Ethernet (PoE) budget - 60 W
Producer - Intellinet
ProducerCode - 561389
ProductName - Industrial Gigabit Ultra PoE Injector, 1 x 60 W Port, IEEE 802.3bt/at/af Power over Ethernet (Ultra POE/PoE+/PoE), Metal Housing
ShortDescription - Intellinet 561389 Przemysłowy Injector Ultra PoE Gigabit, 60W
ShortSummaryDescription - Intellinet Industrial Gigabit Ultra PoE Injector, 1 x 60 W Port, IEEE 802.3bt/at/af Power over Ethernet (Ultra POE/PoE+/PoE), Metal Housing, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, Black, PoE, Power, 60 W
Title - Intellinet Industrial Gigabit Ultra PoE Injector, 1 x 60 W Port, IEEE 802.3bt/at/af Power over Ethernet (Ultra POE/PoE+/PoE), Metal Housing
URL - https://intellinetnetwork.eu/catalogsearch/result/?q=561389
WarrantyInfo - 3 years
Weight & dimensions - Depth - 78 mm
Weight & dimensions - Height - 103 mm
Weight & dimensions - Weight - 295 g
Weight & dimensions - Width - 32 mm
