Milesight Milesight

Category 1 - Netzwerk
Category 2 - Internet of Things (IoT)
Code - UG65-868M-EA
EAN - 2000001166987
EAN - 6974225032723
Manufacturer - Milesight
MPN - UG65-868M-EA

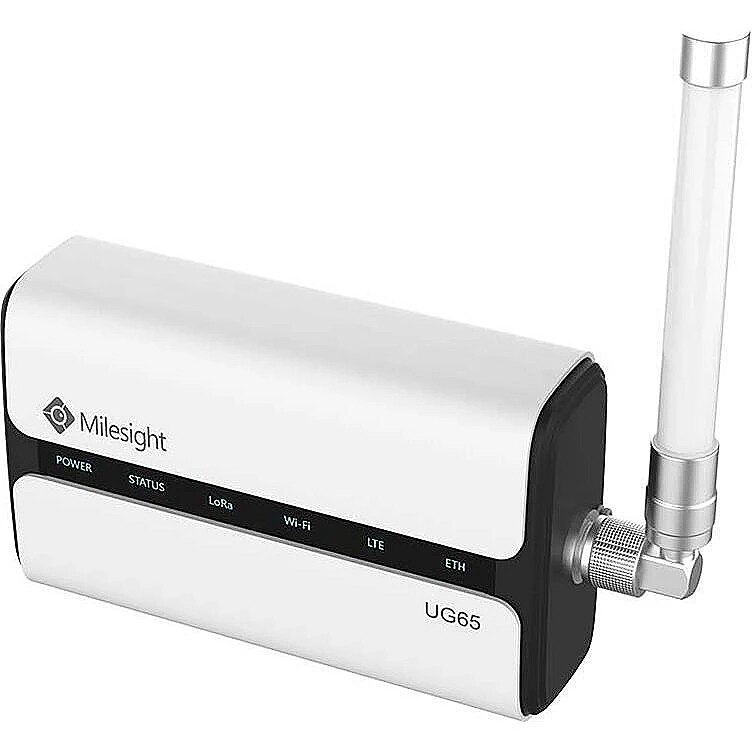

Name - IoT Milesight LoRaWAN Gateway POE Wi-Fi
Name - Milesight
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 57.00 mm
Package features > Gross height (mm) - 180.00 mm
Package features > Gross width (mm) - 110.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 769 pc(s)
Package features > Paper/Pasteboard - 255.00 g
Package features > Plastic (No PET) - 45.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > TI weight (kg) - 0.00 kg
Package features > Type of battery - Battery
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - http://www.blobs.lt/products/1/1/1/5/2/3/5003e88c3aeedb4701df3fb19b89be26/original.pdf
PDF - http://www.blobs.lt/products/1/1/1/5/2/3/426723e1a82f88cf121fdd80f8a60182/original.pdf
Power > Power supply - DC Jack Connector for 9-24 VDC, 802.3 af PoE input
Technical details > Gross weight - 1.30 kg
Technical details > Ingress protection - IP65
Technical details > Net weight - 1.00 kg
Technical details > Operating temperature - -40°C, +70°C
Technical details > Operation environment - Indoor, Outdoor
Technical details > Other features - UG65 is a robust 8-channel LoRaWAN gateway. Adopting SX1302 LoRa chip and high-performance quad-core CPU, UG65 supports connection with more than 2000 nodes. UG65 has line of sight up to 10km and can cover about 2km in urbanized environment, which is ideally suited to smart office, smart building and many other applications. UG65 supports not only multiple back-haul backups with Ethernet, Wi-Fi and cellular, but also has integrated mainstream network servers (such as TTN, ChirpStack, etc.) and built-in network server and Milesight IoT Cloud for easy deployment.
Technical details > Producer - Milesight
Technical details > Producer product family - Semi-Industrial 8-channel Indoor LoRaWAN Gateway
Technical details > Producer product name - UG65
Technical details > Technology - LoRaWAN
Technical details > Warranty - 3 year(s)
Warranty - 36
Warranty - 36 month(s)
