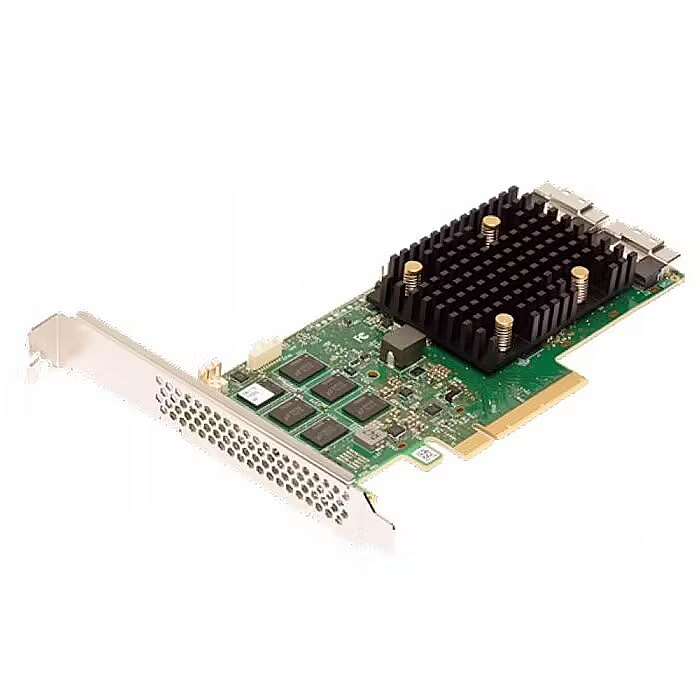

Asus RAID CARD 9560-16I//BROADCOM PCIe 4.0 (Trial mode RAID support SATA/SAS/NVMe) 2x SlimSAS SFF-8654

dimensionalWeight - 705
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -45 - 105 °C
Performance - Data transfer rate - 12 Gbit/s
Performance - Internal memory - 1024 MB
Performance - Linux operating systems supported - Yes
Performance - Memory clock speed - 1866 MHz
Performance - Number of devices supported - 240
Performance - Online Capacity Expansion - Yes
Performance - RAID levels - 0
Performance - RAID levels - 1
Performance - RAID levels - 5
Performance - RAID levels - 10
Performance - RAID levels - 50
Performance - RAM type - DDR3
Performance - S.M.A.R.T. support - Yes
Performance - SSD support - Yes
Performance - Windows operating systems supported - Yes
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Host interface - PCI Express x8
Ports & interfaces - Internal mini-SAS ports - 2
Ports & interfaces - PCI Express slots version - 4.0
Ports & interfaces - Supported storage drive interfaces - Serial ATA III
producerCode - 90SKC000-M69AN0
productName - RAID controller ASUS RAID C9560-16I/BROADCOM (90SKC000-M69AN0)
productSize - Normal
sizeX - 245
sizeY - 80
sizeZ - 180
warrantyLength - 36
warrantyType - G
weight - 296
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 80 mm
Weight & dimensions - Width - 245 mm
