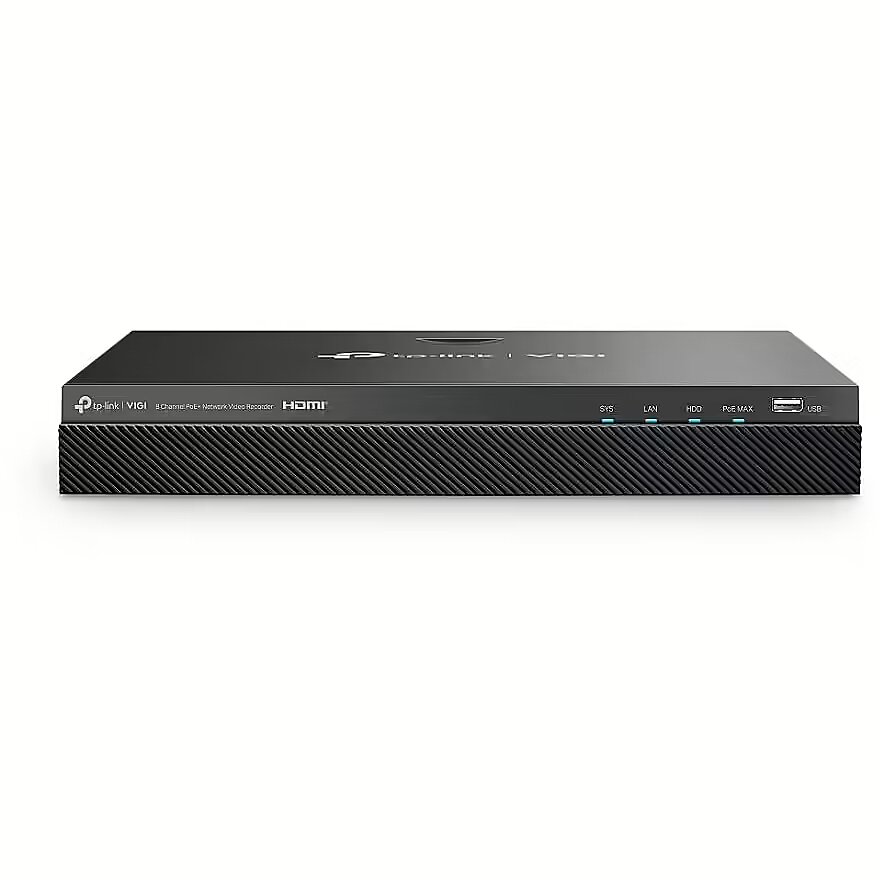

TP-LINK Recorder VIGI NVR2008H-8 MP 8 Channel PoE+

15pin D-sub Input/Output connectors - 1
Accessories included - VIGI NVR2008H-8MP DVR Power supply Power cable Power cables for HDDs Data cables for HDDs Mounting accessories Mouse Quick installation guide
ARTIKEL1 - 8 CHANNEL POE+ NVR
ARTIKEL2 - 2 SATA INTERFACE(UP TO 10 TB)
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Audio compression - G.711a
Audio compression - G.711u
Audio compression - G.726
Brand - TP-Link
BrandPartCode - VIGI NVR2008H-8MP
Breite - 0
Category - Network Video Recorders (NVR)
Category Code - NVR
Certificates - CE EAC UKCA RCM Triman BSMI VCCI FCC IC
Channels - 8

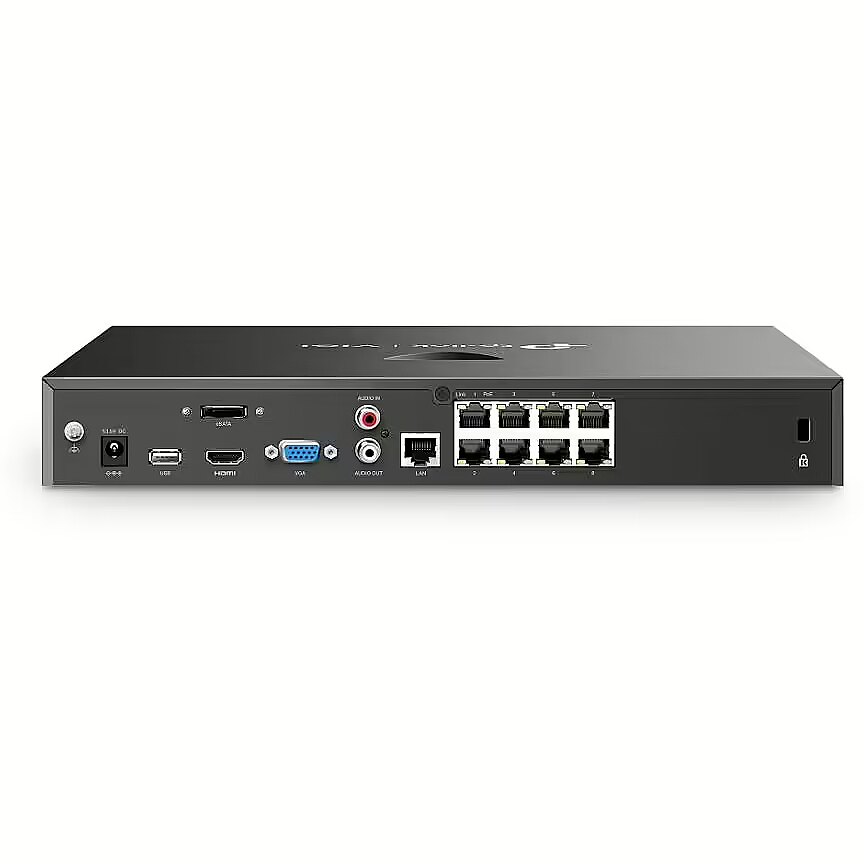

Connectors - 1 x D-Sub
Connectors - 1 x HDMI
Connectors - 2 x USB 2.0
Connectors - 9 x RJ-45
Connectors - Audio in
Connectors - Audio out
Connectors - eSATA
Description - VIGI 8 Channel PoE+ Network Video Recorder 8-Channel Live View and 4K HDMI Video Output 8× 10/100 Mbps PoE+ Ports with 93 W PoE Budget 4-ch @ 4MP/ 8-ch @ 2MP Decoding Capability 8-Channel Synchronous Playback† 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth 2× SATA Interfaces and 1 Up to 10 TB (1× 2TB HDD Preinstalled) H.265+ Compression Technology HDMI and VGA Simultaneous Output Remote Monitoring
Description - VIGI NVR2008H-8MP VIGI 8-Channel PoE+ Network Video Recorder 8-Channel Live View and 4K HDMI Video Output 8 10/100Mbps PoE+ Ports with 93W PoE Power 4-Channel @4MP / 8-Channel @2MP Decoding Capability 8-Channel Simultaneous Playback 80Mbps Incoming Bandwidth and 60Mbps Outgoing Bandwidth 2 SATA Ports (Up to 16TB Each) - HDD Not Included H.265+ Compression HDMI and VGA Simultaneous Output Remote Monitoring Quick Setup with Auto Initialization Click "Auto Initialize" to quickly configure the IP Camera and HDD parameters, reducing the time needed to configure them.
Designation - CE+WEEE
Desktop/pedestal Mounting Type - Yes
dimension depth - 140 mm
dimension height - 400 mm
Dimensions - 330 x 285 x 45 mm
Dimensions - 330 × 285 × 45 mm
dimension weight - 3650 g
dimension width - 350 mm
ean - 8885020622027
EANCode - 8885020622027
Environment requirements - Storage Temperature: -40 - 70 °C Storage Humidity: 10%~90% RH, Non-condensing Operating Temperature: NVR: -10 - 55 °C, Power Supply: 0 - 40 °C Operating Humidity: 10%~90% RH, Non-condensing
eSATA Input/Output connectors - 1
Features - LED indicators - Yes
Features - Product colour - Black
Full Description Line - Channels 8|Drives/bays 2|Desktop/pedestal|Integrated LAN 10/100|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xeSATA|1xRJ45|Power supply requirements 53.5V DC/2.43A|Power consumption 35 Watts|Dim. 330 × 285 × 45 mm
GRUPPE1 - Security
GRUPPE2 - Signal Enhancers
GTIN - 8885020622027
guarantee - 36
guarantee_type - normal
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 32 TB
Hard drive - Number of HDDs supported - 2
HDD interface - SATA
HDMI Input/Output connectors - 1
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - VIGI NVR2008H-8MP
Integrated LAN - 10/100
Laenge - 0
LongDesc - Security Never Shuts DownVIGI NVR2008H-8MP 8 Channel PoE+ Network Video Recorder- 8-Channel Live View- 4K HDMI Video Output- 93W PoE Budget- 8-Channel Live View- Smart Video Coding- Comprehensive Compatibility- Auto Initialize- 2× SATA Interfaces (1 Up to 16 TB)Auto Initialize for Quick ConfigurationJust click “Auto Initialize” to set up basic IPC and hard disk parameters, greatly reducing your configuration time.
LongProductName - 8-Ch, 80 Mbps In, 60 Mbps Out, 3840x2160/30Hz, 330 x 285 x 45 mm
LongSummaryDescription - TP-Link VIGI 8 Channel PoE+ Network Video Recorder. Video input channels: 8 channels, Maximum resolution: 3840 x 2160 pixels, Supported resolutions: 3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720. Maximum storage capacity: 32 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s. Product colour: Black. Power consumption (typical): 35 W, Output current: 2.43 A, Output voltage: 53.5 V
Max. capacity of disks - 32 TB
Max. number of disks - 2
Model - VIGI NVR2008H-8MP
name - Recorder VIGI NVR2008H-8MP 8 Channel PoE+
Number of Channels - 8
Number of drives/bays - 2
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - PoE Standard: 802.3at/af PoE Budget: 93W available in total for all PoE+ ports, max 30W per port
Performance - Audio formats supported - G.711, G.711u, G.726
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum frame rate - 60 fps
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Output bandwidth - 60 Mbit/s
Performance - Supported resolutions - 3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video input channels - 8 channels
Performance - Video loss detection - Yes
Performance - Video motion detection - Yes
PoE+ ports - 8
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - eSATA - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 9
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 2.43 A
Power - Output voltage - 53.5 V
Power - Power consumption (typical) - 35 W
Power - Power over Ethernet (PoE) power per port - 30 W
Power - Total Power over Ethernet (PoE) budget - 93 W
Power consumption - 35 Watts
Power supply requirements - 53.5V DC/2.43A
producer - TP-LINK
ProductName - VIGI 8 Channel PoE+ Network Video Recorder
Recording modes - Manual Recording Recording Schedule Motion Detection Recording
Resolution - 3840 x 2160
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 40 cm
Shipping Box Height Shipping/Package Box Dimensions - 35 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.68 kg
Shipping Box Width Shipping/Package Box Dimensions - 14 cm
ShortSummaryDescription - TP-Link VIGI 8 Channel PoE+ Network Video Recorder, 8 channels, 3840 x 2160 pixels, 3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720, G.711, G.711u, G.726, H.264, H.264+, H.265, H.265+, 60 fps
Special functions - General Alarm: Motion Detection Video Tampering Line Crossing Detection Intrusion Detection Area Entrance Detection Area Exit Detection Object Abandonment/Taken Detection Vehicle Detection Human Detection Smart Frame Unexpected Event Alarm: Video Loss Offline and IP Conflict Disk Error Login Error Fan Error Alarm Linkage: Recording White Light Alarm Buzzer Log Audio Alarm
Stck_Kart - 3
Stck_Pal - 0
Storno - Y
Title - TP-Link VIGI 8 Channel PoE+ Network Video Recorder
Unit Box Height - 0.35
Unit Box Length - 0.4
Unit Box Width - 0.14
Unit Brutto Volume - 0.0196 cubm
Unit Gross Weight - 3.68 kg
Unit Net Weight - 2.1 kg
URL - https://www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr2008h-8mp/
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.tp-link.com/cl/business-networking/vigi-network-video-recorder/vigi-nvr2008h-8mp/
vendpn - VIGI NVR2008H-8MP
Video compression - H.264
Video compression - H.264+
Video compression - H.265
Video compression - H.265+
Viewing modes - Instant playback Normal playback Tag playback Event playback
Warranty - 36 months
WarrantyInfo - 3 Years
Weight - 2.1 kg
Weight & dimensions - Depth - 285 mm
Weight & dimensions - Height - 45 mm
Weight & dimensions - Package weight - 4.1 kg
Weight & dimensions - Weight - 2.1 kg
Weight & dimensions - Width - 330 mm
Wireless communication - No
Wireless LAN features - Wi-Fi - No
