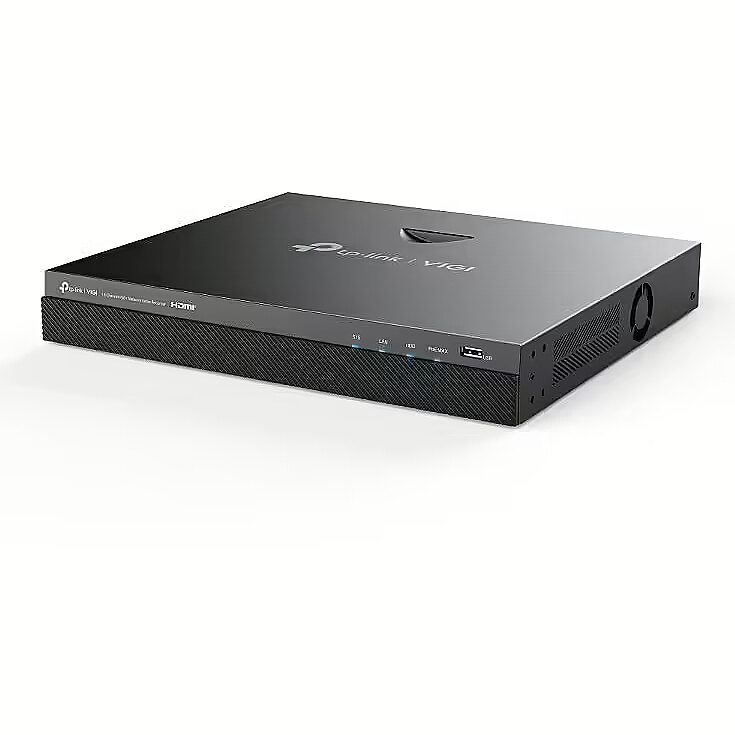

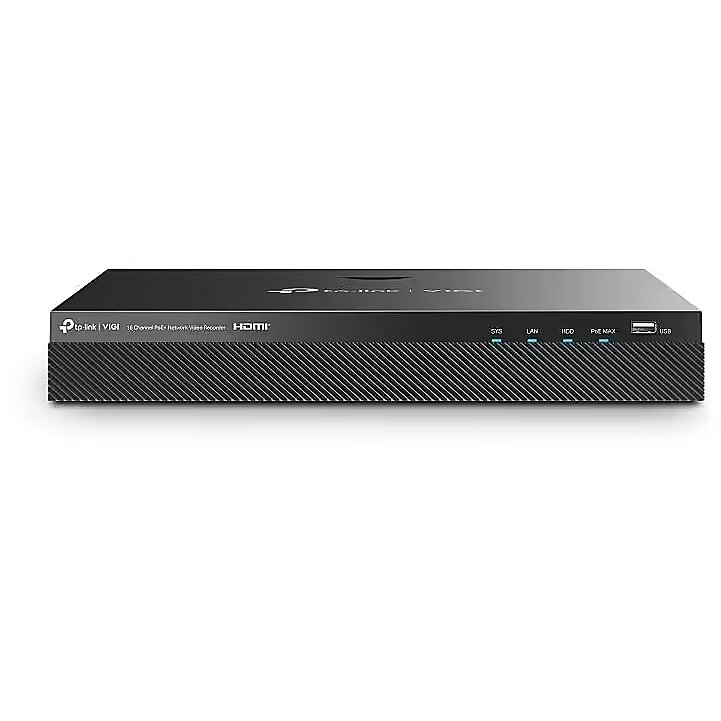

TP-LINK VIGI NVR2016H-1 6P Video Recorder PoE+

15pin D-sub Input/Output connectors - 1
Accessories included -
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Audio compression - G.711a
Audio compression - G.711u
Audio compression - G.726
Brand - TP-Link
BrandPartCode - VIGI NVR2016H-16P
Category - Network Video Recorders (NVR)
Category Code - NVR
Channels - 16
Colour - Black
Connectors - 2 x 3,5 mm minijack
Connectors - 2 x USB 3.0
Connectors - RJ-45
Description - 4K HDMI Video Output and 16MP Decoding Capacity: Sharp image resolution of up to 8MP and 8-channel decoding capacity at 2MP allow you to enjoy live view and playback of more channels at the same time. 90W PoE budget: 16 802.3af/at compliant PoE+ ports with a total power of 90W. 16-Channel Simultaneous Playback: Playback from up to 16 cameras simultaneously, increase playback speed and find events in the video schedule to easily review recordings. H.265+: Compresses video size without losing video quality, reducing network load and saving disk space. ONVIF ensures compatibility: Easily add VIGI and other brands' IPCs to create a powerful and diverse network with barrier-free compatibility. Auto Initialization for Quick Configuration: Just click Auto Initialization to configure the basic IPC and HDD parameters, greatly reducing setup time. 24/7 continuous recording: Stores up to 20TB of footage (1,048 days of storage) from connected cameras to secure data and ensure quick and convenient access. Two-way audio: With voice intercom support, you'll deter potential thieves or intruders wherever you are.
Description - VIGI NVR2016H-16P VIGI 16 Channel PoE+ Network Video Recorder - 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time. - 90 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 90 W.‡ - 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage. - H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space. - ONVIF Ensures Compatibility?: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. - Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time. - 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access. - Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are. - Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
dimension depth - 145 mm
dimension height - 350 mm
Dimensions - 330 × 285 × 45 mm
dimension weight - 3730 g
dimension width - 400 mm
ean - 4895252504040
eSATA Input/Output connectors - 1
Features - Certification - CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Features - Product colour - Black
Features - Reset button - Yes
Full Description Line - Channels 16|SATA|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xeSATA|1xRJ45|Power consumption 6.2 Watts|Dim. 330 × 285 × 45 mm|Temp. range -10–55 °C|Colour Black
GTIN - 4895252504040
guarantee - 36
guarantee_type - normal
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 10 TB
Hard drive - Number of HDDs supported - 2
HDD interface - SATA
HDMI Input/Output connectors - 1
Integrated LAN - Gigabit
LongDesc - Security Never Shuts DownEvery Angle All on One Screen4K HDMI Video Output & 16MP Decoding CapacitySharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.†Dedicated 16 PoE+ Ports for Simplified IP Camera Deployment.Designed to use a single Ethernet cable for both data and power transmission, this NVR offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.Reviewing Footage is Faster than Ever16-Channel Simultaneous Playback*Replay the feed from up to 16 cameras at the same time, increase replay speed,and find events in the video schedule to easily review footage.More Compression. More Savings. More Quality.Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.No Need to Check Long Compatibility ListsONVIF Ensures CompatibilityEasily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility. △Auto Initialize for Quick ConfigurationJust click "Auto Initialize" to set up basic IPC and hard disk parameters, including initialization and recording plans, significantly reducing your configuration time.Security for Every Hour and Every Day27/4 Continuous RecordingWith the storage capacity of up to 20TB, the NVR supports 24/7 continuous local recording. Customize record schedule or record type to save storage space and quickly search out target footage.Two-Way AudioWith voice intercom support, scare off any potential thieves or intruders from wherever you are.Remote ManagementTake full control over your security anytime and anywhere on the VIGI app or client.Live Views and Real-Time AlertsEasily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.Easy & Smart PlaybackQuickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.Customized Monitoring PatternsBased on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.Four-Way ManagementFlexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manager for ease and convenience.One system. Full security.Run your business with peace of mind.The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
LongProductName - VIGI 16 Channel PoE+ Network Video Recorder
LongSummaryDescription - TP-Link VIGI NVR2016H-16P. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: UPnP (Plug and Play), NTP (Network Timing). Product colour: Black, Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI. Power consumption (max): 40 W, Output current: 2.43 A, Output voltage: 53.5 V
Max. capacity of disks - 10 TB
Max. number of disks - 2
Model - VIGI NVR2016H-16P
name - VIGI NVR2016H-1 6P Video Recorder PoE+
Number of Channels - 16
Operating temperature range - -10–55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Packaging content - AC adapter included - Yes
Packaging content - Cables included - AC
Packaging content - Quick installation guide - Yes
Performance - Audio formats supported - G.711 A-law, G.711 μ-law, G.726
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum frame rate - 30 fps
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Number of simultaneously playbacked channels - 16 channels
Performance - Output bandwidth - 60 Mbit/s
Performance - Playback controls - Yes
Performance - Playback modes - Digital zoom, Fast play, Forward, Full screen, Pause, Play, Stop
Performance - Recording modes - Manual, Schedule
Performance - Supported resolutions - HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30Hz
VGA Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video input channels - 16 channels
Performance - Video motion detection - Yes
Performance - Video recording modes - 720p, 1080p
PoE+ ports - 16
Ports & interfaces - Audio output - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - eSATA - Yes
Ports & interfaces - eSATA ports quantity - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Internal SATA ports quantity - 2
Ports & interfaces - Line-in - Yes
Ports & interfaces - Networking standards - IEEE 802.3af, IEEE 802.3at
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 16
Ports & interfaces - Supported network protocols - UPnP (Plug and Play), NTP (Network Timing)
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 2.43 A
Power - Output voltage - 53.5 V
Power - Power consumption (max) - 40 W
Power - Total Power over Ethernet (PoE) budget - 90 W
Power consumption - 6.2 Watts
producer - TP-LINK
ProductName - VIGI NVR2016H-16P
Recording modes -
Resolution - 3840 x 2160
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 40 cm
Shipping Box Height Shipping/Package Box Dimensions - 35 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 14 cm
ShortSummaryDescription - TP-Link VIGI NVR2016H-16P, 16 channels, 3840 x 2160 pixels, 16 channels, 720p, 1080p, HDMI Output Resolution: 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz,..., G.711 A-law, G.711 μ-law, G.726
Special functions -
Title - TP-Link VIGI NVR2016H-16P network video recorder Black
Unit Box Height - 0.35
Unit Box Length - 0.4
Unit Box Width - 0.14
Unit Brutto Volume - 0.0196 cubm
Unit Gross Weight - 3.2 kg
Unit Net Weight - 1.9 kg
URL - https://www.tp-link.com/my/business-networking/vigi-network-video-recorder/vigi-nvr2016h-16p/
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.tp-link.com/en/business-networking/vigi-network-video-recorder/vigi-nvr2016h-16p/
vendpn - VIGI NVR2016H-16P
Video compression - H.264
Video compression - H.264+
Video compression - H.265
Video compression - H.265+
Viewing modes -
Warranty - 36 months
WarrantyInfo -
Weight - 1.9 kg
Weight & dimensions - Depth - 285 mm
Weight & dimensions - Height - 45 mm
Weight & dimensions - Package weight - 3.2 kg
Weight & dimensions - Weight - 1.9 kg
Weight & dimensions - Width - 330 mm
Wireless LAN features - Wi-Fi - No
