15pin D-sub Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Category Code - NVR
Colour - White
Description - "8CH Smart 1U 8PoE 1HDD WizSense Network Video Recorder > Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format. > Access, storage or forwarding at 256 Mbps (180 Mbps when AI function enabled). > Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding. > AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus. > AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map. > Connected to the third-party network cameras. > Security baseline 2.3."
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 2124
Dimensions - 270 × 206.2 × 47.5 mm
Features - Certification - FCC: 47 CFR FCC Part15, SubpartB, Class A; CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014; CE-LVD: EN 62368-1:2014
Features - Product colour - White
Full Description Line - Channels 8|Desktop/pedestal|Rack|Integrated LAN Gigabit|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRJ45|Power supply requirements 53 VDC, 1.812 A|Power consumption 10 Watts|Dim. 270 × 206.2 × 47.5 mm|Temp. range –10 °C to +55 °C|Colour White
HDMI Input/Output connectors - 1
Integrated LAN - Gigabit
Model - NVR4108-8P-EI
Number of Channels - 8
Operating temperature range - –10 °C to +55 °C
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 93%
Performance - Audio codecs - G.711a, G.711Mu, G.726, PCM
Performance - Backup function - Yes
Performance - Maximum resolution - 4608 x 3472 pixels
Performance - People counting function - Yes
Performance - Playback modes - Instant playback, general playback, event playback, tag playback, smart playback
Performance - Recording modes - Motion detection, manual recording, smart recording, alarm
Performance - Supported resolutions - 4608x3472, 3840x2160, 1920x1080, 1280x1024, 1280x720, 1920x1080, 1280x1024, 1280x720
Performance - Total megapixels - 16 MP
Performance - Video formats supported - H.264
Performance - Video formats supported - H.264+
Performance - Video formats supported - H.265
Performance - Video formats supported - H.265+
Performance - Video input channels - 8 channels
Performance - Video motion detection - Yes
PoE ports - 8
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Number of SATA connectors - 1
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 8
Ports & interfaces - RCA input - 1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Current - 1.8 A
Power - DC output voltage - 53
Power - Power consumption (Power over Ethernet (PoE)) - 72 W
Power - Power consumption (typical) - 10 W
Power - Power over Ethernet (PoE) power per port - 25.5 W
Power - Power source type - DC, PoE
Power consumption - 10 Watts
Power supply requirements - 53 VDC, 1.812 A
producerCode - NVR4108-8P-EI

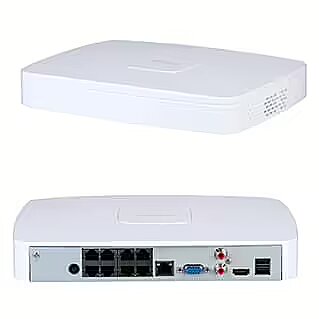

productName - Network video recorder DAHUA NVR4108-8P-EI White
productSize - Normal
Rack Mounting Type - Yes
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 43 cm
Shipping Box Height Shipping/Package Box Dimensions - 26 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.77 kg
Shipping Box Width Shipping/Package Box Dimensions - 9.5 cm
sizeX - 430
sizeY - 95
sizeZ - 260
Storage - HDD interface - SATA
Storage - Maximum storage capacity - 16 TB
Unit Box Height - 0.26
Unit Box Length - 0.43
Unit Box Width - 0.095
Unit Brutto Volume - 0.01062 cubm
Unit Gross Weight - 1.77 kg
Unit Net Weight - 0.7 kg
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4108-8P-EI
Warranty - 36 months
warrantyLength - 36
warrantyType - F
weight - 1790
Weight & dimensions - Depth - 206.2 mm
Weight & dimensions - Height - 47.5 mm
Weight & dimensions - Package weight - 1.74 kg
Weight & dimensions - Weight - 700 g
Weight & dimensions - Width - 270 mm
