ID: 989324
Tuotekoodi: HDW5541TM-ASE-0280B-S3
Varastossa 50 yksiköt
Takuu: 3 vuotta

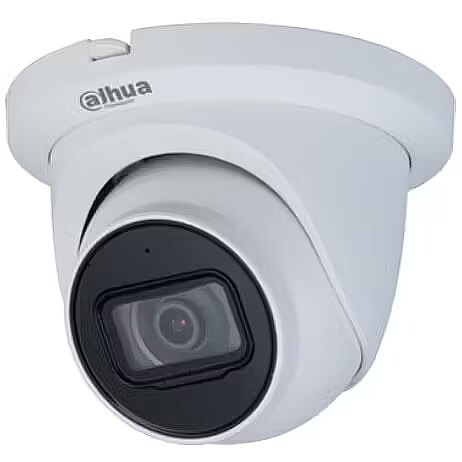

Dahua Eyeball, 1668p, 5MP, White
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Toimitusvaihtoehdot
- Toimitus Smartpost-pakettiautomaattiin 6,99 €: keskiviikkona, 13.11.2024
- Kuriiritoimitus 11,99 €: keskiviikkona, 13.11.2024
Kaikki parametrit
Aukko
: F1.6
FPS maksimiresoluutiolla
: 30
Kameroiden määrä sarjaa kohti
: 1
Katselukulma
: N/A
Koodaus
: H.264, H.265
Käyttölämpötila MAX (°C)
: 60
Käyttölämpötila MIN (°C)
: -40
Käytä
: Indoor/Outdoor
Mikrofoni
: Ir
Muistikorttipaikka
: microSD
Paino (g)
: 500
Päätöslauselma
: 2960x1668
Ruokinta
: 12V adapteris, PoE
SIM-korttipaikka
: Nav
Vedenkestävyys
: IP67
Verkkoyhteydet
: RJ-45, Wi-Fi
Väri
: Balta
Yksityiskohtaisempi erittely
Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Eyeball
Category Code - FNC
Colour - White
Description - 1/2.7” 5Megapixel progressive CMOS, 2960 × 1668 @ 30FPS max Minimum illumination: 0.0009 lux @F1.6 (Color, 30 IRE); 0.0005 lux @F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) True Day/Night (ICR), BLC/HLC/True WDR 120 dB/3D DNR 2.8 mm fixed lens (111° HFOV) Up to 50 meters IR LED Illumination H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI Built-in MIC, 1/1 Audio I/O, 1/1 Alarm I/O Micro SD card up to 256GB supported Metal core, IP67, -40°C~+60°C, PoE / 12VDC power, 6.8W max With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, people counting, etc. Free IP monitoring software available
Dimensions - 99.1 mm × Φ121.9 mm
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm
Full Description Line - Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7”|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0009 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power, 6.8W max|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White|Dimensions 99.1 mm × Φ121.9 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0009 Lux
Model - IPC-HDW5541TM-ASE-0280B-S3
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - -40°C~+60°C
Pixel Resolution - 5 Mega Pixel
Power consumption - 6.8 Watts
Power options - 12V/PoE
Power supply requirements - PoE / 12VDC power, 6.8W max
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7”
Shipping Box Depth Shipping/Package Box Dimensions - 58 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 24
Shipping Box Weight Shipping/Package Box Dimensions - 19.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 48 cm
Supports card capacities up to - 256GB
Unit Box Height - 0.13
Unit Box Length - 0.14
Unit Box Width - 0.15
Unit Brutto Volume - 0.00348 cubm
Unit Gross Weight - 0.8 kg
Unit Net Weight - 0.5 kg
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HDW5541TM-ASE=S3
Warranty - 36 months
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Eyeball
Category Code - FNC
Colour - White
Description - 1/2.7” 5Megapixel progressive CMOS, 2960 × 1668 @ 30FPS max Minimum illumination: 0.0009 lux @F1.6 (Color, 30 IRE); 0.0005 lux @F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) True Day/Night (ICR), BLC/HLC/True WDR 120 dB/3D DNR 2.8 mm fixed lens (111° HFOV) Up to 50 meters IR LED Illumination H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI Built-in MIC, 1/1 Audio I/O, 1/1 Alarm I/O Micro SD card up to 256GB supported Metal core, IP67, -40°C~+60°C, PoE / 12VDC power, 6.8W max With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, people counting, etc. Free IP monitoring software available
Dimensions - 99.1 mm × Φ121.9 mm
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8 mm
Full Description Line - Type HDTV/Megapixel/Outdoor|Pixel Resolution 5 Mega Pixel|Focal Length 2.8 mm|IR Illumination|Sensor size 1/2.7”|Microphone Built-in|Lens Mount M12|Min. Illumination 0.0009 Lux|Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s|1xAudio-In|1xAudio-Out|1xRJ45|1xAlarm In|1xAlarm Out|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements PoE / 12VDC power, 6.8W max|Environment Outdoor|Operating temperature range -40°C~+60°C|Colour White|Dimensions 99.1 mm × Φ121.9 mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0009 Lux
Model - IPC-HDW5541TM-ASE-0280B-S3
Network Camera Type - HDTV/Megapixel/Outdoor
Operating temperature range - -40°C~+60°C
Pixel Resolution - 5 Mega Pixel
Power consumption - 6.8 Watts
Power options - 12V/PoE
Power supply requirements - PoE / 12VDC power, 6.8W max
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7”
Shipping Box Depth Shipping/Package Box Dimensions - 58 cm
Shipping Box Height Shipping/Package Box Dimensions - 30 cm
Shipping box quantity - 24
Shipping Box Weight Shipping/Package Box Dimensions - 19.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 48 cm
Supports card capacities up to - 256GB
Unit Box Height - 0.13
Unit Box Length - 0.14
Unit Box Width - 0.15
Unit Brutto Volume - 0.00348 cubm
Unit Gross Weight - 0.8 kg
Unit Net Weight - 0.5 kg
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/5MP/IPC-HDW5541TM-ASE=S3
Warranty - 36 months
