Audio - Built-in microphone - Yes
Brand - TP-Link
BrandPartCode - VIGI C230(2.8MM)
Camera - Angle of rotation - 360°
Camera - Camera pan control - Yes
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 128.7°
Camera - Lens viewing angle, horizontal - 107.5°
Camera - Lens viewing angle, vertical - 57.2°
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 85°
Camera design - Dome
Category - Security Cameras
Category Code - FNC
Colour - White
Description - VIGI 3MP Full-Color Dome Network Camera 3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details. 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights. Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects. Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera. IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime. H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality. Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision. PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy. Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Design - Form factor - Dome
Design - Housing material - Plastic
Design - IK code - IK10
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling
Design - Product colour - White
Dimensions - 115 × 115 × 86 mm
Focal Length - 2.8mm
Full Description Line - Type Fixed Dome/HDTV/Megapixel|Pixel Resolution 3 Mega Pixel|Focal Length 2.8mm|IR Illumination|Sensor size 1/2.8”|Lens Mount M12|Min. Illumination 0.005 Lux|1xRJ45|Supports card capacities up to 256GB|Power options PoE/12V|Power supply requirements 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)|Operating temperature range -30–60 °C|Included Accessories Quick Start Guide,Waterproof Cable Attachments,Mounting Accessories|Colour White|Dimensions 115 × 115 × 86 mm
Image sensor - Optical sensor size - 25.4 / 2.8 mm (1 / 2.8")
Image sensor - Sensor type - CMOS
Included Accessories - Quick Start Guide,
Waterproof Cable Attachments,
Mounting Accessories
IR Illumination - Yes
Lens Mount - M12
Lens system - Fixed focal length - 2.8 mm
LongDesc - Clarity and Colors, All in OneMonitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.Human & Vehicle ClassificationIntegrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.We keep an eye on your business.Smart DetectionBacked by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.No more silent surveillance.Built-In MicrophoneThe VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.IK10 Vandal-Proof & IP67 WaterproofWith vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

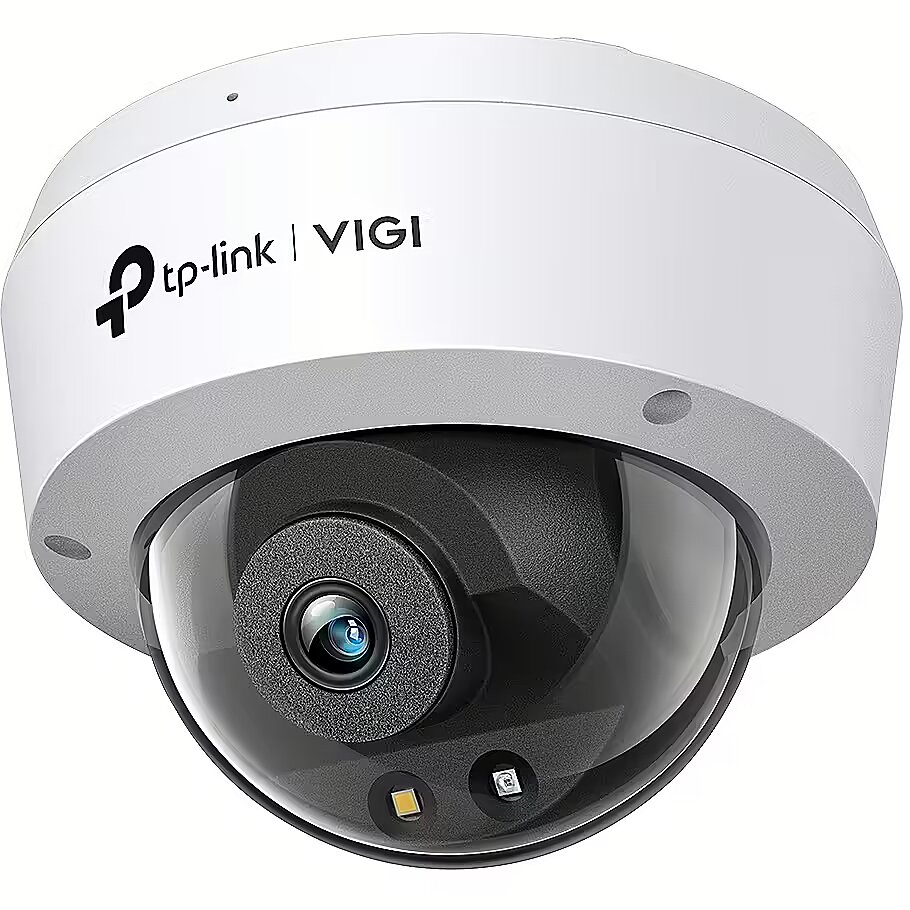

LongProductName - VIGI 3MP Full-Color Dome Network Camera
LongSummaryDescription - TP-Link VIGI C230(2.8mm). Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 360°, Lens viewing angle, horizontal: 107.5°, Lens viewing angle, vertical: 57.2°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 2.8 mm
Min. Illumination - 0.005 Lux
Model - VIGI C230(2.8MM)
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network - Wi-Fi - No
Network Camera Type - Fixed Dome/HDTV/Megapixel
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 1
Operating temperature range - -30–60 °C
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Packaging content - Number of cameras - 1
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Pixel Resolution - 3 Mega Pixel
Power - DC output voltage - 12
Power - Power consumption (max) - 4.7 W
Power - Power source type - DC
Power consumption - 4.7 Watts
Power options - 12V/PoE
Power supply requirements - 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
ProductName - VIGI C230(2.8mm)
RJ45 Input/Output connectors - 1
Security - Active tampering alarm - Yes
Security - HTTPS encryption - Yes
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Security - Password reset via email - Yes
Security - Video motion detection - Yes
Sensor size - 1/2.8”
Shipping Box Depth Shipping/Package Box Dimensions - 19 cm
Shipping Box Height Shipping/Package Box Dimensions - 12 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.47 kg
Shipping Box Width Shipping/Package Box Dimensions - 15 cm
ShortSummaryDescription - TP-Link VIGI C230(2.8mm), IP security camera, Indoor & outdoor, Wired, Ceiling, White, Dome
Storage - Built-in HDD - No
Supports card capacities up to - 256GB
Title - TP-Link VIGI C230(2.8mm) Dome IP security camera Indoor & outdoor 2304 x 1296 pixels Ceiling
Unit Box Height - 0.12
Unit Box Length - 0.19
Unit Box Width - 0.15
Unit Brutto Volume - 0.00342 cubm
Unit Gross Weight - 0.47 kg
Unit Net Weight - 0.4 kg
URL - https://www.tp-link.com/ae/business-networking/vigi-network-camera/vigi-c230/#overview
Vendor Homepage - www.tp-link.com/ae/business-networking/vigi-network-camera/vigi-c230/
Video - Back Light Compensation (BLC) - Yes
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness, Contrast, Mirror, Saturation, Sharpness
Video - Maximum resolution - 2304 x 1296 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Smart IR - Yes
Video - Supported graphics resolutions - 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296
Video - Total megapixels - 3 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video streaming - Yes
Warranty - 24 months
WarrantyInfo -
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Height - 115 mm
Weight & dimensions - Width - 115 mm
