Accessories included - VIGI Network Camera Quick Start Guide Waterproof Cable Mounts Mounting Accessories
ARTIKEL1 - 8MP TURRET NETWORK CAMERA
ARTIKEL2 - FULL-COLOR 2.8MM FIXED LENS
Audio - Audio formats supported - G.711
Audio - Audio system - 2-way
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Sample rate - 8 kHz
Audio - Signal-to-Noise Ratio (SNR) - 52 dB
Brand - TP-Link
BrandPartCode - VIGIC485_2.8MM
Breite - 0
Camera - Angle of rotation - 360°
Camera - Camera shutter speed - 1/3 to 1/10000
Camera - Lens viewing angle, diagonal - 134°
Camera - Lens viewing angle, horizontal - 111.4°
Camera - Lens viewing angle, vertical - 58.8°
Camera - Minimum illumination - 0.005 lx
Camera - Number of Privacy masking areas - 4
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 85°
Category - Security Cameras
Certificates - CE, NTRA, VCCI, KC, BSMI, FCC, IC
Color - White
Connectors - RJ-45
Description - VIGI C485 8MP Full-Color Turret Network Camera 4K (8MP) Ultra HD and 24h full color Human and vehicle classification Intelligent detection Intelligent video enhancement technology Active defense and two-way audio IP67 waterproof H.265+ compression technology 12V DC/PoE power supply
Design - Form factor - Turret
Design - Housing material - Metal
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling
Design - Product colour - White
Designation - CE+WEEE
dimension depth - 120 mm
dimension height - 160 mm
Dimensions - 111 x 111 x 83.7 mm
dimension weight - 740 g
dimension width - 160 mm
ean - 4895252502466
EAN - 4895252502466
EANCode - 4895252502466
Environment requirements - Operating temperature -30 - 60°C Storage temperature -40 - 60°C Operating humidity 95% or less (non-condensing) Storage humidity 95% or less (non-condensing)
Frames per second - 25
Gewicht - 0
Gross Weight Kg - 1,05
GRUPPE1 - Network
GRUPPE2 - Network Camera
GTIN - 4895252502466
guarantee - 36
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - VIGI C485(2.8MM)
Image sensor - Optical sensor size - 25.4 / 2.7 mm (1 / 2.7")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Laenge - 0
Lens - 2.8/4 mm
Lens system - Detect distance - 85 m
Lens system - Fixed focal length - 2.8 mm
Lens system - Identify distance - 8 m
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Observe distance - 35 m
Lens system - Recognize distance - 17 m
LongDesc - Human & Vehicle ClassificationDistinguish humans and vehicles from other objects and receive more accurate event notifications.Smart Video Enhancement TechnologyTrue WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.White Balance: White Balance ensures neutral whites in an image, regardless of the lighting conditions.Efficient H.265+ Compression TechnologyH.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.

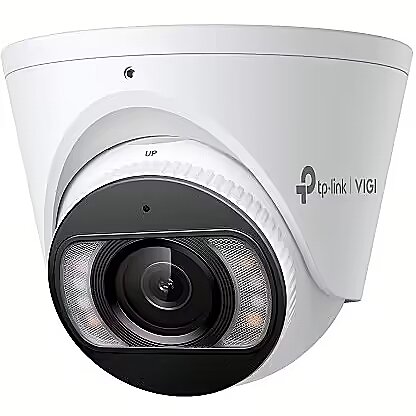

LongProductName - 8MP Full-Color Turret Network Camera
LongSummaryDescription - TP-Link VIGI C485. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 111.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 85 m, Observe distance: 35 m, Recognize distance: 17 m
Management, monitoring, configuration -
Management features - Reset button - Yes
Manufacturer Code - VIGI C485(2.8MM)
Manufacturer Name - TP-LINK
Memory card reader - Yes
Memory standard - SDXC
Microphone - Yes
Min. illuminance - 0 lx
Minimum illuminance - 0.005 lx
Mobile support - None
Motion detection - Yes
name - Camera VIGI C485(2.8mm ) 8MP Full-Color Turret
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Network - Wi-Fi - No
Network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Night mode - Yes
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 4
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Other features -
Packaging content - Mounting kit - Yes
Packaging content - Number of cameras - 1
Packaging content - Waterproof connector - Yes
Performance - Built-in light - Yes
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 11.5 W
Power - Power consumption (Power over Ethernet (PoE)) - 12.5 W
Power - Power source type - DC, PoE
Power supply - 12V DC 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug PoE: 802.3af/at, class 0, Max. 12.5 W
producer - TP-LINK
ProductName - C485
Protection class - IP67
Resolution - 4K Ultra HD (3840 x 2160)
Security - Password protection HTTPS encryption IP filtering Digest authentication IP67
Security - HTTPS encryption - Yes
Security - Human and vehicle targets classification - Yes
Security - IP address filtering - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
Sensor - 1/2.7 Progressive Scan CMOS
Short description - TP-LINK 8MP IP-Cam VIGI C485(2.8mm) +++ Full-Color
ShortSummaryDescription - TP-Link VIGI C485, IP security camera, Outdoor, Wired, 120 dB, Ceiling, White
Speakers built-in - Yes
Special functions - Human and vehicle classification Intrusion detection Line crossing detection Region entry detection Region exit detection Object leaving detection Object removal detection Loitering detection Smart frame People detection Vehicle detection Motion detection Video tampering detection Exception (illegal login) Scene change detection Video recording to memory card Push message Audible warning White light flashes
Stck_Kart - 9998
Stck_Pal - 0
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 512 GB
Storno - N
System Requirements -
Title - TP-Link VIGI C485 Turret IP security camera Outdoor 3840 x 2160 pixels Ceiling
Two-way transmission - Yes
type - fixed dome camera
URL - https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c485/v1%20(4mm%20lens)/#highlights
vendpn - VIGI C485(2.8mm)
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate control - Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Video - Frame rate - 25 fps
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness, Contrast, Mirror, Saturation, Sharpness
Video - Maximum resolution - 3840 x 2160 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Smart IR - Yes
Video - Supported graphics resolutions - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 3840 x 2160
Video - Total megapixels - 8 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video streaming - Yes
Viewing angle, horizontal - 111 °
Viewing angle, vertical - 58 °
WarrantyInfo -
Weight - 0.48 kg
Weight & dimensions - Depth - 111 mm
Weight & dimensions - Height - 83.7 mm
Weight & dimensions - Weight - 480 g
Weight & dimensions - Width - 111 mm
Wireless communication - No
