Accessories included - RS1619xs + User's guide Accessories Power cable x 2
Built-in RAM memory - 8 GB
Category - Root/Electronics/Networks and communication/NAS - file servers
Category Code - STS
Category_1 - Network and Servers
Category_2 - NAS
Cloud Station Server features - Yes
Code - RS1619xs+
CPU - Intel Xeon D-1527, Quad Core 2.2 (base) / 2.7 (turbo) GHz
Description - RS1619xs+ is a high-performance and scalable 1U rackmount NAS designed with upgradable memory and M.2 SSD cache configuration to meet the needs of modern businesses that require a flexible, reliable, and efficient storage solution. For this Synology product we are offering additional*, paid, support packages provided by Tehnogroup. Technogroup support packages includes services like on-site support, on-site post-warranty and NBD replacement.. Please contact your Account Manager for individual price offer. *Synology product price do not include additional support package costs

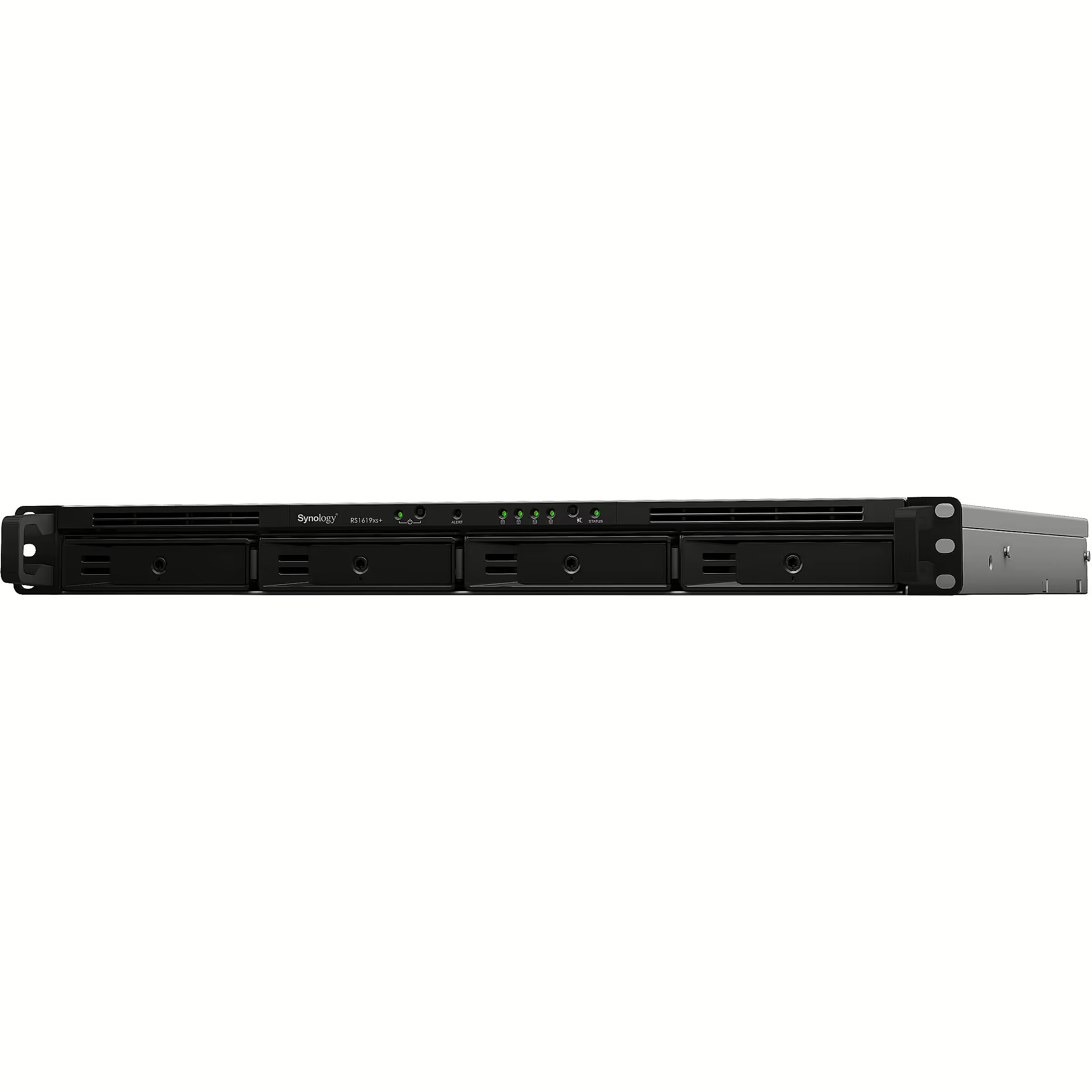

Description - Synology RackStation RS1619xs + is a powerful 1U NAS rack with comprehensive storage, data backup and collaboration applications, suitable for small and medium businesses. RS1619xs + simplifies data management, optimizes virtualization environments and quickly increases memory capacity with minimal time to install and maintain.
Design - Chassis type - Rack (1U)
Design - Cooling type - Active
Design - Fan diameter - 4 cm
Design - LED indicators - Alarm
Design - LED indicators - HDD
Design - LED indicators - Power
Design - LED indicators - Status
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design > Chassis type - Rack
Design > Number of 3.5" bays - 4
dimensionalWeight - 15213
dimension depth - 200 mm
dimension height - 585 mm
Dimensions - 44 x 430.5 x 483.6 mm
Dimensions - 44 x 480 x 518.6mm
dimension weight - 11650 g
dimension width - 610 mm
Disk type - HDD
Disk type - SSD
Download Station Server features - Yes
EAN - 4711174723065
ean - 4711174723065
Eans - 4711174723065
EAN_code - 4711174723065
Expansion slots - 1 x PCIe 3.0 x 8
Fan - 4 cm
File Server Server features - Yes
File System - EXT4
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Form factor (width) - M.2
Full Description Line - NAS Enterprise|CPU Intel Xeon D-1527, Quad Core 2.2 (base) / 2.7 (turbo) GHz|Drives/bays 4|File Server|VPN Server|Cloud Station|Multimedia Station|Download Station|Surveilance Station|Mail Server|Rack 1U|2xUSB 3.0|4xRJ45|Memory 8 GB|DDR4|File System EXT4|Included Accessories Accessory Pack X 1,AC Power Cord X 2,Quick Installation Guide X 1|Power consumption 68.68 Watts|Power supply requirements 100V to 240V AC
Gross Weight Kg - 9,5
guarantee - 60
guarantee_type - normal
HDD interface - SATA
Hot-swapping support - Yes
Housing - Rack 1U
I/O connectors - 2 x USB 3.0
I/O connectors - 4 x RJ-45 LAN
Important - Uzyskaj cenę specjalną na ten produkt wypełniając formularz rejestracji projektu. Odeślij do swojego handlowca lub maciej.michalak@ab.pl
Included Accessories - Accessory Pack X 1,
AC Power Cord X 2,
Quick Installation Guide X 1
Logistics data - Harmonized System (HS) code - 84714100
Mail Server Server features - Yes
Management, monitoring, configuration -
Manufacturer - Synology
Manufacturer Code - RS1619XS+
Manufacturer Name - Synology
Manufacturer_code - RS1619XS+
Max. number of disks - 6
Max memory size - 64 GB
Memory - 8 GB
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 64 GB
Memory - Memory slots - 4
Memory > Internal memory type - DDR4
Memory > Internal RAM - 8 GB
Memory type - DDR4
Memory type - DDR4
Multimedia Station Server features - Yes
name - Server NAS RS1619xs+ 4x0HDD 3.5/2.5 2xM2 8GB 2,2GHz 2xUSB3.0 4xRJ45
Name - Synology RS1619xs+
Name - Synology RS1619xs+, NAS
Name - Synology | DiskStation | RS1619xs+ | up to 4 HDD/SSD Hot-Swap | Intel Xeon | Intel Xeon D-1527 Quad Core | Processor frequency 2.2 GHz | 8 GB | DDR4
NAS features - Enterprise
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - iSCSI support - Yes
Network - Link aggregation - Yes
Network - Supported network protocols - CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Network architecture - GigabitEthernet
Network interface - 4 x 10/100/1000 Mbit/s
Network protocols -
Number of drives/bays - 4
Number of fans - 2
Number of HDDs installed - 0
Operational conditions - Operating altitude - 0 - 5000 m
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other disk parameters - 4 x 3.5" or 2.5" SATA SSD/HDD 2 x M.2 2280 NVMe/SATA SSD
Other features -
Other features - Certification - EAC
VCCI
RCM
FCC
CE
BSMI
Other features - Compliance certificates - RoHS
Other features - Processor ARK ID - 91195
Other features > Drive bays - 4
Other features > Ethernet LAN (RJ-45) ports - 4
Other features > Special features - 2xM.2 2280 NVMe slots
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 610 mm
Package features > Gross height (mm) - 205 mm
Package features > Gross width (mm) - 580 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 24 pc(s)
Package features > Paper/Pasteboard - 985.00 g
Package features > Tare weight (kg) - 0.99 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.072529 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - Quick installation guide - Yes
Performance - Access Control List (ACL) - Yes
Performance - Backup features - Cloud
Performance - Backup features - iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Chrome, Firefox, Internet Explorer 10+, Safari 10+
Performance - Device class - Small & Medium Business
Performance - Multilingual support - Yes
Performance - Noise level - 39.3 dB
Performance - On/off switch - Yes
Performance - Reset button - Yes
Performance - Security algorithms - HTTPS
Performance - Security algorithms - SSH
Performance - Security algorithms - SSL/TLS
Performance - Type - NAS
Performance - Web-based management - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - Expansion ports quantity - 1
Ports & interfaces - PCI Express x8 (Gen 3.x) slots - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB port - Yes
Ports & interfaces > Interface - 4x1GbE, 2xUSB 3.0, 1xPCIe, 1x Expansion port
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 2
Power - Power consumption (HDD standby) - 34.78 W
Power - Power consumption (typical) - 68.68 W
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 150 W
Power consumption - 68.68 Watts
Power supply - 100V to 240V AC
Power supply note - Redundant PSU
Power supply requirements - 100V to 240V AC
Processor - Intel Xeon D-1527 quad-core 2.2GHz, Turbo Boost up to 2.7GHz
Processor - Conflict-Free processor - Yes
Processor - CPU configuration (max) - 1
Processor - ECC supported by processor - Yes
Processor - Maximum internal memory supported by processor - 128 GB
Processor - On-board graphics card model - Not available
Processor - PCI Express configurations - 1x4
Processor - PCI Express configurations - 1x8
Processor - PCI Express configurations - 1x16
Processor - PCI Express slots version - 2.0
Processor - PCI Express slots version - 3.0
Processor - Processor boost frequency - 2.7 GHz
Processor - Processor cache - 6 MB
Processor - Processor cache type - L3
Processor - Processor code - SR2DK
Processor - Processor codename - Broadwell
Processor - Processor cores - 4
Processor - Processor family - Intel® Xeon® D
Processor - Processor frequency - 2.2 GHz
Processor - Processor lithography - 14 nm
Processor - Processor manufacturer - Intel
Processor - Processor model - D-1527
Processor - Processor operating modes - 64-bit
Processor - Processor package size - 37.5 x 37.5 mm
Processor - Processor series - Intel Xeon D-1500
Processor - Processor socket - BGA 1667
Processor - Processor threads - 8
Processor - Scalability - 1S
Processor - Stepping - V2
Processor - Thermal Design Power (TDP) - 35 W
Processor > Processor family - Intel Xeon
Processor > Processor frequency - 2.2 GHz
Processor > Processor model - Intel Xeon D-1527 Quad Core
Processor special features - Embedded options available - Yes
Processor special features - Enhanced Intel SpeedStep Technology - Yes
Processor special features - Execute Disable Bit - Yes
Processor special features - Idle States - Yes
Processor special features - Intel 64 - Yes
Processor special features - Intel Enhanced Halt State - Yes
Processor special features - Intel Secure Key Technology version - 1.00
Processor special features - Intel Trusted Execution Technology - Yes
Processor special features - Intel TSX-NI - Yes
Processor special features - Intel TSX-NI version - 1.00
Processor special features - Intel Virtualization Technology (VT-x) - Yes
Processor special features - Intel Virtualization Technology for Directed I/O (VT-d) - Yes
Processor special features - Intel VT-x with Extended Page Tables (EPT) - Yes
Processor special features - Intel® AES New Instructions (Intel® AES-NI) - Yes
Processor special features - Intel® Hyper Threading Technology (Intel® HT Technology) - Yes
Processor special features - Intel® OS Guard - Yes
Processor special features - Intel® Secure Key - Yes
Processor special features - Intel® Turbo Boost Technology - 2.0
Processor special features - Maximum number of PCI Express lanes - 32
Processor special features - Memory channels supported by processor - Dual
Processor special features - Memory types supported by processor - DDR3-SDRAM
Processor special features - Memory types supported by processor - DDR4-SDRAM
Processor special features - Thermal Monitoring Technologies - Yes
Processor special features - UART - Yes
producer - Synology
Producer - Synology
producerCode - RS1619xs+
ProducerCode - RS1619xs+
Producer product family - DiskStation
Producer product name - RS1619xs+
productName - Synology RackStation RS1619XS+ NAS/storage server Rack (1U) Intel® Xeon® D D-1527 8 GB DDR4 DiskStation Manager Black
productSize - Normal
Rack 1U Mounting Type - Yes
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RJ45 Input/Output connectors - 4
Shipping Box Depth Shipping/Package Box Dimensions - 60.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 20.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 11.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 58 cm
ShortDescription -
Short description - Synology NAS Rack Station RS1619xs+ (4 Bay) 1U
sizeX - 580
sizeY - 215
sizeZ - 610
Software - Mac operating systems supported - Mac OS X 10.11 El Capitan
Software - Mac operating systems supported - Mac OS X 10.12 Sierra
Software - Mac operating systems supported - Mac OS X 10.13 High Sierra
Software - Mac operating systems supported - Mac OS X 10.14 Mojave
Software - Operating system installed - DiskStation Manager
Software - Server operating systems supported - Windows Server 2016
Software - Windows operating systems supported - Windows 7
Software - Windows operating systems supported - Windows 10
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of M.2 (M & B) slots - 2
Storage - Number of storage drives supported - 4
Storage - RAID levels - 0
Storage - RAID levels - 1
Storage - RAID levels - 5
Storage - RAID levels - 6
Storage - RAID levels - 10
Storage - RAID levels - JBOD
Storage - RAID support - Yes
Storage - Storage drive interface - Serial ATA, Serial ATA II, Serial ATA III
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5
Storage - Storage drive sizes supported - 3.5"
Storage - Supported file systems - BTRFS
Storage - Supported file systems - ext3
Storage - Supported file systems - ext4
Storage - Supported file systems - Fat
Storage - Supported file systems - HFS+
Storage - Supported file systems - NTFS
Storage - Supported storage drive types - HDD & SSD
Storage > Number of storage drives supported - up to 4 HDD/SSD Hot-Swap
Storage > RAID levels - RAID 0,1,5,6,10,Hybrid
Supported drives - 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD, M.2 2280 NVMe & SATA SSD
Surveilance Station Server features - Yes
Sustainability - Sustainability certificates - RoHS
Technical details > Gross weight - 11.8 kg
Technical details > Net weight - 10.815 kg
Technical details > Other features - Dual Fan
Technical details > Producer - Synology
Technical details > Warranty - 60 month(s)
Unit Box Height - 0.205
Unit Box Length - 0.605
Unit Box Width - 0.58
Unit Brutto Volume - 0.07193 cubm
Unit Gross Weight - 11.7 kg
Unit Net Weight - 8.16 kg
USB 3.0 Input/Output connectors - 2
Vendor Homepage - www.synology.com/en-global/products/RS1619xs+
vendpn - RS1619xs+
VPN Server Server features - Yes
Warranty - 60
Warranty - 60 months
warrantyLength - 60
warrantyType - F
Weight - 8.16 kg
Weight - 10,55
weight - 11700
Weight & dimensions - Depth - 518.6 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 8.16 kg
Weight & dimensions - Width - 480 mm
