Accessories included - Assembly manual
ARTIKEL1 - DIGITUS TV PRESENTATION CART
ARTIKEL2 - 70-120 140 KG MAX. BLACK
Breite - 0.69
Code - DA-90452
Color - Black
Color - Mat

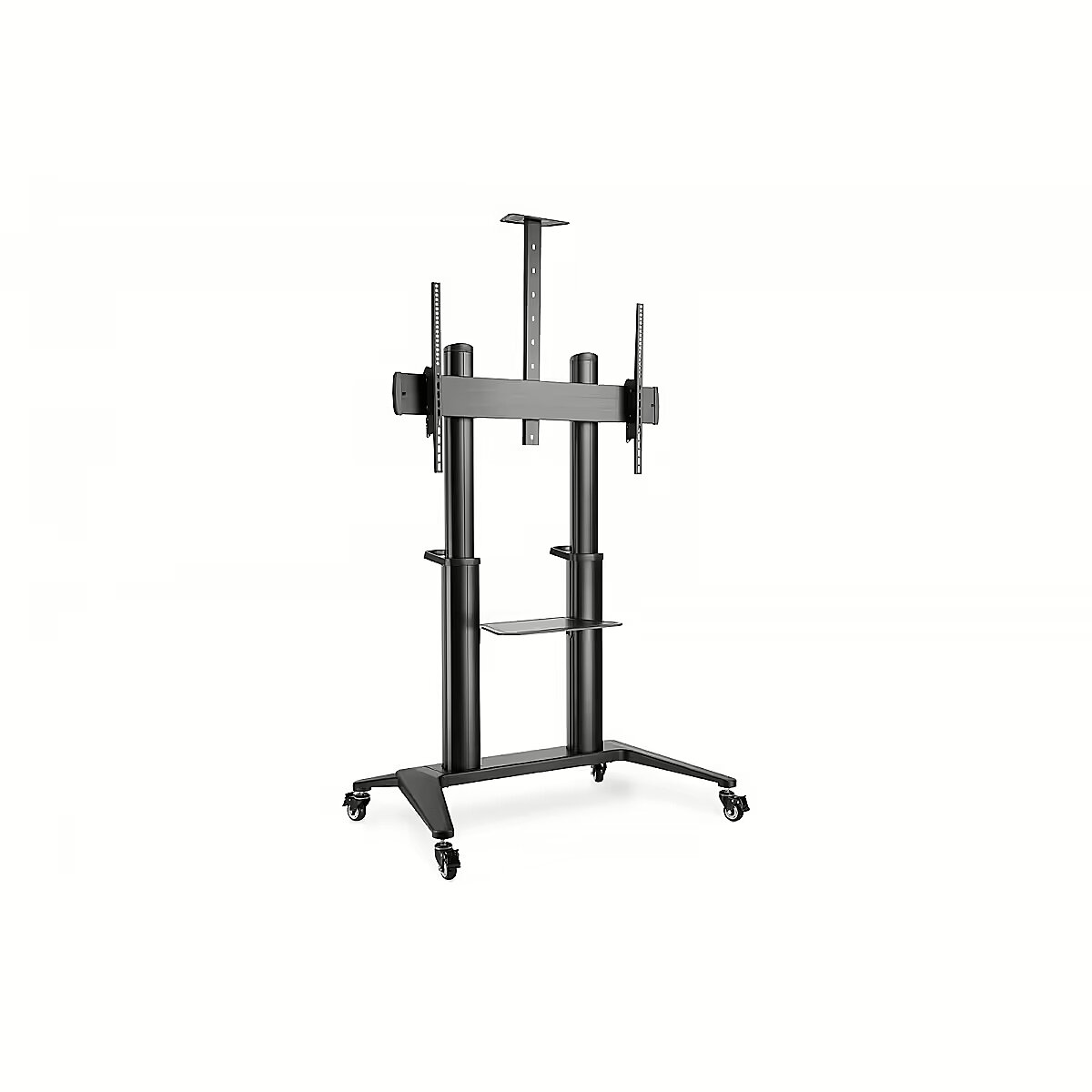

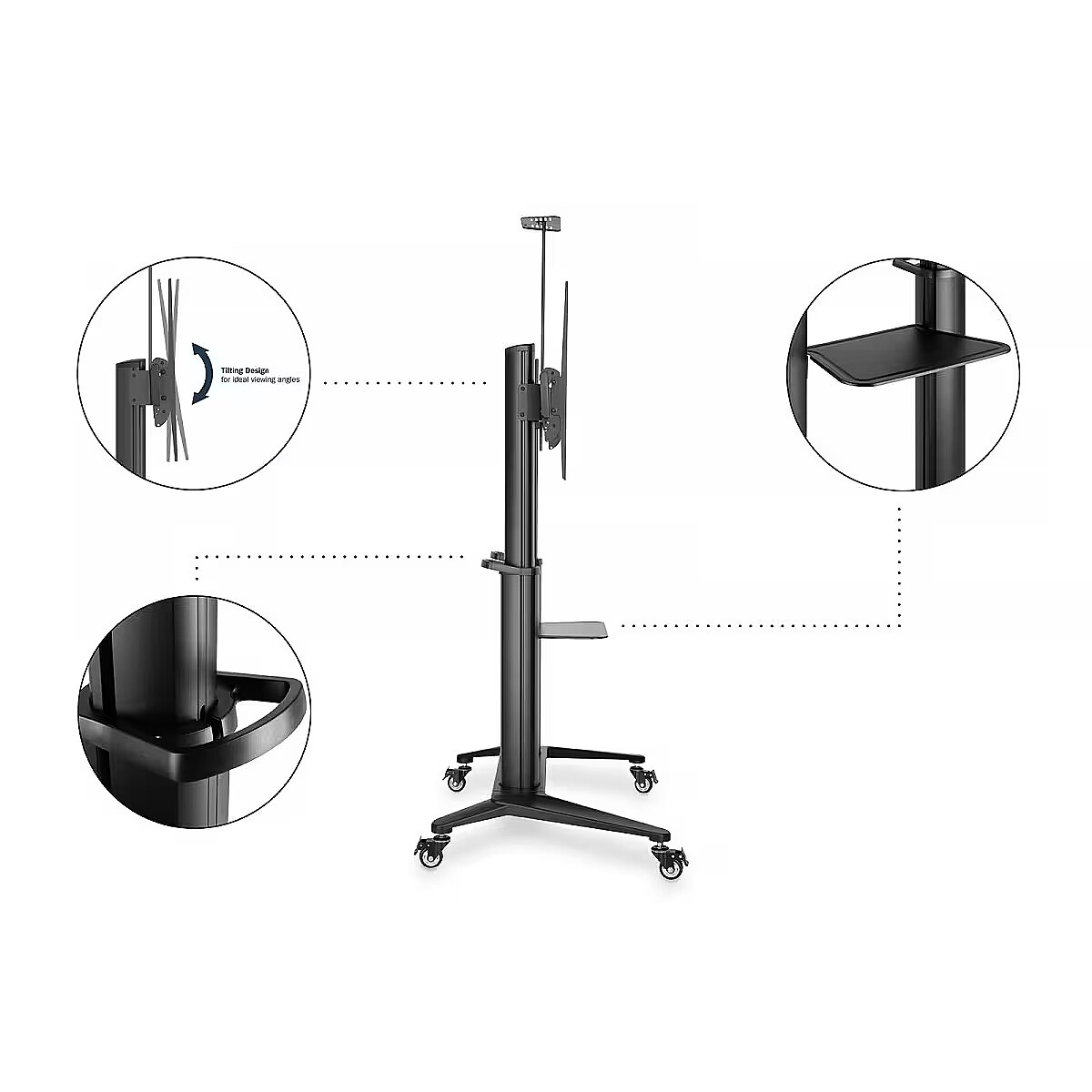

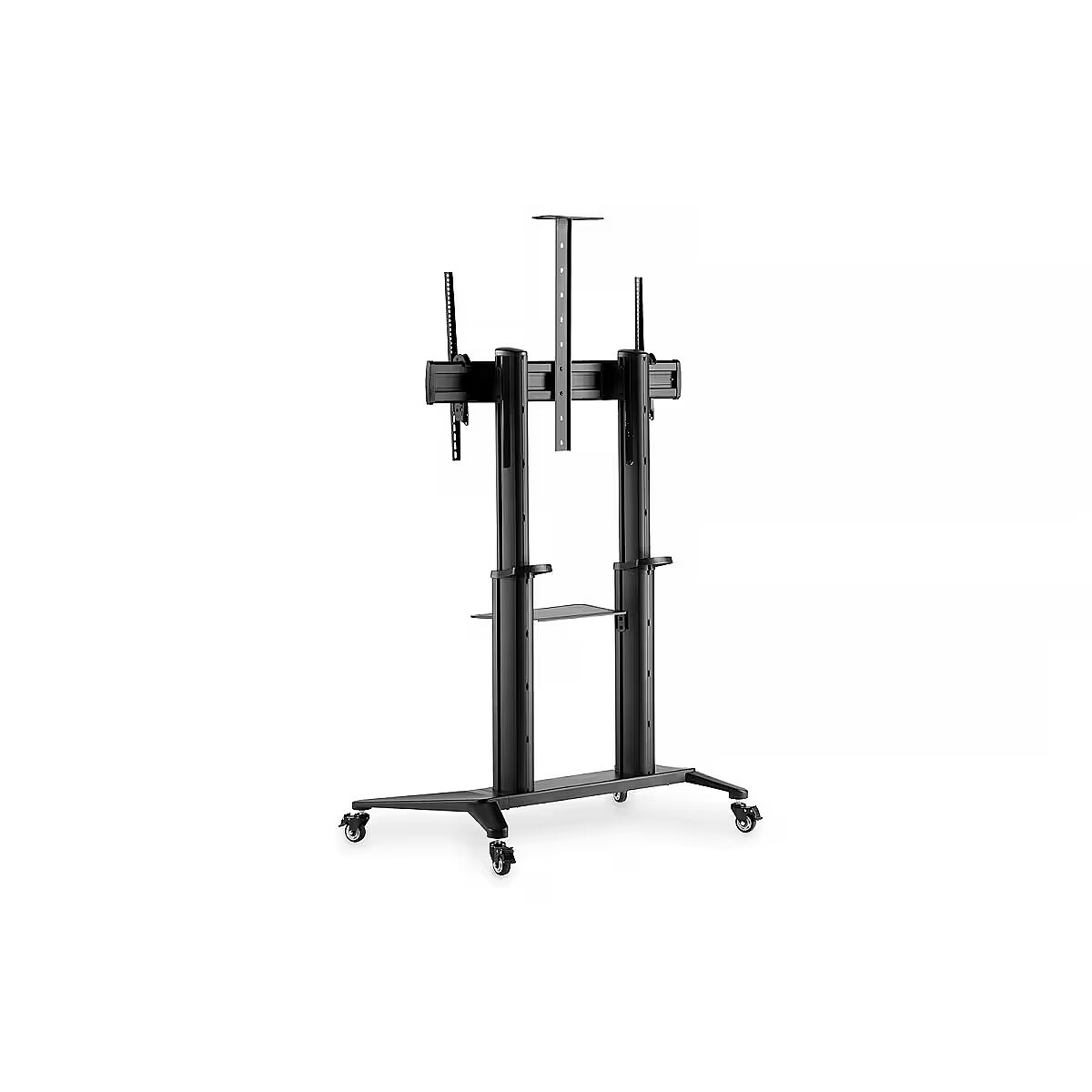

Description - The TV Presentation Trolley offers a sturdy and durable support for 70" to 120" monitors, with a maximum load capacity of 140 kg. In addition, the trolley has a height-adjustable camera mount and a shelf for notebooks, media players, etc. The trolley is flexibly positionable and has a built-in cable channel and practical handles on the back. The structure is made of extremely strong and lightweight aluminum, steel and plastic. An ideal solution for conference rooms, training rooms, exhibition halls and other applications at various events. Holder for mounting displays from 70 - 120'', maximum load 140 kg Height adjustment of the display holder: min. 125 cm - max. 160 cm Display holder tilt range: +5° to -10° Height-adjustable camera holder - maximum load 5 kg Height-adjustable shelf for a notebook, player or other devices - maximum load 10 kg Convenient handles on the back for quick and easy relocation/positioning Characterized by high load capacity castors with a locking mechanism Integrated cable management system Extremely strong and lightweight construction made of aluminum, steel and plastic
Design - Housing material - Aluminium
Design - Housing material - Plastic
Design - Housing material - Steel
Design - Product colour - Black
Design > Colour of product - Black
Design > VESA mounting - Yes
dimensionalWeight - 48438
dimension depth - 290 mm
dimension height - 1118 mm

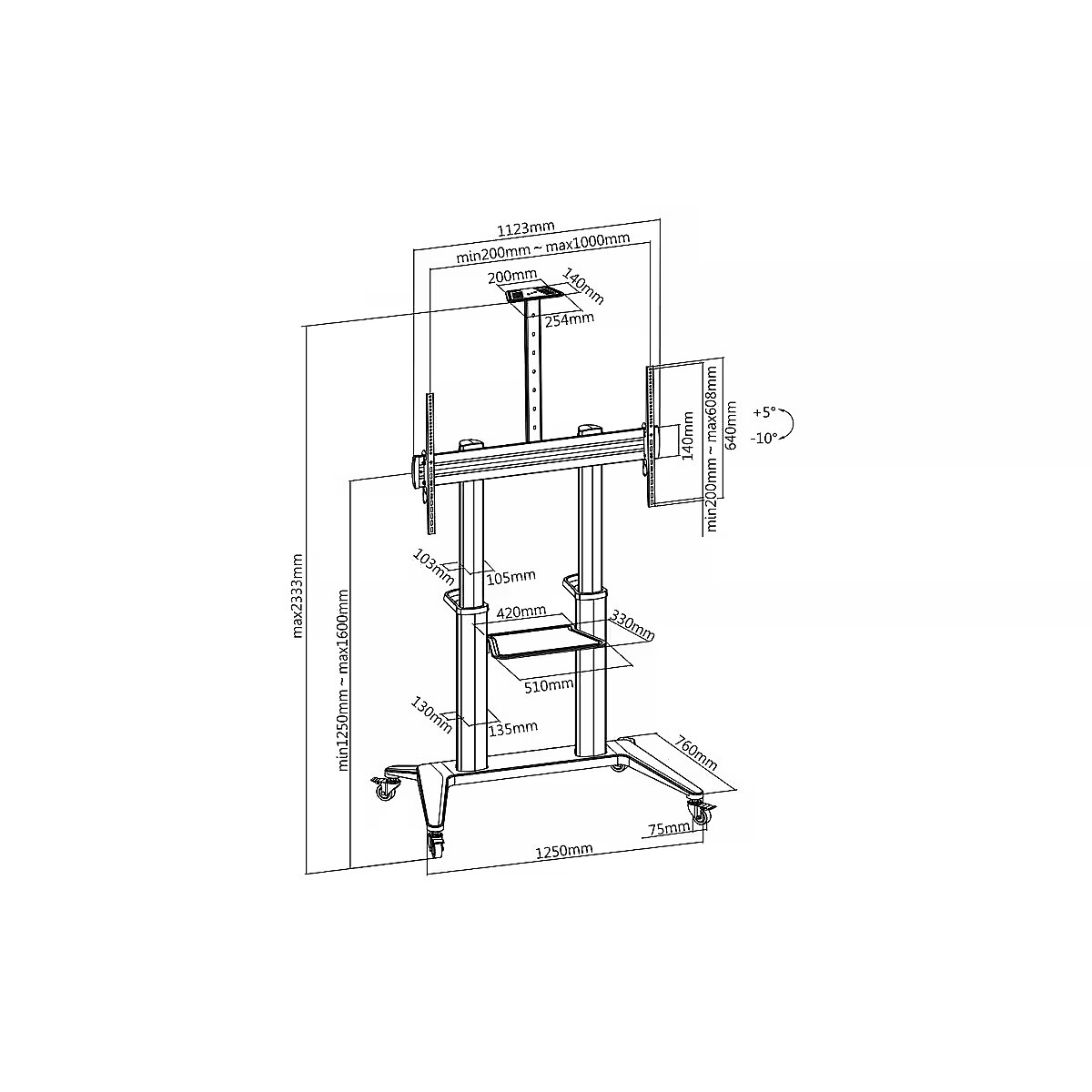

Dimensions - (max): width 125 cm x depth 76cm x H 233.3cm
dimension weight - 41000 g
dimension width - 690 mm
EAN - 4016032487364
ean - 4016032487364
EANCode - 4016032487364

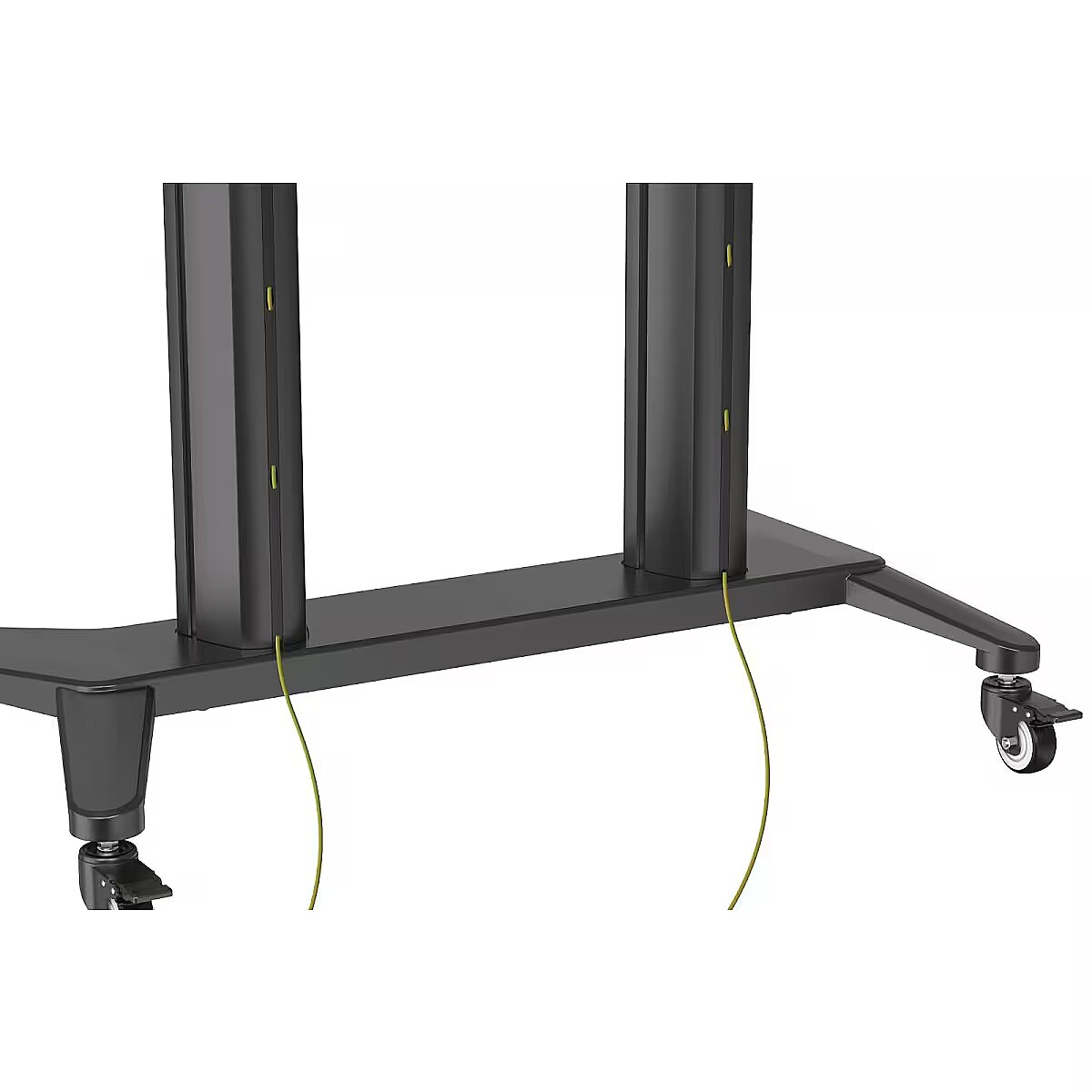

Ergonomics - Cable management - Yes
Ergonomics - Height adjustment - Yes

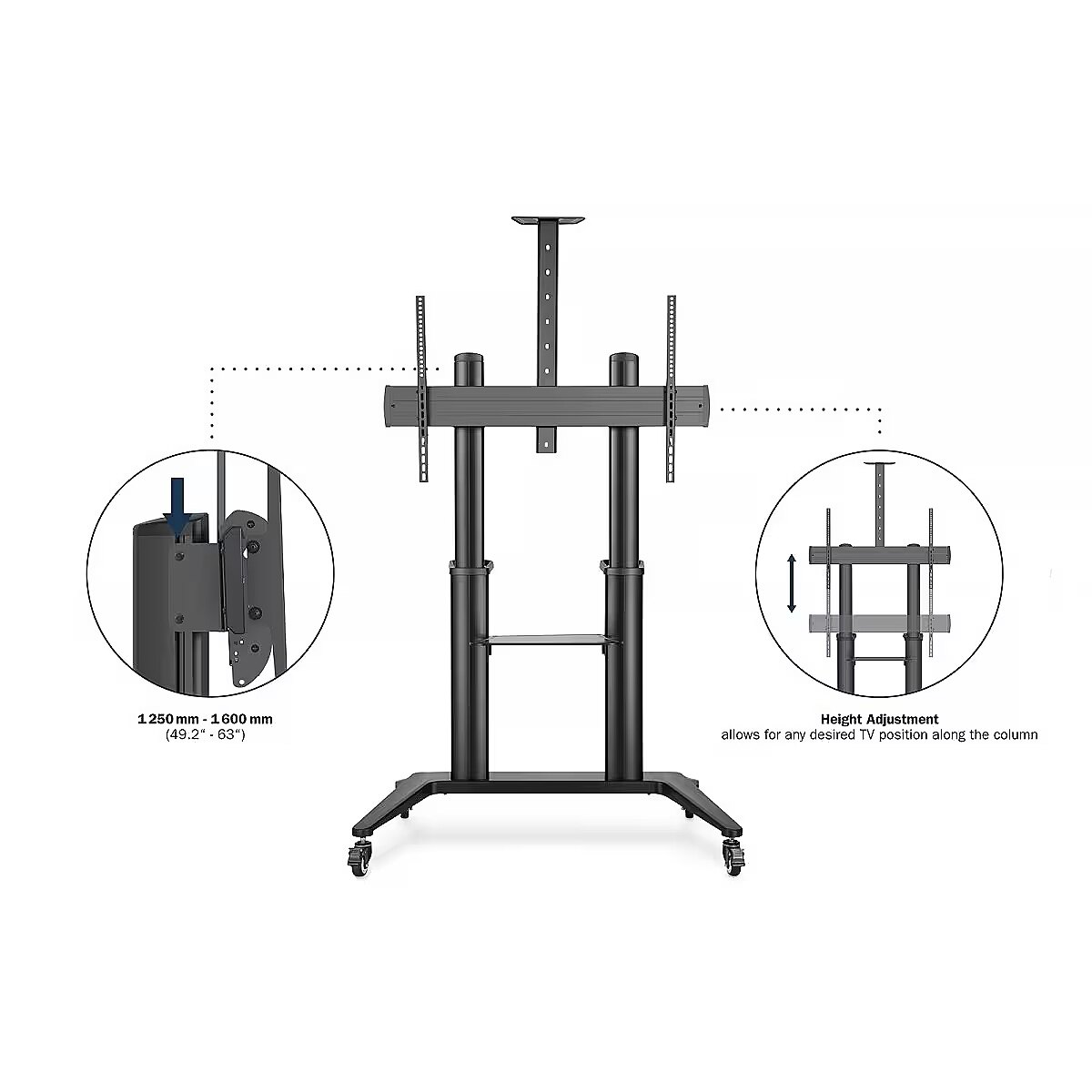

Ergonomics - Height adjustment range - 1250 - 1600 mm
Ergonomics - Lockable wheels - Yes
Ergonomics - Number of wheels - 4 wheel(s)
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -10 - 5°
Ergonomics - Wheels - Yes
Gewicht - 40.9
GRUPPE1 - Displays
GRUPPE2 - Display Mounting Kit
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0.3
HSTNUMMER - DA-90452
Laenge - 1.18
Link - https://de.assmann.shop/en/Ergonomics/TV-Carts/Collaboration-Trolley-TV-Presentation-Cart.html
Load (max) - 140 kg
Logistics data - UK Trade Tariff code - 73269098
Mounting - Maximum screen size - 3.05 m (120")
Mounting - Maximum VESA mount - 1000 x 600 mm
Mounting - Maximum weight capacity - 140 kg
Mounting - Minimum screen size - 177.8 cm (70")
Mounting - Minimum VESA mount - 200 x 200 mm
Mounting - Mounting type - Floor
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 200 x 200 mm
Mounting - Panel mounting interface - 300 x 200
Mounting - Panel mounting interface - 300 x 300 mm
Mounting - Panel mounting interface - 400 x 200
Mounting - Panel mounting interface - 400 x 300 mm
Mounting - Panel mounting interface - 400 x 400
Mounting - Panel mounting interface - 600 x 400
Mounting - Panel mounting interface - 800 x 400
Mounting - Panel mounting interface - 800 x 600
Mounting - Panel mounting interface - 1000 x 600
Mounting > Distance to the wall (max) - N/A mm
Mounting > Distance to the wall (min) - N/A mm
Mounting > Maximum screen size compatibility - 120 "
Mounting > Maximum weight (capacity) - 140 kg
Mounting > Mounting interface compatibility (max) - 1000x600 mm
Mounting > Mounting interface compatibility (min) - 200x200 mm
Mounting > VESA mounting interfaces - 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400, 800x600, 1000x600 mm
Name - Digitus | Other | 70-120 " | Maximum weight (capacity) 140 kg | Black
name - TV presentation cart DA-90452
Other features - Number of screens: 1 Tilt adjustment range: +5° to -10° Height adjustment range: 125 - 160 cm Camera holder: Load capacity 5 kg, height adjustable Shelf: Load capacity 10 kg, height adjustable Surface finish: powder coating Colour: matt black
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 680.00 mm
Package features > Gross height (mm) - 290.00 mm
Package features > Gross width (mm) - 1175.00 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 6 pc(s)
Package features > Paper/Pasteboard - 750.00 g
Package features > Plastic (No PET) - 250.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > Volume (m3) - 0.23 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - No
Packaging data - Package depth - 680 mm
Packaging data - Package volume - 231710 cm³
Packaging data - Package weight - 39.2 kg
Packaging data - Package width - 1175 mm
Packaging data - Quantity per pack - 1 pair(s)
producer - Digitus
producerCode - DA-90452
productName - DA-90452
productSize - SmallPallet
Range (max) - 160 cm
Range (min) - 125 cm
Range adjustment - Yes
Screen size (max) - 120 ''
Screen size (min) - 70 ''
sizeX - 690
sizeY - 1170
sizeZ - 300
Stck_Kart - 1
Stck_Pal - 2
Storno - N
Stuff - Aluminum
Stuff - Plastic
Stuff - Steel
Technical details > Gross weight - 39.16 kg
Technical details > Net weight - 38.16 kg
Technical details > Other features - Display mount tilt angle: +5° to -10; Height-adjustable camera mount with max. load of 5 kg; Height-adjustable shelf for notebook, player, etc. max. load of 10 kg; Practical handles on the back for quick and easy movement/positioning; Heavy duty casters with locking mechanism; Integrated cable management; Ultra-strong and lightweight design made of aluminum, steel and plastic
Technical details > Placement - Other
Technical details > Producer - Digitus
Technical details > Producer product family - TV Presentation Cart
Technical details > Producer product name - DA-90452
Technical details > Screen size compatibility - 70-120 "
Type - Stand
Usage - TV
vendpn - DA-90452
VESA - 200 x 200
VESA - 300 x 200
VESA - 300 x 300
VESA - 400 x 200
VESA - 400 x 300
VESA - 400 x 400
VESA - 600 x 400
VESA - 800 x 400
VESA - 800 x 600
VESA - 1000 x 600
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 24
warrantyType - F
Weight - 35.1 kg
weight - 36000
Weight & dimensions - Depth (max) - 76 cm
Weight & dimensions - Height - 2333 mm
Weight & dimensions - Weight - 35.1 kg
Weight & dimensions - Width - 1250 mm
