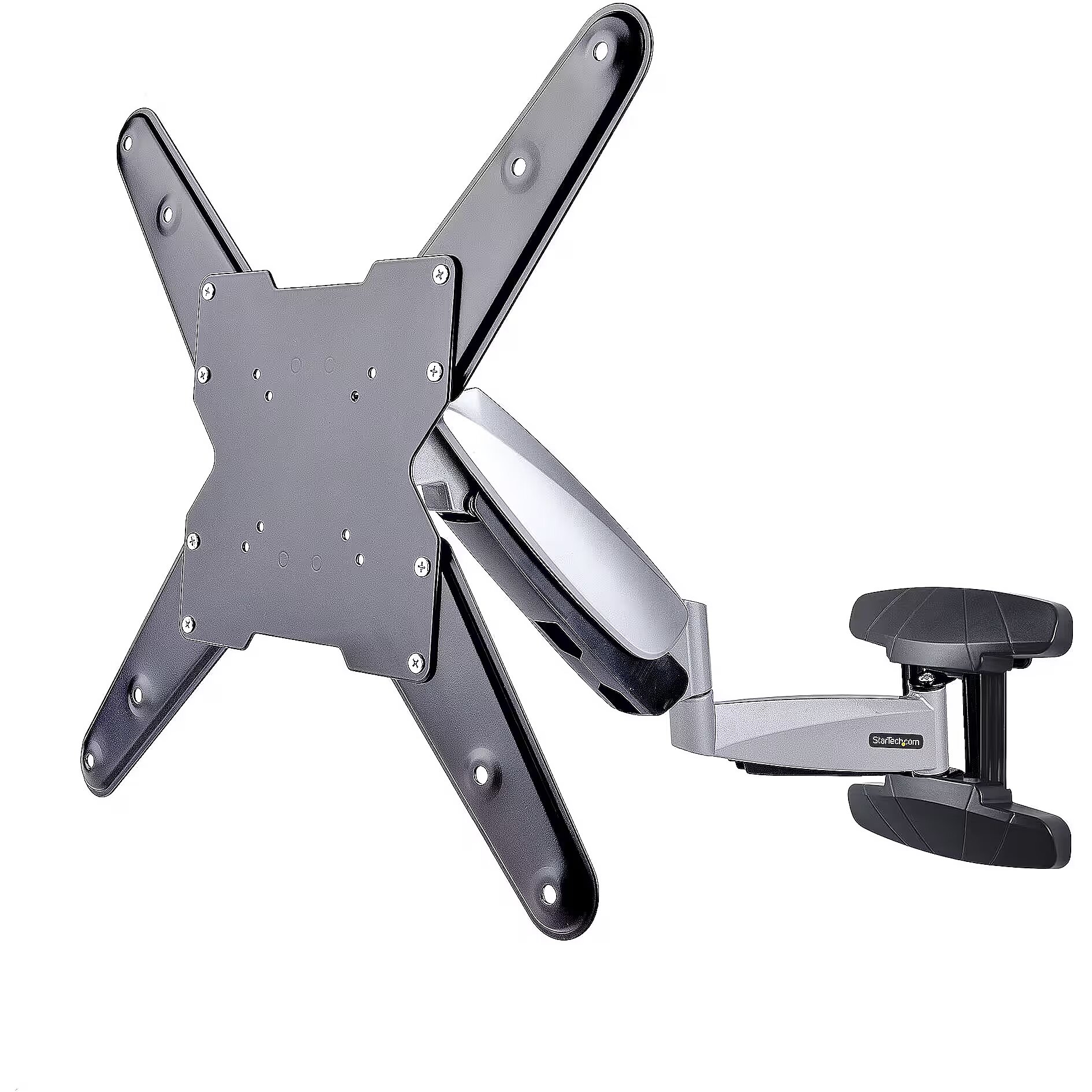

Startech Adjustable Full Motion TV Mount, 23-55"

ARTIKEL1 - VESA TV WALL MOUNT FULL MOTION
ARTIKEL2 - FULL MOTION TV WALL MOUNT TILTIN
Brand - StarTech.com
BrandPartCode - FHA-TV-WALL-MOUNT
Breite - 0
Category - TV Mounts & Stands
Design - Anti-theft function - No
Design - Housing material - Aluminium, Steel
Design - Product colour - Black, Silver
EANCode - 0065030895149
Ergonomics - Angle of rotation - 3°

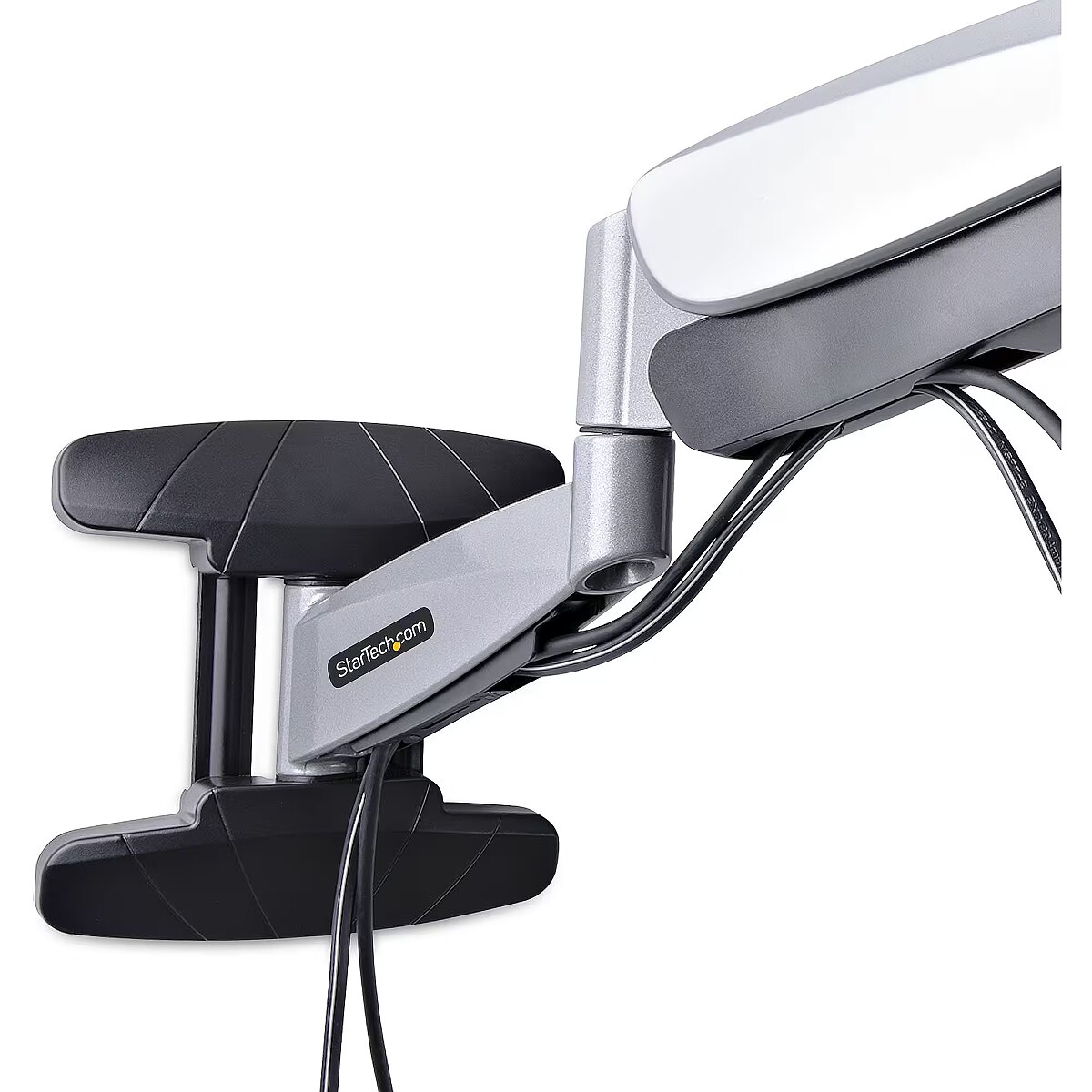

Ergonomics - Cable management - Yes

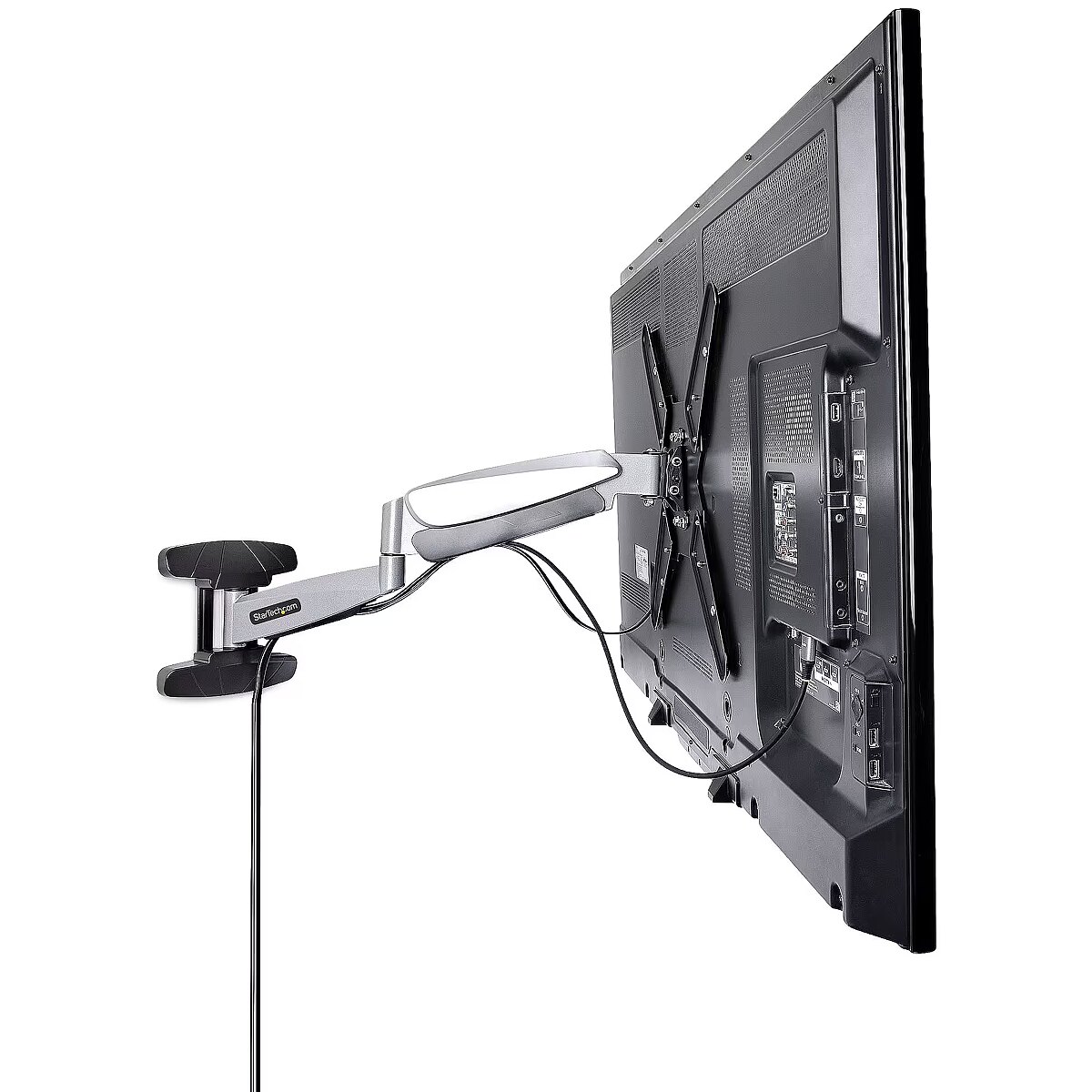

Ergonomics - Distance to the wall (max) - 59.5 cm
Ergonomics - Distance to the wall (min) - 5.8 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 180°

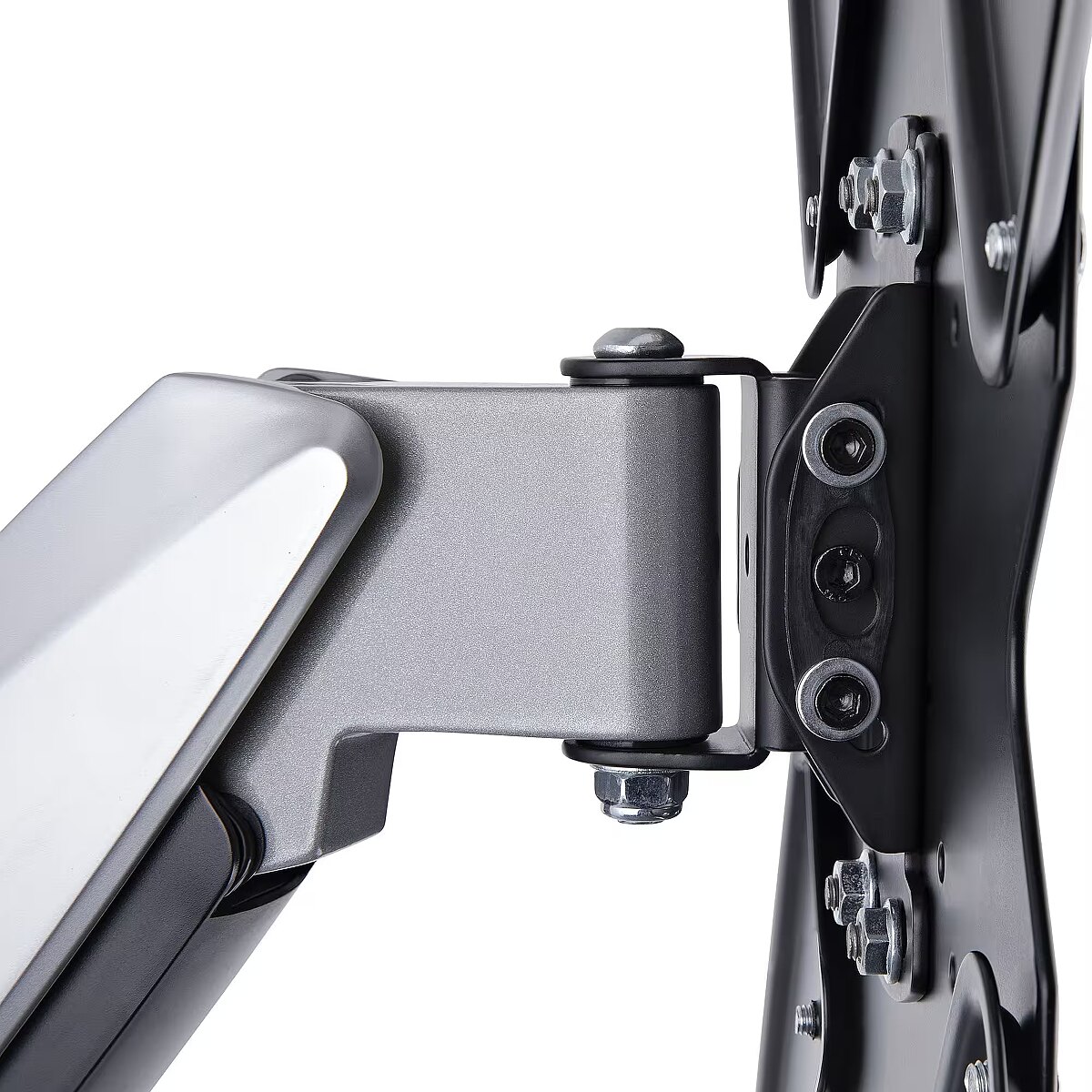

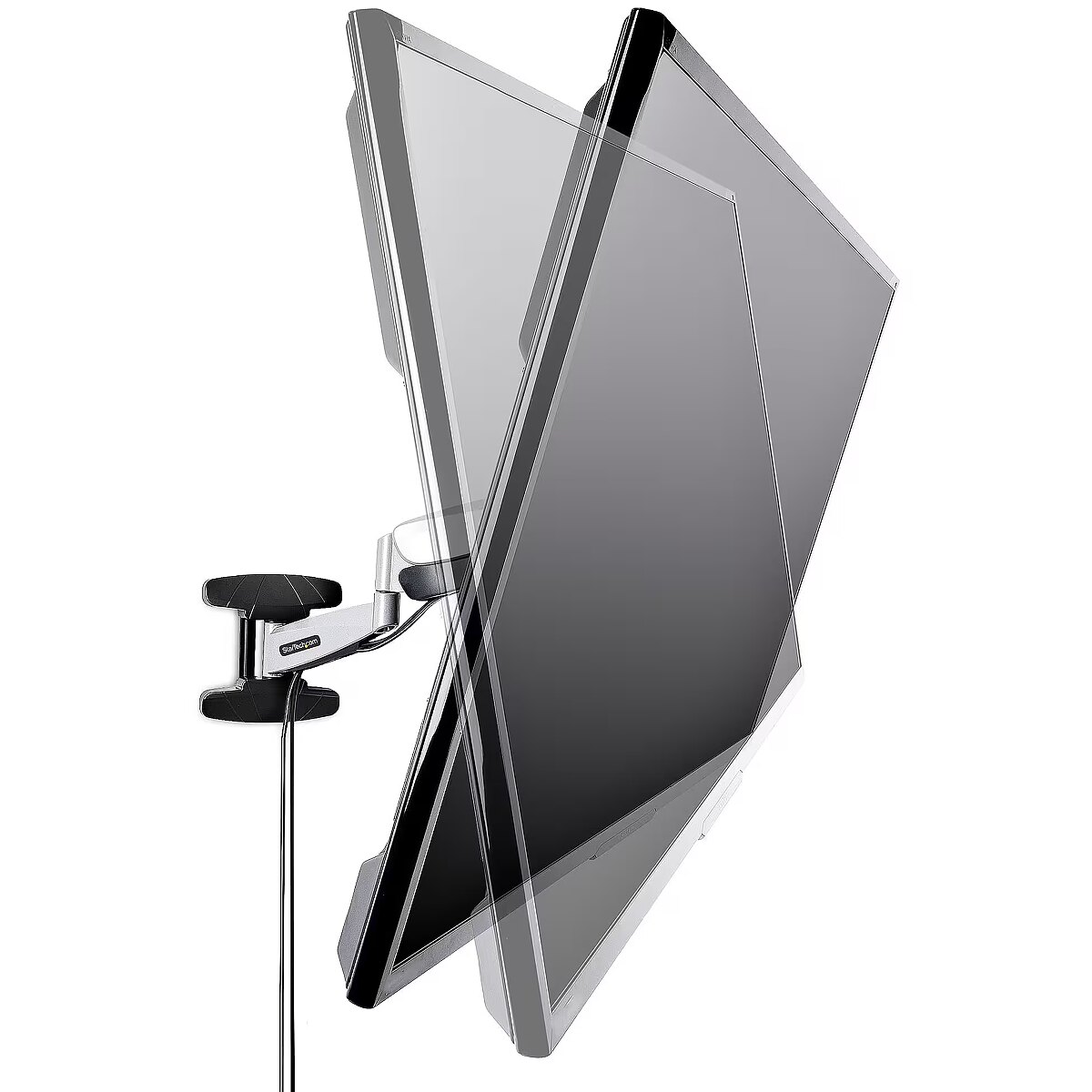

Ergonomics - Tilt angle range - -15 - 8°
Gewicht - 6.9
GRUPPE1 - Displays
GRUPPE2 - Display Mounting Kit
GTIN - 0065030895149
GTIN - 065030895149
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - FHA-TV-WALL-MOUNT
Laenge - 0
Logistics data - Master (outer) case height - 305 mm
Logistics data - Master (outer) case length - 460 mm
Logistics data - Master (outer) case width - 605 mm
Logistics data - Products per master (outer) case - 1 pc(s)

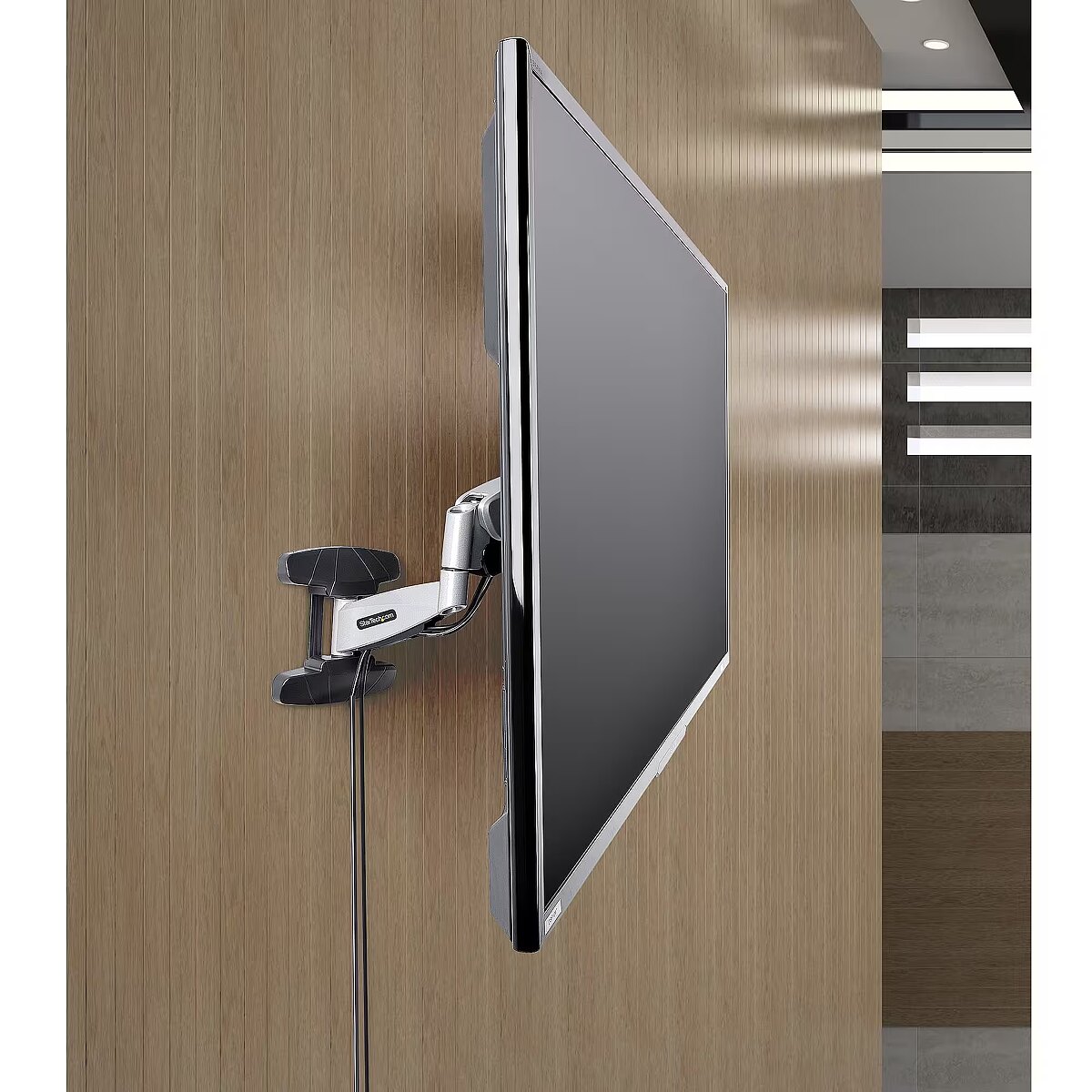

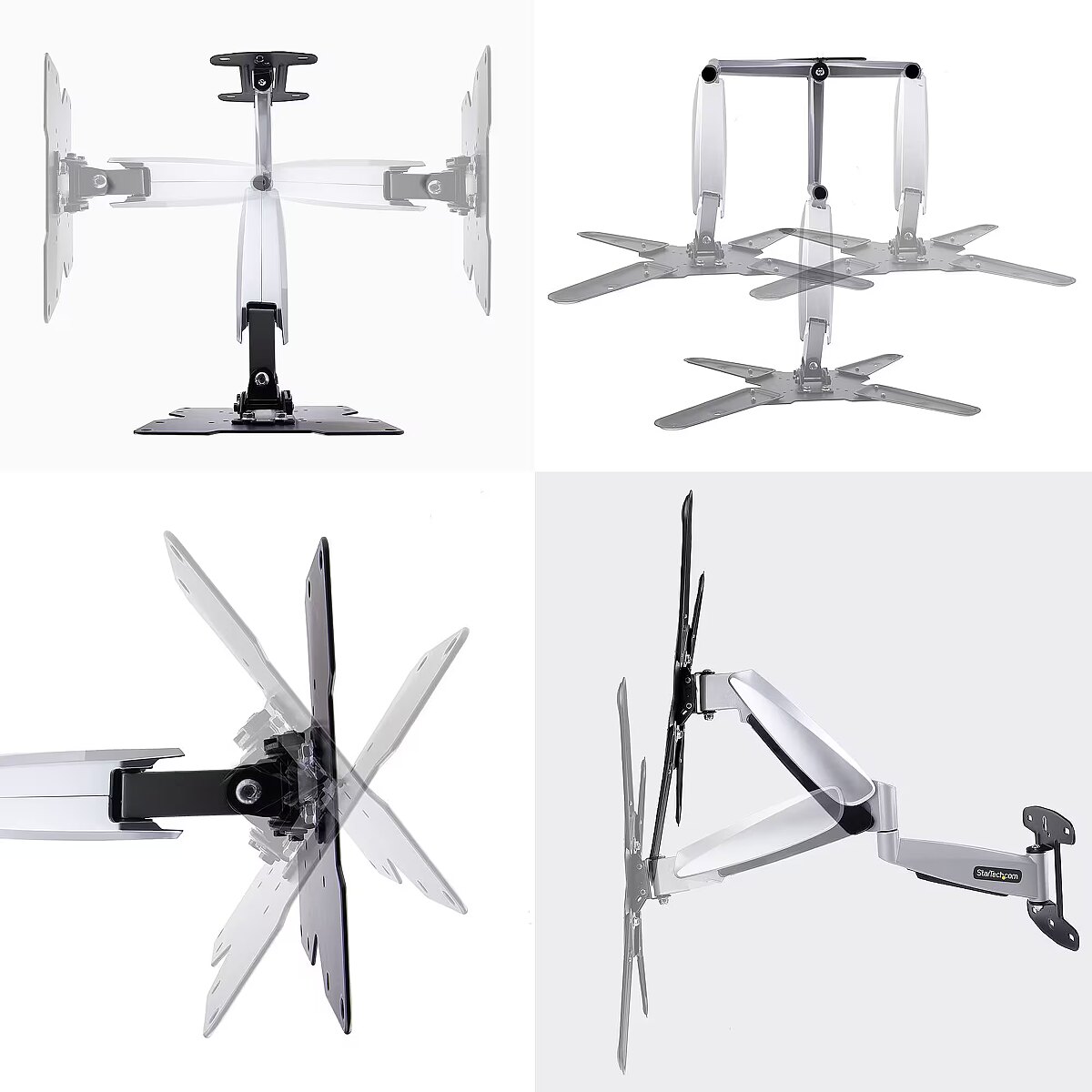

LongDesc - Mounting Hardware Included | One-touch Adjustments | Digital SignageThe steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23" to 55" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.Versatile TV MountingSecurely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.Supported VESA mounting patterns: 75x75,100x100, 200x100, 200x200, 300x300, 400x200, and 400x400.Full-Motion AdjustmentThe VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.Durable ConstructionThe robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
LongProductName - StarTech.com VESA TV Wall Mount, Adjustable Full Motion Mount For 23"-55" Displays, Slim Wall Mount TV Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel Monitor Wall Mount (FHA-TV-WALL-MOUNT)
LongSummaryDescription - StarTech.com VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23"-55" Displays, Slim TV Mounting Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel TV Wall Mount. Maximum weight capacity: 30 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -15 - 8°, Angle of rotation: 3°, Distance to the wall (min): 5.8 cm, Distance to the wall (max): 59.5 cm. Product colour: Black, Silver
Mounting - Maximum screen size - 139.7 cm (55")

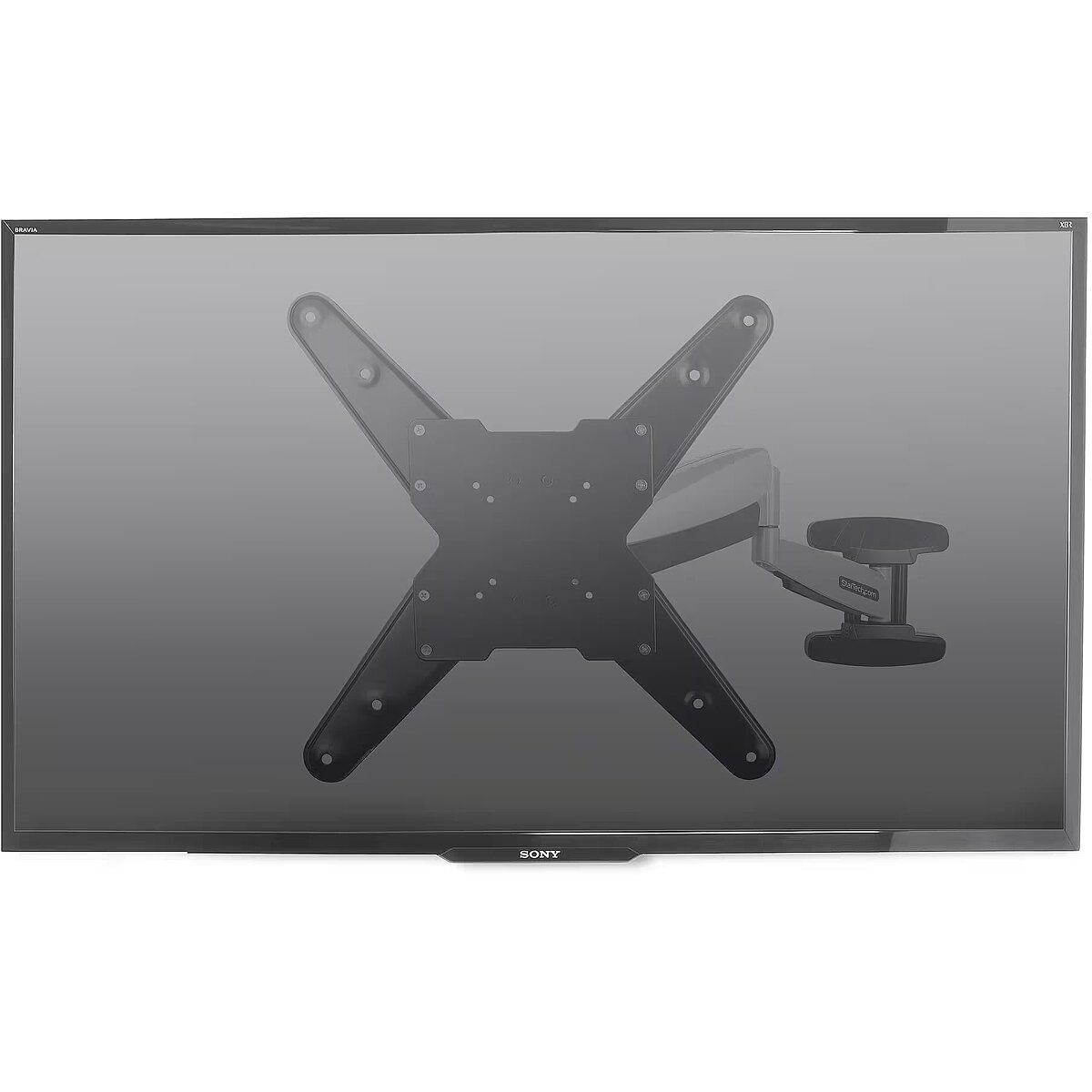

Mounting - Maximum VESA mount - 400 x 400 mm
Mounting - Maximum weight capacity - 30 kg
Mounting - Minimum screen size - 58.4 cm (23")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1

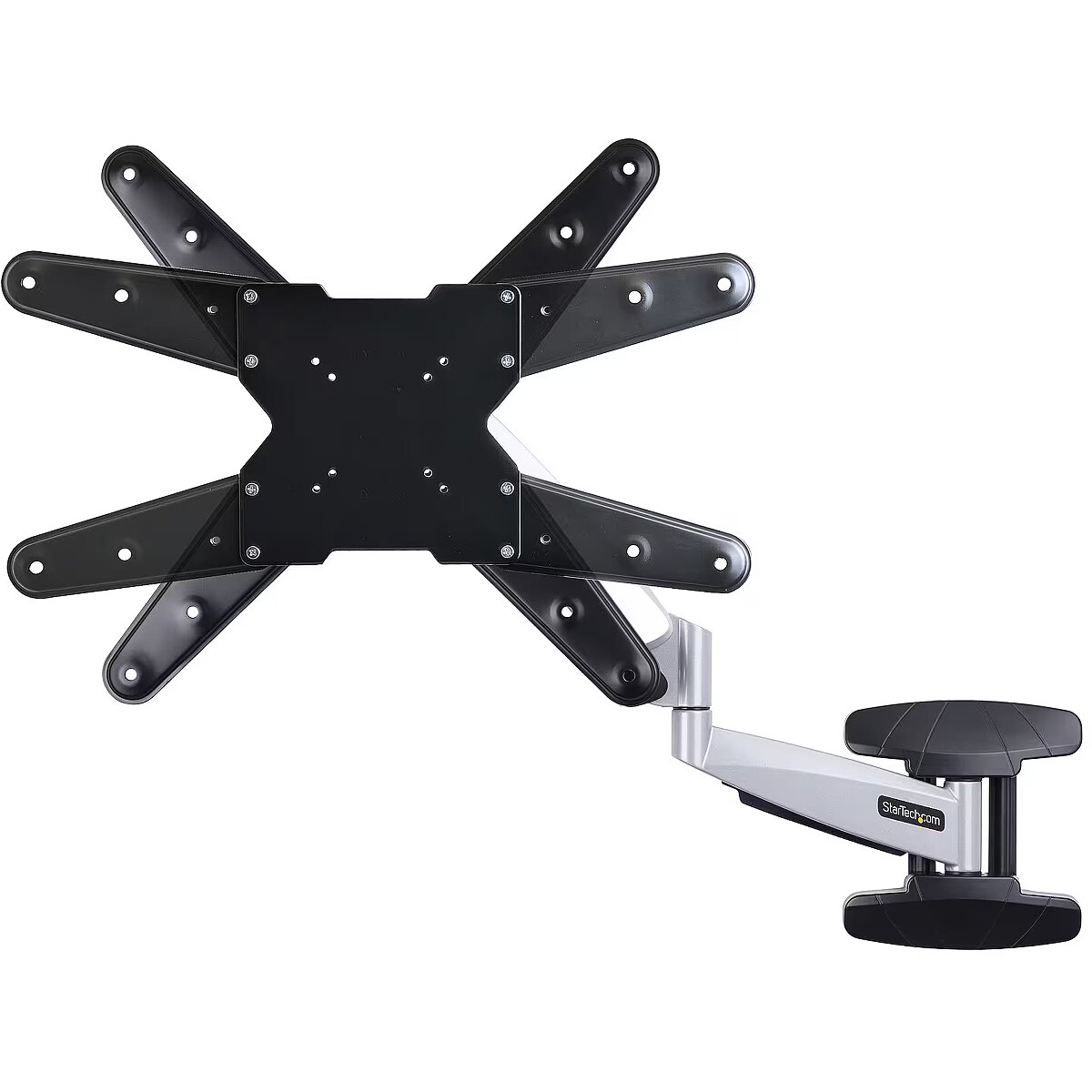

Mounting - Panel mounting interface - 75 x 75,100 x 100,200 x 100,200 x 200,300 x 300,400 x 200,400 x 400

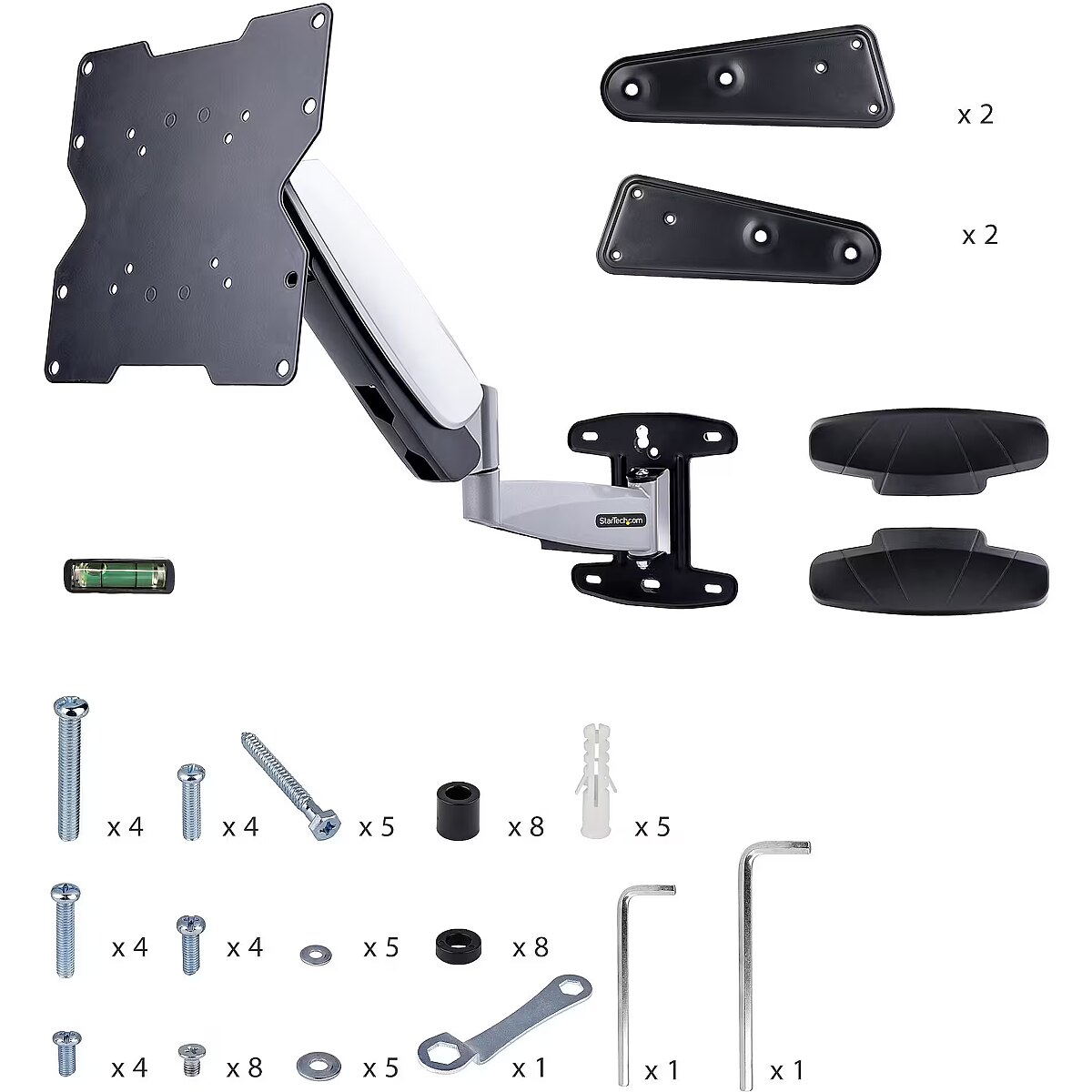

Packaging content - Manual - Yes
Packaging content - Mounting plate included - Yes
Packaging content - Number of screws - 33
Packaging content - Number of spacers included - 16
Packaging content - Number of washers included - 13
Packaging content - Screws included - Yes
Packaging content - Wrench included - Yes
Packaging content - Wrench type - Hexagonal wrench
Packaging data - Package depth - 440 mm
Packaging data - Package height - 95 mm
Packaging data - Package weight - 6.1 kg
Packaging data - Package width - 585 mm
ProductName - VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23"-55" Displays, Slim TV Mounting Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel TV Wall Mount
ShortSummaryDescription - StarTech.com VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23"-55" Displays, Slim TV Mounting Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel TV Wall Mount, 75 x 75 mm, 400 x 400 mm, -15 - 8°, 3°, Aluminium, Steel, Black, Silver
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Technical details - Country of origin - China
Technical details - VESA mount included - Yes
Title - StarTech.com VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23"-55" Displays, Slim TV Mounting Bracket Supports 66lb (30kg), Extendable/Tilting/Swivel TV Wall Mount
URL - https://www.startech.com/en-us/FHA-TV-WALL-MOUNT
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 595 mm
Weight & dimensions - Height - 450 mm
Weight & dimensions - Weight - 6 kg
Weight & dimensions - Width - 450 mm
