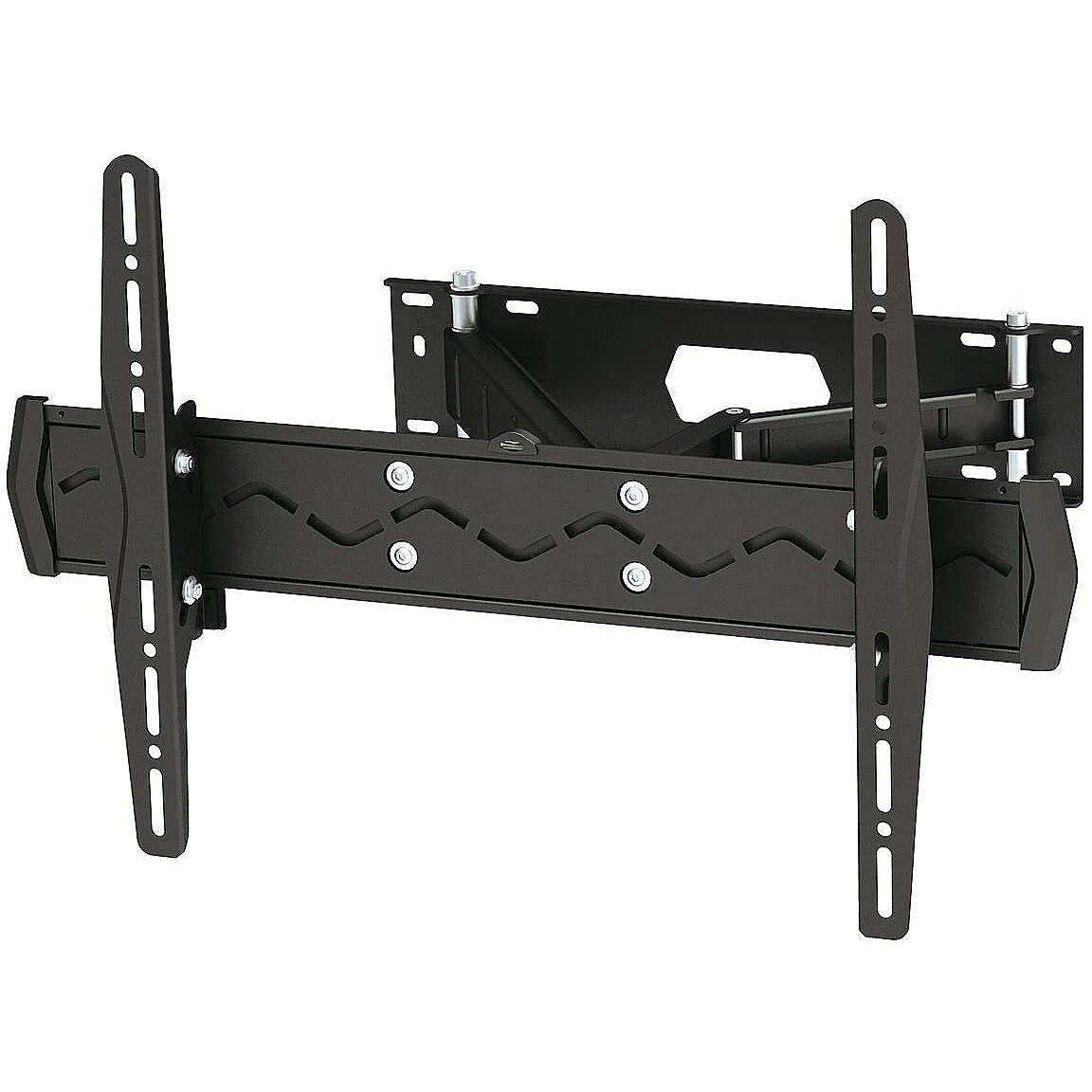

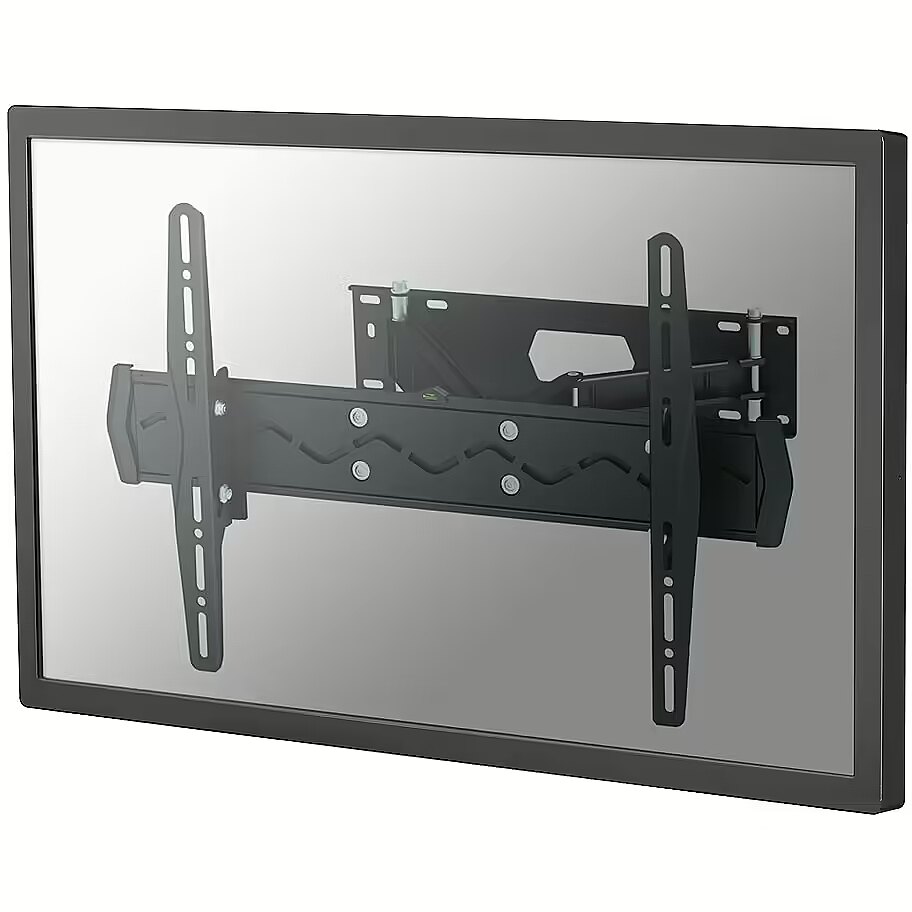

Newstar TV/Monitor Wall Mount (Full Motion), 32"-75"

75 mm x 75 mm VESA mounting interface - Yes
600 mm x 400 mm VESA mounting interface - Yes
Accessories included - Akcesoria montażowe
Brand - Neomounts
BrandPartCode - LED-W560
Category - TV Mounts & Stands
Category Code - MAS
Color - Black
Colour - Black
Corner mount - No
Description -
Description - NEWSTAR FLAT SCREEN WALL MOUNT (3 PIVOTS & TILTABLE) 32-75" BLACK

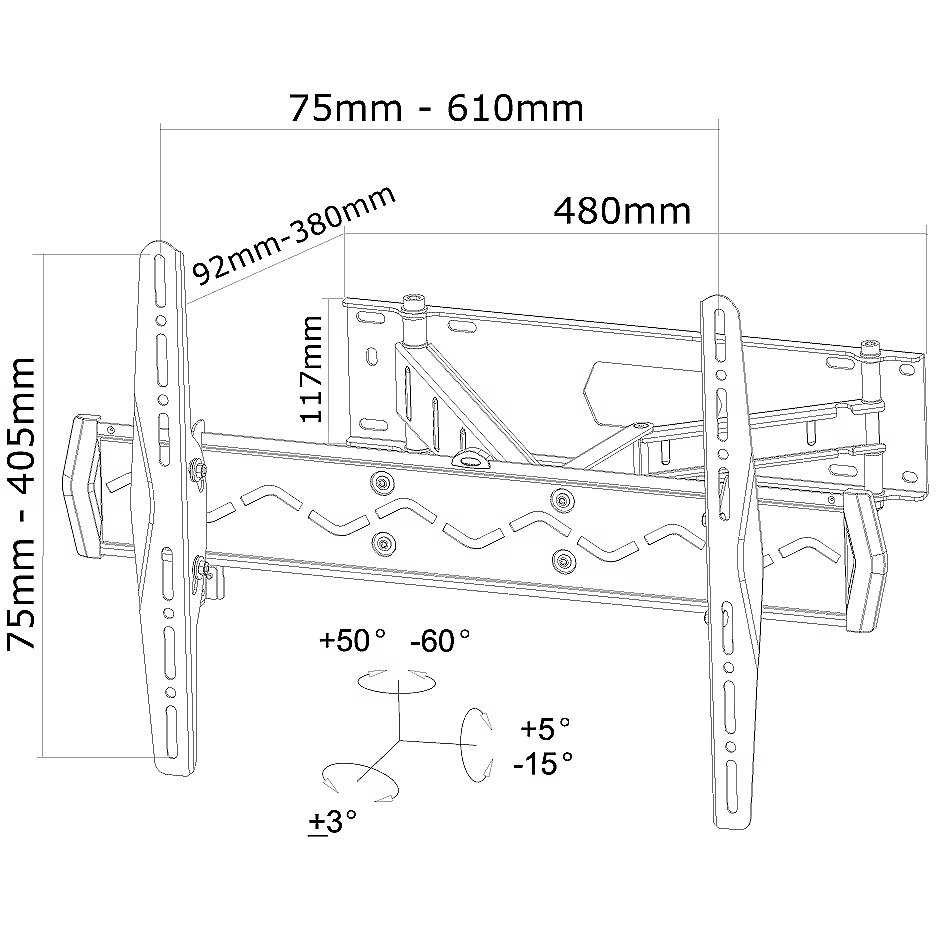

Description - The NewStar wall mount, model LED-W560 is a full swing tilt- and swivel wall mount for flat screens up to 60”. This mount is a great choice when you want the ultimate viewing flexibility with your flat screen TV. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished. NewStars’ tilt (20°) and swivel (110°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 9 to 38 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy. NewStar LED-W560 has three pivot points and is suitable for screens up to 60" (150 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 to 600x400mm. Different hole patterns can be covered using NewStar VESA adapter plates. Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema. All installation material is included with the product. - Screens: 1 - Screen size: 32-60" - Max. weight:50 kg - Distance to wall: 92-380mm - VESA minimum: 75x75mm - VESA maximum: 600x400mm - Tilt: 20° - Swivel: 110°
Design - Housing material - Steel
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 60 mm
dimension height - 745 mm
Dimensions -
dimension weight - 7000 g
dimension width - 165 mm
ean - 8717371443009
Ergonomics - Angle of rotation - 6°
Ergonomics - Distance to the wall (max) - 38 cm
Ergonomics - Distance to the wall (min) - 9 cm
Ergonomics - Rotating - Yes
Ergonomics - Swivel angle - 110°
Ergonomics - Swivel angle range - 0 - 110°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 0 - 20°
Ergonomics - Type - Full motion
Fits screens sized - 32-60"
Full Description Line - Max. weight 50 kg|Fits screens sized 32-60"|75 mm x 75 mm|600 mm x 400 mm|Colour Black
GTIN - 5054484724414
GTIN - 8717371443009
guarantee - 60
guarantee_type - normal
Height - 65.000000
Height adjustment - No
Horizontal adjustment - 110 °
Length - 742.000000
Load (max) - 50 kg
Logistics data - Harmonized System (HS) code - HS7326909890
Logistics data - Master (outer) case gross weight - 22.5 kg
Logistics data - Master (outer) case height - 206 mm
Logistics data - Master (outer) case length - 180 mm
Logistics data - Master (outer) case net weight - 20.6 kg
Logistics data - Master (outer) case width - 760 mm
Logistics data - Products per master (outer) case - 3 pc(s)
Logistics data - Products per pallet (EU) - 108 pc(s)
LongDesc - The Neomounts wall mount, model LED-W560 is a full swing tilt- and swivel wall mount for flat screens up to 75" (191 cm). This mount is a great choice when you want the ultimate viewing flexibility with your flat screen TV. Effortless pull the display out from the wall, position it in almost any direction, turn it around corners and then smoothly return it to the wall when finished. Neomounts' tilt (20°) and swivel (110°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily depth adjustable from 9 to 38 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep living room, bedroom or home cinema installation nice and tidy.Neomounts LED-W560 has three pivot points and is suitable for screens up to 75" (191 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 75x75 to 600x400mm. Different hole patterns can be covered using Neomounts VESA adapter plates.Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema. All installation material is included with the product.
LongProductName - Neomounts LED-W560 Full motion TV mount wall - 32-75" - max 50 kg - VESA 75x75-600x400 - d 9-38 cm - black
LongSummaryDescription - Neomounts LED-W560 TV mount wall 32-75" - full motion. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 190.5 cm (75"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 0 - 20°, Swivel angle range: 0 - 110°, Angle of rotation: 6°, Distance to the wall (min): 9 cm, Distance to the wall (max): 38 cm. Product colour: Black
Manufacturer - Neomounts
ManufacturerPartNumber - LED-W560
Max. weight - 50 kg
Maximum weight (capacity), kg - 50
Motorized - No
Mounting - Maximum screen size - 190.5 cm (75")
Mounting - Maximum VESA mount - 600 x 400 mm
Mounting - Maximum weight capacity - 50 kg
Mounting - Minimum screen size - 81.3 cm (32")
Mounting - Minimum VESA mount - 75 x 75 mm
Mounting - Mounting type - Wall
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 75 x 75,100 x 100,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400
name - Wall mount for monitor LED-W560 32-75'' 75x75-600x400 50kg Distans to wall:9-38cm Tilt: 20st Swivel:110st
Other features -
Packaging data - Package depth - 62 mm
Packaging data - Package height - 745 mm
Packaging data - Package weight - 6.9 kg
Packaging data - Package width - 165 mm
PeriodofWarranty - 5 Y
producer - Neomounts
ProductName - Neomounts LED-W560 TV mount wall 32-75" - full motion
Range (max) - 38 cm
Range (min) - 9 cm
Range adjustment - Yes
Screen size (max) - 75 ''
Screen size (min) - 32 ''
Shipping Box Depth Shipping/Package Box Dimensions - 74.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 6.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 7.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 16.5 cm
Short summary - Neomounts LED-W560 Full motion TV mount wall - 32-75" - max 50 kg - VESA 75x75-600x400 - d 9-38 cm - black
ShortSummaryDescription - Neomounts LED-W560 TV mount wall 32-75" - full motion, 75 x 75 mm, 600 x 400 mm, 0 - 20°, 0 - 110°, 6°, Black
Stand/mount type - Wall
Technical details - Country of origin - China
Technical details - Package net weight - 6.88 kg
Tilt - Yes
Title - Neomounts LED-W560 TV mount wall 32-75" - full motion
Turn - Yes
Type - Wall
Unit Box Height - 0.065
Unit Box Length - 0.745
Unit Box Width - 0.165
Unit Brutto Volume - 0.00799 cubm
Unit Gross Weight - 7.4 kg
Unit Net Weight - 6 kg
URL - https://www.neomounts.com/default.asp?pageid=44&artdetail=LED-W560
Usage - Monitors
Usage - TV
Vendor Homepage - http://en.newstar.eu/av-mounts/flat-screen-mounts/wall-mounts/newstar-flat-screen-wall-mount-44/?alstart=0
vendpn - LED-W560
Vertical adjustment - 20 °
VESA - 75 x 75
VESA - 600 x 400
VESA-standard, mm - 75 x 75
VESA-standard, mm - 600 x 400
Warranty - 60 months
WarrantyInfo - 5 year
Weight - 8.930000
Weight & dimensions - Weight - 6.88 kg
Wheels - No
Width - 175.000000
