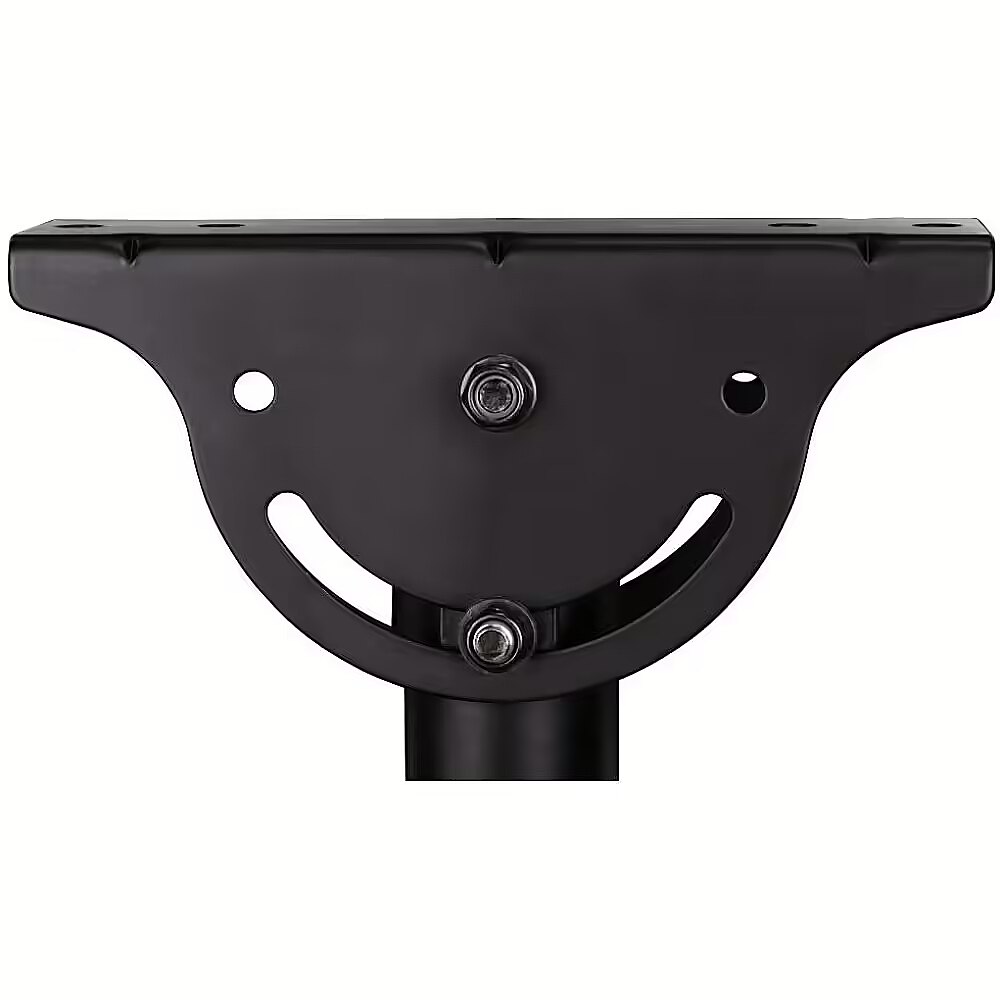

Techly Telescopic Ceiling Mount, 37-70"

Accessories included -
Brand - Techly
BrandPartCode - ICA-CPLB 946S
Category - Signage Display Mounts
Color - Black
Corner mount - No
Description - ICA CPLB-946S to teleskopowy uchwyt sufitowy o pełnym zakresie ruchu, zaprojektowany, aby zapewnić maksymalną wszechstronność i uniwersalną kompatybilność. Umożliwia pochylanie ekranów w dół lub obracanie bez użycia narzędzi. Zawiera  VESA, pasującą do każdego telewizora LCD o przekątnej 37" - 70" lub monitorów o wadze do 50 kg. Regulowana wysokość dla idealnego ustawienia telewizora. Kanał do zarządzania kablami utrzymuje kable ukryte i zorganizowane.
Design - Anti-theft function - No
Design - Housing material - Steel
Design - Product colour - Black
dimension depth - 770 mm
dimension height - 160 mm
Dimensions -  680 x 435 x 1128 mm
dimension weight - 7500 g
dimension width - 370 mm
ean - 8057685309340
Ergonomics - Adjustable - Yes
Ergonomics - Built-in spirit level - No
Ergonomics - Distance to the wall (max) - 91 cm
Ergonomics - Distance to the wall (min) - 56 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Height adjustment range - 560 - 910 mm
Ergonomics - Pan range - -180 - 180°
Ergonomics - Pivot angle - -60 - 60°
Ergonomics - Swivel angle - 360°
Ergonomics - Tilt angle range - -25 - 0°
GTIN - 8057685309340
guarantee - 36
guarantee_type - external
Load (max) - 50 kg
Logistics data - Harmonized System (HS) code - 85299097
LongDesc - - ICA CPLB-946S is a telescopic bracket ceiling full-motion designed to offer the ultimate in versatility and universal compatibility- Tilting plate for ceiling applications and sloping floor- It allows screens to be tilted down or rotated without tools- Includes VESA plate for any LCD TV 37" - 70" or monitors up to 50 kg- Adjustable height for perfect TV placement- A flume cable management keeps cables concealed and organized
LongProductName - 37-70" Telescopic Ceiling Universal LED TV LCD Support
LongSummaryDescription - Techly 37-70 Telescopic Ceiling Universal LED TV LCD Support" ICA-CPLB 946S. Maximum weight capacity: 50 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Height adjustment range: 560 - 910 mm, Tilt angle range: -25 - 0°, Swivel angle: 360°. Product colour: Black
Mounting - Maximum screen size - 177.8 cm (70")
Mounting - Maximum VESA mount - 600 x 400 mm
Mounting - Maximum weight capacity - 50 kg
Mounting - Minimum screen size - 94 cm (37")
Mounting - Minimum VESA mount - 200 x 200 mm
Mounting - Mounting type - Ceiling
Mounting - Number of displays supported - 1
Mounting - Panel mounting interface - 200 x 200,300 x 300,400 x 400,600 x 400
name - Cilling projector holder 37-70inch 50kg regulation
Other features - Nachylenie od 0° do -25° Orientacja pozioma: 360°
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
producer - Techly
ProductName - 37-70 Telescopic Ceiling Universal LED TV LCD Support" ICA-CPLB 946S
Range adjustment - No
rotation - 360 °
Screen size (max) - 70 ''
Screen size (min) - 37 ''
ShortSummaryDescription - Techly 37-70 Telescopic Ceiling Universal LED TV LCD Support" ICA-CPLB 946S, 50 kg, 94 cm (37"), 177.8 cm (70"), 200 x 200 mm, 600 x 400 mm, 560 - 910 mm
Stuff - Steel
Technical details - Warranty period - 10 year(s)
Title - Techly 37-70 Telescopic Ceiling Universal LED TV LCD Support" ICA-CPLB 946S
Type - Ceiling
URL - https://www.techly.com/37-70-telescopic-ceiling-universal-led-tv-lcd-support.html
Usage - Monitors
Usage - TV
vendpn - 309340
VESA - 200 x 200
VESA - 300 x 300
VESA - 400 x 200
VESA - 400 x 400
VESA - 600 x 400
WarrantyInfo -
Weight - 6.875 kg
Weight & dimensions - Depth - 435 mm
Weight & dimensions - Height - 1128 mm
Weight & dimensions - Weight - 7.22 kg
Weight & dimensions - Width - 680 mm
