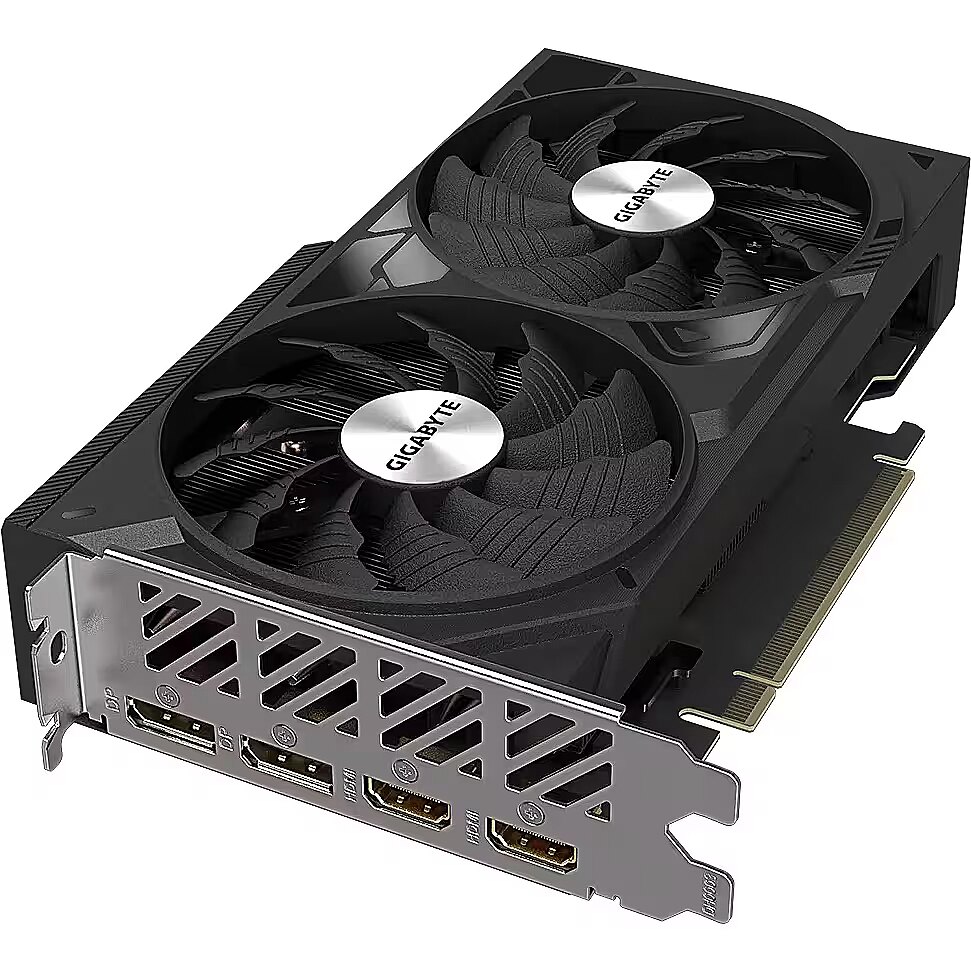

Gigabyte GeForce RTX 4060 Ti, 8GB GDDR6, WindForce OC (DLSS 3)

Brand - GIGABYTE
BrandPartCode - GV-N406TWF2OC-8GD
Card's length - 200 to 240 mm
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
Chipset - NVIDIA GeForce RTX 4060 Ti
Code - GV-N406TWF2OC-8GD 1.0
CUDA Cores - 4352
Description - GeForce RTX 4060 Ti WINDFORCE OC 8G - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing - 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - Powered by GeForce RTX™ 4060 Ti (8GB) - Integrated with 8GB GDDR6 128bit memory interface - WINDFORCE cooling system - Protection back plate

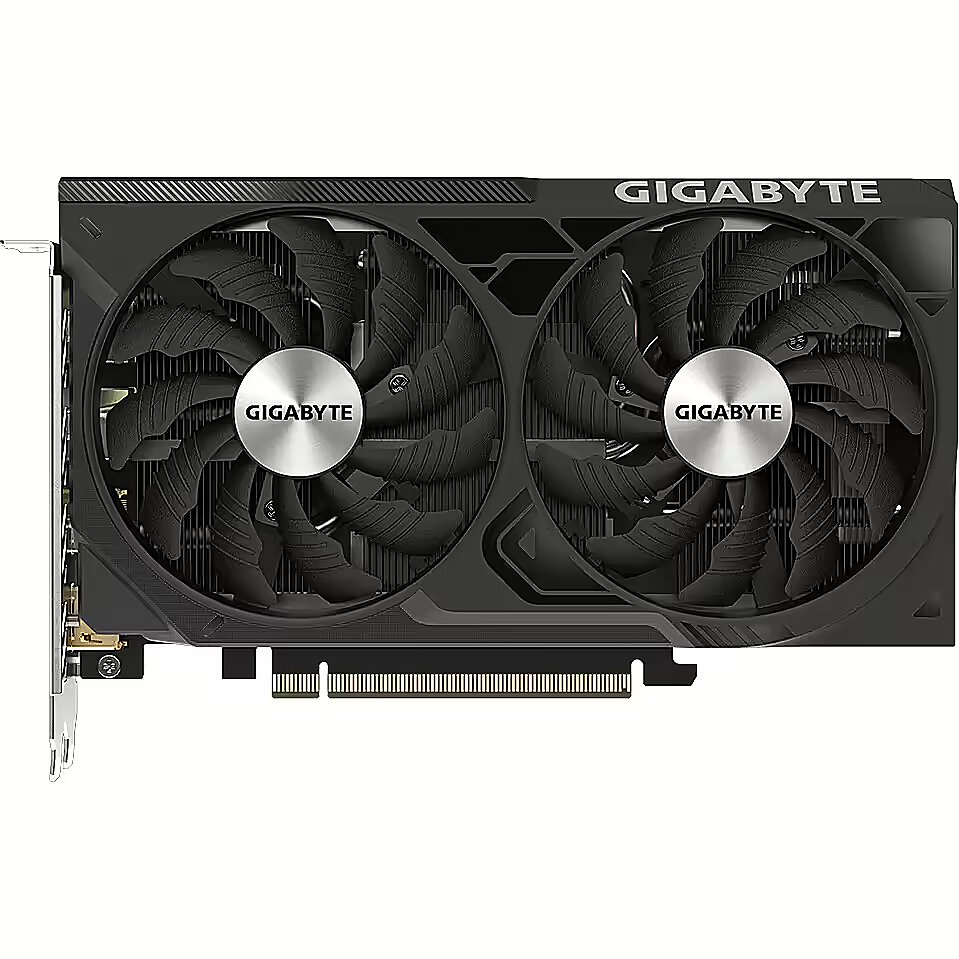

Design - Cooling technology - GIGABYTE WINDFORCE 2X
Design - Cooling type - Active
Design - Fan diameter - 9 cm
Design - Form factor - Full-Height/Half-Length (FH/HL)
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
dimensionalWeight - 636
Dimensions - L=201 W=120 H=41 mm
DisplayPort Input/Output connectors - 2
EAN - 4719331313739
Eans - 4719331313739
EAN_code - 4719331313739
Full Description Line - NVIDIA GeForce RTX 4060 Ti|Graphics memory size 8 GB|GDDR6|128 bit|PCIE 4.0 16x|Memory CLK 18 Gbps|GPU clock 2550 MHz|7680x4320|2xHDMI|2xDisplayPort|Included Accessories Quick guide
GPU clock - 2550 MHz
Graphic card features - Overclock Edition
Graphics connector - PCIE 4.0 16x
Graphics memory size - 8 GB
Graphics memory type - GDDR6
Gross Weight Kg - 1,69
GTIN - 0889523038642
GTIN - 889523038642
GTIN - 4719331313739
HDMI Input/Output connectors - 2
Included Accessories - Quick guide
Link - https://www.gigabyte.com/Graphics-Card/GV-N406TWF2OC-8GD#kf
LongDesc - Ray TracingHyperrealistic. Hyperfast.The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.NVIDIA DLSS 3The performance multiplier, powered by AI.DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.NVIDIA ReflexVictory measured in milliseconds.NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.NVIDIA StudioYour ideas, accelerated by NVIDIA Studio.Take your creative projects to the next level with NVIDIA Studio. Powered by new dedicated hardware, RTX 40 Series unlocks unmatched performance in 3D rendering, video editing, and graphic design. Experience feature-rich RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.WINDFORCE COOLING SYSTEMThe WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.PROTECTION BACK PLATEThe back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.ULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - 8 GB, GDDR6, 128-bit, PCI Express 4.0, 2550 MHz core clock, 2x DisplayPort, 2x HDMI, 1x 8-pin
LongSummaryDescription - GIGABYTE GeForce RTX 4060 Ti WINDFORCE OC. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Manufacturer - GigaByte
Manufacturer - Gigabyte
Manufacturer Code - GV-N406TWF2OC-8GD
Manufacturer Name - Gigabyte
Manufacturer_code - GV-N406TWF2OC-8GD
Max resolution - 7680x4320
Memory - Data transfer rate - 18 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory - Number of pipelines - 3
Memory > Discrete graphics adapter memory - 8 GB
Memory > Graphics adapter memory type - GDDR6
Memory > Memory clock speed - 18000 MHz
Memory bus - 128 bit
Memory CLK - 18 Gbps
Model - GV-N406TWF2OC-8GD
MPN - GV-N406TWF2OC-8GD
Name - Gigabyte GeForce RTX 4060 Ti WINDFORCE 2 8GB DLSS 3
Name - GIGABYTE GeForce RTX 4060 Ti WINDFORCE 2 OC 8G, graphics card (black, DLSS 3, 2x DisplayPort, 2x HDMI 2.1a)
Name - Gigabyte | GV-N406TWF2OC-8GD 1.0 | NVIDIA | 8 GB | GeForce RTX 4060 Ti | GDDR6 | HDMI ports quantity 2 | PCI-E 4.0 | Memory clock speed 18000 MHz
Name - RTX 4060 Ti 8GB Gigabyte Windforce OC GDDR6
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 295.00 mm
Package features > Gross depth master carton - 725 mm
Package features > Gross height (mm) - 50.00 mm
Package features > Gross height master carton - 310 mm
Package features > Gross width (mm) - 211.00 mm
Package features > Gross width master carton - 465 mm
Package features > Net weight master carton - 16 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 278 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.28 kg
Package features > Tare weight master carton - 1.777 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging content - User guide - Yes
Packaging data - Package type - Box
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

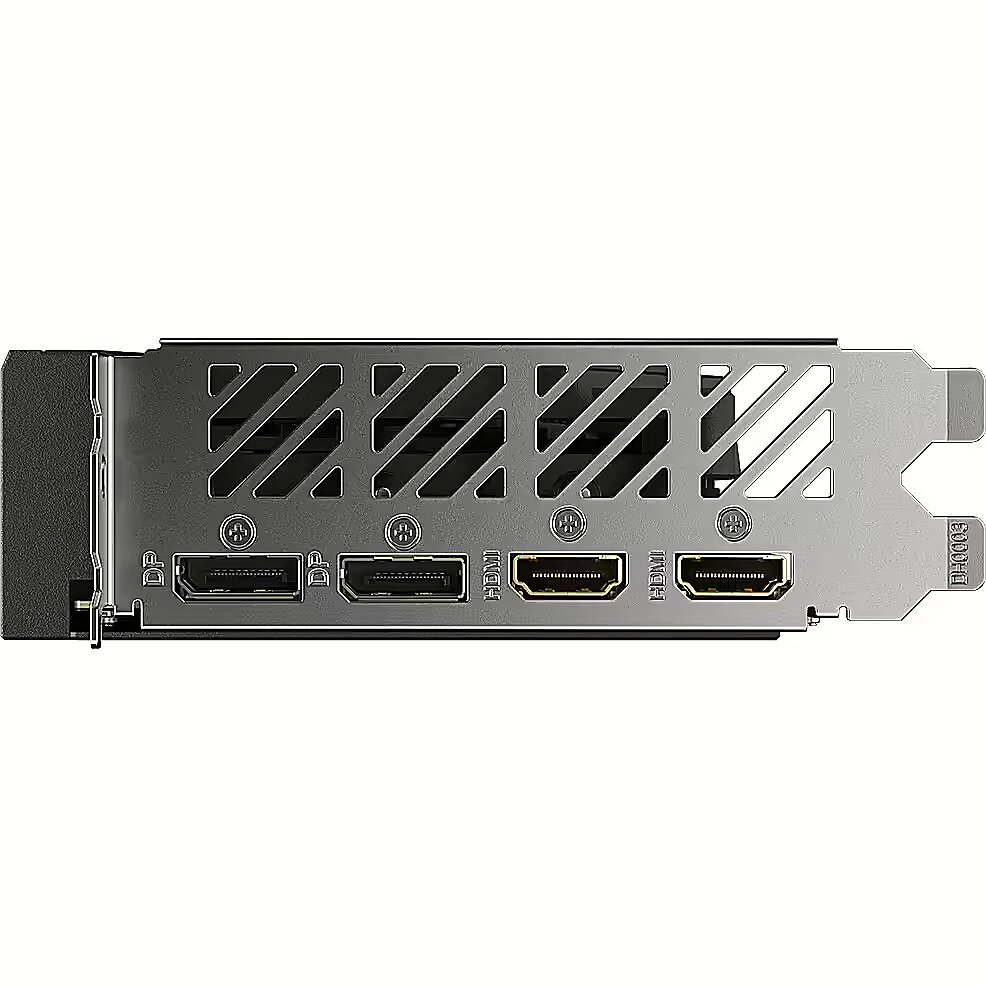

Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces > DisplayPorts quantity - 2
Ports & interfaces > HDMI ports quantity - 2
Ports & interfaces > Interface type - PCI-E 4.0
Power - Minimum system power supply - 500 W

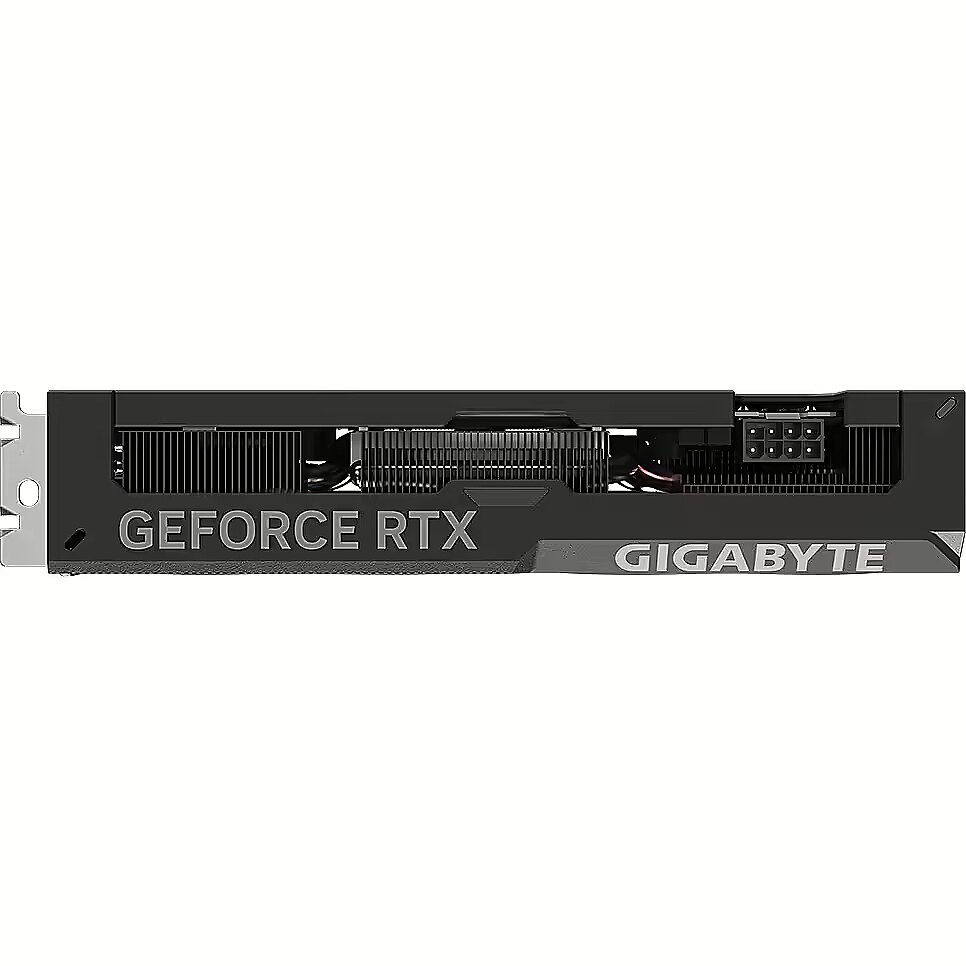

Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Power consumption - 500 Watts
Processor - CUDA - Yes
Processor - CUDA cores - 4352
Processor - Graphics processor - GeForce RTX 4060 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency (OC mode) - 2550 MHz
Processor > Graphics processor - GeForce RTX 4060 Ti
Processor > Graphics processor family - NVIDIA
Producer - Gigabyte
producerCode - GV-N406TWF2OC-8GD
ProducerCode - GV-N406TWF2OC-8GD
Producer product name - GV-N406TWF2OC-8GD 1.0
ProductName - GeForce RTX 4060 Ti WINDFORCE OC
productName - GIGABYTE GeForce RTX 4060 Ti WINDFORCE OC NVIDIA 8 GB GDDR6
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 55.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 33 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 17.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 44.5 cm
ShortDescription - Chipset NVIDIA RTX 4060 Ti | 8GB |
Short description - GIGA VGA 8GB RTX4060Ti WINDFORCE OC 8G 2xDP/2xHDMI GeForce RTX 4060 Ti WINDFORCE OC 8G
ShortSummaryDescription - GIGABYTE GeForce RTX 4060 Ti WINDFORCE OC, GeForce RTX 4060 Ti, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 290
sizeY - 52
sizeZ - 211
System requirements - Windows operating systems supported - Windows 10 x64
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64
System requirements - Windows operating systems supported - Windows 11 x64
Technical details > Gross weight - 0.88 kg
Technical details > Net weight - 0.60 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE GeForce RTX 4060 Ti WINDFORCE OC NVIDIA 8 GB GDDR6
Unit Box Height - 0.052
Unit Box Length - 0.296
Unit Box Width - 0.21
Unit Brutto Volume Retail box Dimensions - 0.005402/0.004075 cubm
Unit Gross Weight - 0.875 kg
Unit Net Weight - 0.7 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N406TWF2OC-8GD
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N406TWF2OC-8GD#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 0,81
Weight - 0.82
weight - 817
Weight & dimensions - Depth - 41 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Length - 201 mm
