Accessories included -
Brand - ASUS
BrandPartCode - 90YV0IY3-M0NA00
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA|GeForce RTX 4090
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Chipset - GeForce RTX 4090
Chipset - NVIDIA GeForce RTX 4090
Chipset manufacturer - NVIDIA
CnCode CnCode - 84718000
code - 90YV0IY3-M0NA00
Code - 90YV0IY3-M0NA00
Cooling - Active
Core Boost frequency - 2595 MHz
Core frequency - 2235 MHz
CUDA Core - 16384
CUDA Cores - 16384
Description -

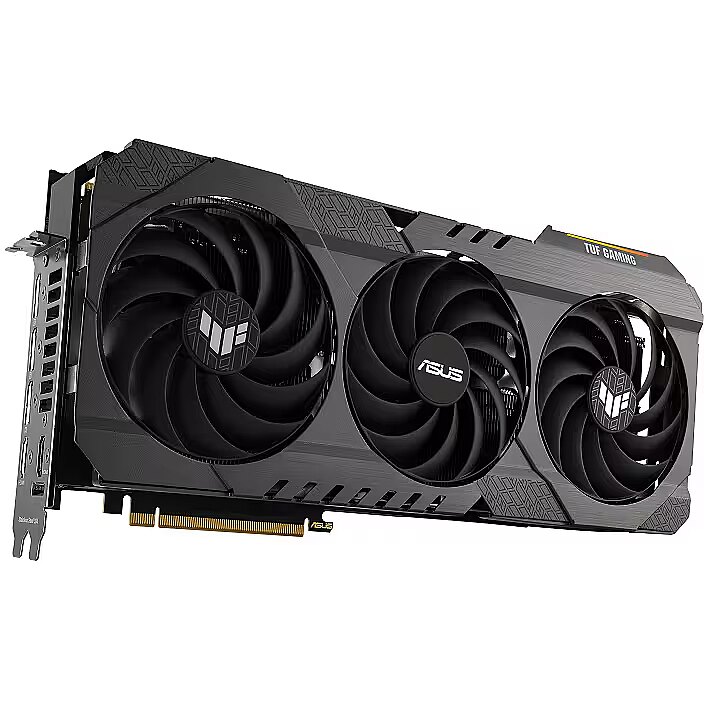

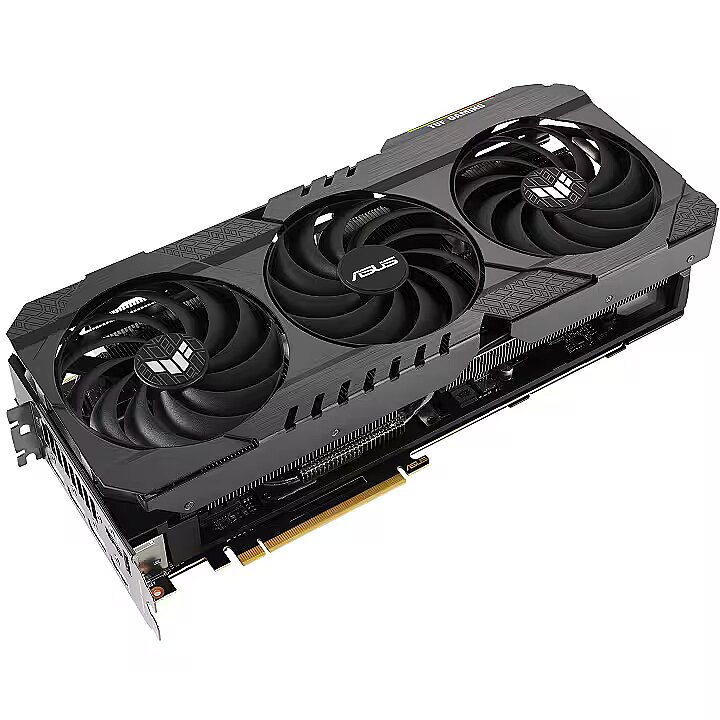

Description - ASUS TUF Gaming GeForce RTX™ 4090 24GB GDDR6X OG OC Edition with DLSS 3, lower temps, and enhanced durability - Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing. - 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - OC edition: 2595 MHz (OC mode)/ 2565 MHz (Default mode) - Axial-tech fan design has been tuned with a reversed central fan direction for less turbulence - Dual ball fan bearings last up to twice as long as conventional designs - Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable - Auto-Extreme precision automated manufacturing for higher reliability - GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi

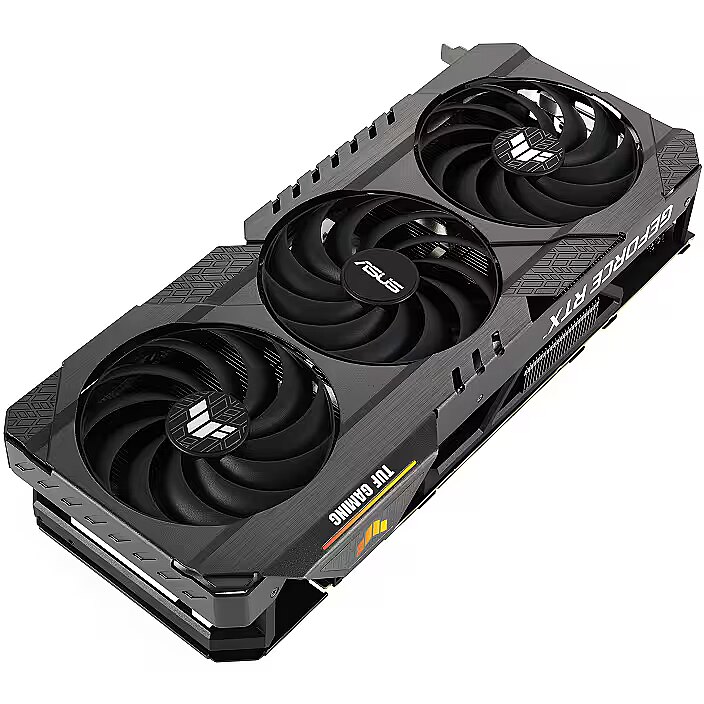

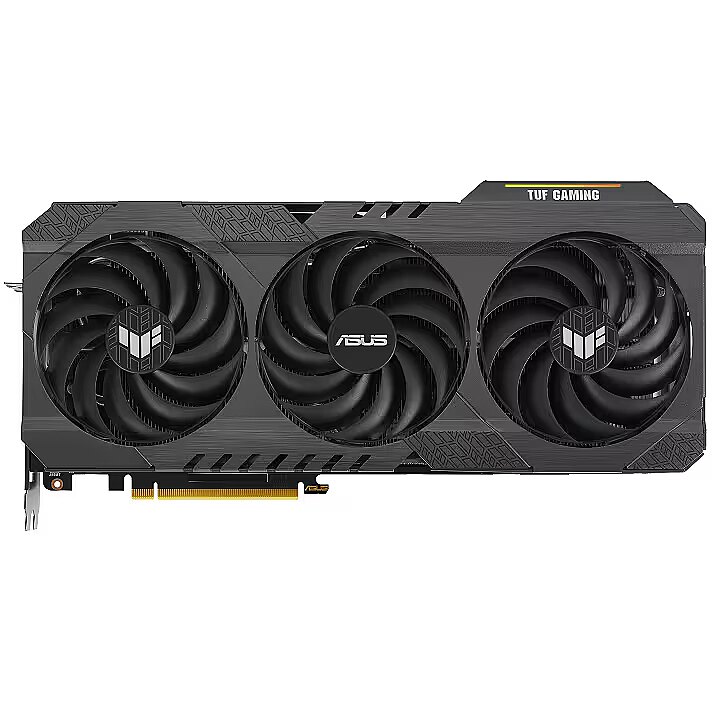

Design - Number of fans - 3 fan(s)
Design - Number of slots - 3.2
Design - Product colour - Black
dimensionalWeight - 2455
dimension depth - 85 mm
dimension height - 535 mm
Dimensions - 63 x 140 x 326 mm
Dimensions - 325.9 x 140.2 x 62.8 mm
dimension weight - 2760 g
dimension width - 265 mm
DisplayPort Input/Output connectors - 3
EAN - 4711387225011
ean - 4711387225011
Eans - 4711387225011
Full Description Line - NVIDIA GeForce RTX 4090|Graphics memory size 24 GB|GDDR6X|384 bit|PCIE 4.0 16x|Memory CLK 21 Gbps|7680x4320|2xHDMI|3xDisplayPort|Included Accessories 1 x Collection Card1 x Speedsetup Manual1 x Adapter Cable1 x Thank you Card1 x TUF Velcro Hook & Loop
Graphic card features - Gaming/HDCP
Graphics card connector - PCI-E 16x ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 24 GB
Graphics memory type - GDDR6X
Gross Weight Kg - 3,6
GTIN - 4711387225011
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 2
Included Accessories - 1 x Collection Card
1 x Speedsetup Manual
1 x Adapter Cable
1 x Thank you Card
1 x TUF Velcro Hook & Loop
LongDesc - Built TUFNVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX™ 4090.The Ultimate Platform for Gamers and CreatorsPowered by GeForce RTX 40 Series and DLSS 3New Streaming MultiprocessorsUp to 2x performance and power efficiencyFourth-Gen Tensor CoresUp to 4x performance with DLSS 3 vs. brute-force renderingThird-Gen RT CoresUp to 2x ray tracing performanceAXIAL-TECH UPGRADESAir SuperiorityTUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.NEW DIRECTIONWell-maintained FormationThe two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.3.2-SLOT DESIGNPhase That BlazeA generously sized heatsink efficiently soak up heat from the GeForce RTX 4090 GPU so that it can be whisked away by the three Axial-tech fans.LOCK, LOAD, AND LET THE PERFORMANCE FLOWThe GeForce RTX 4090 gloriously presented on a backdrop of low noise and rugged durability.AUTO-EXTREME TECHNOLOGYRELIABILITY BOOSTAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.AURA SYNCLight ‘em Up!Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.GPU Tweak IIIASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.QuantumCloudQuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!Pair with a PSUUse our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG Thor, ROG Loki, or ROG Strix AURA PSU for ultimate performance.Free 1 Month of Adobe Creative CloudGet complimentary membership with the purchase of selected ASUS products.*
LongProductName - TUF Gaming GeForce RTX 4090 24GB GDDR6X OG OC Edition with DLSS 3, lower temps, and enhanced durability
LongSummaryDescription - ASUS TUF Gaming TUF-RTX4090-O24G-OG-GAMING. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4090. Discrete graphics card memory: 24 GB, Graphics card memory type: GDDR6X, Memory bus: 384 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Manufacturer - ASUS
Manufacturer Code - 90YV0IY3-M0NA00
Manufacturer Name - Asustek
Max resolution - 7680x4320
Memory - Data transfer rate - 21 Gbit/s
Memory - Discrete graphics card memory - 24 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bus - 384 bit
Memory > Discrete graphics adapter memory - 24 GB
Memory > Graphics adapter memory type - GDDR6X
Memory bus - 384 bit
Memory bus - 384-bit
Memory CLK - 21 Gbps
Memory frequency - 21000 MHz
Memory type - DDR6X
Model - GeForce RTX 4090
Model - TUF-RTX4090-O24G-OG-GAMING
MPN - 90YV0IY3-M0NA00
Name - ASUS GeForce RTX 4090 TUF Gaming OC 24GB OG Edition DLSS 3
name - ASUS GeForce RTX 4090 TUF O24G OG, 24576 MB GDDR6X
name - Graphic card GeForce RTX 4090 TUF OG Gaming 24G OC GDDR6X 384bit 3DP
Name - RTX 4090 24GB ASUS TUF Gaming OG OC GDDR6X 3Fan TUF-RTX4090-O24G-OG-GAMING
Name - TUF GeForce RTX 4090 24GB OG OC Edition Gaming Graphics Card | NVIDIA | 24 GB | GeForce RTX 4090 | GDDR6X | HDMI ports quantity 2 | PCI Express 4.0
Other features -
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 326.00 mm
Package features > Gross height (mm) - 63.00 mm
Package features > Gross width (mm) - 141.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 298 pc(s)
Package features > Paper/Pasteboard - 160.00 g
Package features > Plastic (No PET) - 40.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Manual - Yes
Packaging data - Package depth - 265 mm
Packaging data - Package height - 85 mm

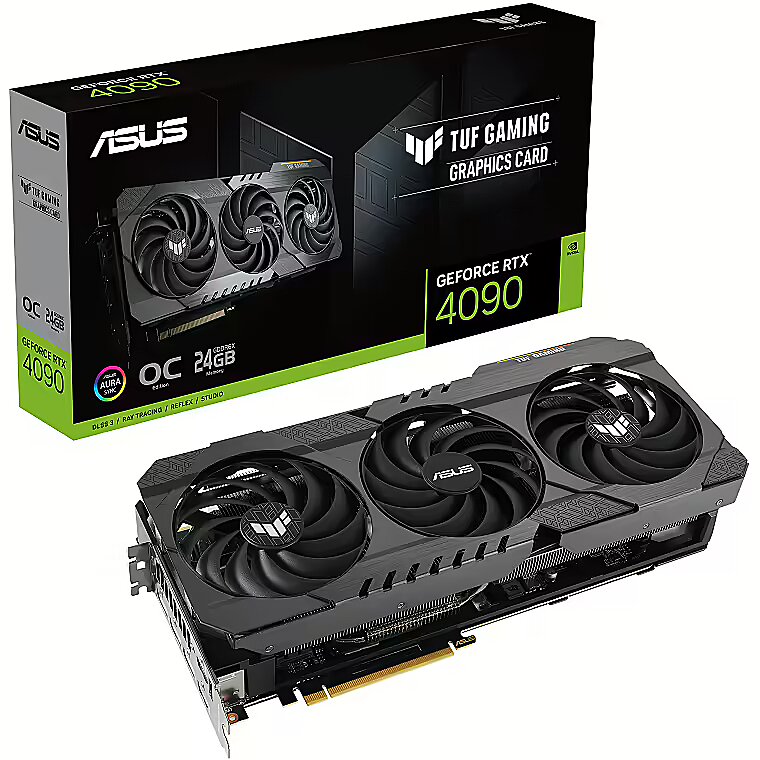

Packaging data - Package type - Box
Packaging data - Package weight - 2.7 kg
Packaging data - Package width - 534 mm
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

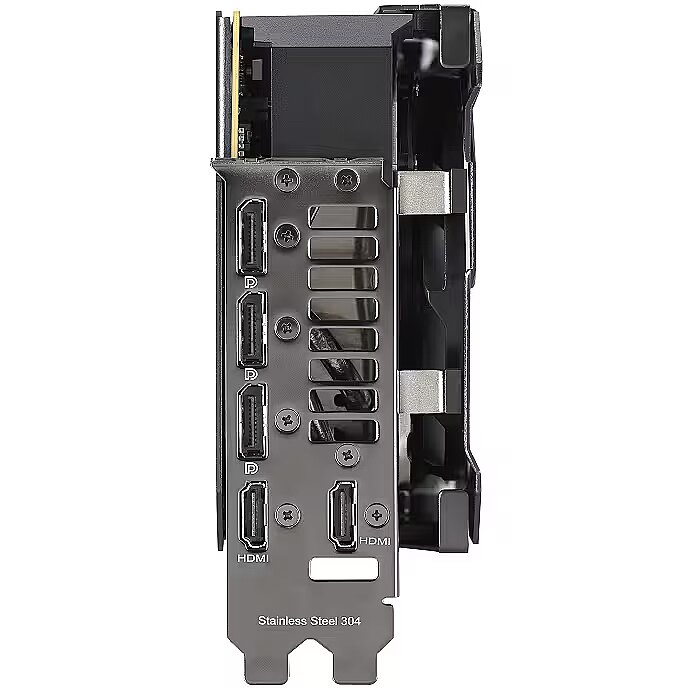

Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 2
Ports & interfaces > Interface type - PCI Express 4.0
Power - Minimum system power supply - 850 W
Power - Supplementary power connectors - 1x 16-pin
Power connectors - 16 pin
Processor - CUDA - Yes
Processor - CUDA cores - 16384
Processor - Graphics processor - GeForce RTX 4090
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2565 MHz
Processor - Processor boost clock speed (OC mode) - 2595 MHz
Processor > Graphics processor - GeForce RTX 4090
Processor > Graphics processor family - NVIDIA
producer - Asus
Producer - Asus
producerCode - 90YV0IY3-M0NA00
ProducerCode - TUF-RTX4090-O24G-OG-GAMING
productName - ASUS TUF Gaming TUF-RTX4090-O24G-OG-GAMING NVIDIA GeForce RTX 4090 24 GB GDDR6X
ProductName - TUF-RTX4090-O24G-OG-GAMING
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 54 cm
Shipping Box Height Shipping/Package Box Dimensions - 27 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.728 kg
Shipping Box Width Shipping/Package Box Dimensions - 9 cm
Short description - ASUS VGA 24GB RTX4090 TUF-O24G-OG-GAMING 3xDP/2xHDMI ASUS TUF-RTX4090-O24G-OG-GAMING
ShortDescription - Chipset NVIDIA RTX 4090 | 24GB
ShortSummaryDescription - ASUS TUF Gaming TUF-RTX4090-O24G-OG-GAMING, GeForce RTX 4090, 24 GB, GDDR6X, 384 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 535
sizeY - 270
sizeZ - 85
Supported standards - DirectX 12
Supported standards - OpenGL 4.6
Technical details > Gross weight - 0.68 kg
Technical details > Net weight - 0.48 kg
Technical details > Producer - Asus
Technical details > Producer product name - TUF GeForce RTX 4090 24GB OG OC Edition Gaming Graphics Card
Title - ASUS TUF Gaming TUF-RTX4090-O24G-OG-GAMING NVIDIA GeForce RTX 4090 24 GB GDDR6X
Unit Box Height - 0.27
Unit Box Length - 0.54
Unit Box Width - 0.09
Unit Brutto Volume - 0.01312 cubm
Unit Gross Weight - 2.73 kg
Unit Net Weight - 2.5 kg
URL - https://www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rtx4090-o24g-og-gaming/
Vendor Homepage - www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rtx4090-o24g-og-gaming/
vendpn - TUF-RTX4090-O24G-OG-GAMING
Version - Box
Video ports - 2 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 24 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2.86
weight - 2755
Weight & dimensions - Depth - 62.8 mm
Weight & dimensions - Depth - 140.2 mm
Weight & dimensions - Height - 62.8 mm
Weight & dimensions - Height - 140.2 mm
Weight & dimensions - Length - 325.9 mm
Weight & dimensions - Weight - 1.7 kg
Weight & dimensions - Width - 325.9 mm
GeForce -tunnus osoittaa, että tämä näytönohjain on riittävän tehokas, jotta se on yhteensopiva uusimpien VR-laitteiden (Virtual Reality), kuten Oculus Riftin, HTC Viven (SteamVR) jne. kanssa.
