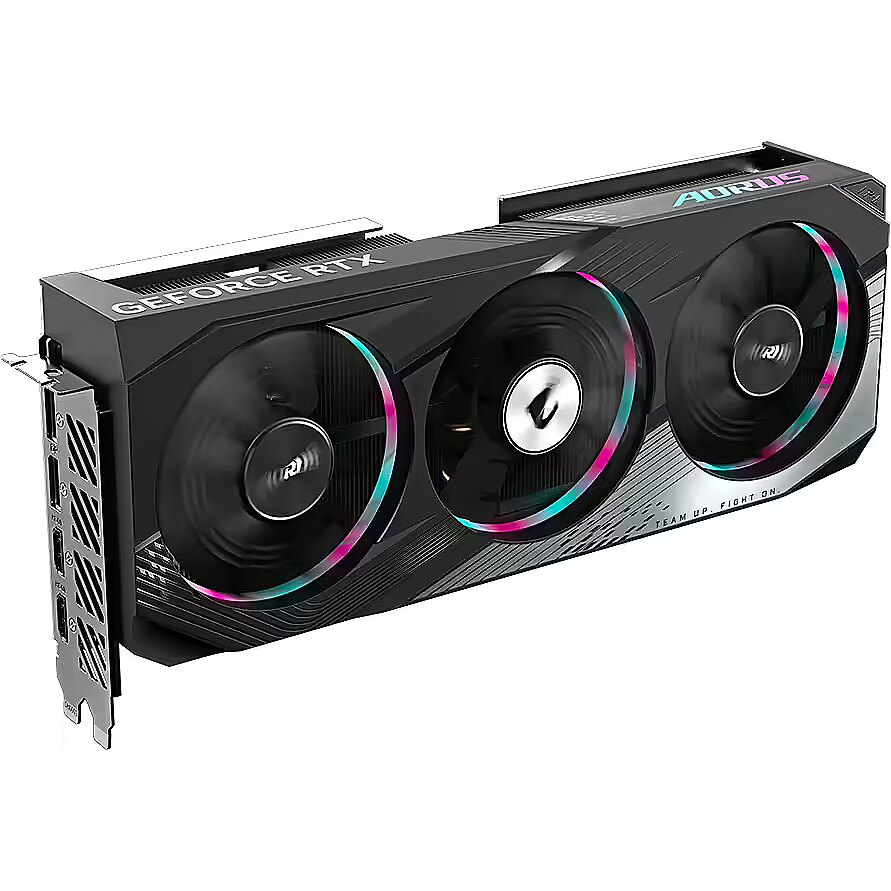

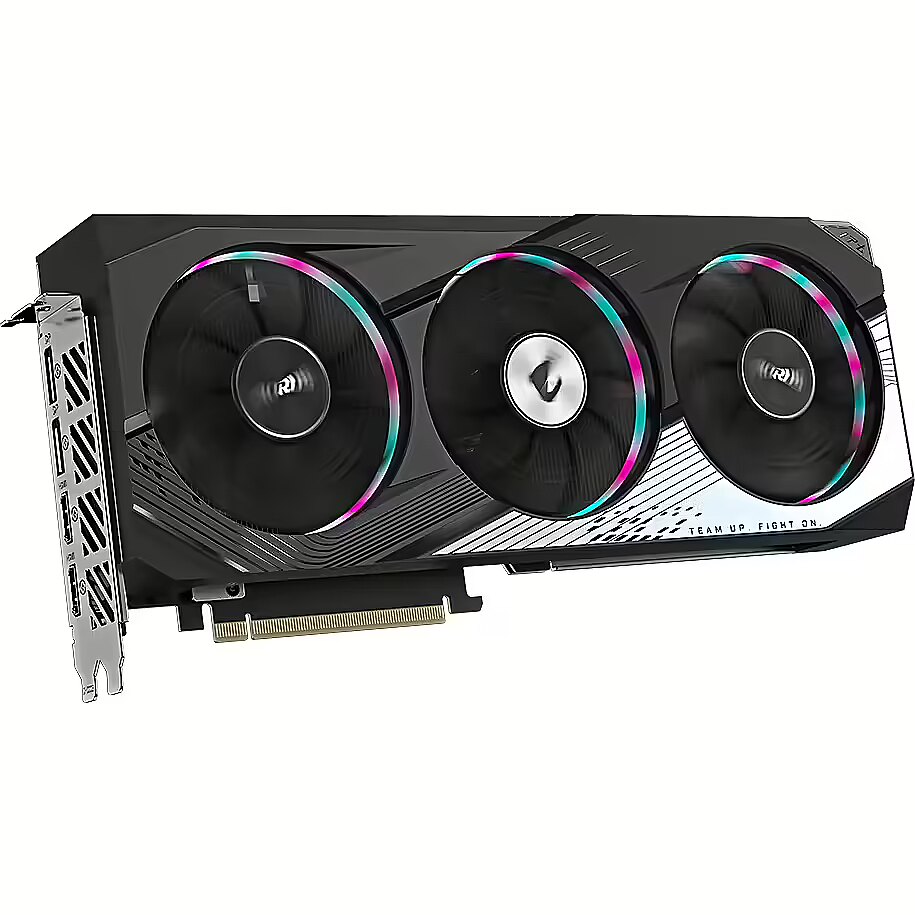

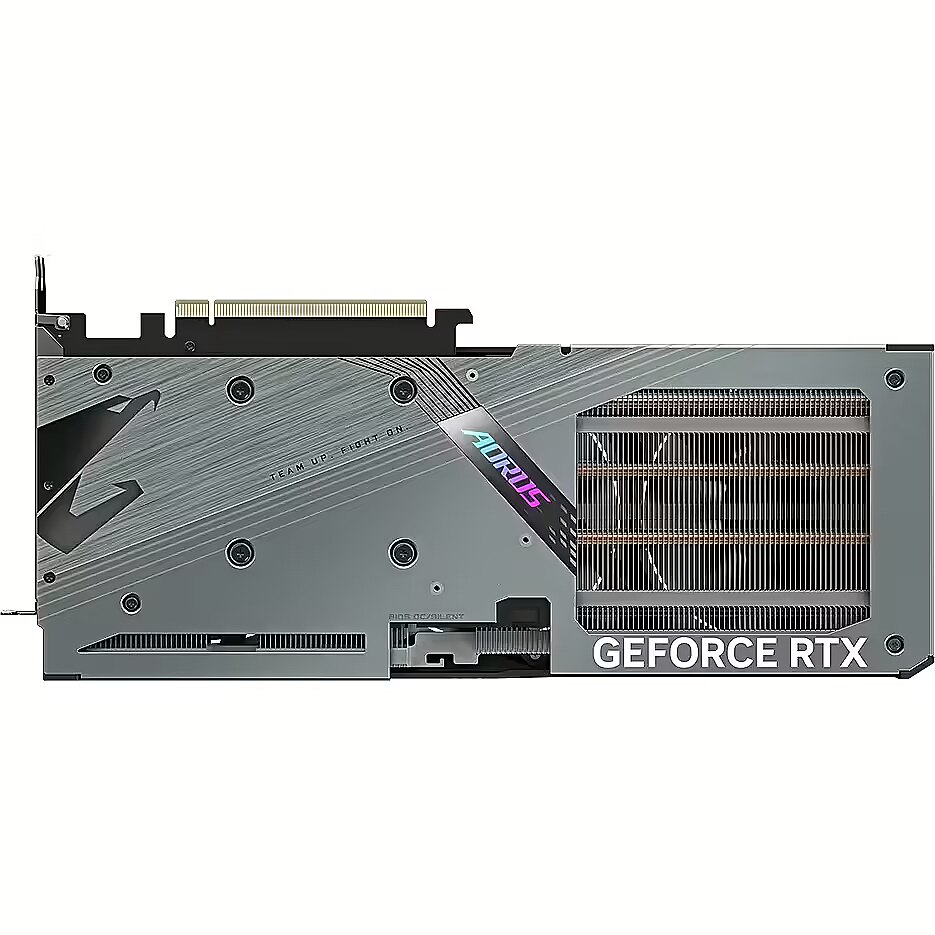

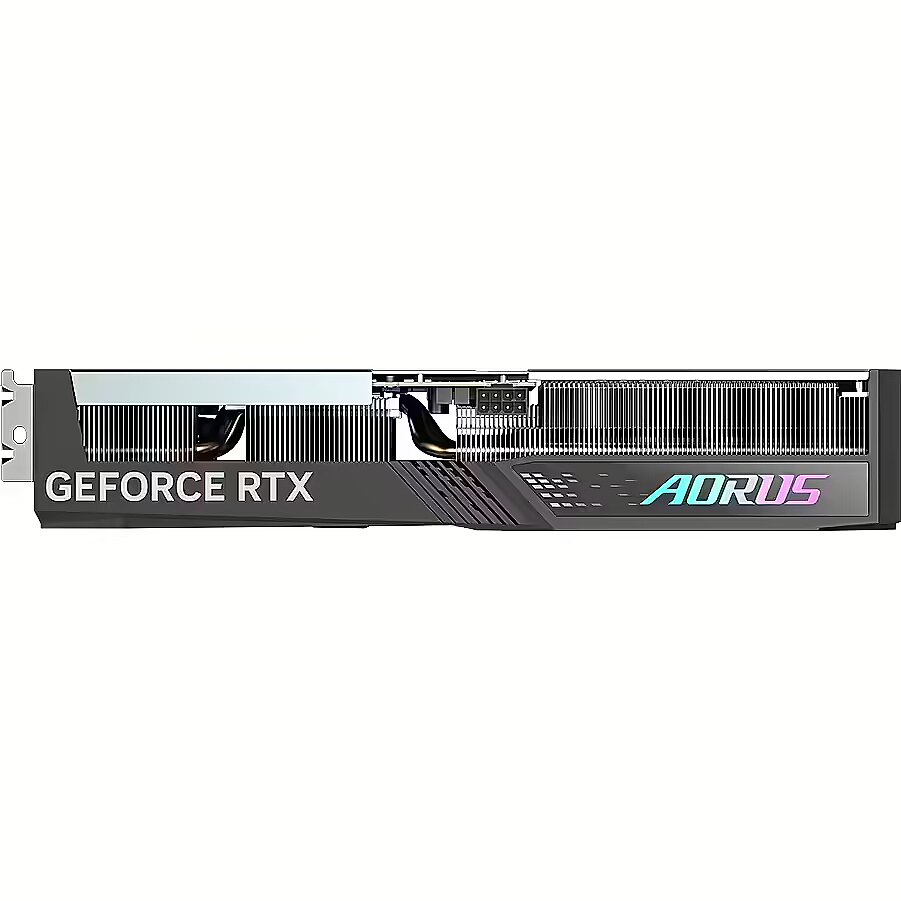

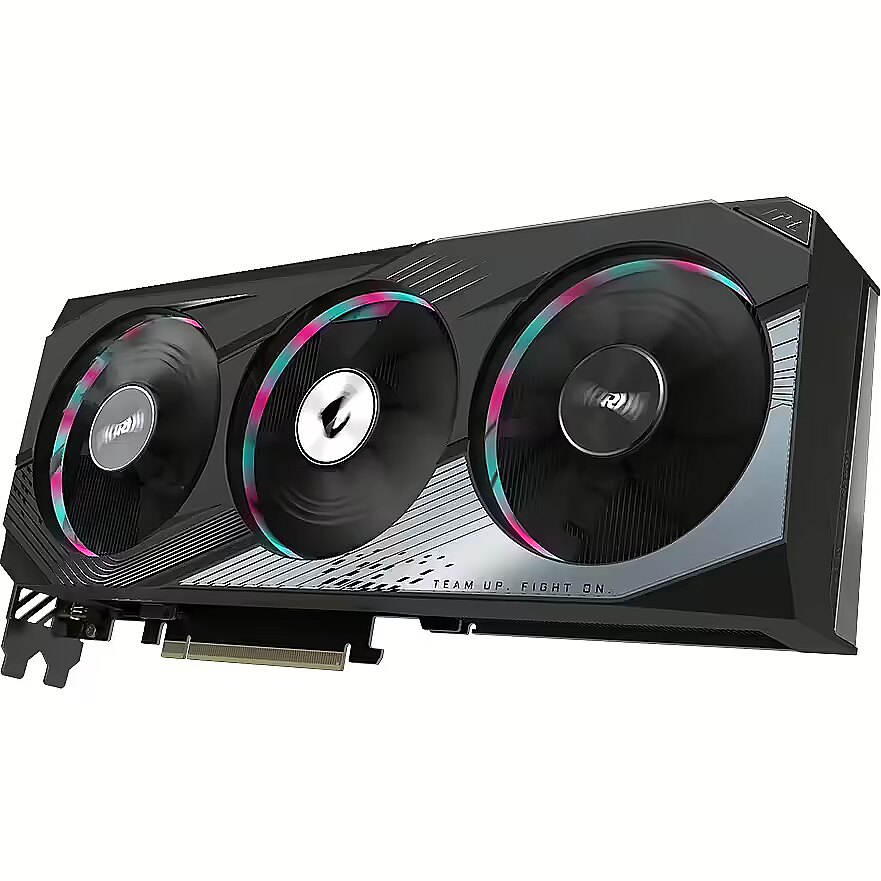

Gigabyte GeForce RTX 4060 Ti, 8GB GDDR6, AORUS ELITE (DLSS 3)

Brand - GIGABYTE
BrandPartCode - GV-N406TAORUS E-8GD
Card's length - > 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA|GeForce RTX 4060 Ti 8GB
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Chipset - NVIDIA GeForce RTX 4060 Ti
CnCode CnCode - 84718000
code - GV-N406TAORUS E-8GD
Code - GV-N406TAORUS E-8GD G10
CUDA Cores - 4352
Description - - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing - 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - Powered by GeForce RTX™ 4060 Ti (8GB) - Integrated with 8GB GDDR6 128bit memory interface - WINDFORCE cooling system - RGB Fusion - Dual BIOS - Protection metal back plate
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
Dimensions - L=301 W=128 H=56 mm
DisplayPort Input/Output connectors - 2
EAN - 4719331313395
ean - 4719331313395
Eans - 4719331313395
Full Description Line - NVIDIA GeForce RTX 4060 Ti|Graphics memory size 8 GB|GDDR6|128 bit|PCIE 4.0 16x|Memory CLK 18 Gbps|GPU boost clock 2655 MHz|7680x4320|2xHDMI|2xDisplayPort|Included Accessories 1. Quick guide2. Warranty registration3. AORUS Metal sticker
GPU boost clock - 2655 MHz
Graphics connector - PCIE 4.0 16x
Graphics memory size - 8 GB
Graphics memory type - GDDR6
GTIN - 4719331313395
HDMI Input/Output connectors - 2
Included Accessories - 1. Quick guide
2. Warranty registration
3. AORUS Metal sticker
Link - https://www.gigabyte.com/Graphics-Card/GV-N406TAORUS-E-8GD#kf
LongDesc - THE EVOLVING POWER OF WINDFORCEThe WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.ALTERNATE SPINNINGEach fan rotates in different direction to the adjacent one. This special mechanism reduces turbulence and increases air pressure by minimizing the offset occurred between airflows.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.SCREEN COOLINGTo create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation.RGB FUSIONThe legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.DUAL BIOSThe factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.PROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.POWER INDICATORWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.PCB COATINGDust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion.Moisture resistant - prevents unwanted conduction paths and board damage.Corrosion resistant - protects from salt spray, humidity, and corrosion.EXTREME OVERCLOCKINGThe graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.ULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.4-YEAR WARRANTYWe want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time
LongProductName - NVIDIA GeForce RTX 4060 Ti, 8GB GDDR6, 128 bit, 1800MHz, PCI Express 4.0, 2 x HDMI (2.1a), 2 x DP (1.4a), CUDA, DirectX 12.0, OpenGL 4.6
LongSummaryDescription - GIGABYTE AORUS GeForce RTX 4060 Ti ELITE 8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit, Memory clock speed: 1800 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - Gigabyte
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory - Memory clock speed - 1800 MHz
Memory > Discrete graphics adapter memory - 8 GB
Memory > Graphics adapter memory type - GDDR6
Memory > Memory clock speed - 18000 MHz
Memory bus - 128 bit
Memory CLK - 18 Gbps
Model - GV-N406TAORUS E-8GD
MPN - GV-N406TAORUS E-8GD
name - GIGABYTE Aorus GeForce RTX 4060 Ti Elite 8G, 8192 MB GDDR6
Name - Gigabyte GeForce RTX 4060 Ti AORUS ELITE 8GB DLSS 3
Name - Gigabyte | GV-N406TAORUS E-8GD 1.0 | NVIDIA | 8 GB | GeForce RTX 4060 Ti | GDDR6 | HDMI ports quantity 2 | PCI-E 4.0 | Memory clock speed 18000 MHz
Name - RTX 4060 Ti 8GB Gigabyte Aorus Elite GDDR6 3Fan
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 345.00 mm
Package features > Gross depth master carton - 725 mm
Package features > Gross height (mm) - 275.00 mm
Package features > Gross height master carton - 310 mm
Package features > Gross width (mm) - 75.00 mm
Package features > Gross width master carton - 465 mm
Package features > Net weight master carton - 16 kg
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 121 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 1.777 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging content - Quick installation guide - Yes
Packaging data - Package type - Box
Performance - DirectX version - 12.0
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

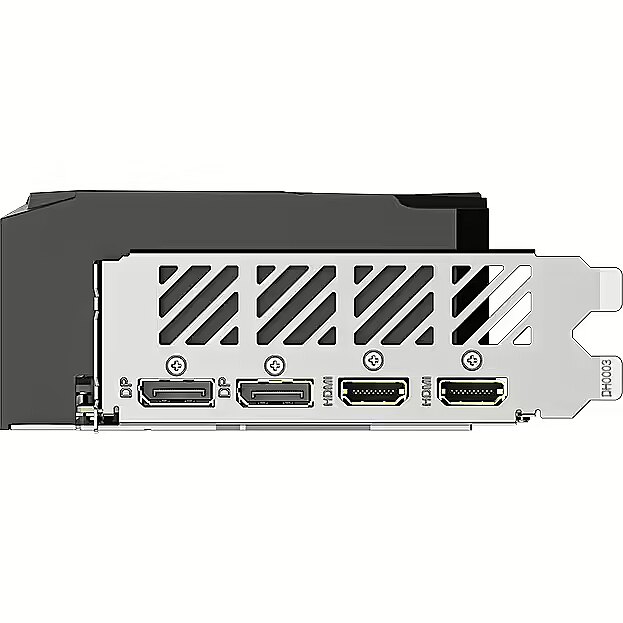

Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces > DisplayPorts quantity - 2
Ports & interfaces > HDMI ports quantity - 2
Ports & interfaces > Interface type - PCI-E 4.0
Power - Minimum system power supply - 500 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Processor - CUDA - Yes
Processor - CUDA cores - 4352
Processor - Graphics processor - GeForce RTX 4060 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2655 MHz
Processor > Graphics processor - GeForce RTX 4060 Ti
Processor > Graphics processor family - NVIDIA
Producer - Gigabyte
ProducerCode - GV-N406TAORUS E-8GD
Producer product name - GV-N406TAORUS E-8GD 1.0
ProductName - AORUS GeForce RTX 4060 Ti ELITE 8G
Shipping Box Depth Shipping/Package Box Dimensions - 49 cm
Shipping Box Height Shipping/Package Box Dimensions - 44 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 16.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 48 cm
ShortDescription - Chipset NVIDIA RTX 4060 Ti | 8GB |
ShortSummaryDescription - GIGABYTE AORUS GeForce RTX 4060 Ti ELITE 8G, GeForce RTX 4060 Ti, 8 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
Technical details > Gross weight - 1.40 kg
Technical details > Net weight - 1.20 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE AORUS GeForce RTX 4060 Ti ELITE 8G NVIDIA 8 GB GDDR6
Unit Box Height - 0.24
Unit Box Length - 0.405
Unit Box Width - 0.09
Unit Brutto Volume - 0.01035 cubm
Unit Gross Weight - 1.66 kg
Unit Net Weight - 0.75 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N406TAORUS-E-8GD#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N406TAORUS-E-8GD#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 4 Year
Weight - 1.54
Weight & dimensions - Depth - 56 mm
Weight & dimensions - Height - 128 mm
Weight & dimensions - Length - 301 mm
