Brand - GIGABYTE
BrandPartCode - GV-N407TSWF3MAX OC-16GD
Card's length - > 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA
Category - Root/Electronics/PC parts/Graphic cards
Category Code - VGP
Chipset - NVIDIA GeForce RTX 4070 Ti SUPER
CnCode CnCode - 84718000
code - GV-N407TSWF3MAX OC-16GD
Code - GV-N407TSWF3MAX OC-16GD
Cooling system - Triple slot Fansink
CUDA Cores - 8448

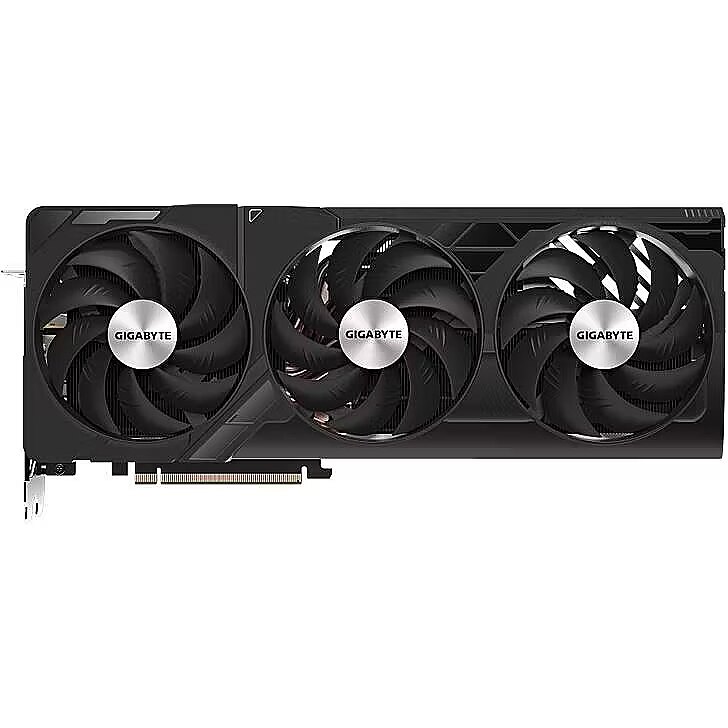

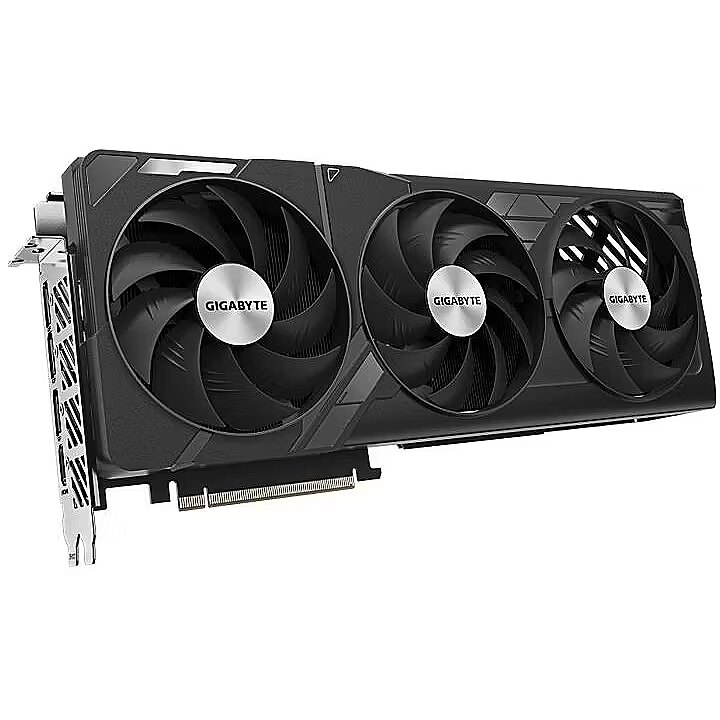

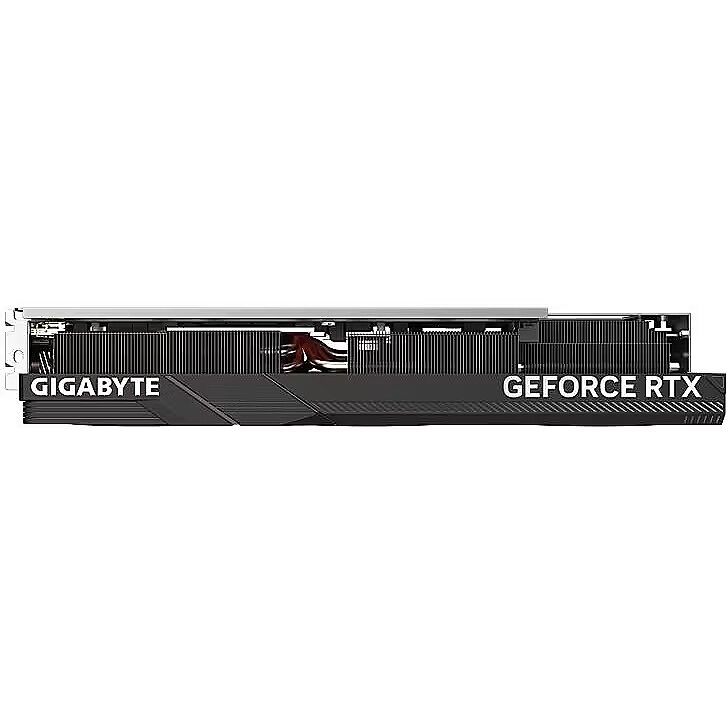

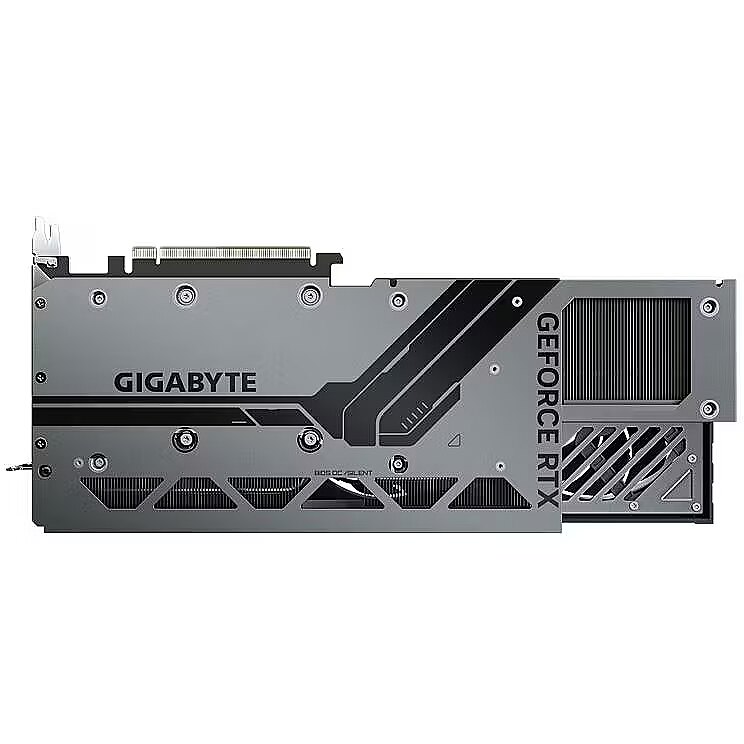

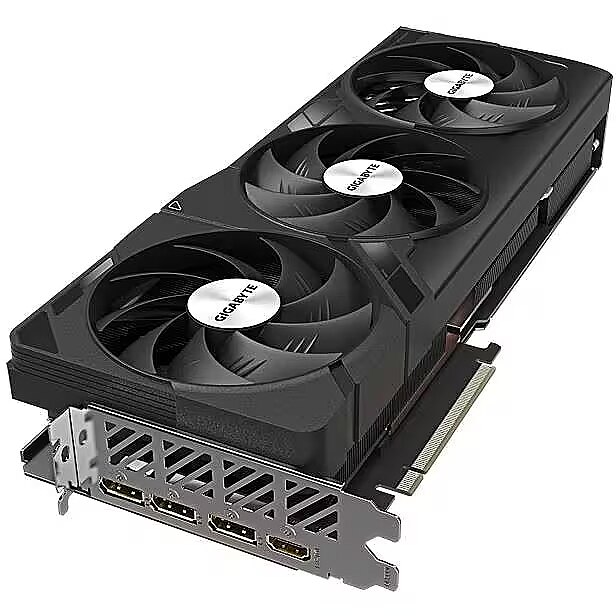

Description - GIGABYTE GeForce RTX 4070 Ti SUPER WINDFORCE MAX OC 16G + Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing + 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering + 3rd Generation RT Cores: Up to 2X ray tracing performance + Powered by GeForce RTX 4070 Ti SUPER + Integrated with 16GB GDDR6X 256bit memory interface + WINDFORCE Cooling System + Maximum Heatsink Design + Dual BIOS + Protection metal back plate + Anti-sag bracket + CORE CLOCK 2655 MHz (Reference card: 2610 MHz) New Streaming Multiprocessors Up to 2X performance and power efficiency Fourth-Gen Tensor Cores Up to 4X performance with DLSS 3 vs. brute-force rendering Third-Gen RT Cores Up to 2X ray tracing performance Cutting-Edge GPUs NVIDIA Ada Lovelace architecture Realistic and Immersive Graphics Dedicated Ray Tracing Cores AI-Accelerated Performance NVIDIA DLSS 3 Game-Winning Responsiveness NVIDIA Reflex low-latency platform Built for Live Streaming NVIDIA Encoder AI-Enhanced Voice and Video RTX Video Super Resolution and NVIDIA Broadcast Fast-Track Your Creativity NVIDIA Studio Performance and Reliability Game Ready and Studio Drivers WINDFORCE COOLING SYSTEM The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation. MAXIMUM HEATSINK DESIGN Engineered with oversized heatsink to ensure long-lasting, high-performance graphics card operation while maintaining low GPU temperatures. The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink. DUAL BIOS The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience. PROTECTION METAL BACK PLATE The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection. ANTI-SAG BRACKET The new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance. ULTRA DURABLE Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life. FRIENDLY PCB DESIGN Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Design - Bracket height - Full-Height (FH)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Fan diameter - 10 cm
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - No
Design - Number of fans - 3 fan(s)
Design - Number of slots - 2
Design - Product colour - Black
Design - SFF ready - No
dimensionalWeight - 1928
Dimensions - 331 x 136 x 55.5 mm
DisplayPort Input/Output connectors - 3
EAN - 4719331354671
ean - 4719331354671
Eans - 4719331354671
Full Description Line - NVIDIA GeForce RTX 4070 Ti SUPER|Graphics memory size 16 GB|GDDR6X|256 bit|PCIE 4.0 16x|Memory CLK 21 Gbps|GPU clock 2655 MHz|7680x4320|Cooling Triple slot Fansink|1xHDMI|3xDisplayPort|Included Accessories 1. Quick guide2. One 16-pin to two 8-pin power adaptor
GPU clock - 2655 MHz
Graphic card features - Gaming
Graphics connector - PCIE 4.0 16x
Graphics memory size - 16 GB
Graphics memory type - GDDR6X
GTIN - 4719331354671
HDMI Input/Output connectors - 1
Included Accessories - 1. Quick guide
2. One 16-pin to two 8-pin power adaptor
Link - https://www.gigabyte.com/Graphics-Card/GV-N407TSWF3MAX-OC-16GD#kf
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
LongProductName - GeForce RTX 4070 Ti SUPER WINDFORCE MAX OC Graphics Card - 16GB GDDR6X, 256bit, PCI-E 4.0, 2655MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N407TSWF3MAX OC-16GD
LongSummaryDescription - GIGABYTE GeForce RTX 4070 Ti SUPER WINDFORCE MAX OC Graphics Card - 16GB GDDR6X, 256bit, PCI-E 4.0, 2655MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N407TSWF3MAX OC-16GD. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070 Ti SUPER, Processor frequency: 2655 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6X, Memory bus: 256 bit, Memory clock speed: 21000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x16 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Max resolution - 7680x4320
Memory - Data transfer rate - 21 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bus - 256 bit
Memory - Memory clock speed - 21000 MHz
Memory - Number of pipelines - 9
Memory > Discrete graphics adapter memory - 16 GB
Memory > Graphics adapter memory type - GDDR6X
Memory bus - 256 bit
Memory CLK - 21 Gbps
Model - GV-N407TSWF3MAX OC-16GD
name - GIGABYTE GeForce RTX 4070 Ti Super Windforce 3X Max OC 16G, 16384 MB GDDR6X
Name - Gigabyte GeForce RTX 4070 Ti SUPER WINDFORCE MAX OC 16GB DLSS 3
Name - Gigabyte GV-N407TSWF3MAX OC-16GD | NVIDIA | 16 GB | GeForce RTX 4070 Ti SUPER | GDDR6X | HDMI ports quantity 1 | PCI-E 4.0
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 322.00 mm
Package features > Gross height (mm) - 74.00 mm
Package features > Gross width (mm) - 214.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 169 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.11 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 398 mm
Packaging data - Package height - 85 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.13 kg
Packaging data - Package width - 230 mm
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Performance - Warranty period - 3 year(s)

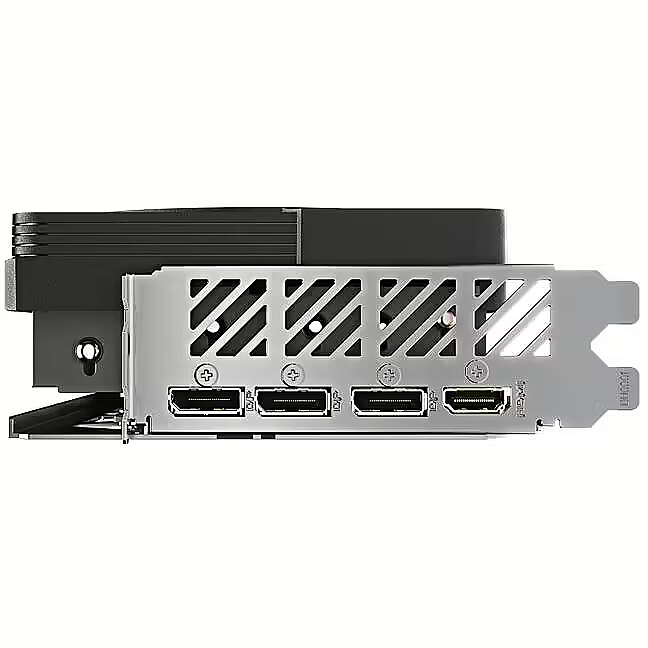

Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express x16 4.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI-E 4.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 1x 16-pin
Power connectors - 16 pin
Processor - CUDA - Yes
Processor - CUDA cores - 8448
Processor - Graphics processor - GeForce RTX 4070 Ti SUPER
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 2655 MHz
Processor > Graphics processor - GeForce RTX 4070 Ti SUPER
Processor > Graphics processor family - NVIDIA
Producer - Gigabyte
producerCode - GV-N407TSWF3MAX OC-16GD
ProducerCode - GV-N407TSWF3MAX OC-16GD
ProductName - GeForce RTX 4070 Ti SUPER WINDFORCE MAX OC Graphics Card - 16GB GDDR6X, 256bit, PCI-E 4.0, 2655MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N407TSWF3MAX OC-16GD
productName - GIGABYTE GeForce RTX 4070 Ti SUPER WINDFORCE MAX OC Graphics Card - 16GB GDDR6X, 256bit, PCI-E 4.0, 2655MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N407TSWF3MAX OC-16GD
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 49 cm
Shipping Box Height Shipping/Package Box Dimensions - 42.5 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 21.34 kg
Shipping Box Width Shipping/Package Box Dimensions - 48 cm
ShortDescription - Chipset NVIDIA RTX 4070 Ti SUPER | 16GB
ShortSummaryDescription - GIGABYTE GeForce RTX 4070 Ti SUPER WINDFORCE MAX OC Graphics Card - 16GB GDDR6X, 256bit, PCI-E 4.0, 2655MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N407TSWF3MAX OC-16GD, GeForce RTX 4070 Ti SUPER, 16 GB, GDDR6X, 256 bit, 7680 x 4320 pixels, PCI Express x16 4.0
sizeX - 410
sizeY - 98
sizeZ - 240
System requirements - Windows operating systems supported - Windows 10 x64
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64
System requirements - Windows operating systems supported - Windows 11 x64
Technical details > Gross weight - 1.51 kg
Technical details > Net weight - 1.40 kg
Technical details > Producer - Gigabyte
Technical details > Producer product name - GV-N407TSWF3MAX OC-16GD
Title - GIGABYTE GeForce RTX 4070 Ti SUPER WINDFORCE MAX OC Graphics Card - 16GB GDDR6X, 256bit, PCI-E 4.0, 2655MHz Core Clock, 3 x DisplayPort 1.4a, 1 x HDMI 2.1a, NVIDIA DLSS 3, GV-N407TSWF3MAX OC-16GD
Unit Box Height - 0.235
Unit Box Length - 0.405
Unit Box Width - 0.09
Unit Brutto Volume - 0.009996 cubm
Unit Gross Weight - 2.13 kg
Unit Net Weight - 0.7 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N407TSWF3MAX-OC-16GD
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N407TSWF3MAX-OC-16GD#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
weight - 2000
Weight & dimensions - Depth - 41 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Length - 201 mm
Weight & dimensions - Weight - 1.2 kg
GeForce -tunnus osoittaa, että tämä näytönohjain on riittävän tehokas, jotta se on yhteensopiva uusimpien VR-laitteiden (Virtual Reality), kuten Oculus Riftin, HTC Viven (SteamVR) jne. kanssa.
