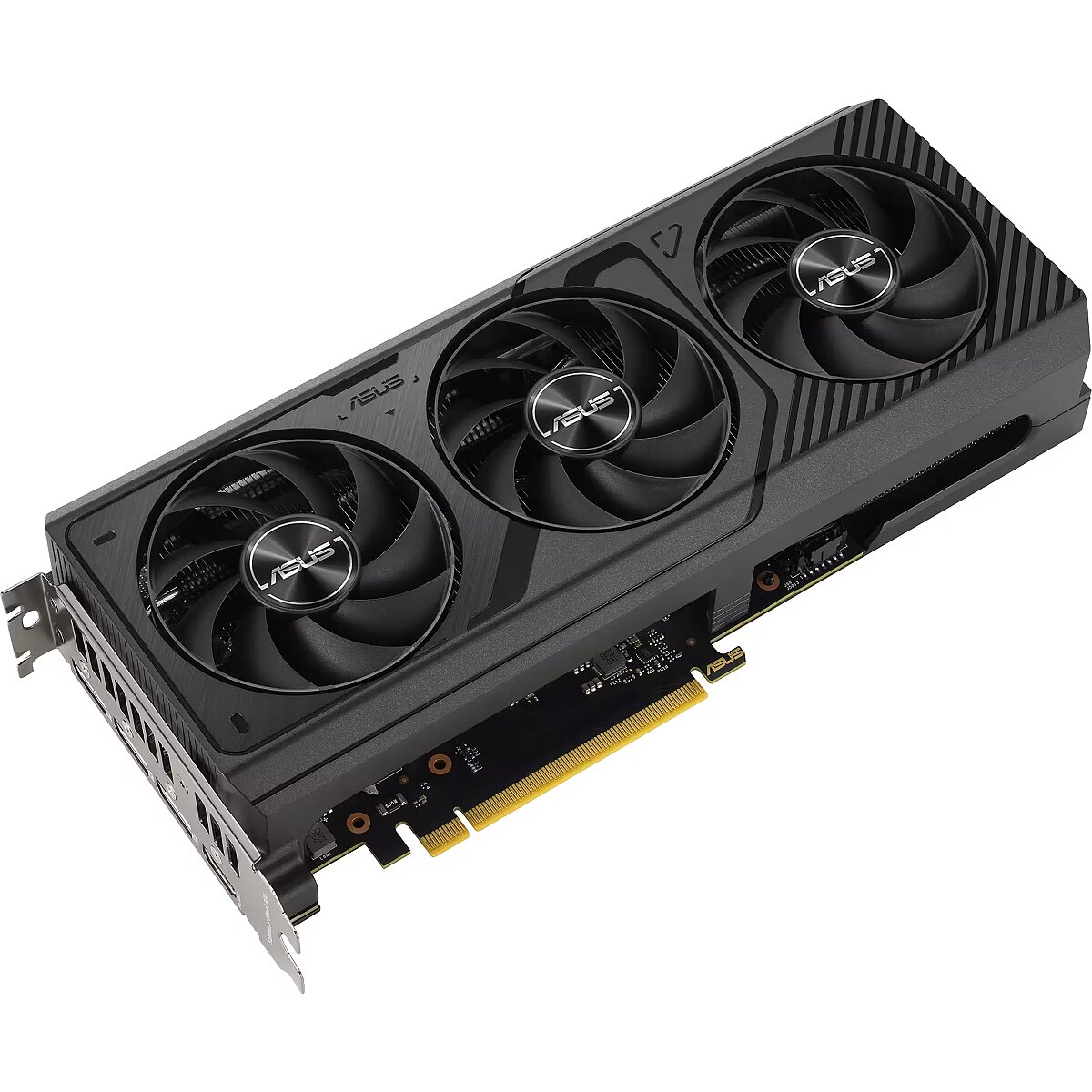

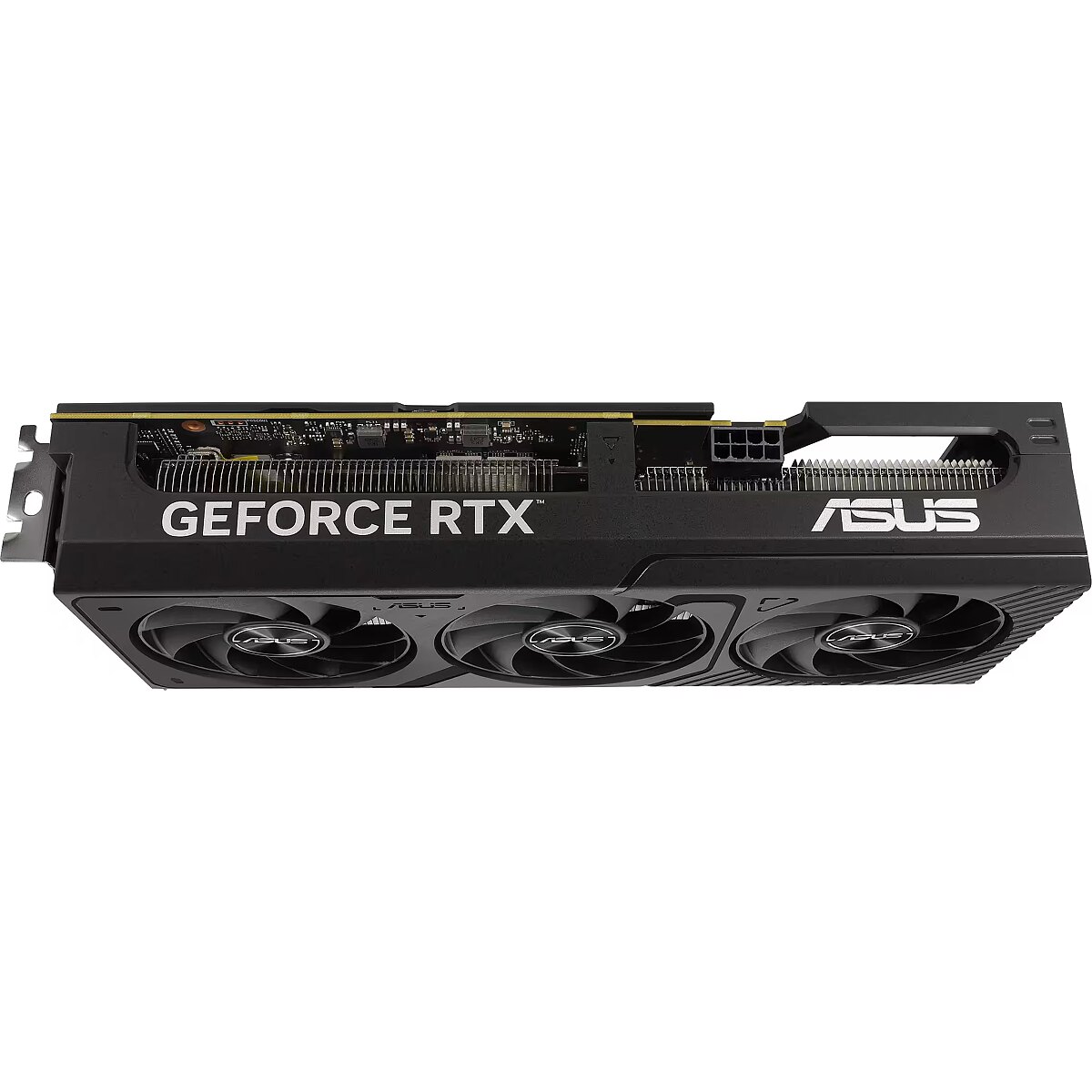

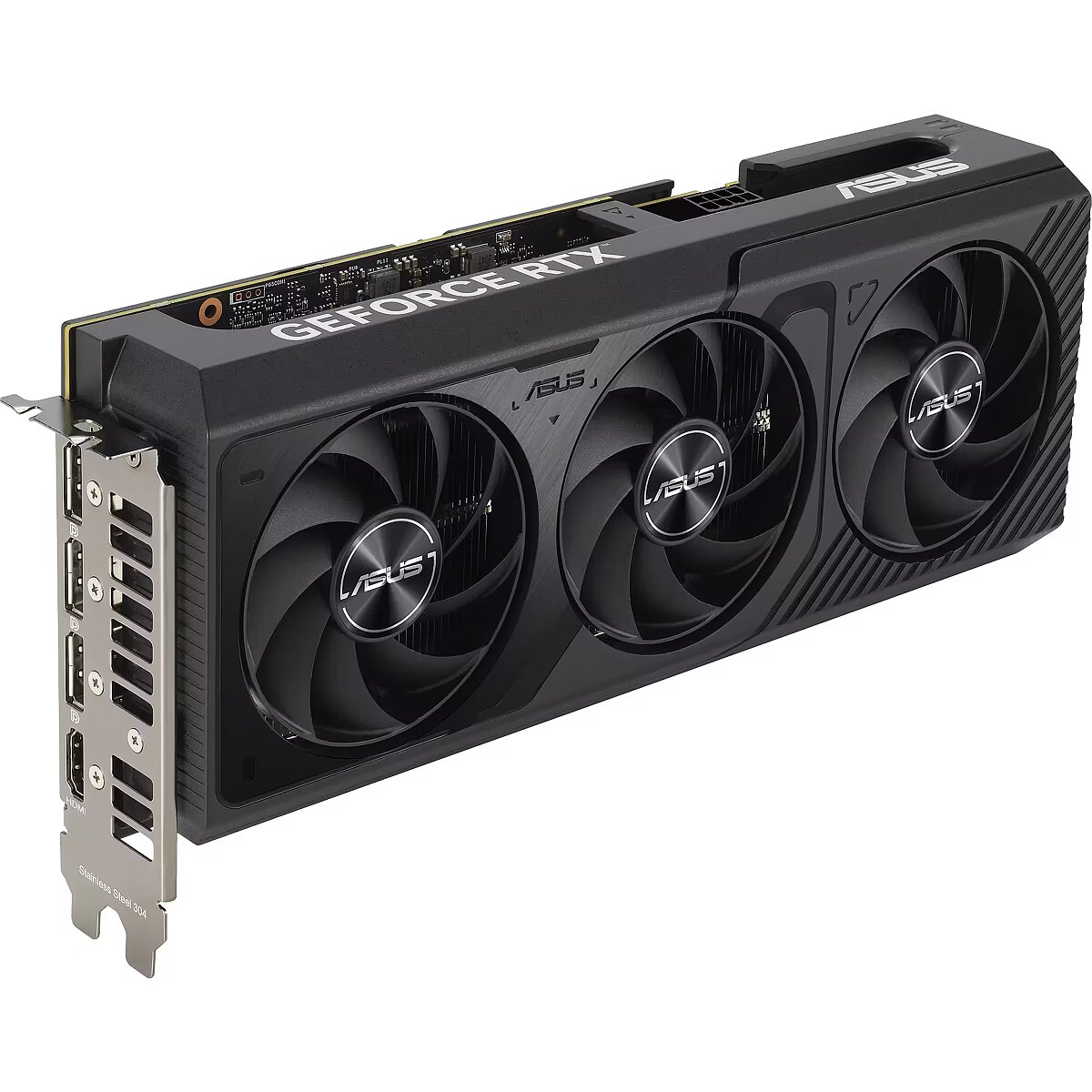

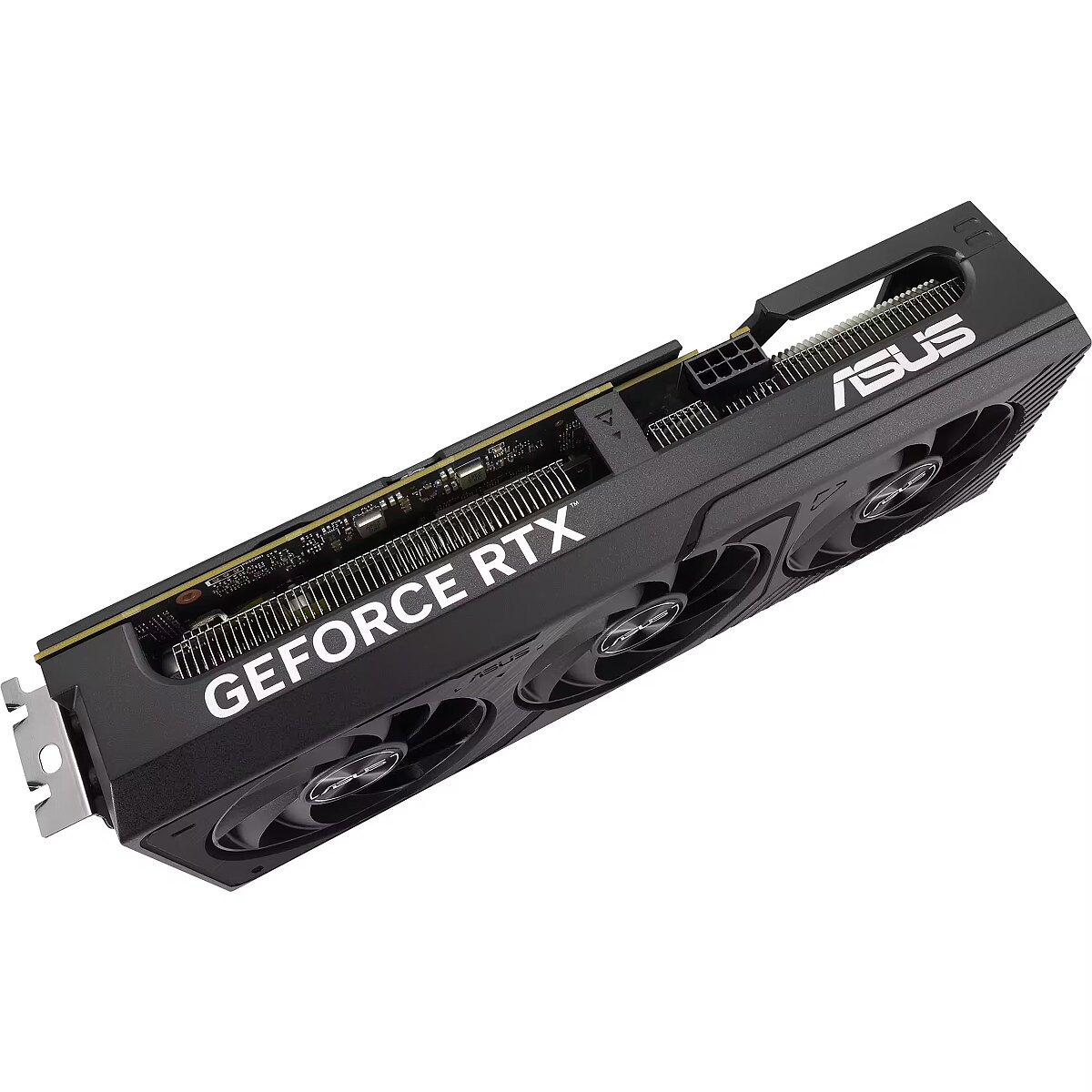

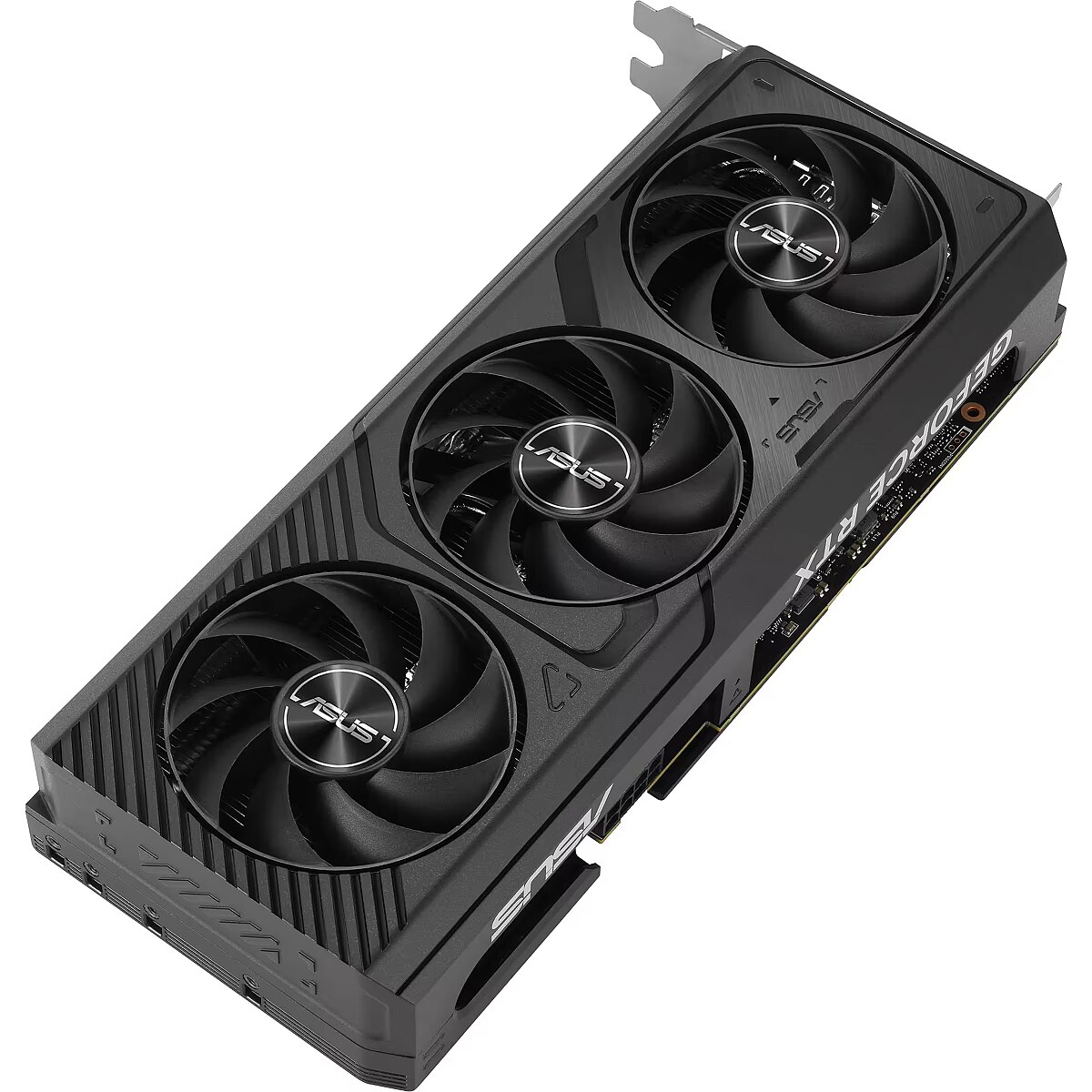

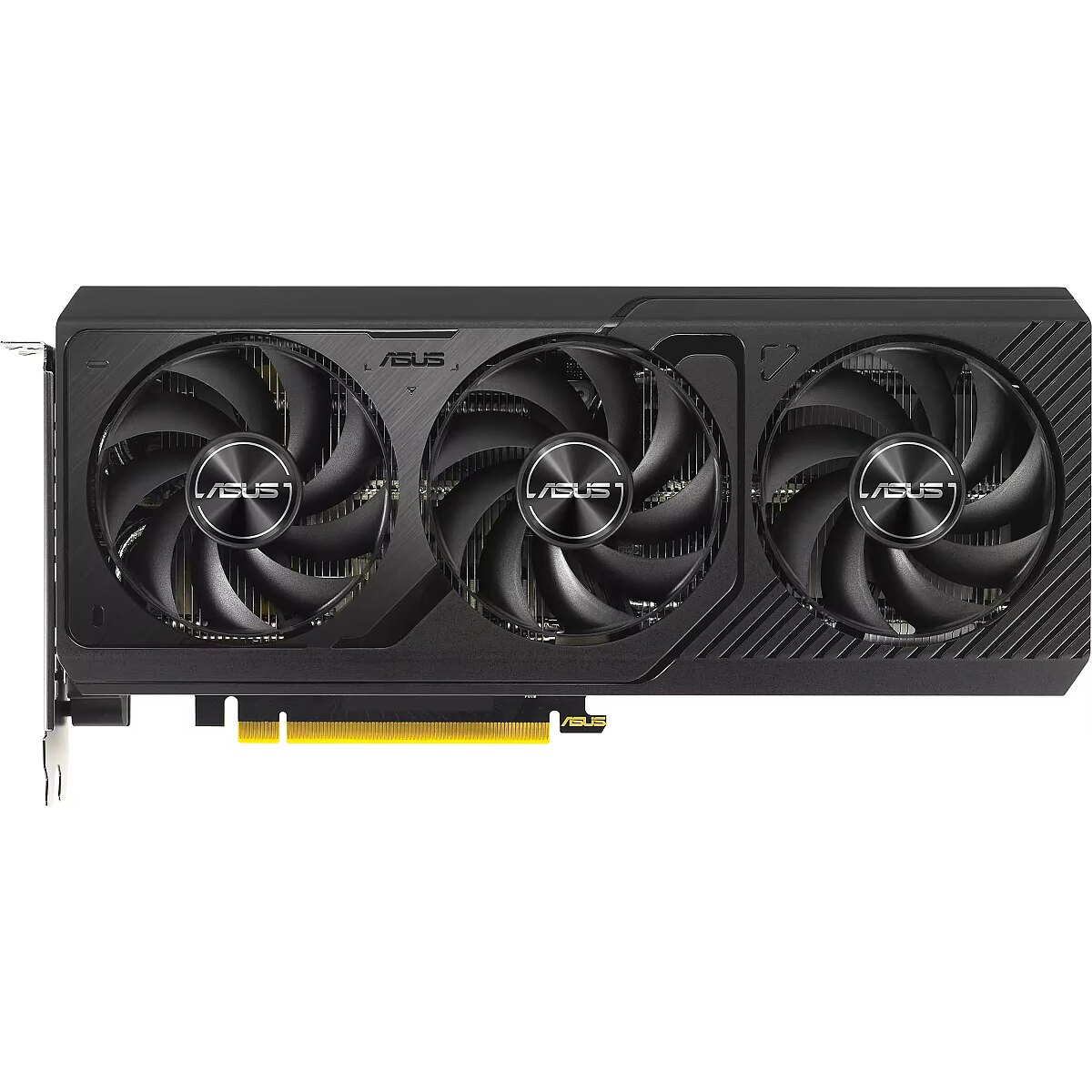

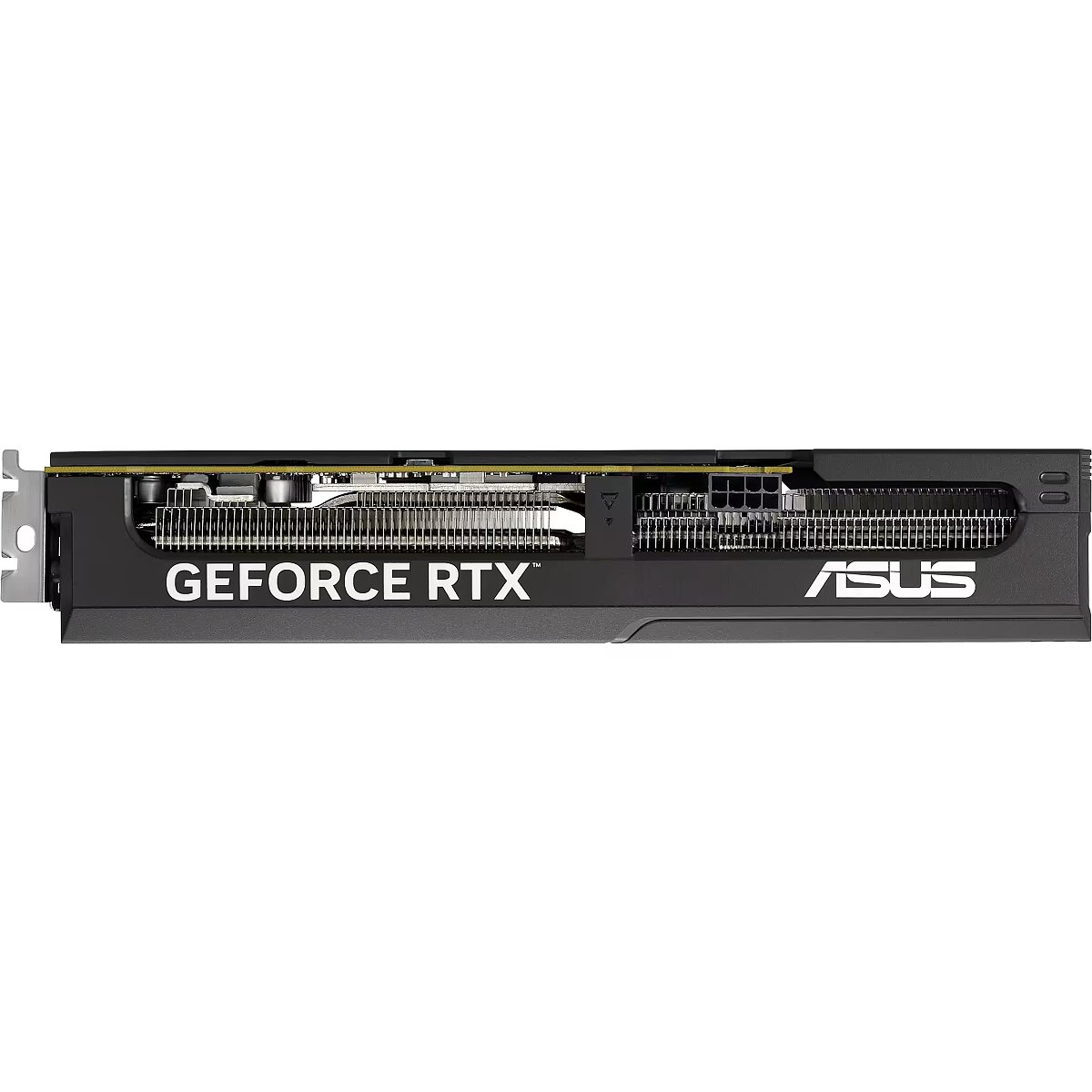

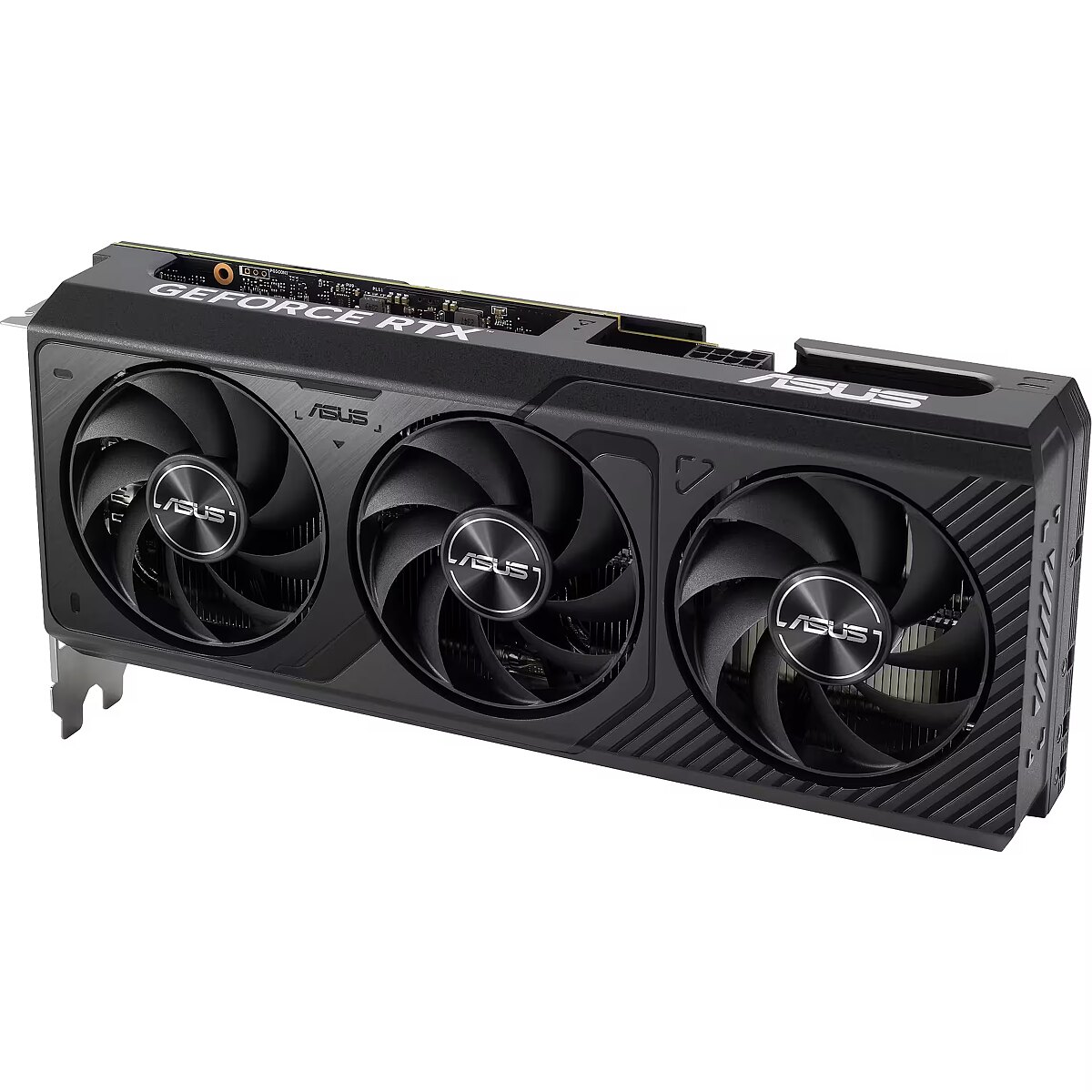

Asus GeForce RTX 4070, 12GB GDDR6X, Prime OC (DLSS 3)

Brand - ASUS
BrandPartCode - 90YV0J19-M0NA00
Card's length - 240 to 280 mm
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category Code - VGP
Cooling system - Triple slot Fansink
CUDA Cores - 5888
Description - PRIME GeForce RTX™ 4070 12GB GDDR6X OC Edition The SFF-ready ASUS Prime GeForce RTX™ 4070 OC Edition 12GB GDDR6X boasts three fans in a sleek aesthetic with Axial-tech fan design for broad PC builds compatibility. - AI Performance: 475 AI TOPS - Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing. - 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - SFF-Ready Enthusiast GeForce Card for small-form-factor builds - OC Edition: 2550 MHz OC mode, 2520 MHz default mode - Axial-tech fans feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure - 2.5-slot design allows for greater build compatibility while maintaining cooling performance - Dual-ball fan bearings last up to twice as long as conventional designs - 0dB technology lets you enjoy light gaming in relative silence - Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles - Auto-Extreme precision automated manufacturing for higher reliability
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Number of fans - 3 fan(s)
Design - Number of slots - 2.5
Design - Product colour - Black
dimensionalWeight - 1734
Dimensions - 269 x 120 x 50 mm
DisplayPort Input/Output connectors - 3
Eans - 4711387667736
Full Description Line - Graphics memory size 12 GB|GDDR6X|192 bit|PCIE 4.0 16x|GPU boost clock 2520 MHz|7680x4320|Cooling Triple slot Fansink|1xHDMI|3xDisplayPort|Included Accessories 1 x Speedsetup Manual1 x Thank you card
GPU boost clock - 2520 MHz
Graphic card features - HDCP/Overclock Edition
Graphics connector - PCIE 4.0 16x
Graphics memory size - 12 GB
Graphics memory type - GDDR6X
GTIN - 4711387667736
HDMI Input/Output connectors - 1
Included Accessories - 1 x Speedsetup Manual
1 x Thank you card

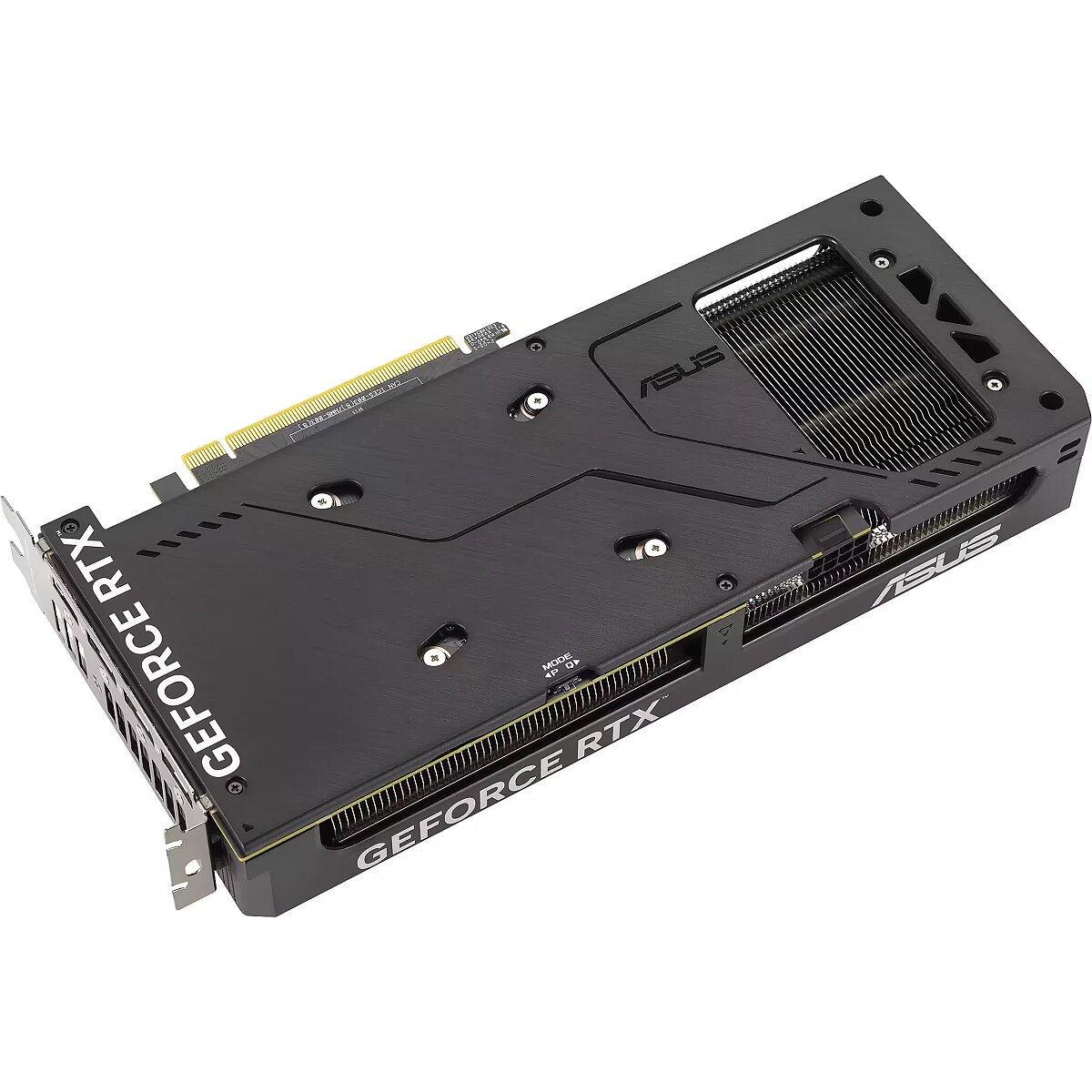

LongDesc - Prime GeForce RTX™ 4070Experience elegant performance with the SFF-Ready PRIME GeForce RTX 4070 graphics card, featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for superior airflow. Its sleek design seamlessly integrates with the ASUS PRIME ecosystem, ensuring both visual appeal and gaming prowess.Axial-tech UpgradesA Fresh SpinThree tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise, and higher performanceAuto−Extreme TechnologyReliability BoostAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.Protective BackplateNo flexin'The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.144-hour Validation Program“Extensive” may be an understatementA 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.Stainless Steel BracketSteel yourselfThe mounting bracket for the PRIME GeForce RTX 4070 features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.GPU Tweak IIIMonitor, tweak, and tuneThe ASUS GPU Tweak III utility takes graphics card tuning to the next level. It lets you tweak critical parameters including GPU core clocks, memory frequency and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.QuantumCloudProfit from GPU powerQuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!PAIR WITH A PSUUse our wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG, TUF Gaming or Prime power supply for ultimate performance.
LongProductName - The SFF-ready ASUS Prime GeForce RTX 4070 OC Edition 12GB GDDR6X boasts three fans in a sleek aesthetic with Axial-tech fan design for broad PC builds compatibility
LongSummaryDescription - ASUS Prime -RTX4070-O12G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6X, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Max resolution - 7680x4320
Memory - Data transfer rate - 21 Gbit/s
Memory - Discrete graphics card memory - 12 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bus - 192 bit
Memory bus - 192 bit
Model - PRIME-RTX4070-O12G
Name - ASUS GeForce RTX 4070 PRIME OC 12GB DLSS 3
Packaging content - Manual - Yes

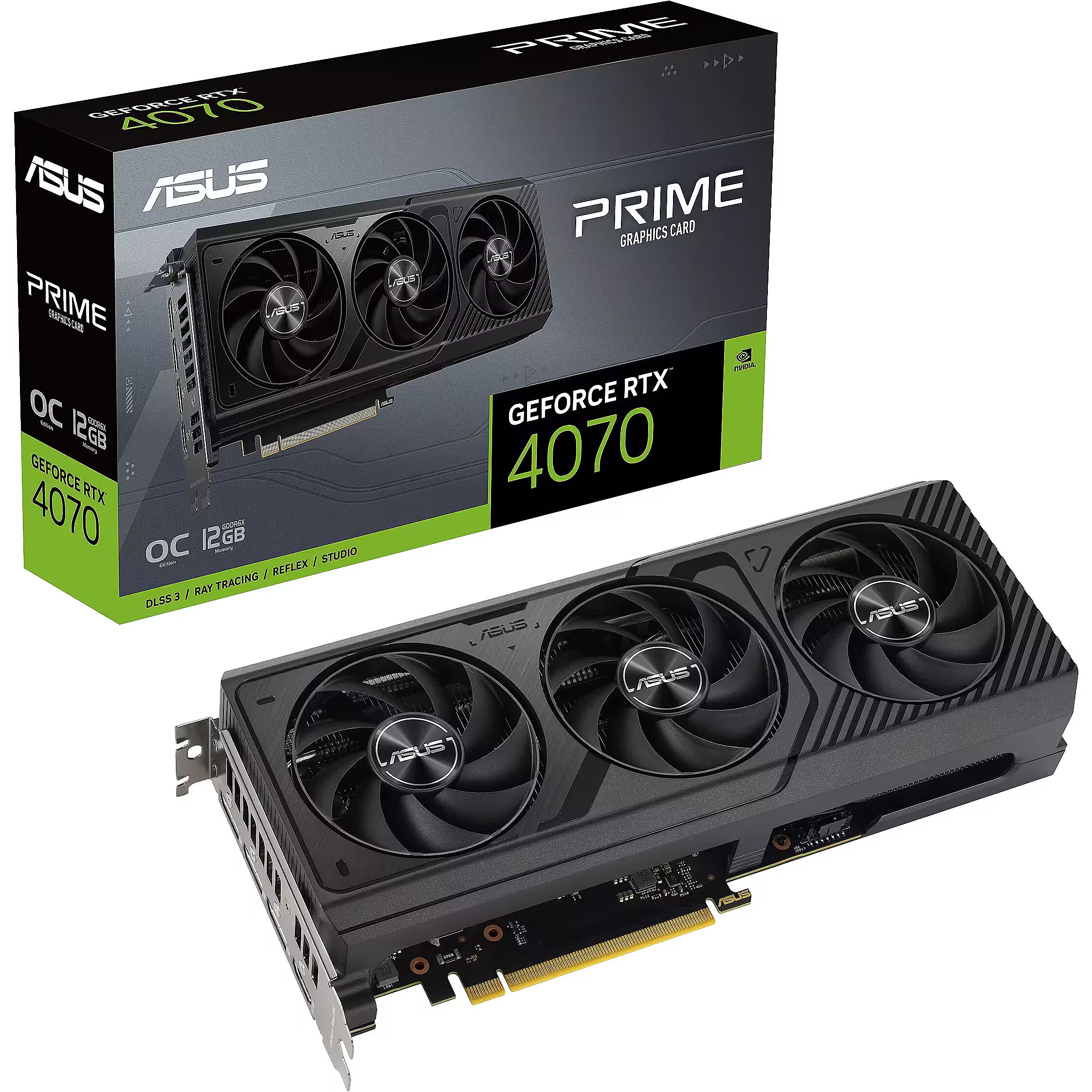

Packaging data - Package type - Box
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - OpenGL version - 4.6
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 650 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Processor - CUDA - Yes
Processor - CUDA cores - 5888
Processor - Graphics processor - GeForce RTX 4070
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2520 MHz
Processor - Processor frequency (OC mode) - 2550 MHz
Producer - Asus
producerCode - 90YV0J19-M0NA00
ProducerCode - PRIME-RTX4070-O12G
productName - ASUS Prime -RTX4070-O12G NVIDIA GeForce RTX 4070 12 GB GDDR6X
ProductName - PRIME-RTX4070-O12G
productSize - Normal
ShortDescription - Chipset NVIDIA RTX 4070 | 12GB
ShortSummaryDescription - ASUS Prime -RTX4070-O12G, GeForce RTX 4070, 12 GB, GDDR6X, 192 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 410
sizeY - 235
sizeZ - 90
Title - ASUS Prime -RTX4070-O12G NVIDIA GeForce RTX 4070 12 GB GDDR6X
Unit Brutto Volume - 0.0101 cubm
Unit Gross Weight - 1.62 kg
Unit Net Weight - 1 kg
URL - https://www.asus.com/motherboards-components/graphics-cards/prime/prime-rtx4070-o12g/
Vendor Homepage - www.asus.com/motherboards-components/graphics-cards/prime/prime-rtx4070-o12g/
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1445
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Length - 269 mm
Weight & dimensions - Width - 269 mm
