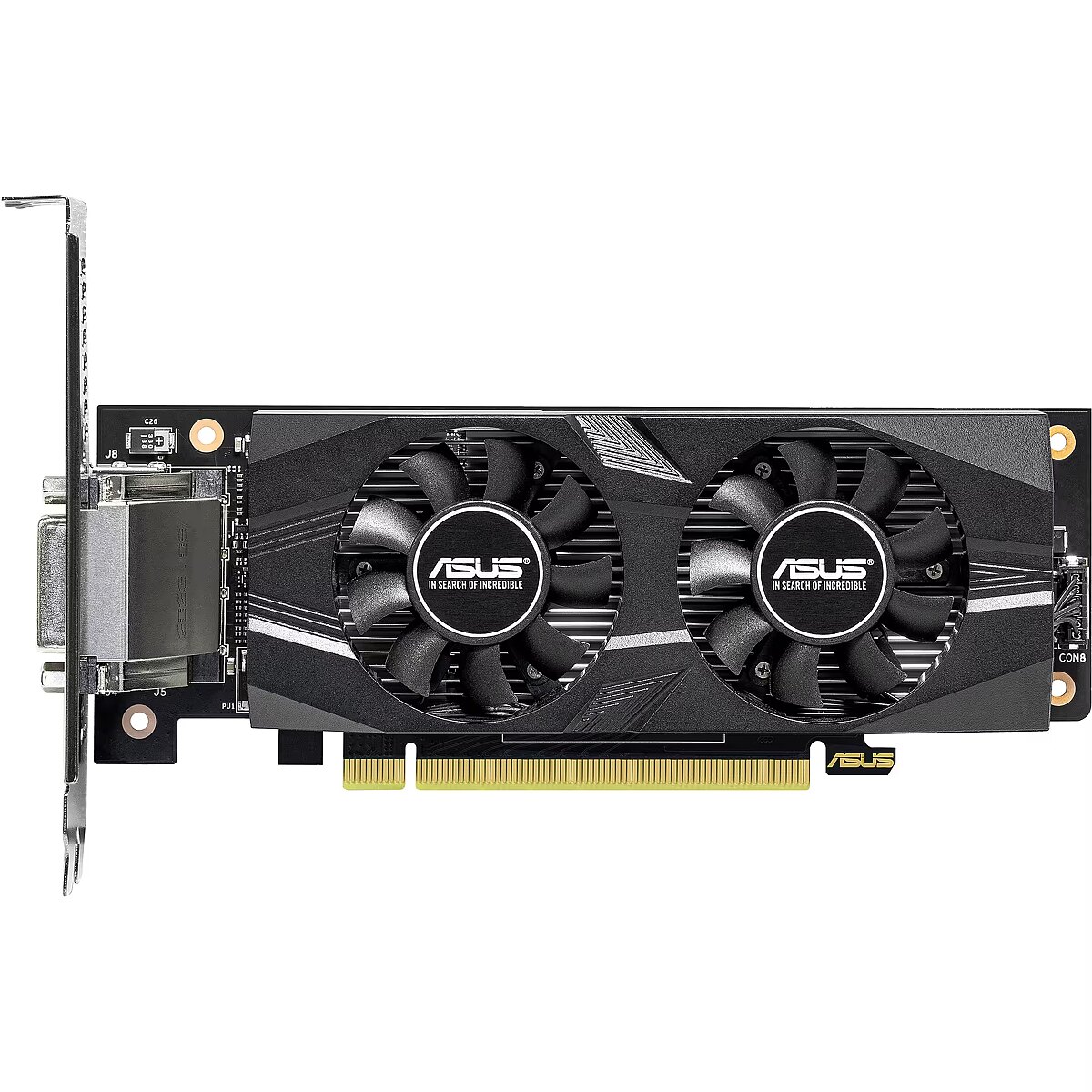

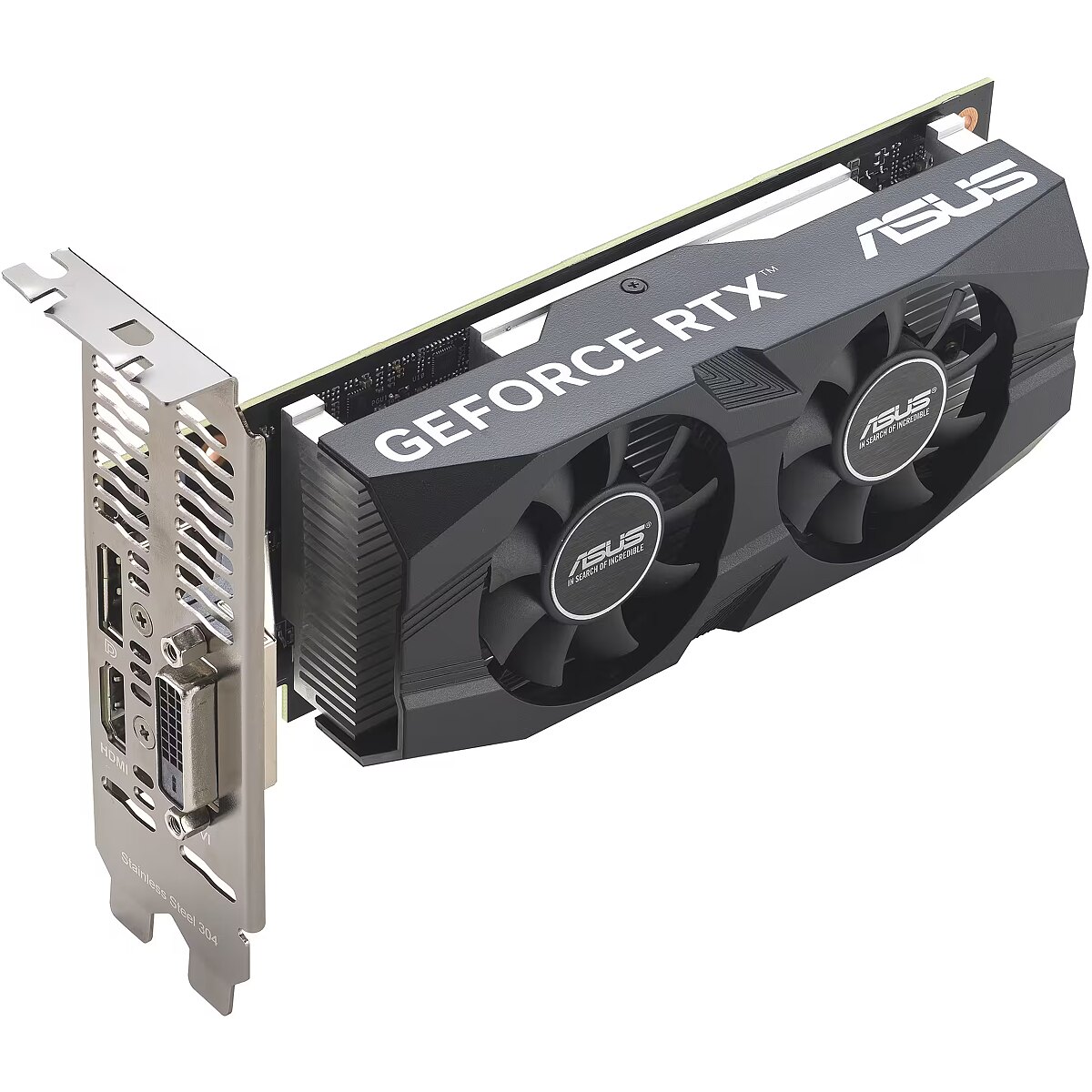

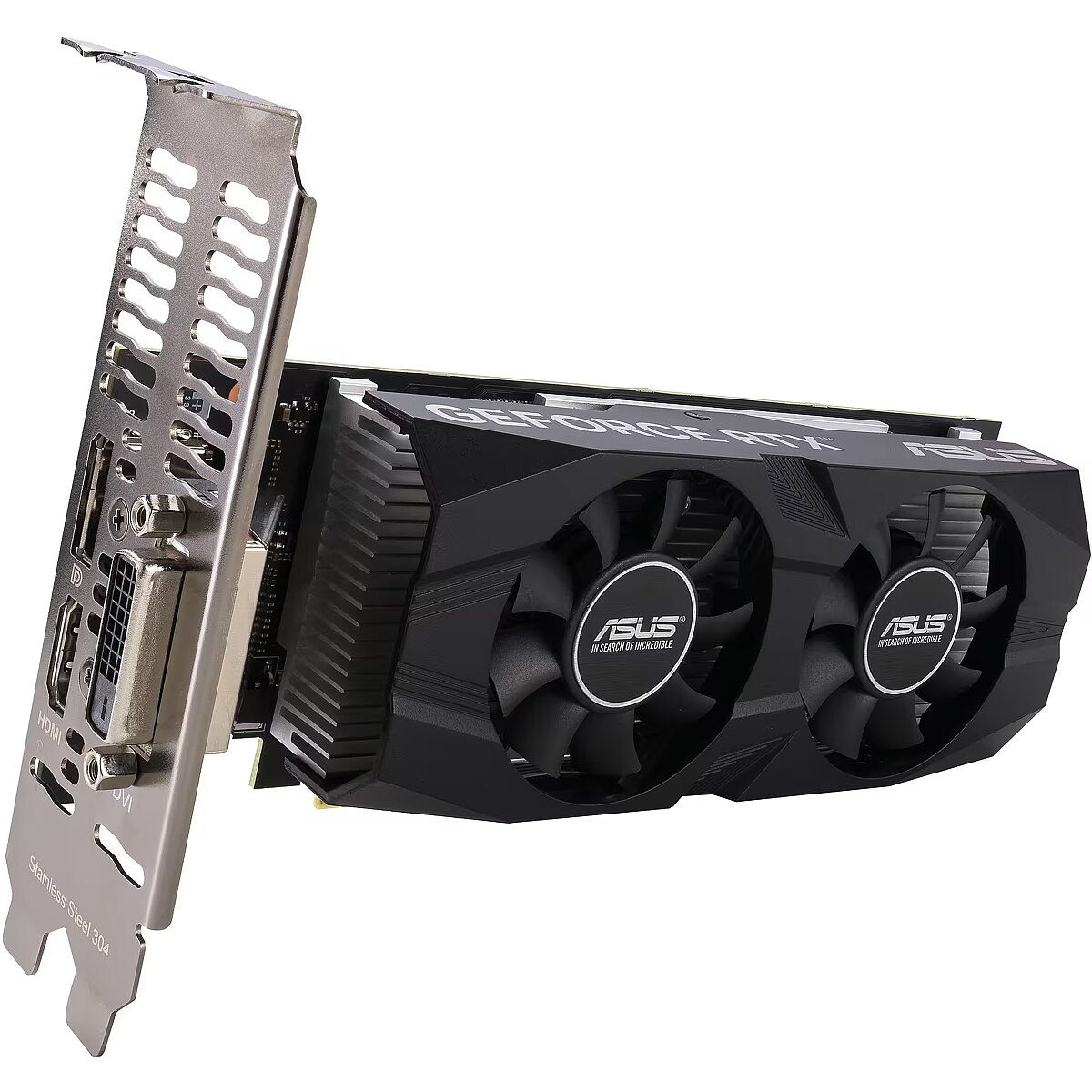

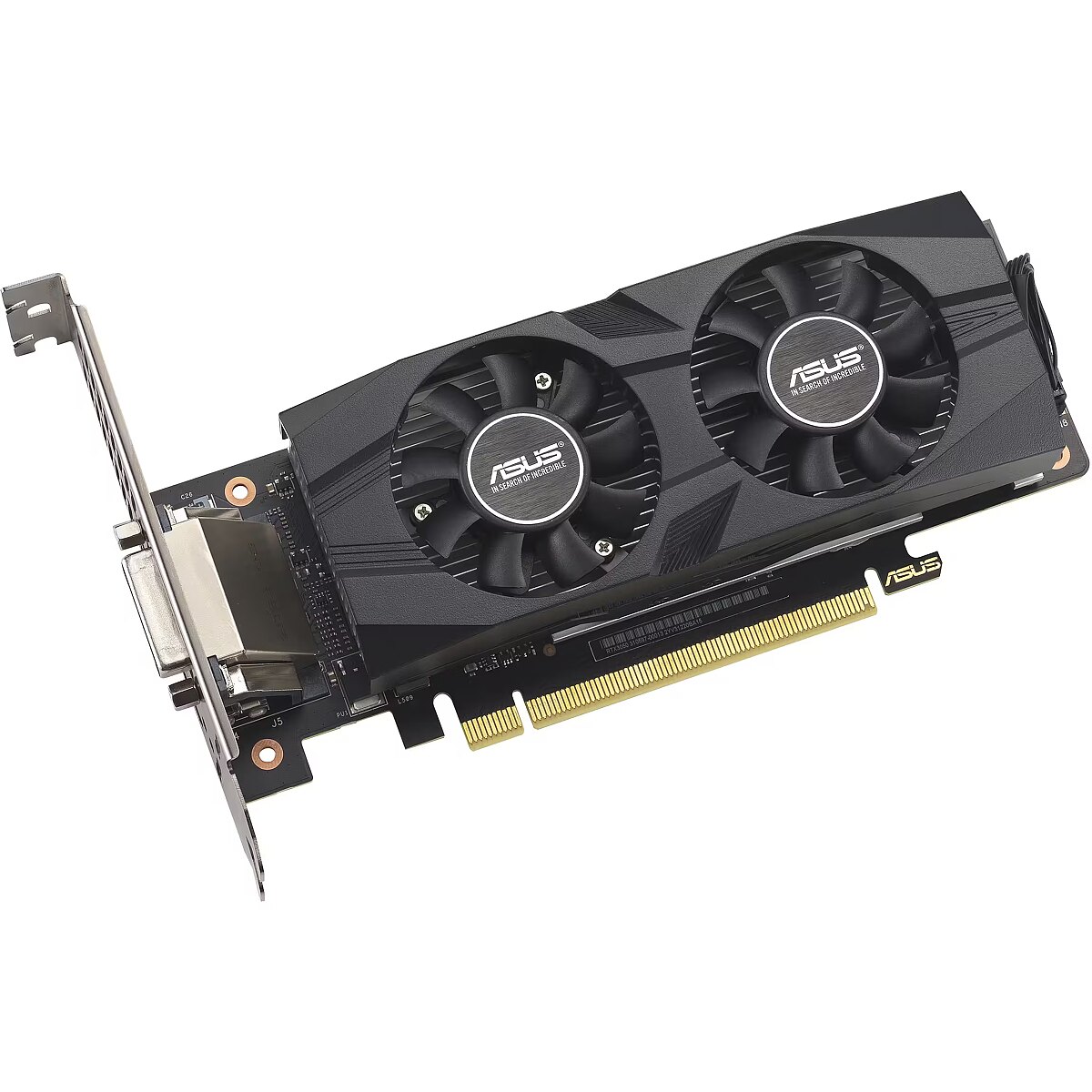

Asus GeForce RTX 3050, 6GB GDDR6, Low Profile Edition

Brand - ASUS
BrandPartCode - 90YV0KQ0-M0NA00
Card's length - 160 to 200 mm
Category - Graphics Cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Chipset - NVIDIA GeForce RTX 3050
Cooling system - Dual Slot Fansink
CUDA Cores - 2304
Description - ASUS GeForce RTX™ 3050 LP BRK OC Edition 6GB GDDR6 ASUS GeForce RTX™ 3050 LP BRK OC Edition 6GB GDDR6 is big productivity in a small package - NVIDIA Ampere Streaming Multiprocessors: The all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency. - 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray-tracing performance. - 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities. - OC edition: Boost Clock 1537 MHz (OC Mode)/ 1507 MHz (Default Mode) - IP5X dust resistance offers protection from particle ingress for better durability. - Dual ball fan bearings can last up to twice as long as sleeve bearing designs. - A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis. - Auto-Extreme technology uses automation to enhance reliability. - GPU Tweak III provides intuitive performance tweaking, thermal controls, and system monitoring.
Design - Cooling type - Active
Design - Number of fans - 2 fan(s)
Design - Number of slots - 2
Design - Product colour - Black
Dimensions - 182 x 69 x 40 mm
DisplayPort Input/Output connectors - 1
DVI-D Input/Output connectors - 1
EAN - 4711387515259
Full Description Line - NVIDIA GeForce RTX 3050|Graphics memory size 6 GB|GDDR6|96 bit|Memory CLK 14 Gbps|GPU boost clock 1507 MHz|7680x4320|Cooling Dual Slot Fansink|1xDVI-D|1xHDMI|1xDisplayPort|Included Accessories 1 x Speedsetup Manual​1 x LP bracket
GPU boost clock - 1507 MHz
Graphic card features - HDCP/Low profile/Overclock Edition
Graphics memory size - 6 GB
Graphics memory type - GDDR6
GTIN - 0197105515673
GTIN - 197105515673
GTIN - 4711387515259
HDMI Input/Output connectors - 1
Included Accessories - 1 x Speedsetup Manual​
1 x LP bracket
LongDesc - Big Productivity in a Small PackageASUS GeForce RTX™ 3050 LP BRK is a low-profile, compact graphics card that enables multi-monitor productivity.IP5X Dust ResistanceKeep it cleanDust is enemy number one for fans. It’s easy to clean the blades, but taking the fan apart to remove dust that has made its way inside is not a simple task. Passing the IP5X certification means the housing is safe from nasty particulates, so you'll never need that deep clean.Auto-Extreme TechnologyPrecision automated manufacturingAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.GPU Tweak IIIMonitor, tweak, and tuneThe ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.144-hour Validation Program“Extensive” may be an understatementA 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.Pair with a PSUUse our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG, TUF Gaming or Prime PSU for ultimate performance.
LongProductName - GeForce RTX 3050 LP BRK OC Edition 6GB GDDR6 is big productivity in a small package
LongSummaryDescription - ASUS GeForce RTX 3050 LP BRK OC Edition. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 3050. Discrete graphics card memory: 6 GB, Graphics card memory type: GDDR6, Memory bus: 96 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Manufacturer - ASUS
Max resolution - 7680x4320
Memory - Data transfer rate - 14 Gbit/s
Memory - Discrete graphics card memory - 6 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 96 bit
Memory bus - 96 bit
Memory CLK - 14 Gbps
Model - RTX3050-O6G-LP-BRK
MPN - 90YV0KQ0-M0NA00
Name - RTX 3050 6GB ASUS LP BRK OC GDDR6 VGA-RTX3050-O6G
Packaging content - Manual - Yes
Packaging data - Package depth - 218 mm
Packaging data - Package height - 55 mm
Packaging data - Package type - Box
Packaging data - Package weight - 648 g
Packaging data - Package width - 300 mm
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

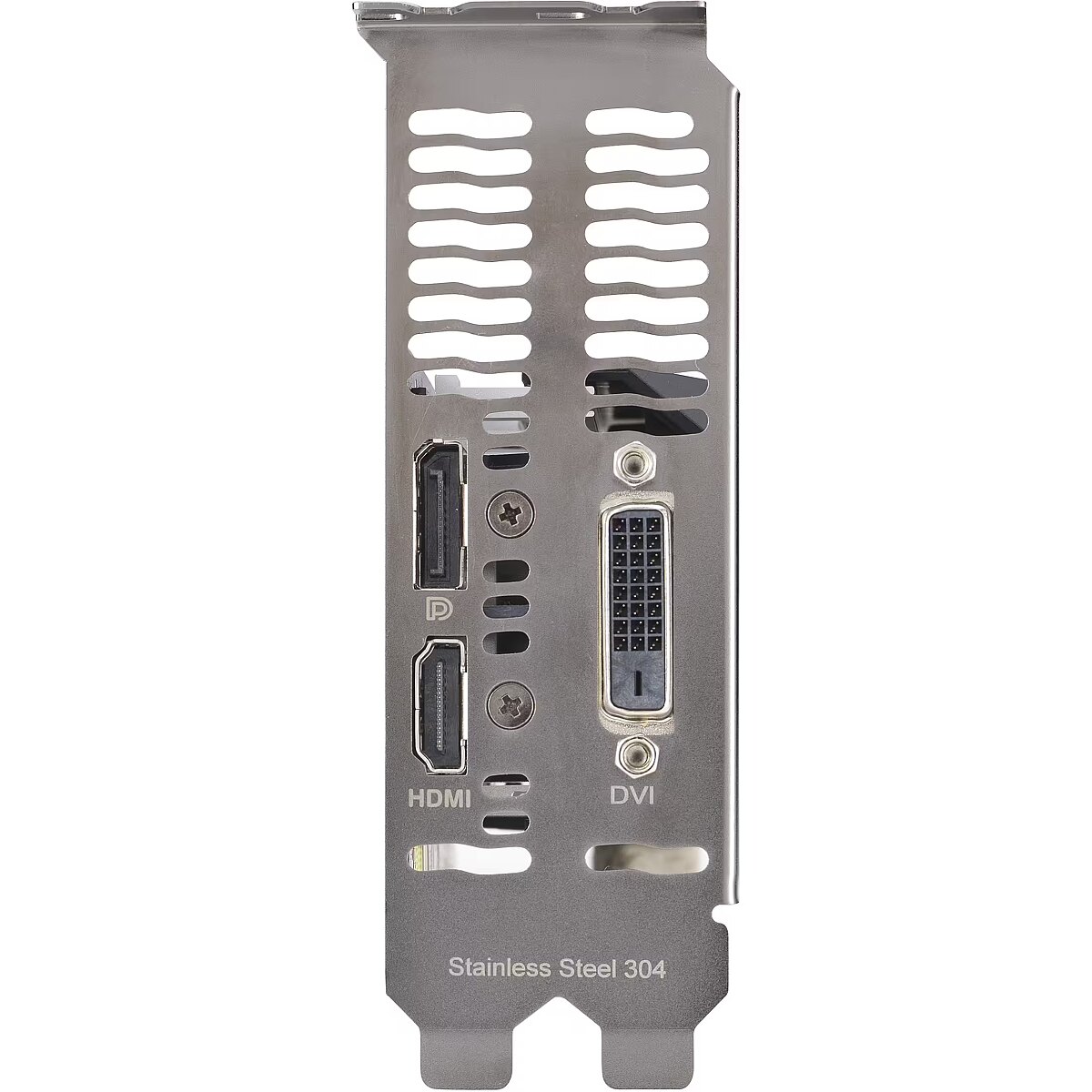

Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - DVI-D ports quantity - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 450 W
Processor - CUDA - Yes
Processor - CUDA cores - 2304
Processor - Graphics processor - GeForce RTX 3050
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 3
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 1507 MHz
Processor - Processor boost clock speed (OC mode) - 1537 MHz
ProductName - GeForce RTX 3050 LP BRK OC Edition
Shipping Box Depth Shipping/Package Box Dimensions - 58 cm
Shipping Box Height Shipping/Package Box Dimensions - 25.5 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 7.75 kg
Shipping Box Width Shipping/Package Box Dimensions - 31.7 cm
ShortSummaryDescription - ASUS GeForce RTX 3050 LP BRK OC Edition, GeForce RTX 3050, 6 GB, GDDR6, 96 bit, 7680 x 4320 pixels, PCI Express 4.0
Title - ASUS GeForce RTX 3050 LP BRK OC Edition NVIDIA 6 GB GDDR6
Unit Box Height - 0.056
Unit Box Length - 0.302
Unit Box Width - 0.22
Unit Brutto Volume - 0.004688 cubm
Unit Gross Weight - 0.775 kg
Unit Net Weight - 0.7 kg
URL - https://www.asus.com/motherboards-components/graphics-cards/asus/rtx3050-o6g-lp-brk/
Vendor Homepage - www.asus.com/motherboards-components/graphics-cards/asus/rtx3050-o6g-lp-brk/
Warranty - 36 months
WarrantyInfo -
Weight - 0.66
Weight & dimensions - Depth - 69 mm
Weight & dimensions - Height - 40 mm
Weight & dimensions - Weight - 325 g
Weight & dimensions - Width - 182 mm
