Accessories included -
Brand - ASUS
BrandPartCode - 90YV0JZ0-M0NA00
Card's length - 240 to 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|AMD
Category - Root/Electronics/PC parts/Graphic cards
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - AMD
Chipset - AMD Radeon RX 7700 XT
Chipset - Radeon RX 7700 XT
Chipset manufacturer - AMD
CnCode CnCode - 84718000
code - 90YV0JZ0-M0NA00
Cooling - Active
Cooling system - Dual Slot Fansink
Core Boost frequency - 2599 MHz
Core frequency - 2239 MHz

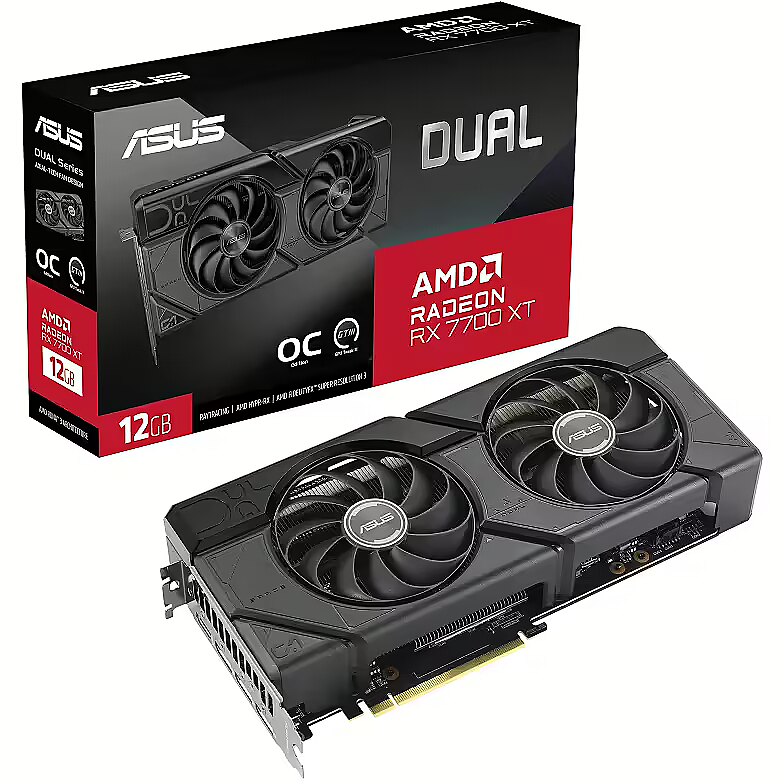

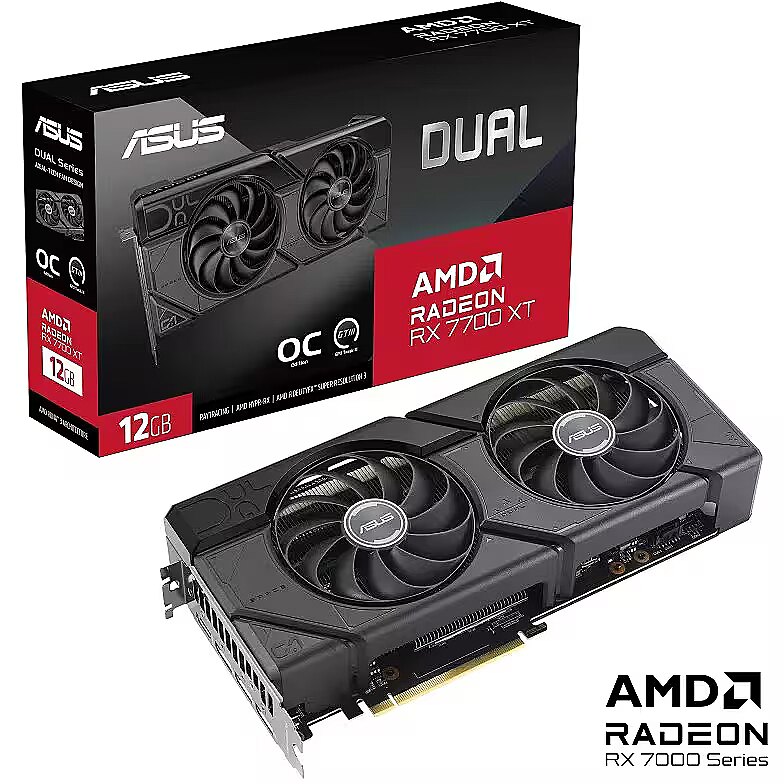

Description - ASUS Dual Radeon™ RX 7700 XT OC Edition 12GB GDDR6 ASUS Dual Radeon™ RX 7700 XT OC Edition 12GB GDDR6 is armed to dish out frames and keep vitals in check - OC Mode: up to 2599 MHz (Boost Clock)/ up to 2239 MHz (Game Clock). - Dual ball fan bearings can last up to twice as long as sleeve bearing designs. - Auto-extreme technology uses automation to enhance reliability. - A protective backplate prevents PCB flex and trace damage. - GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Description - Radeon RX 7700 XT DUAL OC 12GB GDDR6 192bit 3DP Graphics Card This graphics card will provide you with an unforgettable experience while playing or working. Thanks to the PCI-E ver. 4.0 connector and AMD chipset, you can count on the highest level of performance and stability. One of the key advantages of this product is the type of DDR6 memory with a capacity of 12 GB, which will allow you to run even the most demanding games or graphic programs smoothly. The 192-bit memory bus and the core clock speed of 2239 MHz (Boost: 2599 MHz) guarantee fast and efficient operation of the card.
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active

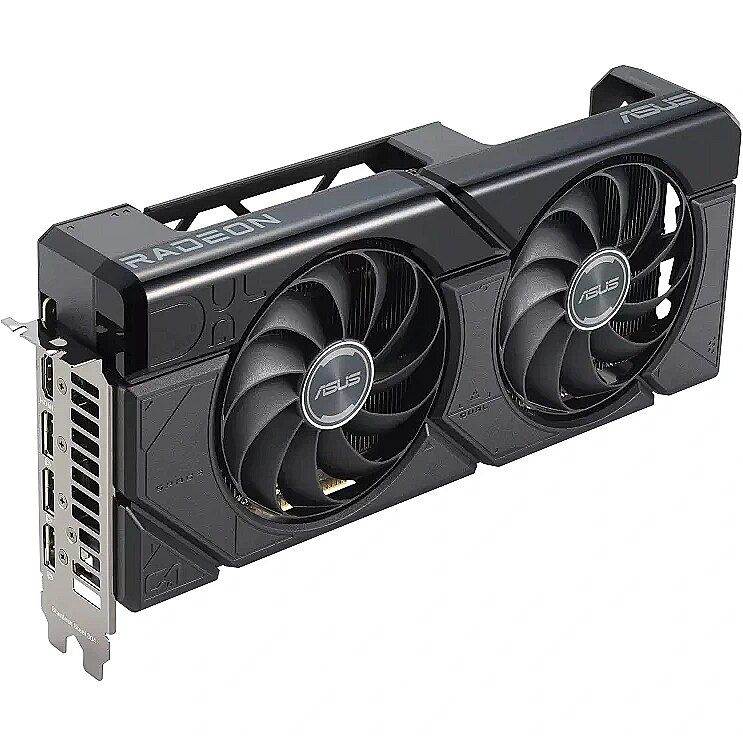

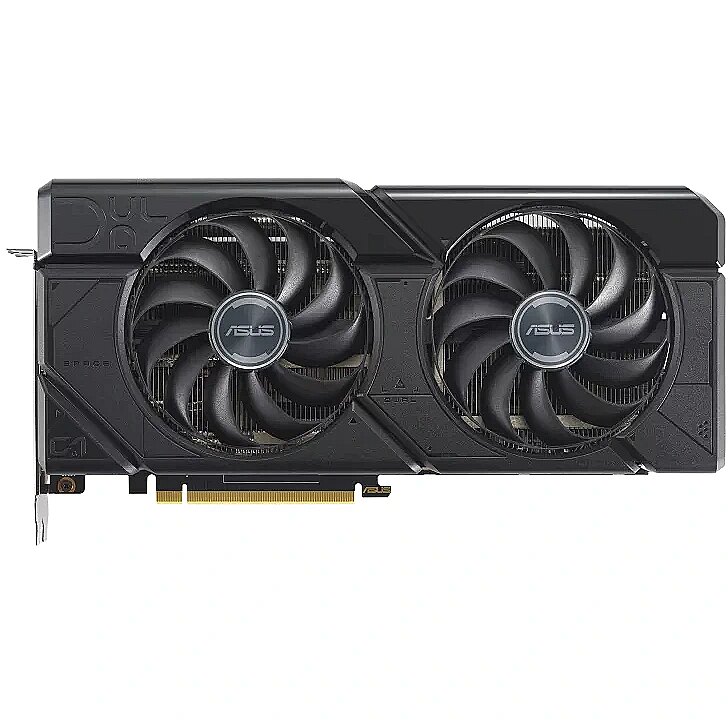

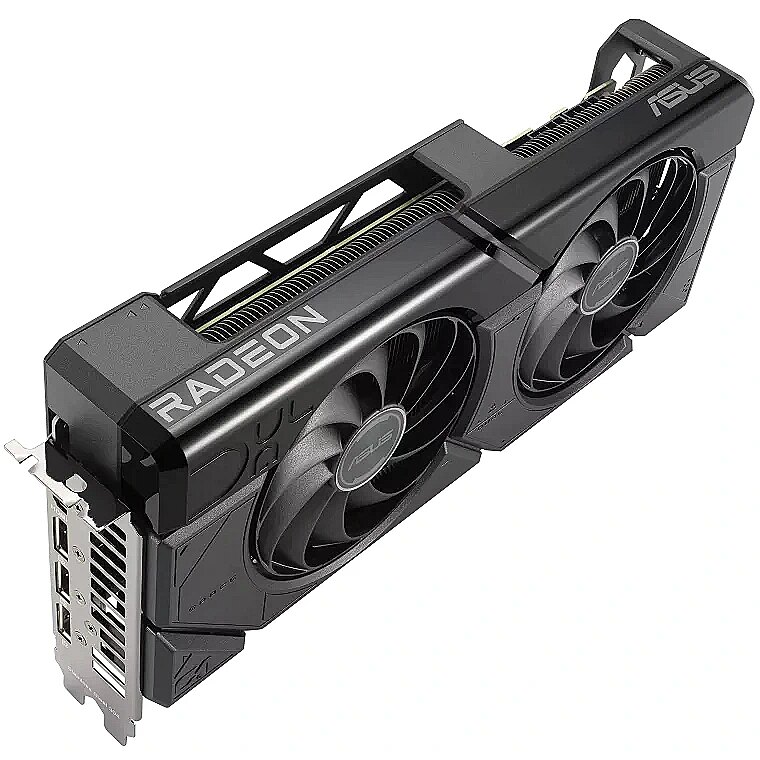

Design - Number of fans - 2 fan(s)
Design - Number of slots - 2.47
Design - Product colour - Black
dimensionalWeight - 1713
dimension depth - 90 mm
dimension height - 235 mm
Dimensions - 49,3 x 133,9 x 279,9 mm
Dimensions - 279.9 x 133.9 x 49.3 mm
dimension weight - 1630 g
dimension width - 420 mm
DisplayPort Input/Output connectors - 3
ean - 4711387430323
Eans - 4711387430323
EAN_code - 4711387430323
Full Description Line - AMD Radeon RX 7700 XT|Graphics memory size 12 GB|GDDR6|192 bit|PCIE 4.0 16x|Memory CLK 18 Gbps|GPU boost clock 2584 MHz|7680x4320|Cooling Dual Slot Fansink|1xHDMI|3xDisplayPort|Included Accessories 1 x Speedsetup Manual
GPU boost clock - 2584 MHz
Graphic card features - HDCP/Overclock Edition
Graphics card connector - PCI-E ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 12 GB
Graphics memory type - GDDR6
GTIN - 0197105430334
GTIN - 197105430334
GTIN - 4711387430323
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - 1 x Speedsetup Manual
LongDesc - 2x Fans. 2x Fun.Delivering the latest AMD RDNA™ 3 architecture experience in its purest form, the ASUS Dual Radeon™ RX 7700 XT OC Edition melds performance and simplicity like no other. Leveraging advanced cooling technologies derived from flagship graphics cards, the Dual opts for substance over style, the perfect choice for a well-balanced build. Buckle up and engage cutting-edge gaming prowess.Axial-tech Fan DesignBetter, faster, strongerTwo tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.Auto-Extreme TechnologyPrecision automated manufacturingAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.GPU TWEAK IIIMonitor, tweak, and tuneThe ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.Pair with a PSUUse our wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG Thor, ROG Loki or ROG Strix AURA power supply for ultimate performance.
LongProductName - Dual Radeon RX 7700 XT OC Edition 12GB GDDR6 is armed to dish out frames and keep vitals in check
LongSummaryDescription - ASUS Dual -RX7700XT-O12G. Graphics processor family: AMD, Graphics processor: Radeon RX 7700 XT. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Manufacturer - Asus
Manufacturer_code - 90YV0JZ0-M0NA00
Max resolution - 7680x4320
Memory - Data transfer rate - 18 Gbit/s
Memory - Discrete graphics card memory - 12 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 192 bit
Memory bus - 192 bit
Memory bus - 192-bit
Memory CLK - 18 Gbps
Memory frequency - 18 Gbps
Memory type - DDR6
Model - DUAL-RX7700XT-O12G
Model - Radeon RX 7700 XT
Name - ASUS 12GB D6 RX 7700 XT DUAL OC
Name - ASUS Radeon RX 7700 XT DUAL 12GB OC
name - ASUS Radeon RX 7700 XT Dual O12G, 12288 MB GDDR6
name - Graphics card Radeon RX 7700 XT DUAL OC 12GB GDDR6 192bit 3DP
Other features -
Other information -
Packaging content - Manual - Yes
Packaging data - Package depth - 233 mm
Packaging data - Package height - 88.5 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.7 kg
Packaging data - Package width - 405 mm
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 750 W

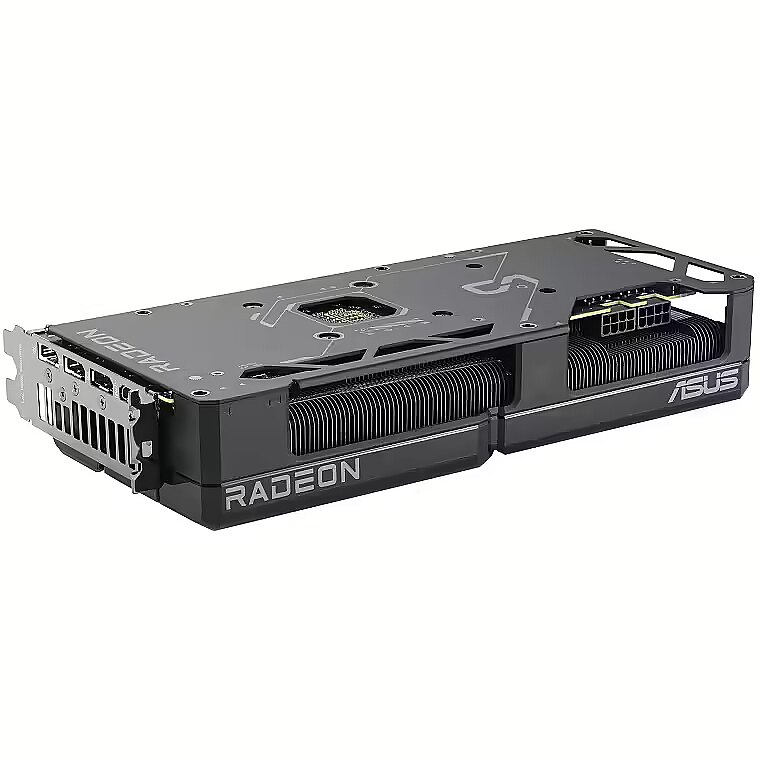

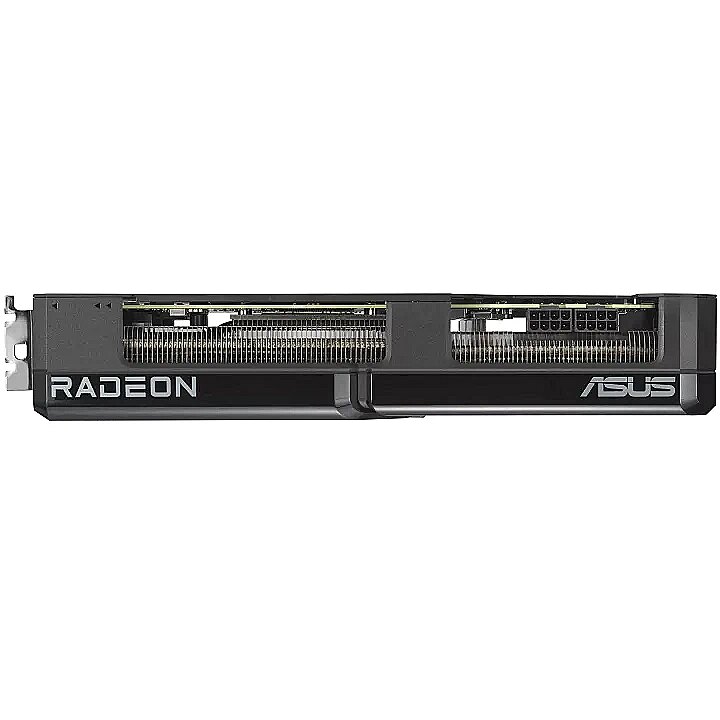

Power - Supplementary power connectors - 2x 8-pin
Power connectors - 8+8 pin
Processor - Graphics processor - Radeon RX 7700 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2584 MHz
Processor - Processor boost clock speed (Gaming mode) - 2226 MHz
Processor - Processor boost clock speed (OC mode) - 2599 MHz
Processor - Stream processors - 3456
producer - Asus
Producer - Asus
producerCode - 90YV0JZ0-M0NA00
ProducerCode - DUAL-RX7700XT-O12G
productName - ASUS Dual -RX7700XT-O12G AMD Radeon RX 7700 XT 12 GB GDDR6
ProductName - DUAL-RX7700XT-O12G
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 47 cm
Shipping Box Height Shipping/Package Box Dimensions - 43 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 9.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 25 cm
ShortDescription - Chipset AMD 7700XT | 12GB
ShortSummaryDescription - ASUS Dual -RX7700XT-O12G, Radeon RX 7700 XT, 12 GB, GDDR6, 192 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 405
sizeY - 90
sizeZ - 235
Supported standards - OpenGL 4.6
Technical_details - The ASUS Radeon RX 7700 XT DUAL OC's GPU is based on RDNA 3 architecture and is designed for 1440p performance, power efficiency and demanding gaming. With 12 GB GDDR6 video memory, support for the PCIe 4.0 standard and features such as Infinity Cache, the AMD Radeon RX 7700 XT GPUs use RDNA3 technology to ensure a smooth gaming experience with great looks. With functions such as Radeon image sharpening, FidelityFX, TressFX, TrueAudio Next and VR technologies, the Radeon RX 7700 XT chip of the ASUS Radeon RX 7700 XT DUAL OC ensures high IPC values. Improved graphic effects of the ASUS Radeon RX 7700 XT DUAL OC such as volumetric lighting, blur and depth of field as well as shorter latencies make gamers' hearts beat faster. Item no.: 100041331 Graphics card type EAN 4711387430323 Manufacturer no. 90YV0JZ0-M0NA00 Slot PCIe x16 version 4.0 occupied slots 2.47 GPU name AMD Radeon RX 7700 XT Required power supply power at least 750 W Memory capacity 12 GB (GDDR6) Connections 1x HDMI version 2.1, 3x Displayport version 2.1 Power supply connections 2x 8-pin (6+2) power connector Cooling Cooling with fan Special features VR Ready Yes Operating systems Supports Windows 11, Windows 10 Feature Hardware Raytracing, AMD FreeSync Technology, Video Streaming up to 8K, Radeon VR Ready Premium, AMD FidelityFX, Radeon Image Sharpening, Radeon Anti-Lag, Radeon Software, Game Driver Optimizations Dimensions Width: 133.9 mm x Height: 49.3 mm x Depth/Length: 279.9 mm
Title - ASUS Dual -RX7700XT-O12G AMD Radeon RX 7700 XT 12 GB GDDR6
Unit Box Height - 0.235
Unit Box Length - 0.405
Unit Box Width - 0.09
Unit Brutto Volume - 0.0101 cubm
Unit Gross Weight - 1.9 kg
Unit Net Weight - 1 kg
URL - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rx7700xt-o12g/
Vendor Homepage - www.asus.com/motherboards-components/graphics-cards/dual/dual-rx7700xt-o12g/
vendpn - DUAL-RX7700XT-O12G
Version - Box

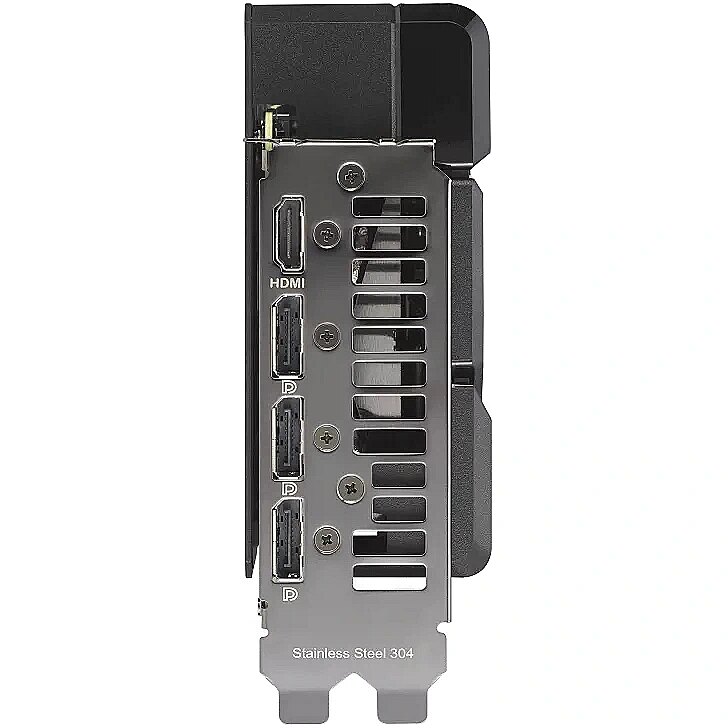

Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 12 GB
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,77
weight - 1705
Weight & dimensions - Depth - 49.3 mm
Weight & dimensions - Height - 133.9 mm
Weight & dimensions - Length - 279.9 mm
Weight & dimensions - Weight - 933 g
