Accessories included -
Brand - ASUS
BrandPartCode - 90YV0K70-M0NA00
Category - Graphics Cards
category - PC Components|Graphics Cards|AMD
Category - Root/Electronics/PC parts/Graphic cards
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - AMD
Chipset - Radeon RX 7800 XT
Chipset manufacturer - AMD
code - 90YV0K70-M0NA00
Cooling - Active
Core Boost frequency - 2565 MHz
Core frequency - 2254 MHz

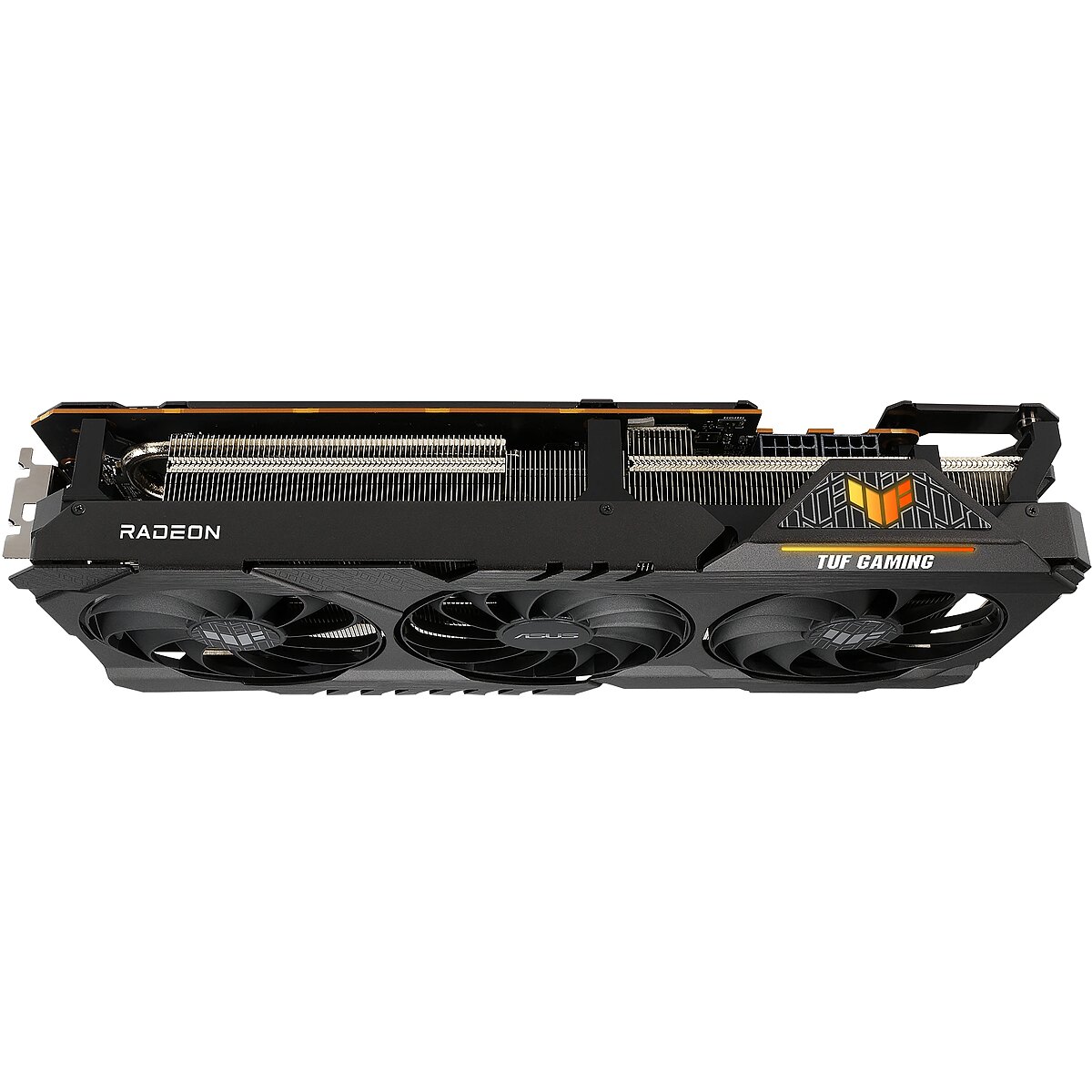

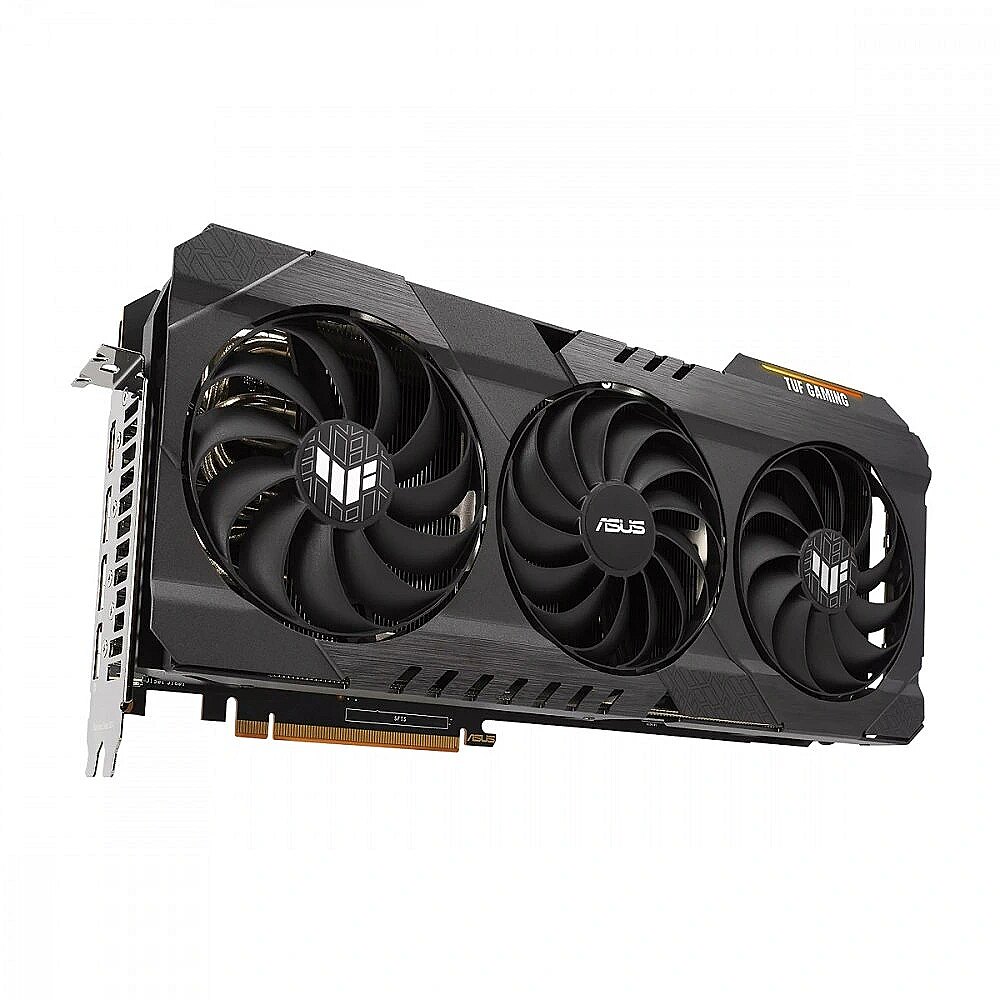

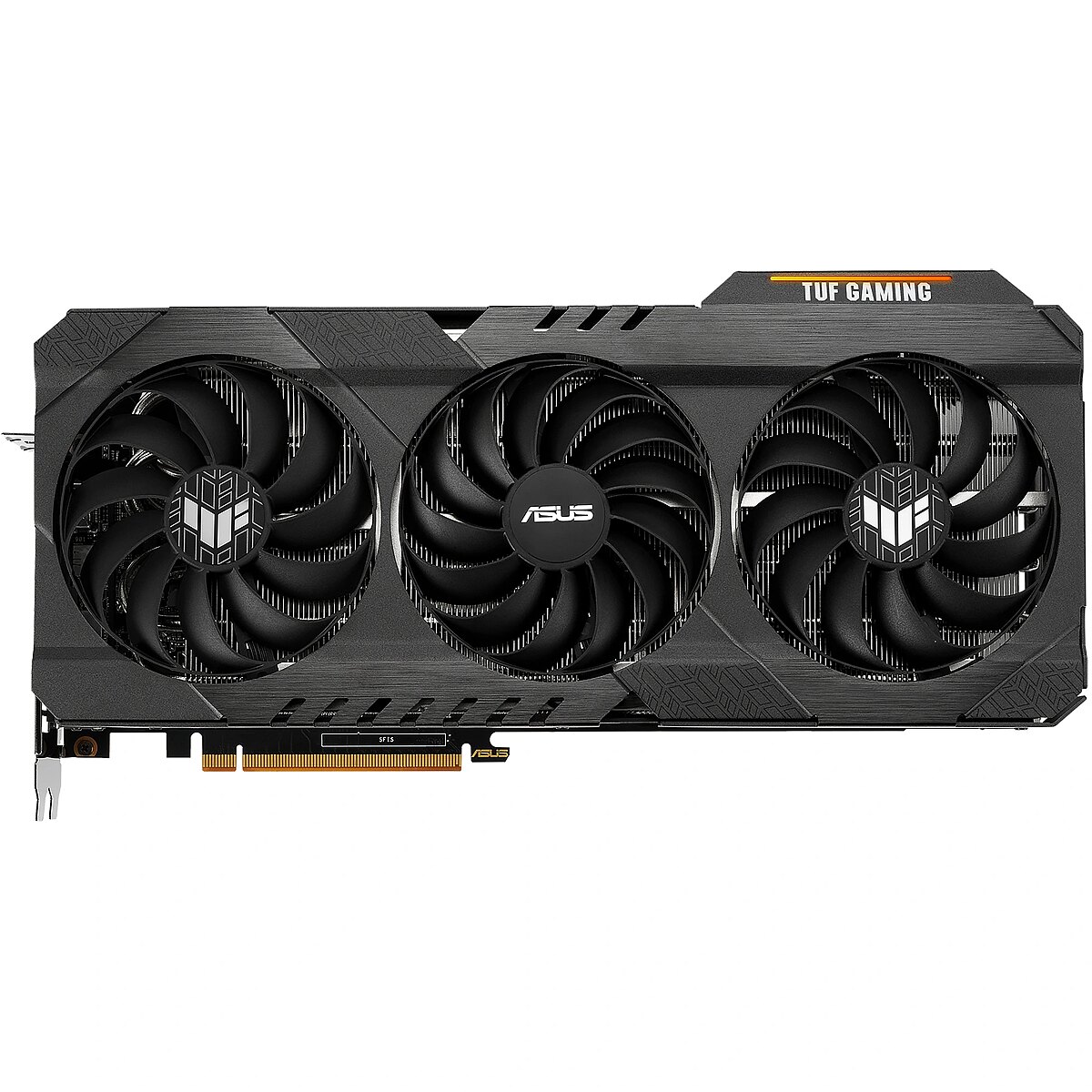

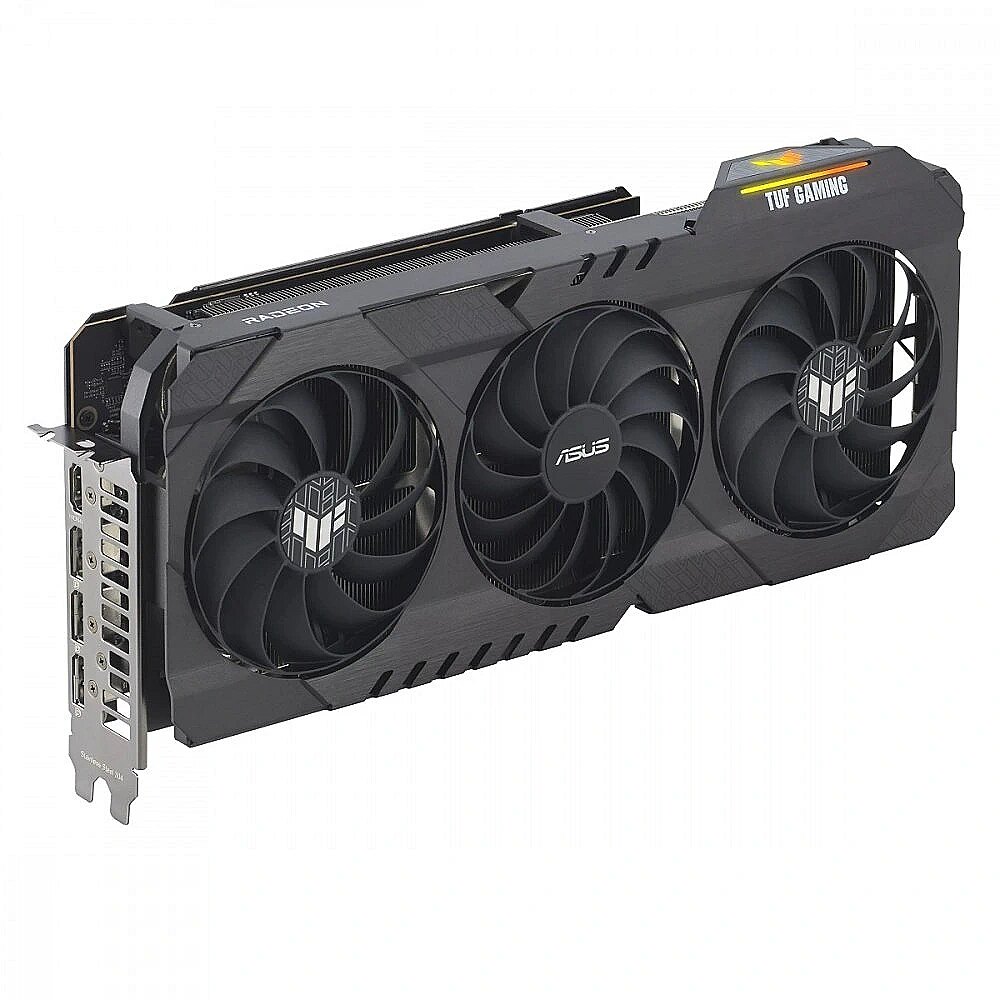

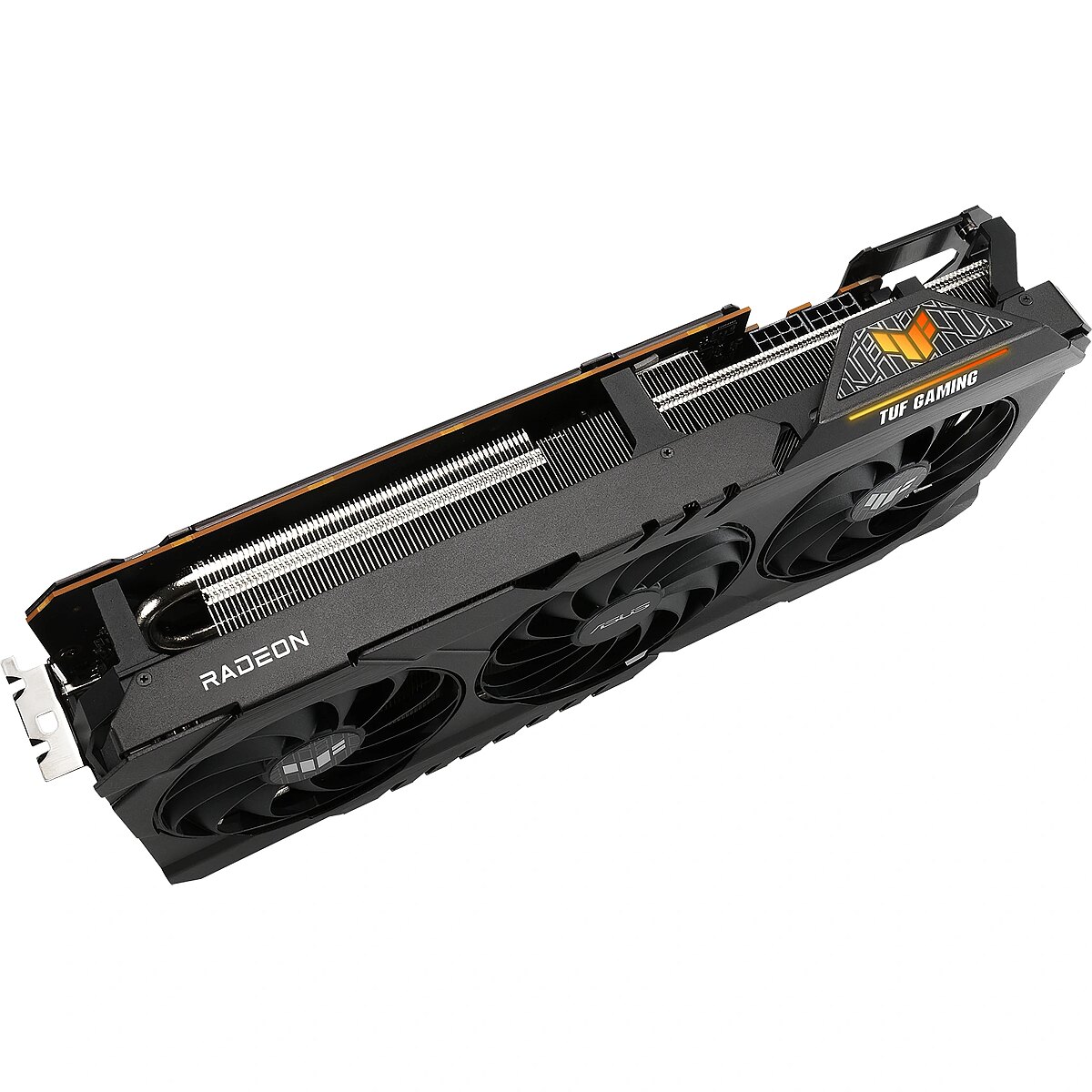

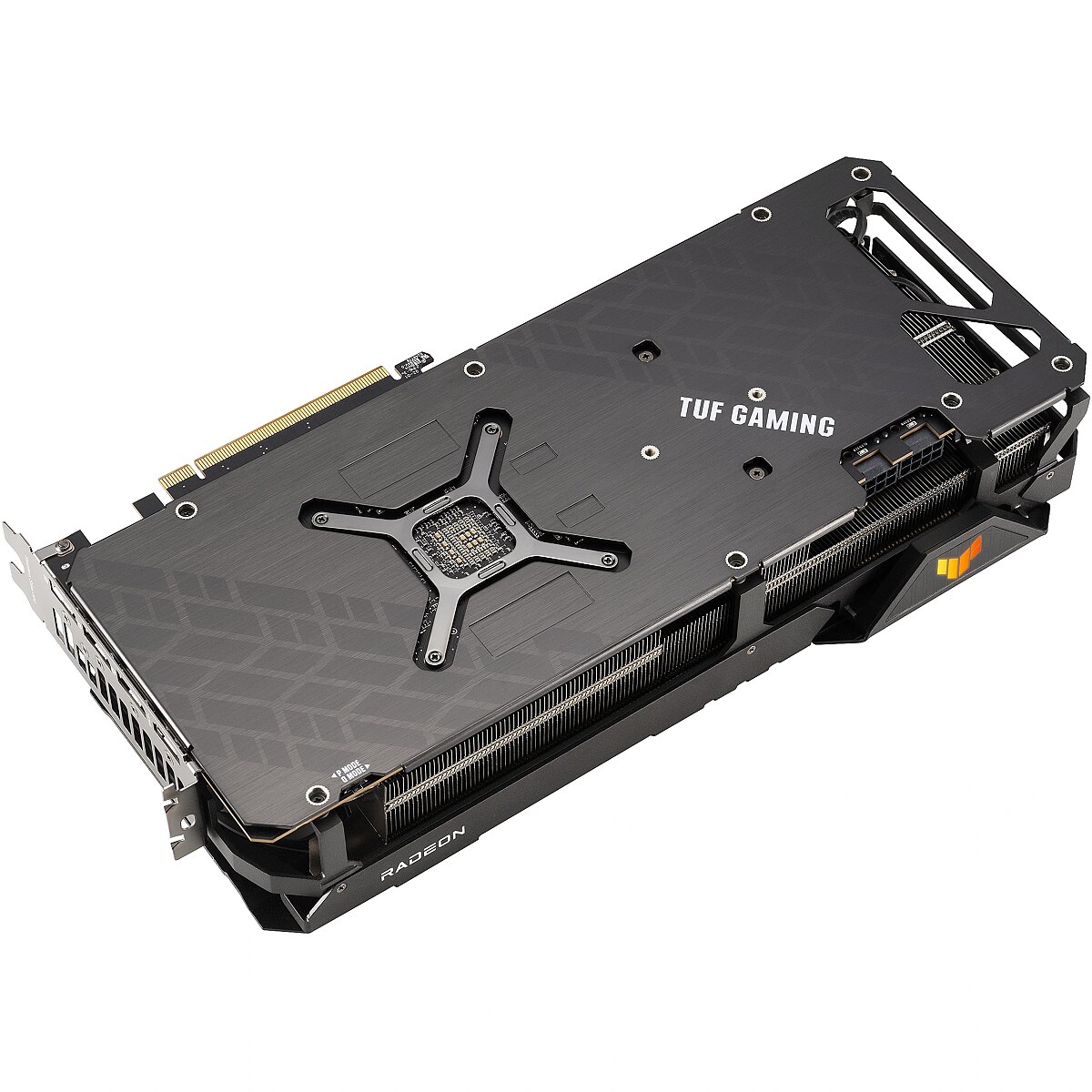

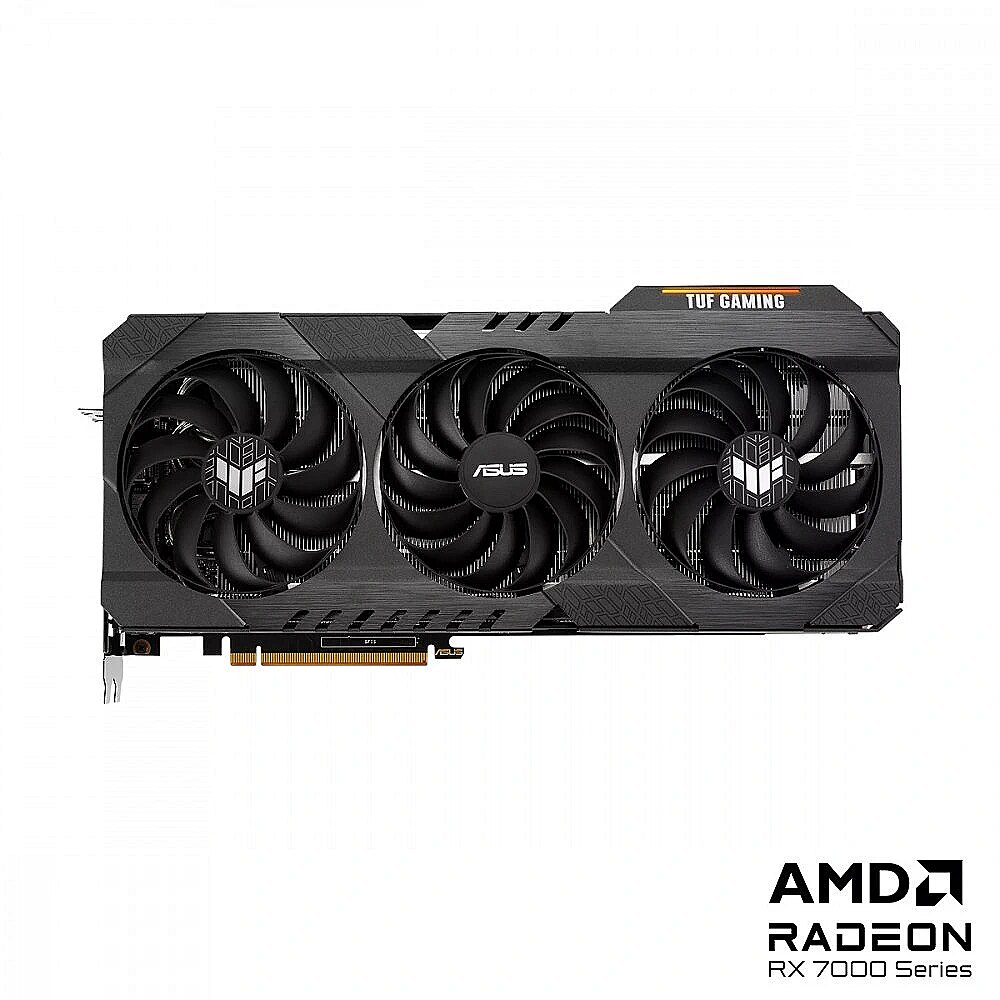

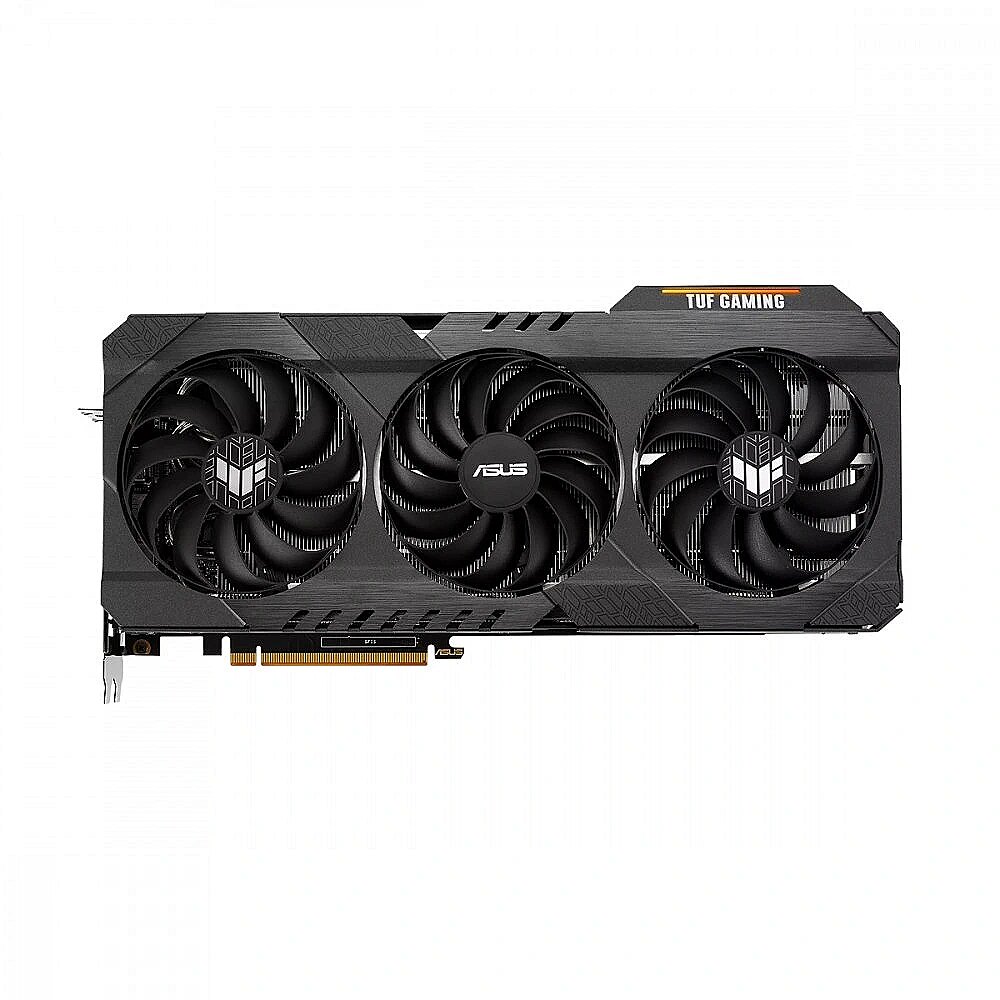

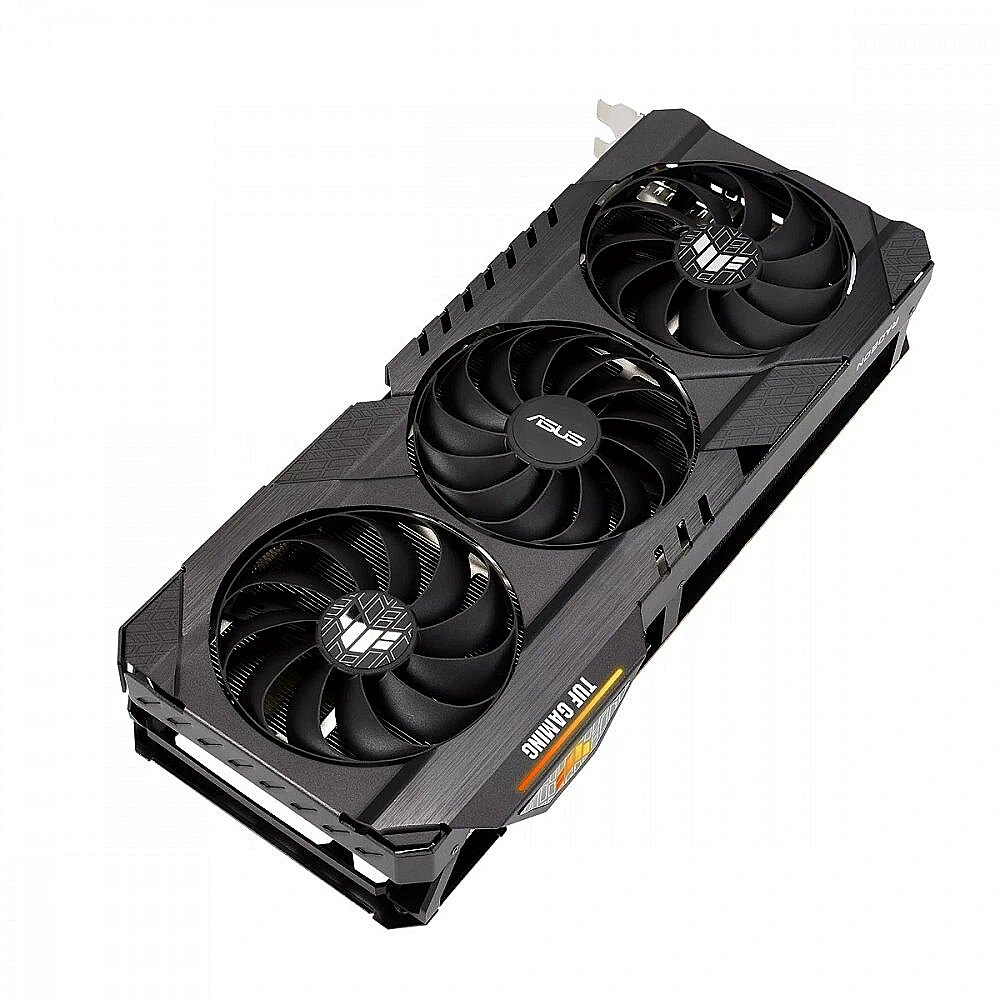

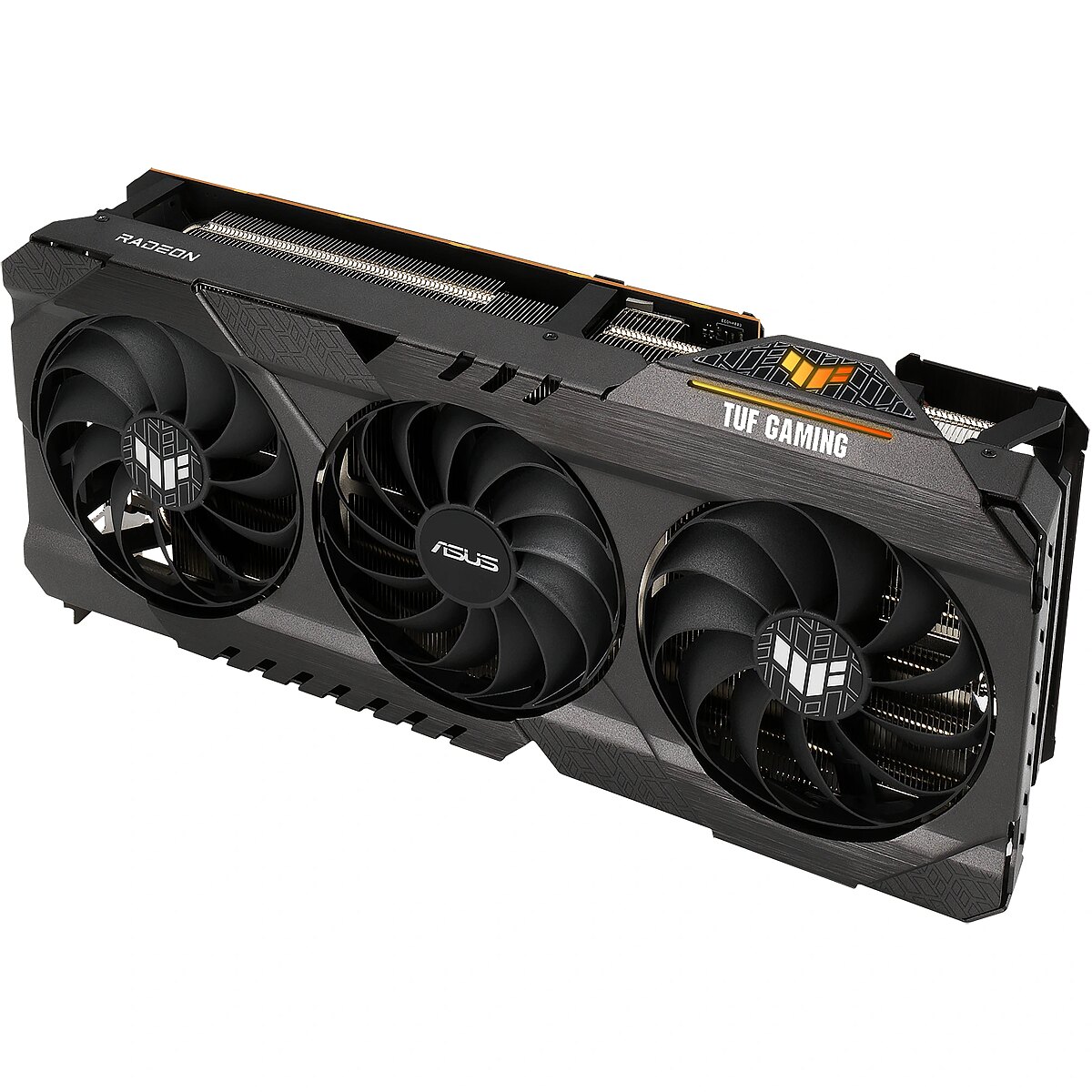

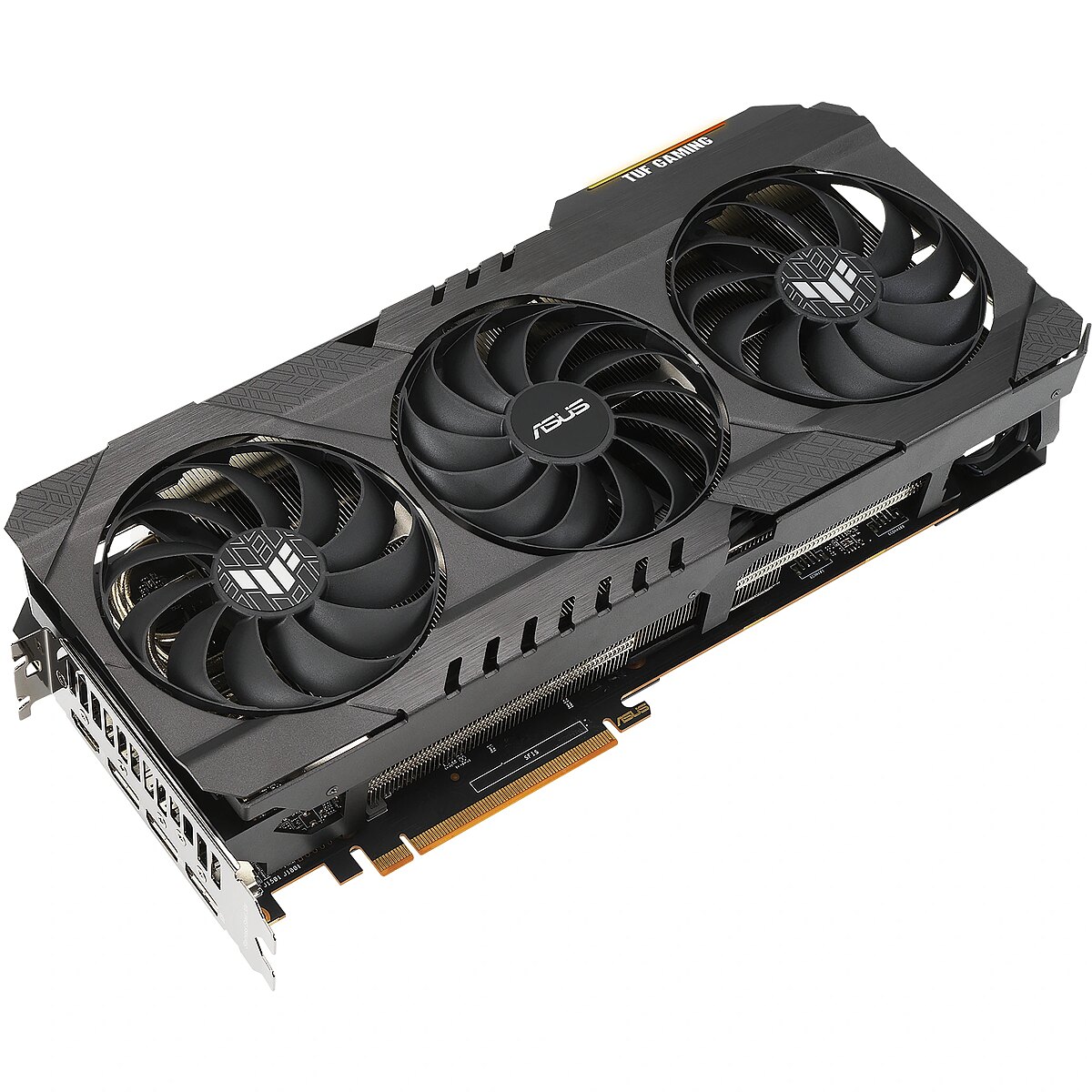

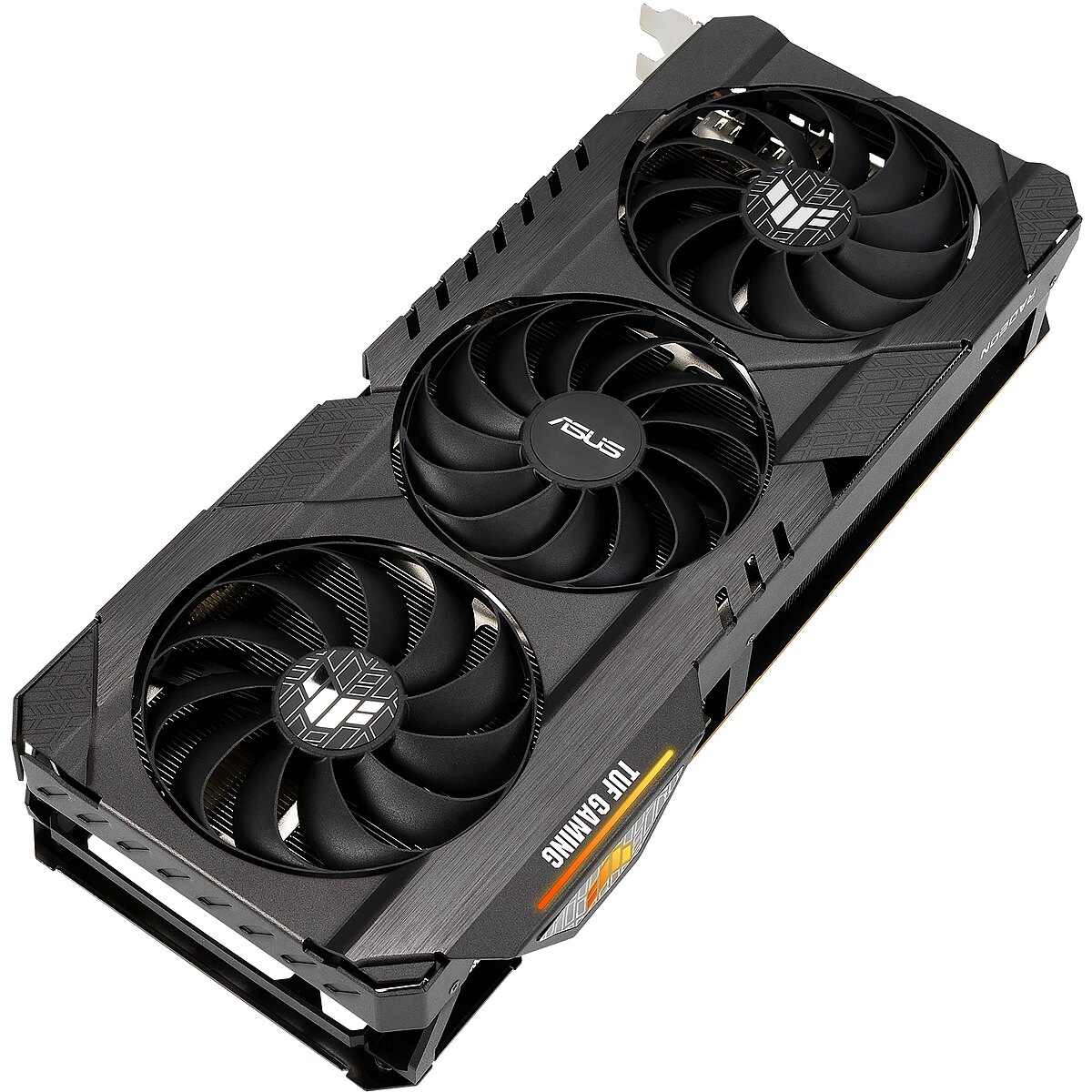

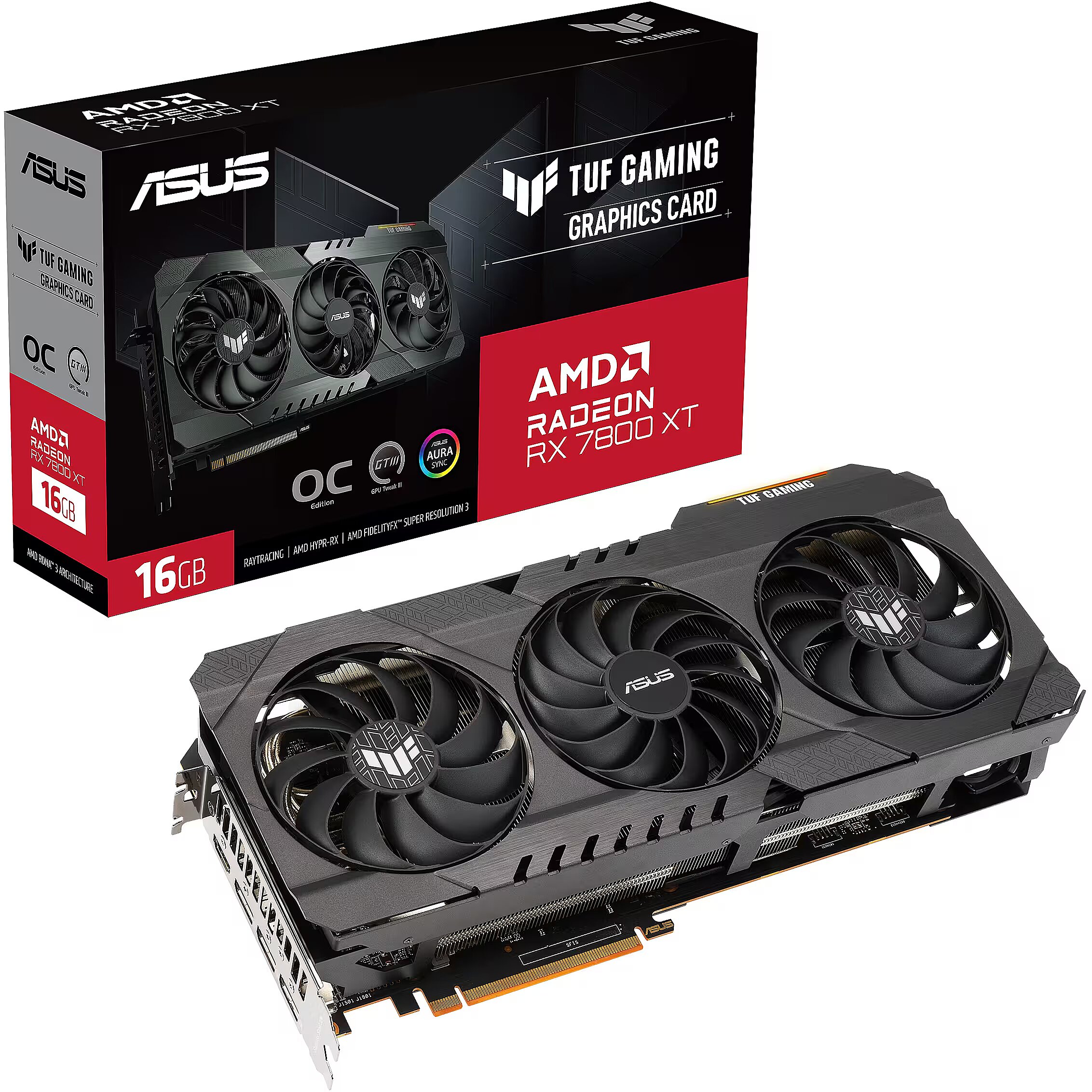

Description - Radeon RX 7800 XT TUF GAMING OG OC 16GB GDDR6 256bit Graphics Card The ASUS TUF Gaming Radeon RX 7800 XT OG OC Edition 16GB GDDR6 graphics card is optimized inside and out for lower temperatures and durability. OC Mode: up to 2565MHz (Boost)/ up to 2254MHz (Game Clock). Axial-tech improvements include a smaller fan hub that allows for longer blades and a barrier ring that increases downward air pressure. Dual ball bearing fans last up to twice as long as conventional designs. Military-grade capacitors rated for 20,000 hours at 105°C make the GPU power rail more durable. Metal exoskeleton adds rigidity and vents for increased heat dissipation. Auto-Extreme precision automated manufacturing for improved reliability. GPU Tweak III software provides intuitive performance tuning, thermal control, and system monitoring.

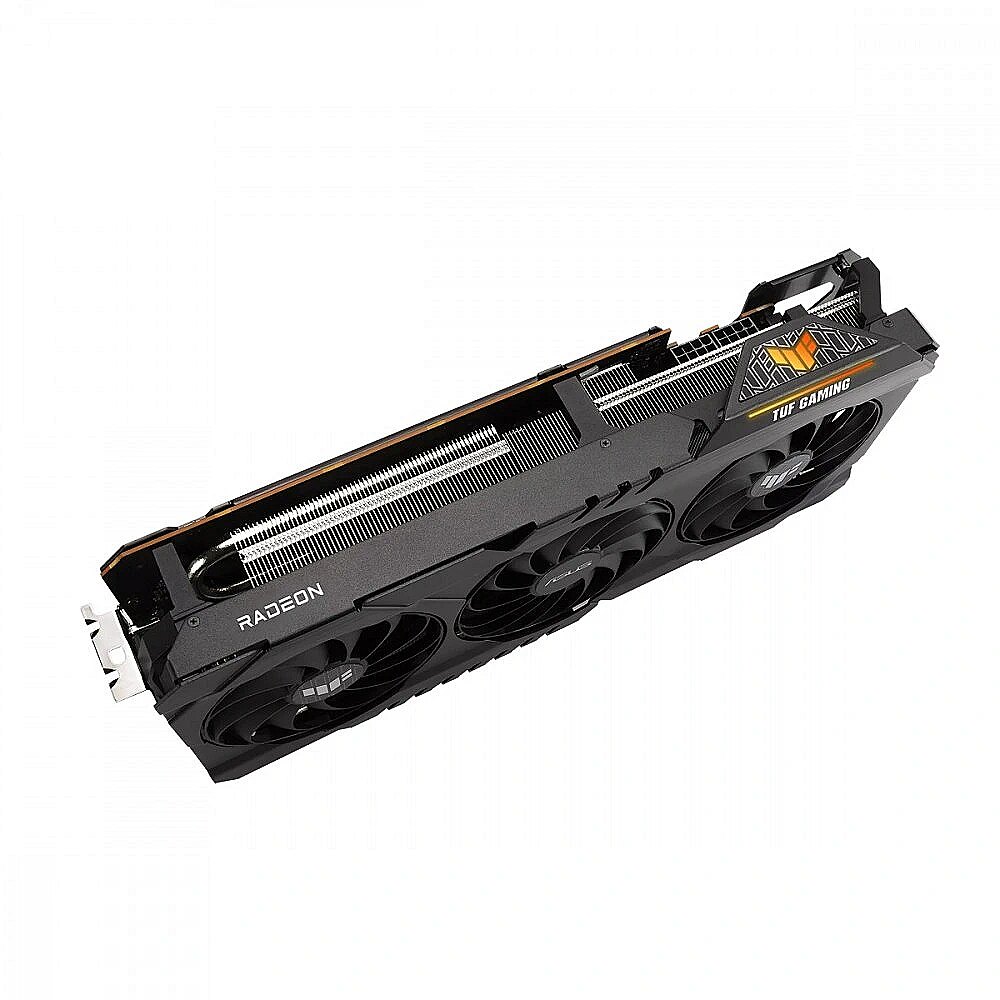

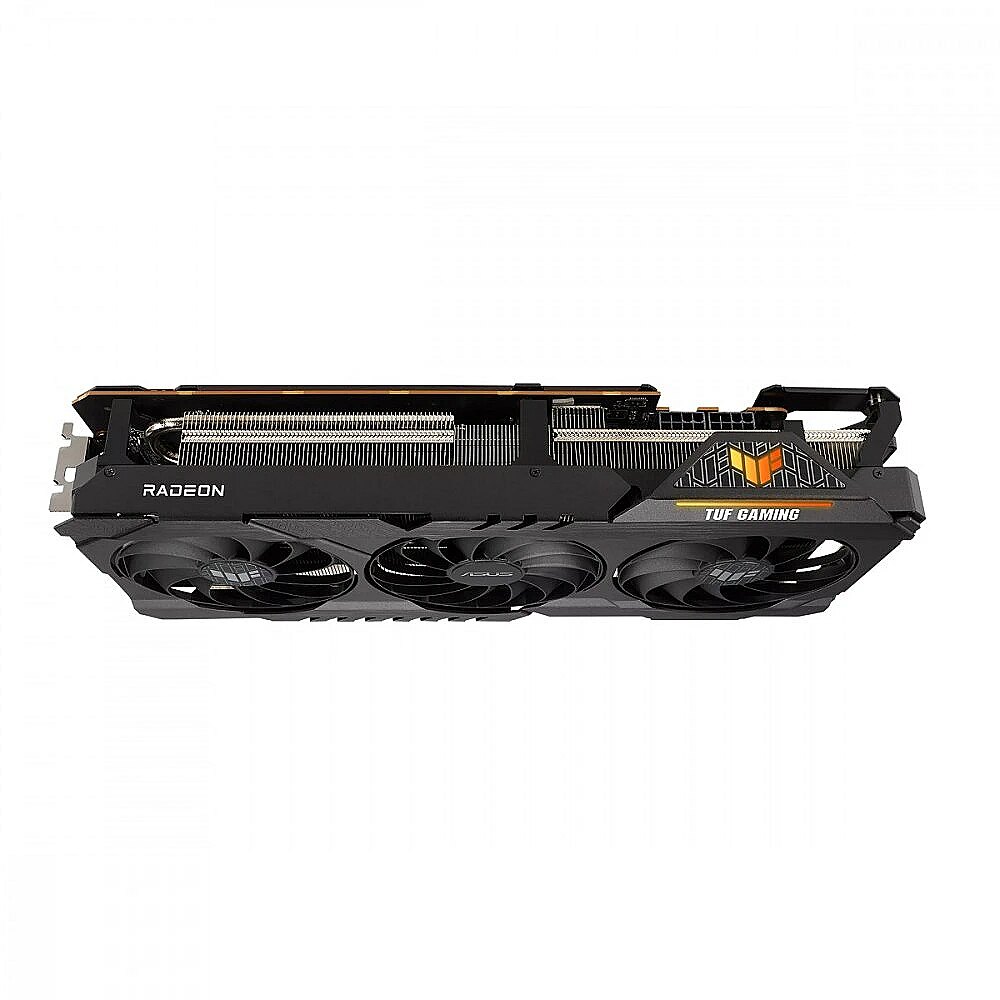

Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Illumination - Yes
Design - Illumination colour - Blue
Design - Illumination colour - Blue, Green, Red
Design - Illumination colour - Green
Design - Illumination colour - Red
Design - Number of fans - 3 fan(s)
Design - Number of slots - 2.9
Design - Product colour - Black
dimensionalWeight - 1771
dimension depth - 90 mm
dimension height - 235 mm
Dimensions - 57,8 x 140,2 x 320 mm
dimension weight - 1700 g
dimension width - 410 mm
ean - 4711387468463
Eans - 4711387468463
EAN_code - 4711387468463
Graphics card connector - PCI-E ver. 4.0
GTIN - 4711387468463
guarantee - 36
guarantee_type - normal

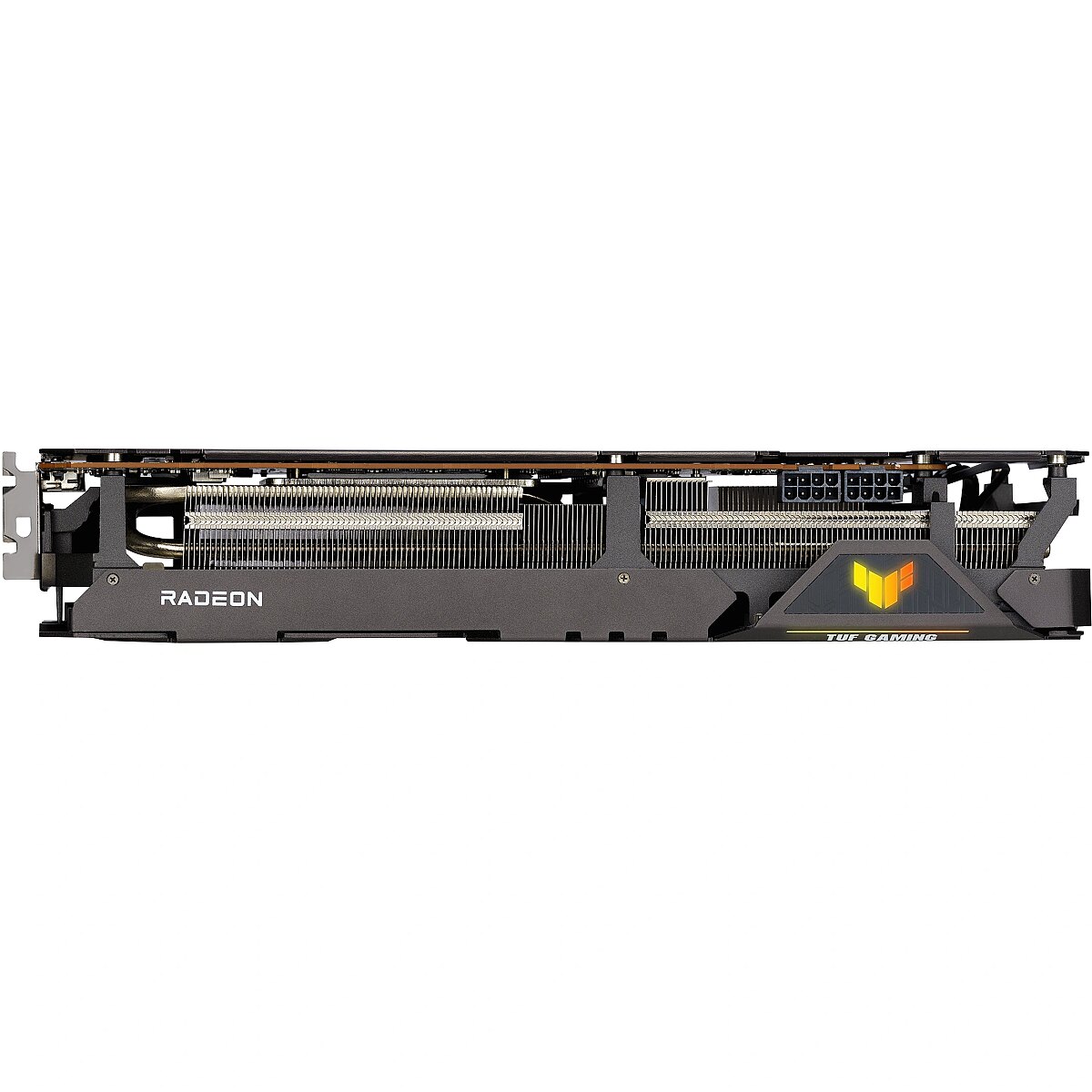

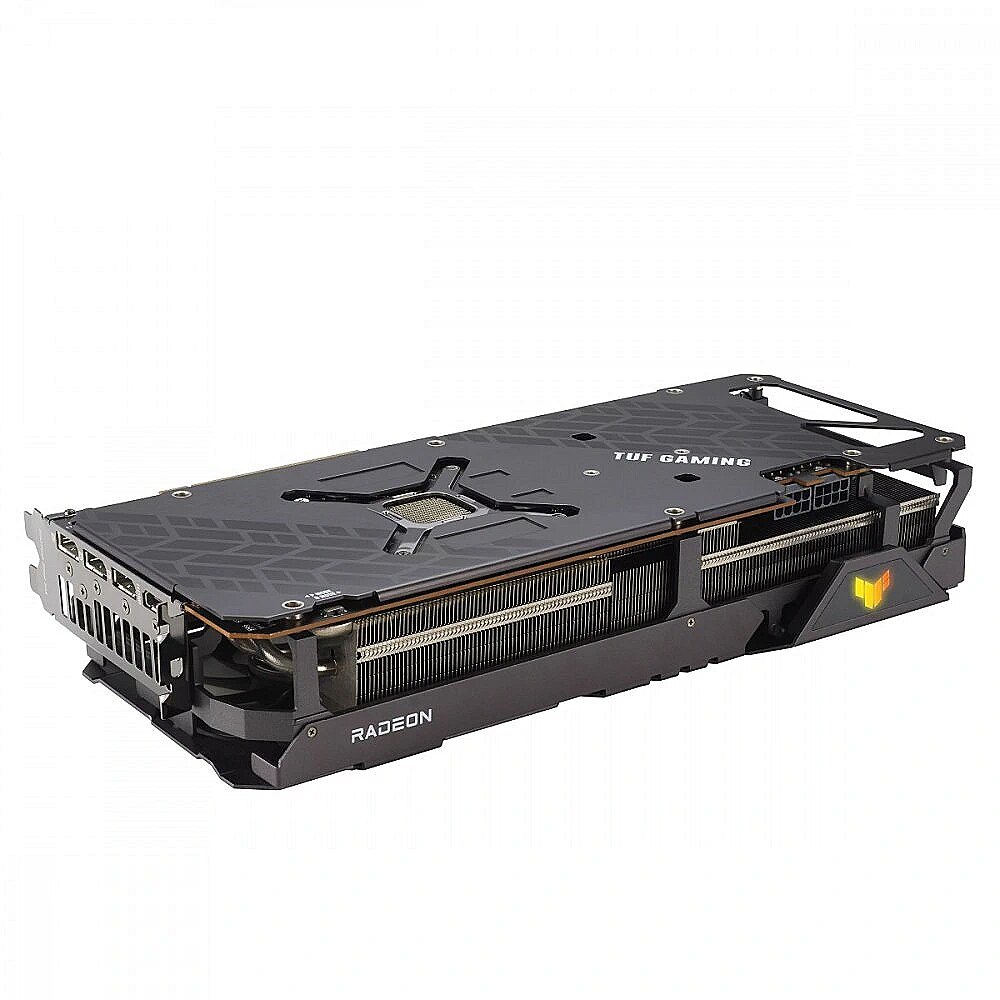

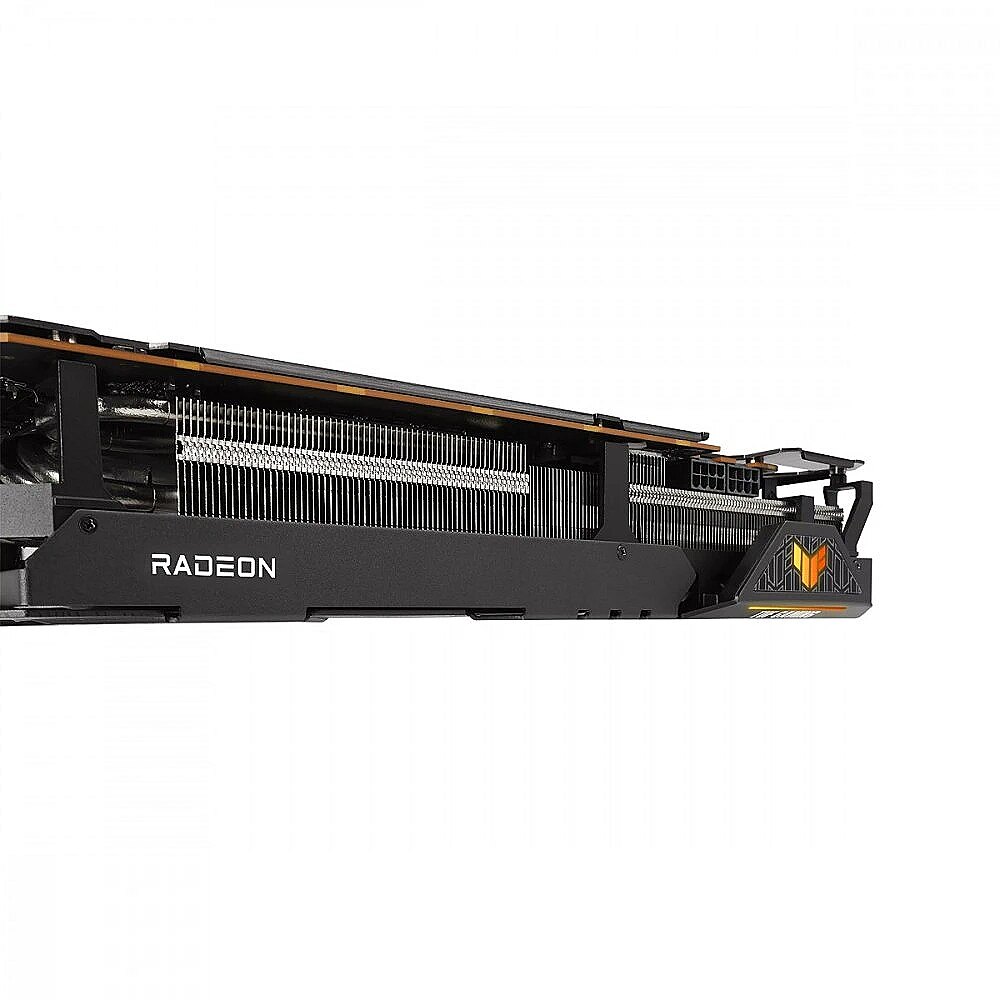

LongDesc - FLYIN’ TUFThe AMD RDNA™ 3 Architecture elevated by buffed cooling and power delivery to effortlessly churn out frames at 4K resolution and beyond, and backed with an arsenal of rugged reinforcements to cover your six.Lock, load, and dominate with the TUF Gaming Radeon™ RX 7800 XT OG Edition.AXIAL-TECH UPGRADESAir SuperiorityThree tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.NEW DIRECTIONWell-maintained FormationThe two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 55 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 60 Celsius, referencing a speed curve that balances performance and acoustics for work or play.2.9-SLOT DESIGNPhase That BlazeThe heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.9-slot footprint.MILITARY-GRADE 20K CAPACITORSResilient SquadronA lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.METAL EXOSKELETONSuit UpAn aluminum shroud and backplate, complemented by a robust diecast core in the middle, prevent PCB flex and feature large vents to further increase heat dissipation.AUTO-EXTREME TECHNOLOGYRELIABILITY BOOSTAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.AURA SYNCLight ‘em Up!Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.GPU Tweak IIIMonitor, tweak, and tuneASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.QuantumCloudProfit from GPU powerQuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!AMD SoftwareChange the way you gameThe latest AMD Software unleashes the full potential of your GPU with day-0 drivers optimized for new game releases and a highly customizable gaming experience.Pair with a PSUUse our wattage calculator to estimate how much power you’ll need to fuel your rig and then pick a compatible ROG Thor, ROG Loki, or ROG Strix AURA PSU for ultimate performance.
LongProductName - TUF Gaming Radeon RX 7800 XT OG OC Edition 16GB GDDR6 optimized inside and out for lower temps and durability
LongSummaryDescription - ASUS TUF-RX7800XT-O16G-OG-GAMING. Graphics processor family: AMD, Graphics processor: Radeon RX 7800 XT. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Blue, Green, Red
Manufacturer - Asus
Manufacturer_code - 90YV0K70-M0NA00
Memory - Data transfer rate - 19.5 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 256 bit
Memory bus - 256-bit
Memory frequency - 19.5 Gbps
Memory type - DDR6
Model - Radeon RX 7800 XT
name - ASUS Radeon RX 7800 XT OG OC Edition, 16384 MB GDDR6
Name - ASUS Radeon RX 7800 XT TUF GAMING OG OC, graphics card (RDNA 3, GDDR6, 3x DisplayPort, 1x HDMI 2.1)
Name - ASUS Radeon RX 7800 XT TUF OG GAMING 16GB OC
name - Graphic card Radeon RX 7800 XT TUF GAMING OG OC 16GB GDDR6 256bit
Other features -
Other information -
Packaging content - Manual - Yes
Packaging data - Package depth - 233 mm
Packaging data - Package height - 88.5 mm

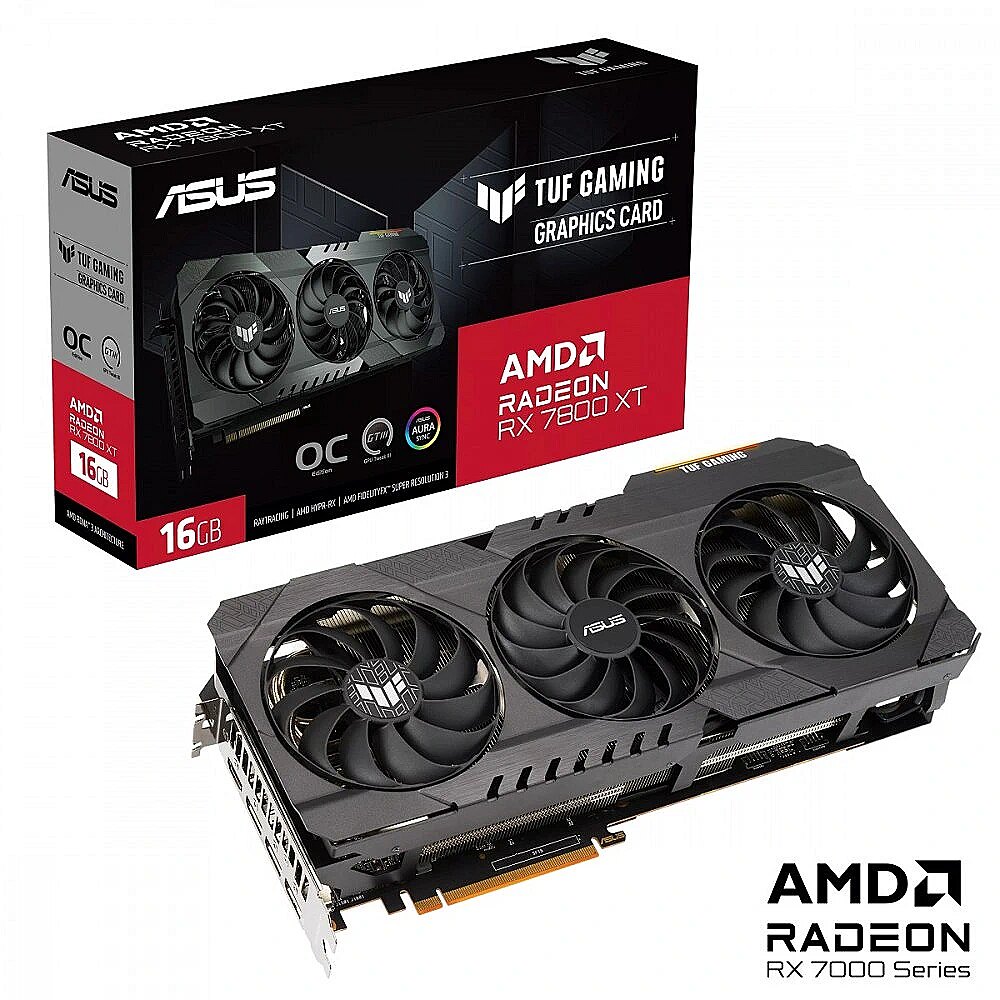

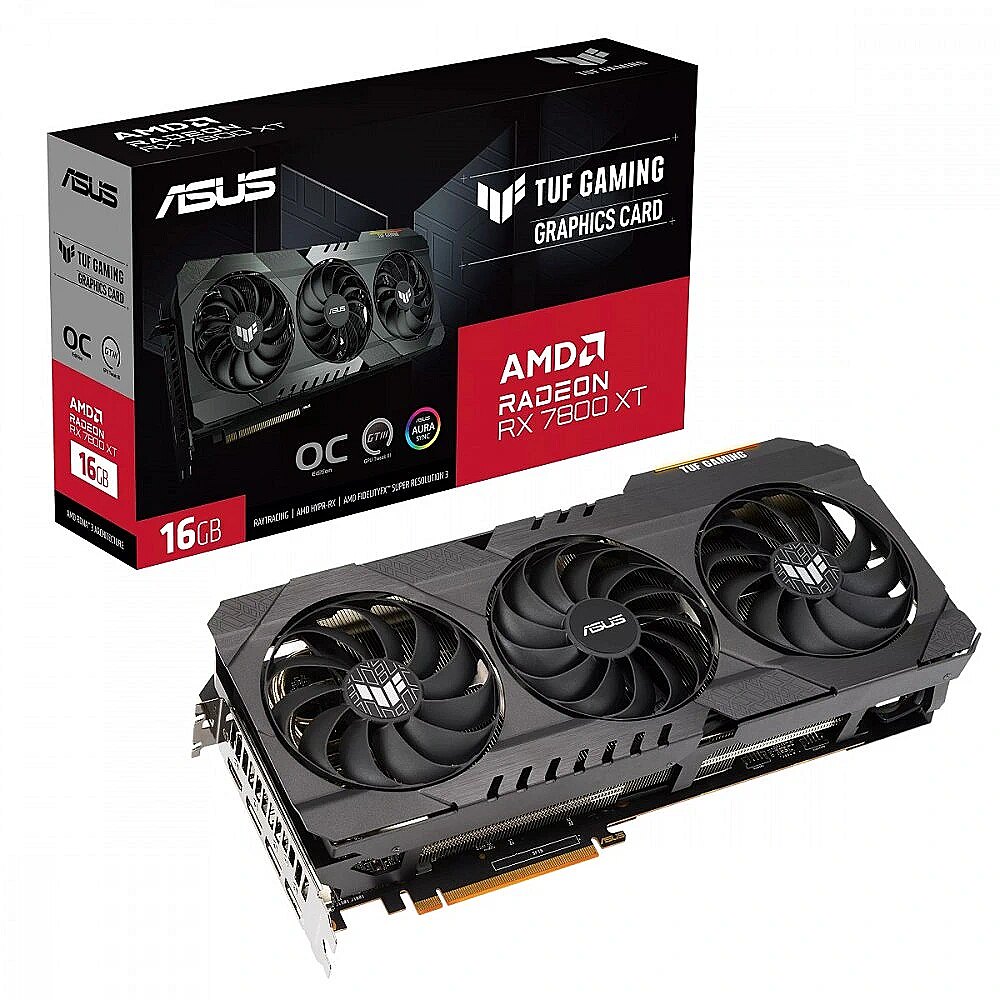

Packaging data - Package type - Box
Packaging data - Package weight - 2.3 kg
Packaging data - Package width - 405 mm
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

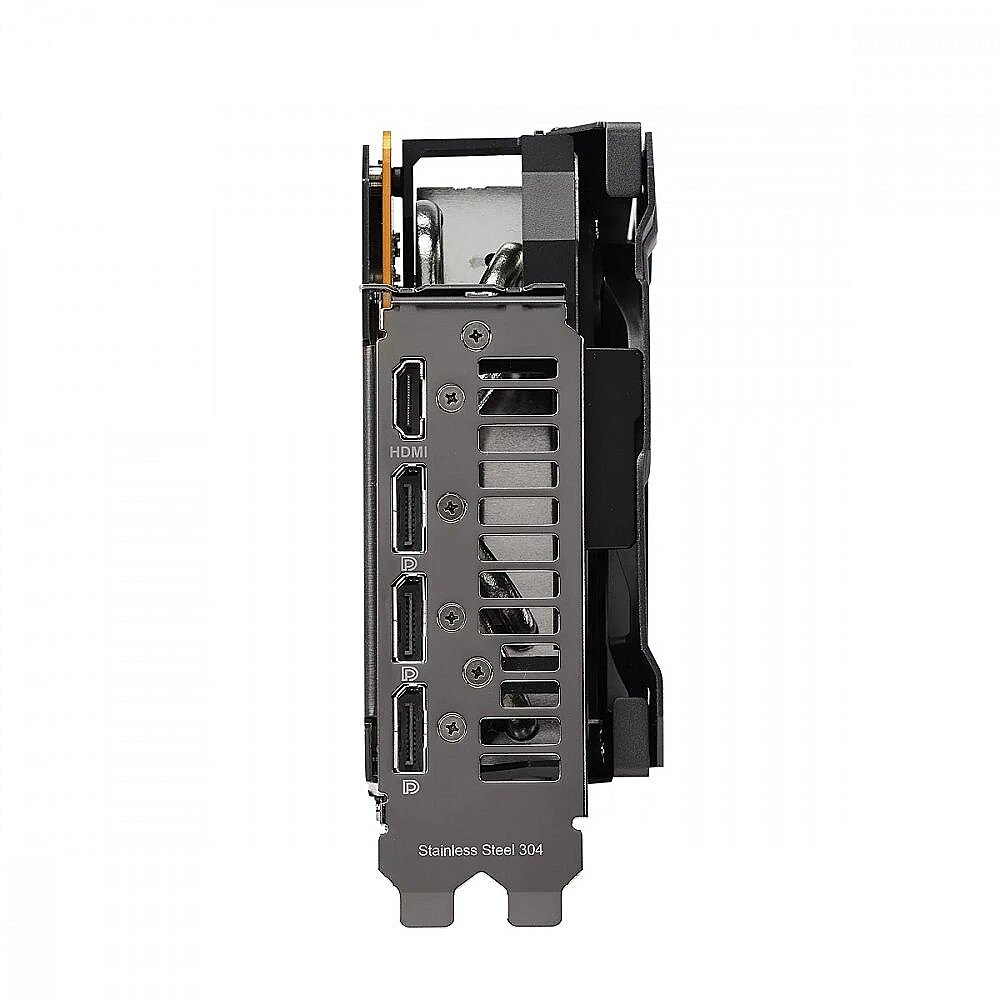

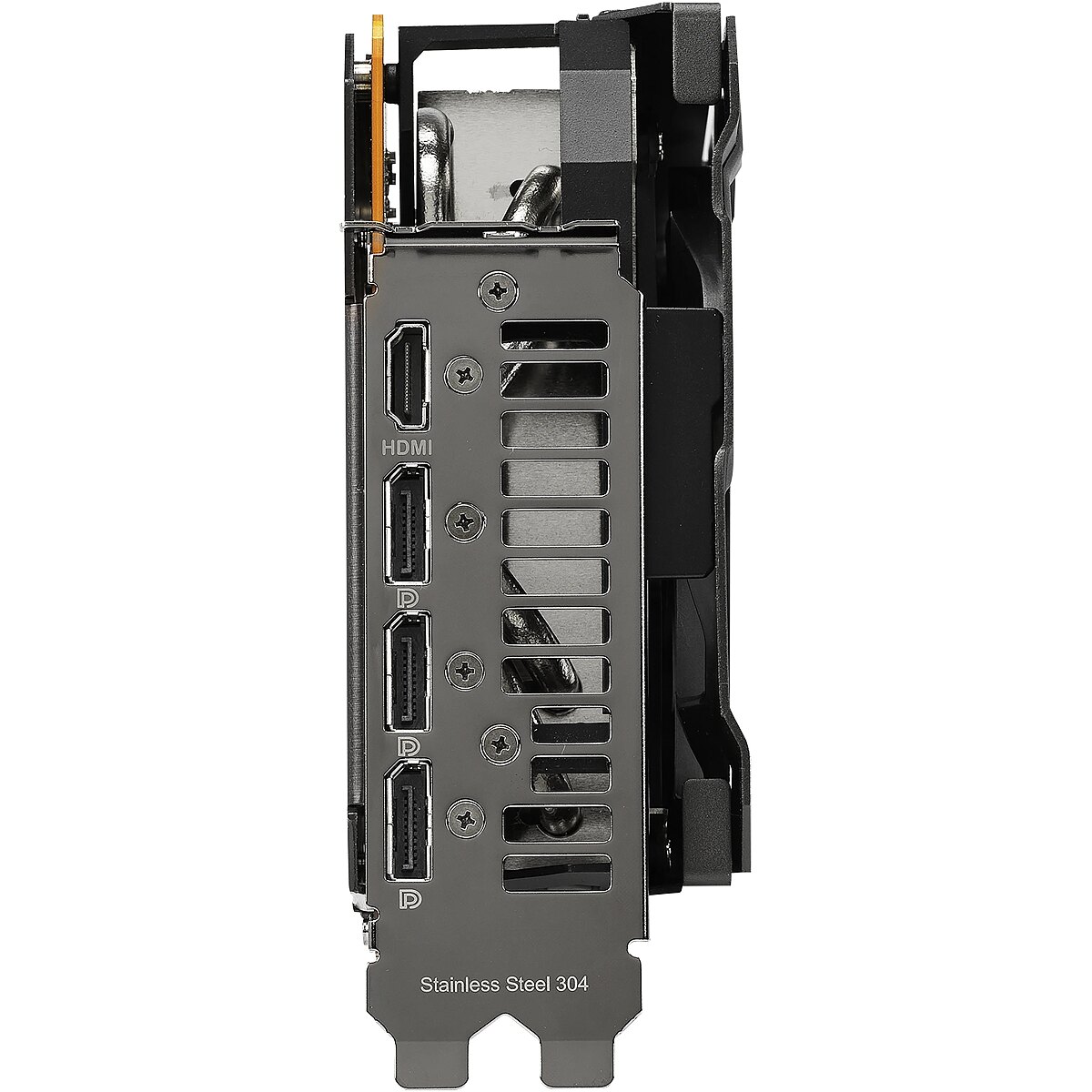

Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 2x 8-pin
Processor - Graphics processor - Radeon RX 7800 XT
Processor - Graphics processor family - AMD
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2520 MHz
Processor - Processor boost clock speed (Gaming mode) - 2254 MHz
Processor - Processor boost clock speed (OC mode) - 2565 MHz
Processor - Stream processors - 3840
producer - Asus
Producer - Asus
producerCode - 90YV0K70-M0NA00
ProducerCode - TUF-RX7800XT-O16G-OG-GAMING
productName - ASUS TUF-RX7800XT-O16G-OG-GAMING AMD Radeon RX 7800 XT 16 GB GDDR6
ProductName - TUF-RX7800XT-O16G-OG-GAMING
productSize - Normal
ShortDescription - Chipset AMD 7800XT | 16GB
ShortSummaryDescription - ASUS TUF-RX7800XT-O16G-OG-GAMING, Radeon RX 7800 XT, 16 GB, GDDR6, 256 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 90
sizeY - 240
sizeZ - 410
Supported standards - OpenGL 4.6
Title - ASUS TUF-RX7800XT-O16G-OG-GAMING AMD Radeon RX 7800 XT 16 GB GDDR6
URL - https://www.asus.com/in/motherboards-components/graphics-cards/tuf-gaming/tuf-rx7800xt-o16g-og-gaming/
vendpn - TUF-RX7800XT-O16G-OG-GAMING
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 16 GB
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2,31
weight - 2308
Weight & dimensions - Depth - 57.8 mm
Weight & dimensions - Height - 140.2 mm
Weight & dimensions - Length - 320 mm
Weight & dimensions - Weight - 1.72 kg
