Brand - ASUS
BrandPartCode - 90YV0KB2-M0NA00
Card's length - > 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Chipset - NVIDIA GeForce RTX 4080
code - 90YV0KB2-M0NA00
Cooling system - Triple slot Fansink
CUDA Cores - 10240

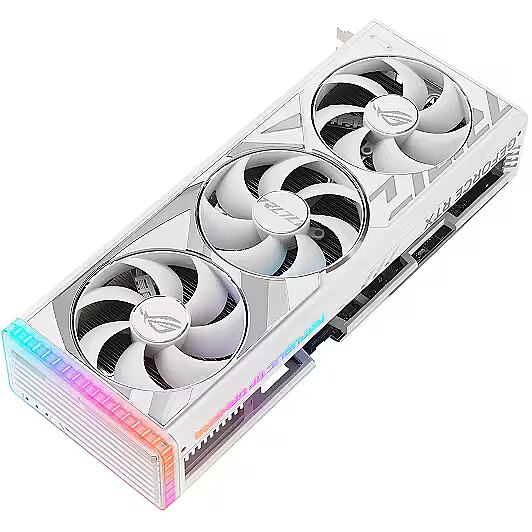

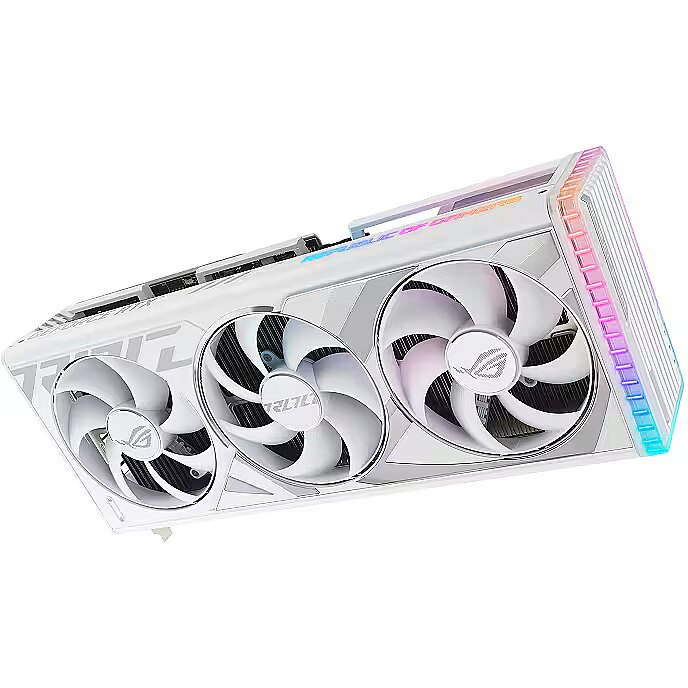

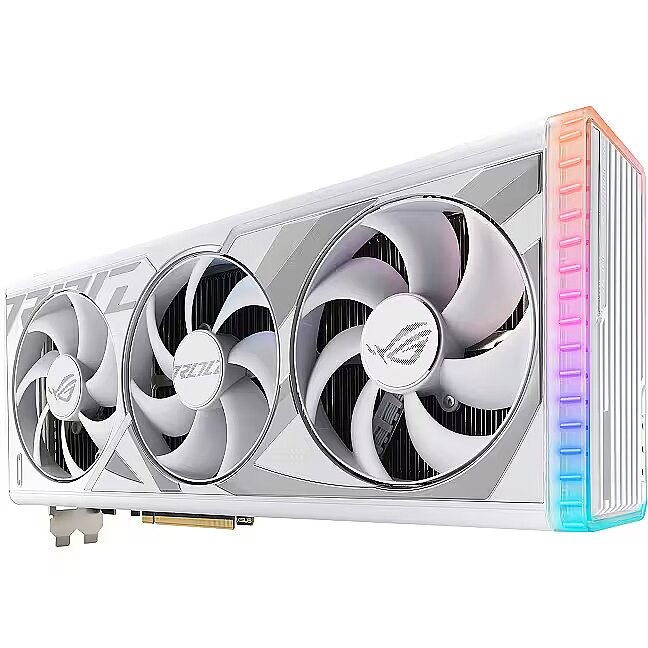

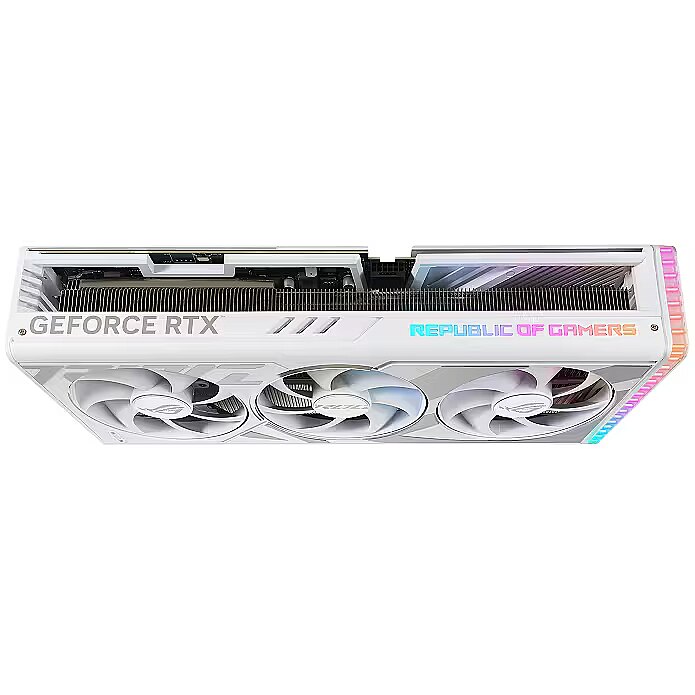

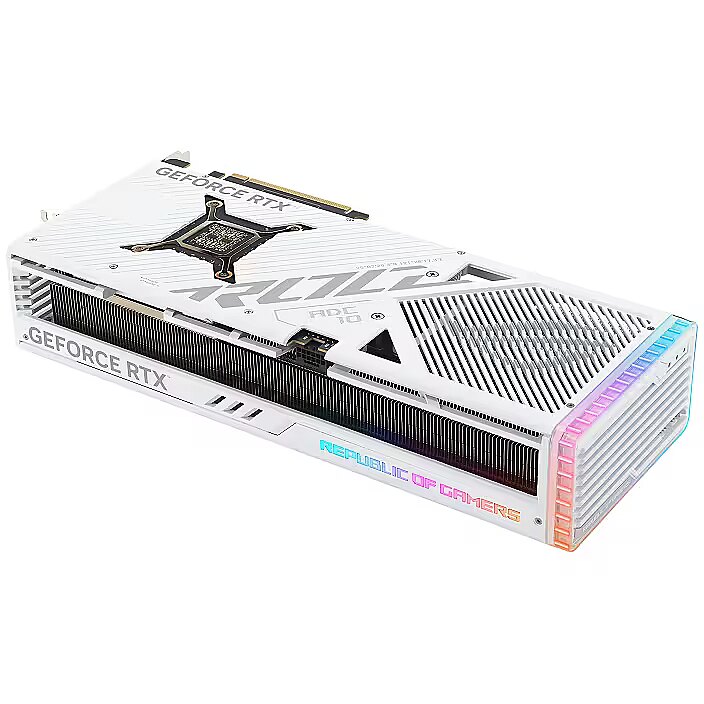

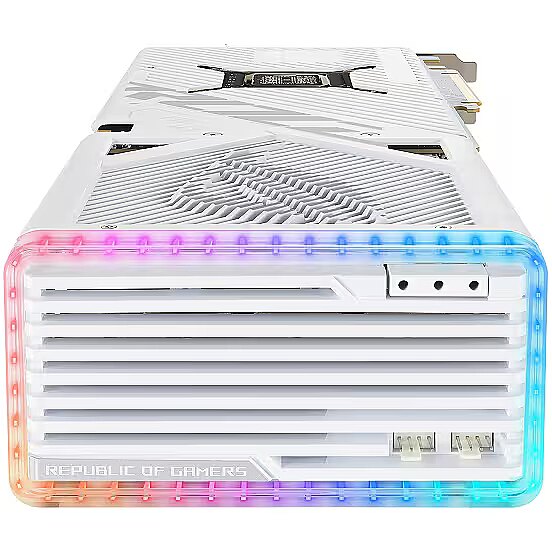

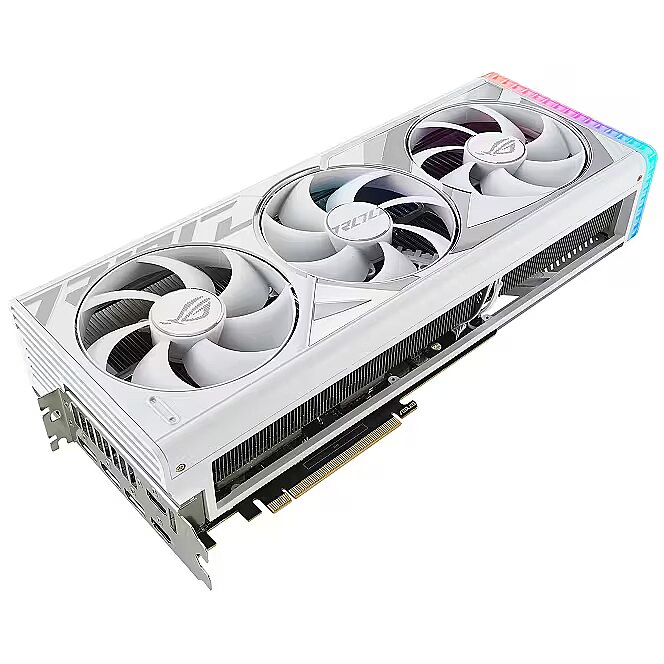

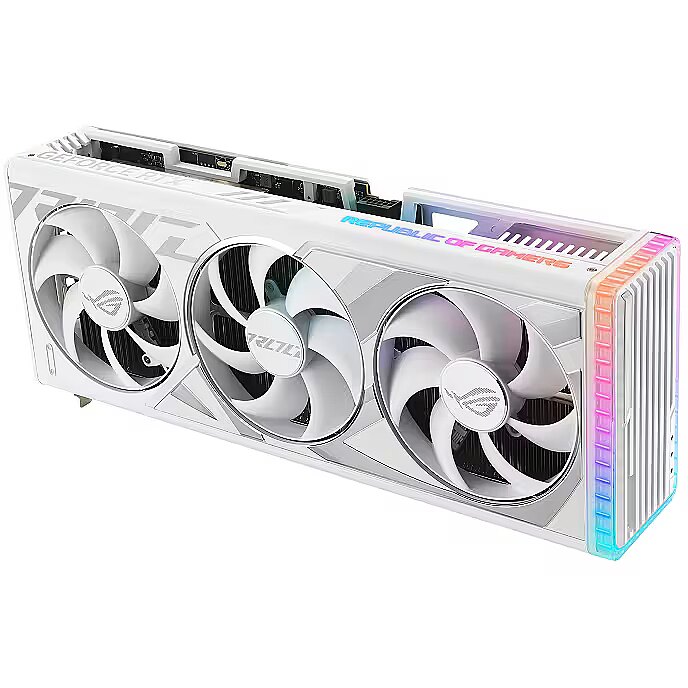

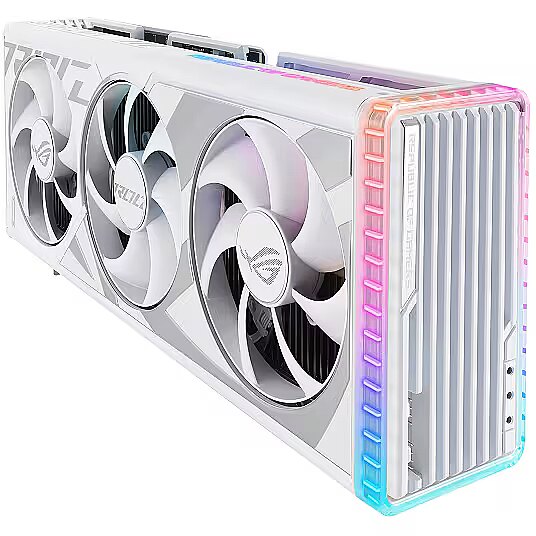

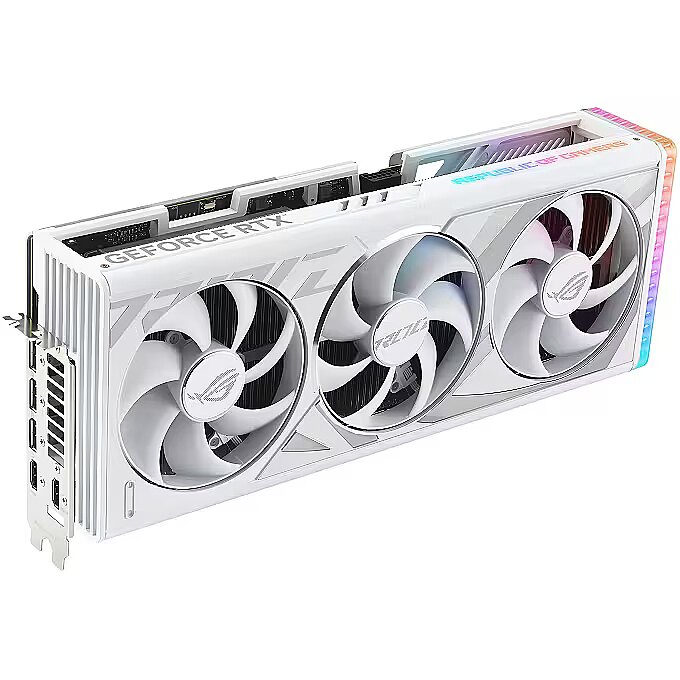

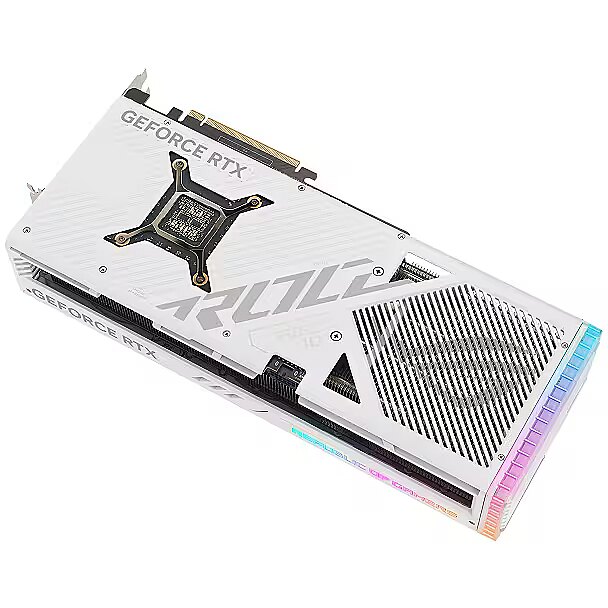

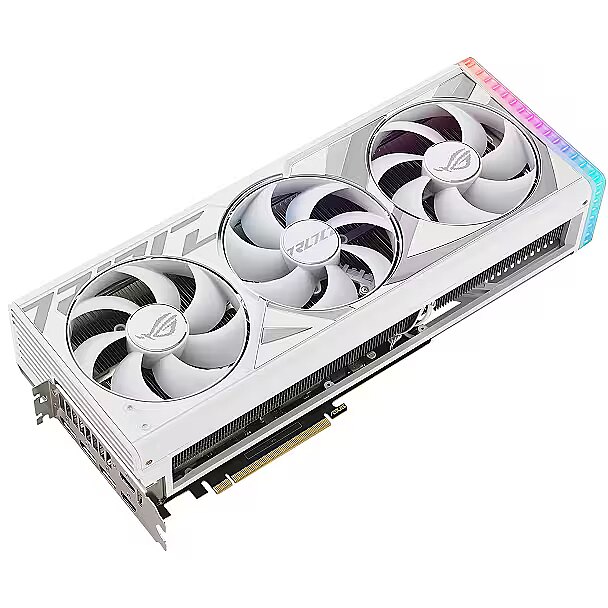

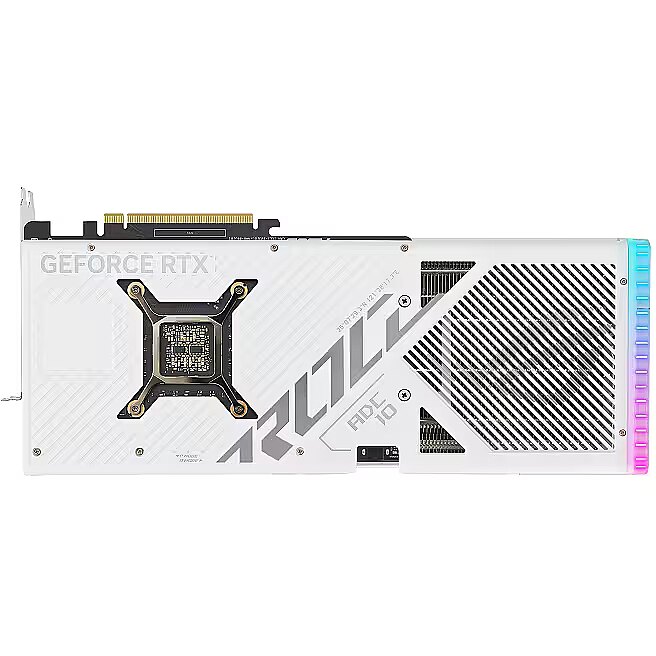

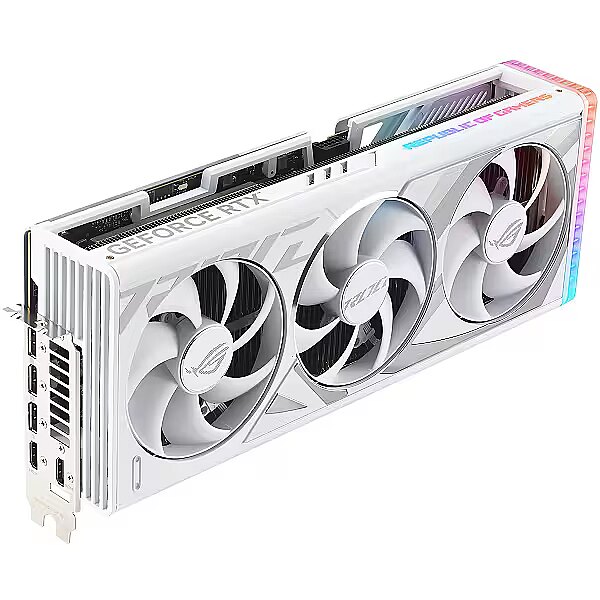

Description - ROG Strix GeForce RTX™ 4080 SUPER 16GB GDDR6X White OC Edition ROG Strix GeForce RTX™ 4080 SUPER 16GB GDDR6X White OC Edition with DLSS 3 and chart-topping thermal performance. Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering 3rd Generation RT Cores: Up to 2x ray tracing performance OC mode: 2670 MHz (OC mode)/ 2640 MHz (Default mode) Axial-tech fans scaled up for 23% more airflow New patented vapor chamber with milled heatspreader for lower GPU temps 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation Digital power control with high-current power stages and 15K capacitors to fuel maximum performance Auto-Extreme precision automated manufacturing for higher reliability GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Number of slots - 3.5
Design - Product colour - White
dimensionalWeight - 2511
Dimensions - 357.6 x 149.3 x 70.1mm
DisplayPort Input/Output connectors - 2
ean - 4711387451168
EAN - 4711387451168
Eans - 4711387451168
Full Description Line - NVIDIA GeForce RTX 4080|Graphics memory size 16 GB|GDDR6X|256 bit|PCIE 4.0 16x|Memory CLK 23 Gbps|GPU boost clock 2640 MHz|7680x4320|Cooling Triple slot Fansink|2xHDMI|2xDisplayPort|Included Accessories 1 x Collection Card1 x Speedsetup Manual1 x Adapter Cable (1 to 3)1 x ROG Graphics Card Holder1 x ROG Velcro Hook & Loop1 x Thank you Card
GPU boost clock - 2640 MHz
Graphic card features - HDCP/Overclock Edition
Graphics connector - PCIE 4.0 16x
Graphics memory size - 16 GB
Graphics memory type - GDDR6X
GTIN - 4711387451168
HDMI Input/Output connectors - 2

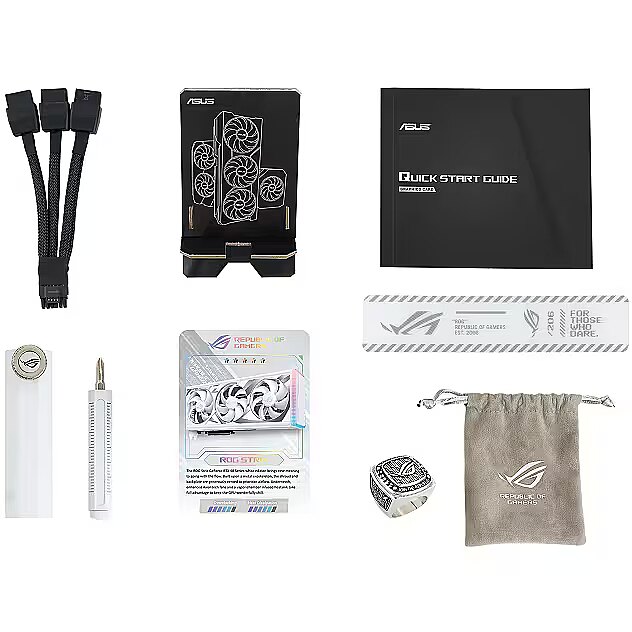

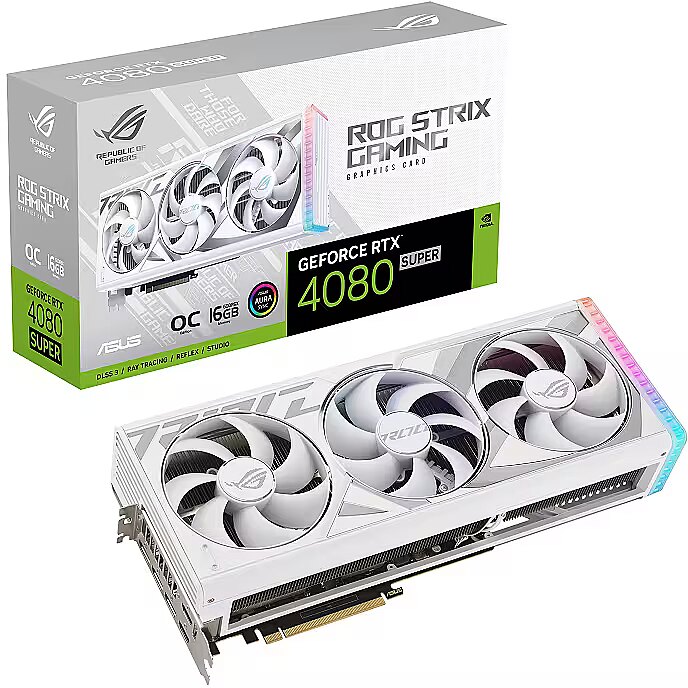

Included Accessories -
1 x Collection Card
1 x Speedsetup Manual
1 x Adapter Cable (1 to 3)
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook & Loop
1 x Thank you Card
LongDesc - FLOW TO VICTORY...WITH THE INCREDIBLE SUM OF ITS PARTSThe ROG Strix GeForce RTX™ 4080 SUPER brings a whole new meaning to going with the flow.Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.The unleashed reign of the NVIDIA Ada Lovelace architecture is here.Axial-tech UpgradesA Fresh SpinBigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.Reverse Rotation and 0dB TechnologyOrchestrated ChillThe two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55°C, referencing a speed curve that balances performance and acoustics for work or play.3.5-slot DesignThrough Thick and FinThe custom sink is generously sized and structured to soak up heat from the GeForce RTX 4080 SUPER GPU so that it can be efficiently whisked away by the three Axial-tech fans.Patented Vapor ChamberPhase ChangerA vapor chamber featuring milled pathways lets the heatpipes sink in without being pressed flat, allowing heat to be carried more efficiently to the fin stack. In comparison to conventional vapor chamber and heatpipe combos, this potent pairing reduces GPU temperature by up to 5 Celsius when subjected to a 500W thermal load.Premium Power Delivery1st ResponderDigital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.Compact PCBPacks a PunchComponent and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.Metal ExoskeletonUltra-rigidA high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow.GO WITH THE FLOWIt all comes together to effortlessly drive GeForce RTX™ 4080 SUPER performance to the max.FanConnect IIHook upTwo PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.ReinforcementsAdditional PerksA GPU bracket provides extra stability to the critical connection between die and heat spreader. The rear I/O bracket is made from stainless steel to prevent corrosion in humid climates and provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.Power SensingQuick DiagnosisKnow if your PSU is worthy. ROG Strix GeForce RTX 4080 SUPER graphics cards feature a high-speed circuit that constantly monitors input power from the PSU and utilizes conveniently placed LEDs to indicate voltage regulation issues and cable connection problems.Auto-Extreme TechnologyReliability BoostAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.Aura SyncSymphony of LightAura-compatible ARGB lighting elements on the shroud and rightmost perimeter of the card provide endless possibilities for personalization with color or functional effects. Pair up with a vast range of compatible system components and coordinate the glow to create a build that’s uniquely you.Graphics Card HolderPillar of SupportThe bundled graphics card holder banishes sag and also contains a screwdriver to help you build.SoftwareGPU Tweak IIIASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.QuantumCloudQuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!NVIDIA DLSS 3Max FPS. Max Quality. Powered by AI.DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.Further With AI,Faster on RTXGet next-level AI performance on GeForce RTX.Discover the RTX AI advantage. Built for the era of AI, GeForce RTX™ GPUs feature specialized AI Tensor Cores that deliver cutting-edge performance and revolutionary capabilities. From enhanced creativity and ultra-efficient productivity to blisteringly fast gaming, the ultimate in AI power on Windows PCs is on RTX.
LongProductName - ROG Strix GeForce RTX 4080 SUPER 16GB GDDR6X White OC Edition with DLSS 3 and chart-topping thermal performance.
LongSummaryDescription - ASUS ROG -STRIX-RTX4080S-O16G-WHITE. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4080 SUPER. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6X, Memory bus: 256 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s), Illumination colour: Multi
Manufacturer - ASUS
Max resolution - 7680x4320
Memory - Data transfer rate - 23 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bus - 256 bit
Memory bus - 256 bit
Memory CLK - 23 Gbps
Model - ROG-STRIX-RTX4080S-O16G-WHITE
MPN - 90YV0KB2-M0NA00
name - ASUS GeForce RTX 4080 Super ROG Strix O16G White, 16384 MB GDDR6X
Name - ASUS GeForce RTX 4080 SUPER ROG STRIX OC WHITE 16GB DLSS 3
Name - RTX 4080 Super 16GB ASUS ROG Strix OC White GDDR6X 3Fan ROG-STRIX-RTX4080S-O16G-WHITE
Packaging data - Package type - Box
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NVIDIA Ansel - Yes
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No

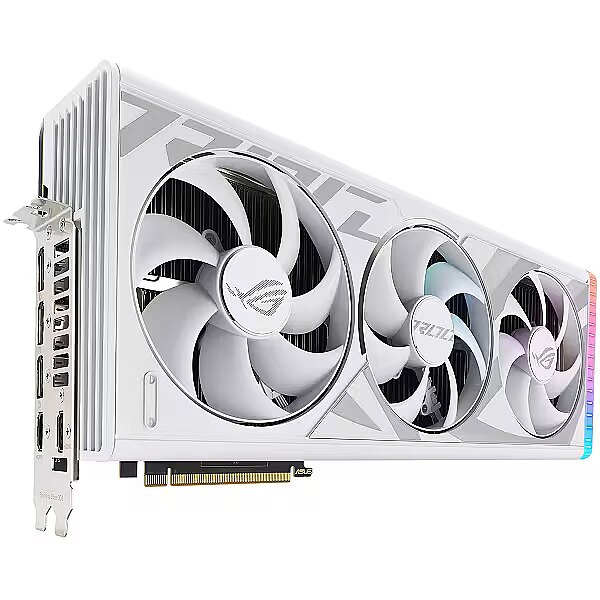

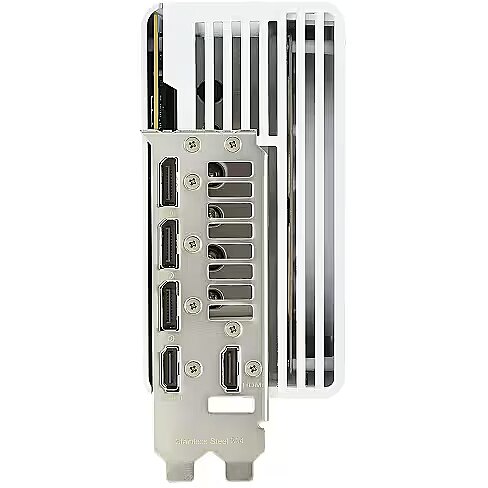

Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 850 W
Power - Supplementary power connectors - 1x 16-pin
Power connectors - 16 pin
Processor - CUDA - Yes
Processor - CUDA cores - 10420
Processor - Graphics processor - GeForce RTX 4080 SUPER
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2640 MHz
Processor - Processor frequency (OC mode) - 2670 MHz
Producer - Asus
producerCode - 90YV0KB2-M0NA00
ProducerCode - ROG-STRIX-RTX4080S-O16G-WHITE
productName - ASUS ROG -STRIX-RTX4080S-O16G-WHITE NVIDIA GeForce RTX 4080 SUPER 16 GB GDDR6X
ProductName - ROG-STRIX-RTX4080S-O16G-WHITE
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 53 cm
Shipping Box Height Shipping/Package Box Dimensions - 26 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 16.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 44 cm
ShortDescription - Chipset NVIDIA RTX 4080 SUPER | 16GB
ShortSummaryDescription - ASUS ROG -STRIX-RTX4080S-O16G-WHITE, GeForce RTX 4080 SUPER, 16 GB, GDDR6X, 256 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 420
sizeY - 230
sizeZ - 130
Title - ASUS ROG -STRIX-RTX4080S-O16G-WHITE NVIDIA GeForce RTX 4080 SUPER 16 GB GDDR6X
Unit Box Height - 0.23
Unit Box Length - 0.125
Unit Box Width - 0.425
Unit Brutto Volume - 0.01516 cubm
Unit Gross Weight - 4.03 kg
Unit Net Weight - 2 kg
URL - https://rog.asus.com/graphics-cards/graphics-cards/rog-strix/rog-strix-rtx4080s-o16g-white/
Vendor Homepage - rog.asus.com/graphics-cards/graphics-cards/rog-strix/rog-strix-rtx4080s-o16g-white/
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 3.64
weight - 3700
Weight & dimensions - Depth - 70.1 mm
Weight & dimensions - Depth - 357.6 mm
Weight & dimensions - Height - 70.1 mm
Weight & dimensions - Height - 149.3 mm
Weight & dimensions - Length - 357.6 mm
Weight & dimensions - Width - 149.3 mm
