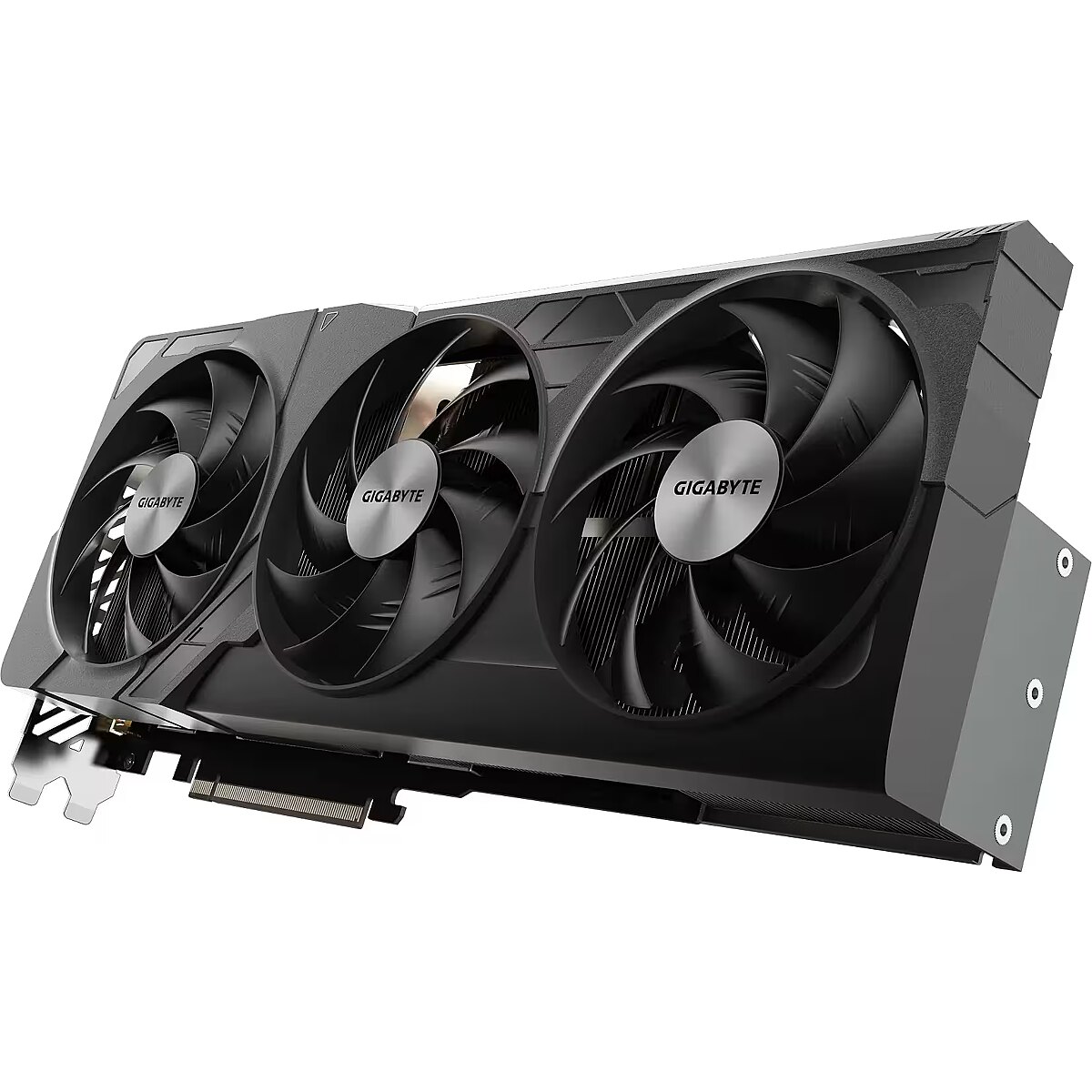

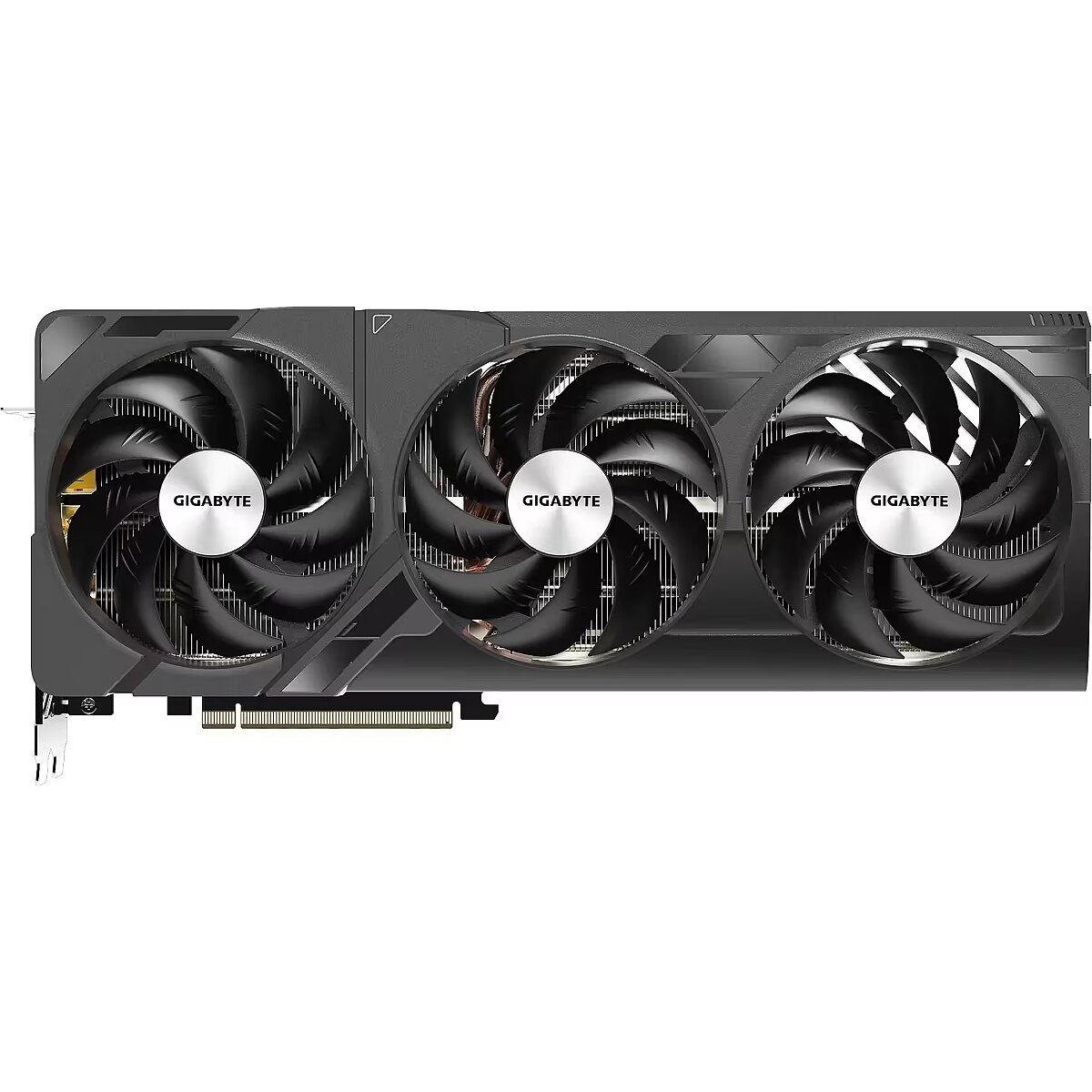

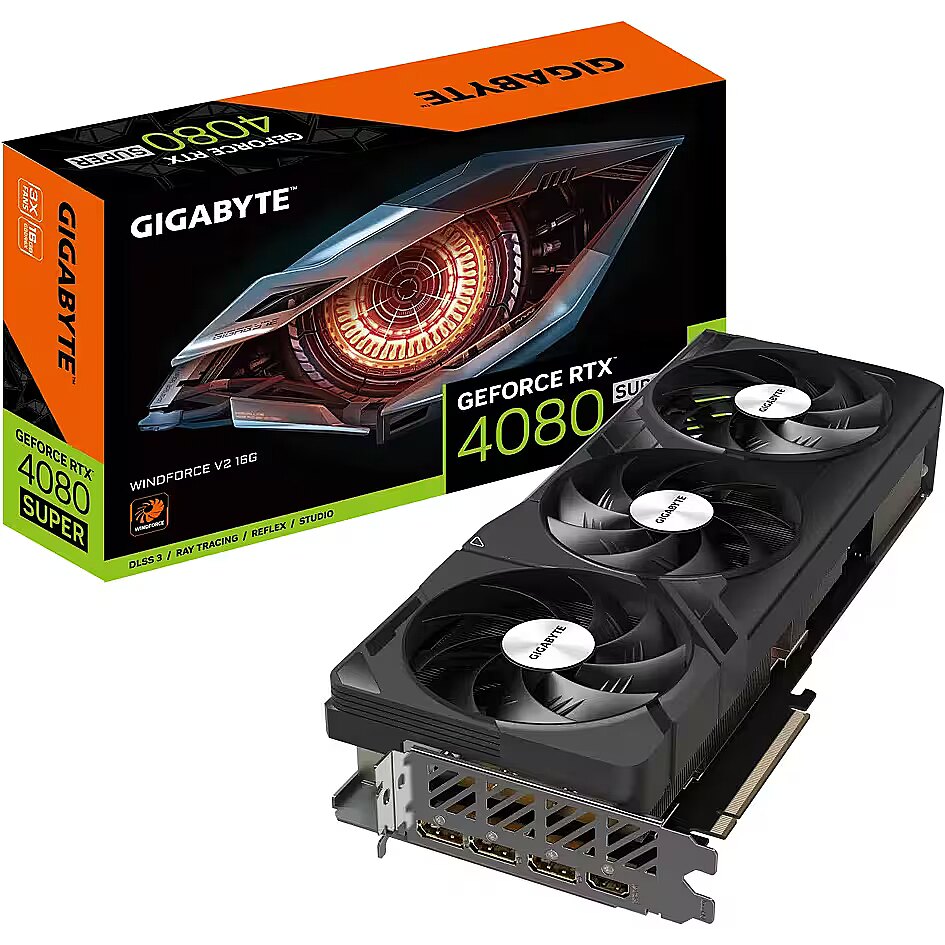

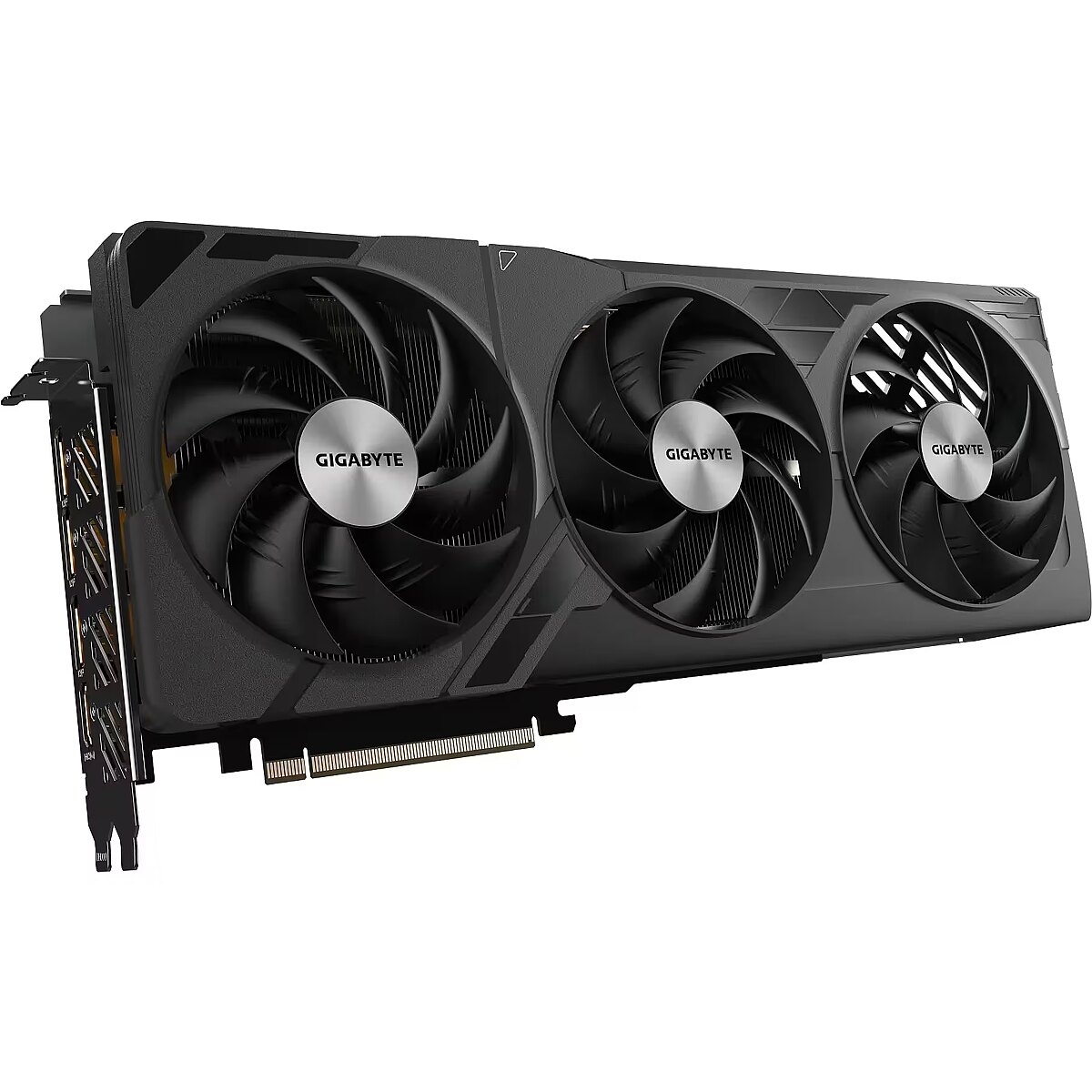

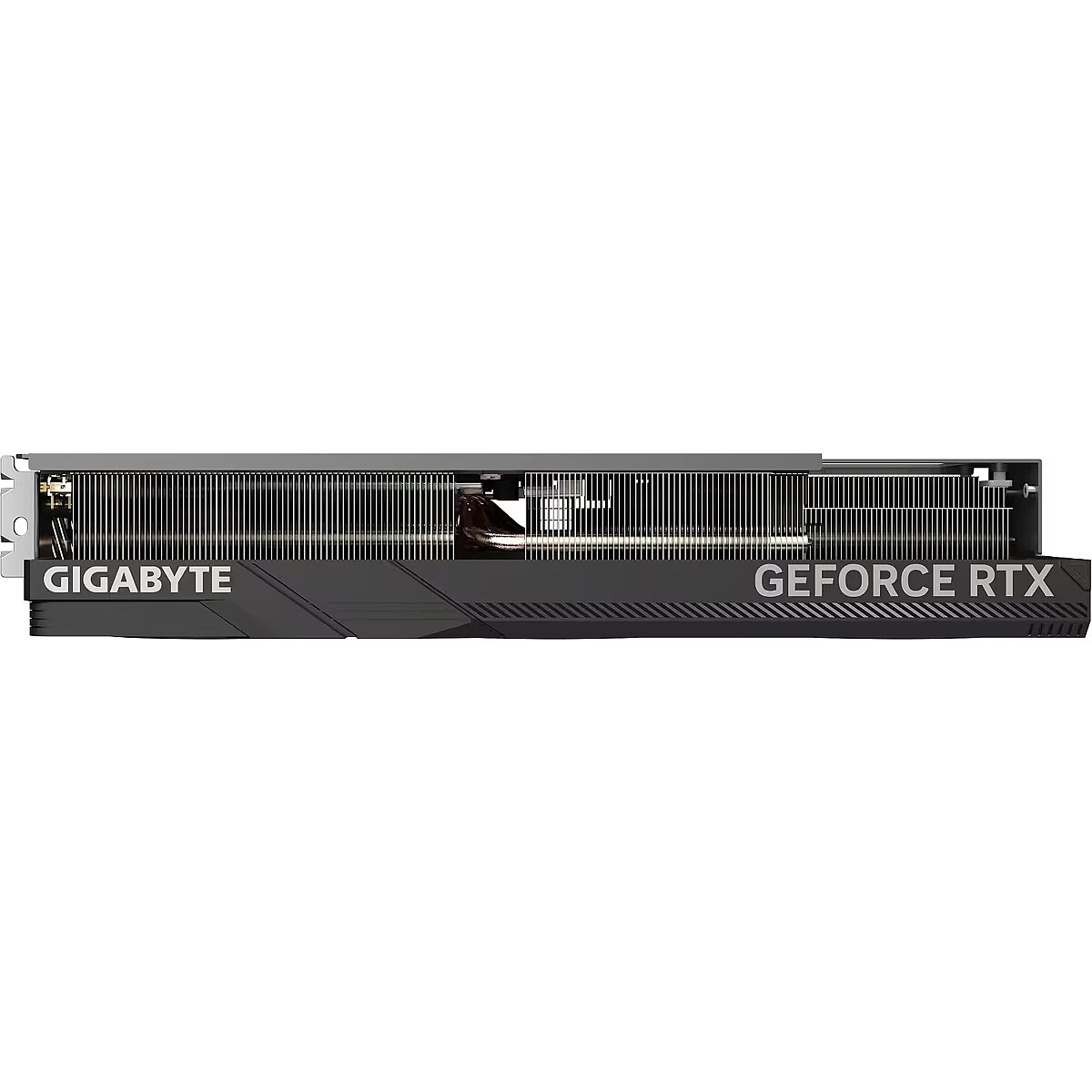

Gigabyte GeForce RTX 4080 SUPER, 16GB GDDR6X, Windforce V2 (DLSS 3)

Accessories included - A quick guide Bracket to prevent sagging Anti-sag bracket installation instructions One 16-pin to triple 8-pin power supply
Brand - GIGABYTE
BrandPartCode - GV-N408SWF3V2-16GD
Card's length - > 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Chipset - GeForce RTX 4080 SUPER
Chipset - NVIDIA GeForce RTX 4080 SUPER
Chipset manufacturer - NVIDIA
code - GV-N408SWF3V2-16GD
Code - GV-N408SWF3V2-16GD 1.0
Cooling - Active
Cooling system - Triple slot Heatpipe
Core frequency - 2550 MHz
CUDA Core - 10240
CUDA Cores - 10240

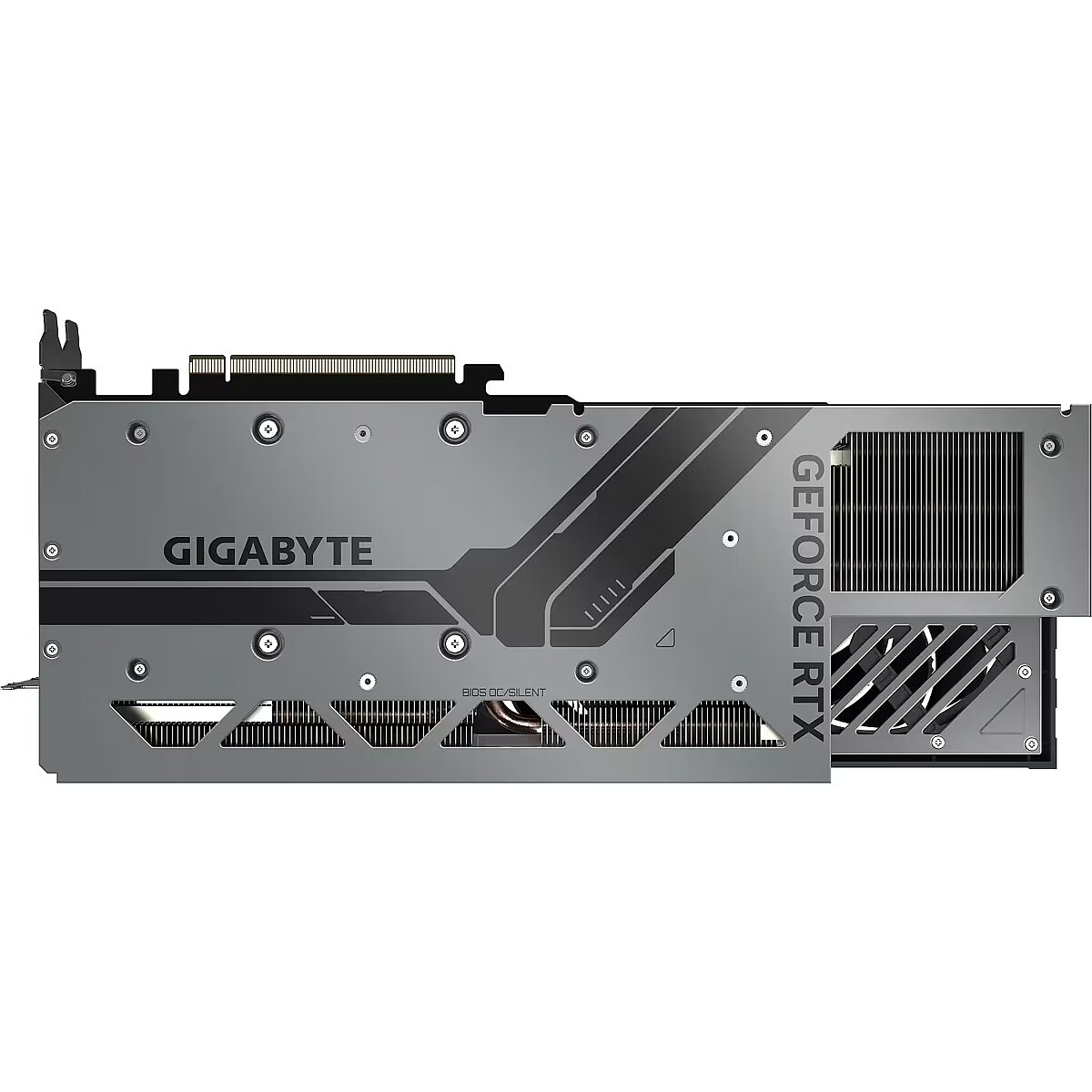

Description - GeForce RTX™ 4080 SUPER WINDFORCE V2 16G - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing - 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - Powered by GeForce RTX™ 4080 SUPER - Integrated with 16GB GDDR6X 256-bit memory interface - WINDFORCE Cooling System - Dual BIOS - Protection metal back plate - Anti-sag bracket
Description - Supported NVIDIA DLSS 3, ultra-efficient Ada Lovelace arc and full ray tracing Fourth-generation Tensor cores: up to 4X faster performance with DLSS 3 rendering compared to brute-force rendering Third-generation RT cores: up to 2X ray tracing performance Powered by GeForce RTX 4080 SUPER Integrated with 16 GB GDDR6X 256-bit memory interface WINDFORCE cooling system Dual BIOS Protective metal backplate Anti-sag bracket
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
dimensionalWeight - 1713
dimension depth - 405 mm
dimension height - 240 mm
Dimensions - 330 x 136 x 58 mm
dimension weight - 1700 g
dimension width - 95 mm
DisplayPort Input/Output connectors - 3
EAN - 4719331354220
ean - 4719331354220
Eans - 4719331354220
Full Description Line - NVIDIA GeForce RTX 4080 SUPER|Graphics memory size 16 GB|GDDR6X|256 bit|PCIE 4.0 16x|Memory CLK 23 Gbps|GPU clock 2550 MHz|7680x4320|Cooling Triple slot Heatpipe|1xHDMI|3xDisplayPort|Included Accessories 1. Quick guide2. Anti-sag bracket3. Anti-sag bracket installation guide4. One 16 pin to triple 8-pin power adaptor
GPU clock - 2550 MHz
Graphic card features - Gaming
Graphics card connector - PCI-E 16x ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 16 GB
Graphics memory type - GDDR6X
Gross Weight Kg - 2,11
GTIN - 0889523041697
GTIN - 889523041697
GTIN - 4719331354220
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - 1. Quick guide
2. Anti-sag bracket
3. Anti-sag bracket installation guide
4. One 16 pin to triple 8-pin power adaptor
LongDesc - WINDFORCECOOLING SYSTEMThe WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.SMOOTH AIRFLOWGIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.LARGE COPPER PLATE & HEAT-PIPEThe large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.DUAL BIOSThe factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.PROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.ANTI-SAG BRACKETThe new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.ULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.Power Through The GameGIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - NVIDIA GeForce RTX 4080 SUPER, 16GB GDDR6X, 256 bit, 23000MHz, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6
LongSummaryDescription - GIGABYTE GeForce RTX 4080 SUPER WINDFORCE V2 16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4080 SUPER, Processor frequency: 2550 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6X, Memory bus: 256 bit, Memory clock speed: 23000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - Gigabyte
Manufacturer Code - GV-N408SWF3V2-16GD
Manufacturer Name - Gigabyte
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bandwidth (max) - 23 GB/s
Memory - Memory bus - 256 bit
Memory - Memory clock speed - 23000 MHz
Memory bus - 256 bit
Memory bus - 256-bit
Memory CLK - 23 Gbps
Memory frequency - 23 Gbps
Memory type - DDR6X
Model - GV-N408SWF3V2-16GD
MPN - GV-N408SWF3V2-16GD
Name - Gigabyte GeForce RTX 4080 SUPER WINDFORCE OC V2 16GB DLSS 3
name - GIGABYTE GeForce RTX 4080 Super Windforce V2, 16384 MB GDDR6X
Name - GIGABYTE GV-N408SWF3V2-16GD 1.0 | Gigabyte
Name - RTX 4080 Super 16GB Gigabyte Windforce V2 GDDR6X 3Fan
name - RTX 4080 SUPER WINDFORC E V2 16GB GDDR6X 256bit
Other features - Maximum digital resolution 7680x4320 ATX PCB form Recommended 750W power supply Power connectors 16 pins*1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 330.00 mm
Package features > Gross height (mm) - 58.00 mm
Package features > Gross width (mm) - 136.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 332 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging data - Package depth - 398 mm
Packaging data - Package height - 85 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.11 kg
Packaging data - Package width - 230 mm
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 1x 16-pin
Power connectors - 16 pin
Power consumption - 750 Watts
Processor - CUDA - Yes
Processor - Graphics processor - GeForce RTX 4080 SUPER
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 2550 MHz
producer - Gigabyte
Producer - Gigabyte
producerCode - GV-N408SWF3V2-16GD
ProducerCode - GV-N408SWF3V2-16GD
ProductName - GeForce RTX 4080 SUPER WINDFORCE V2 16G
productName - GIGABYTE GeForce RTX 4080 SUPER WINDFORCE V2 16G NVIDIA 16 GB GDDR6X
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 49.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 43.5 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 21 kg
Shipping Box Width Shipping/Package Box Dimensions - 47.5 cm
ShortDescription - Chipset NVIDIA RTX 4080 SUPER | 16GB
Short description - GIGA VGA 16GB RTX4080 SUPER WINDFORCE V2 3xDP/HDMI GeForce RTX 4080 SUPER WINDFORCE V2
ShortSummaryDescription - GIGABYTE GeForce RTX 4080 SUPER WINDFORCE V2 16G, GeForce RTX 4080 SUPER, 16 GB, GDDR6X, 256 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 405
sizeY - 90
sizeZ - 235
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Technical details > Gross weight - 2.10 kg
Technical details > Net weight - 2.00 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE GeForce RTX 4080 SUPER WINDFORCE V2 16G NVIDIA 16 GB GDDR6X
Unit Box Height - 0.09
Unit Box Length - 0.405
Unit Box Width - 0.235
Unit Brutto Volume - 0.01023 cubm
Unit Gross Weight - 3 kg
Unit Net Weight - 2.1 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N408SWF3V2-16GD#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N408SWF3V2-16GD#kf
vendpn - GV-N408SWF3V2-16GD
Version - Box

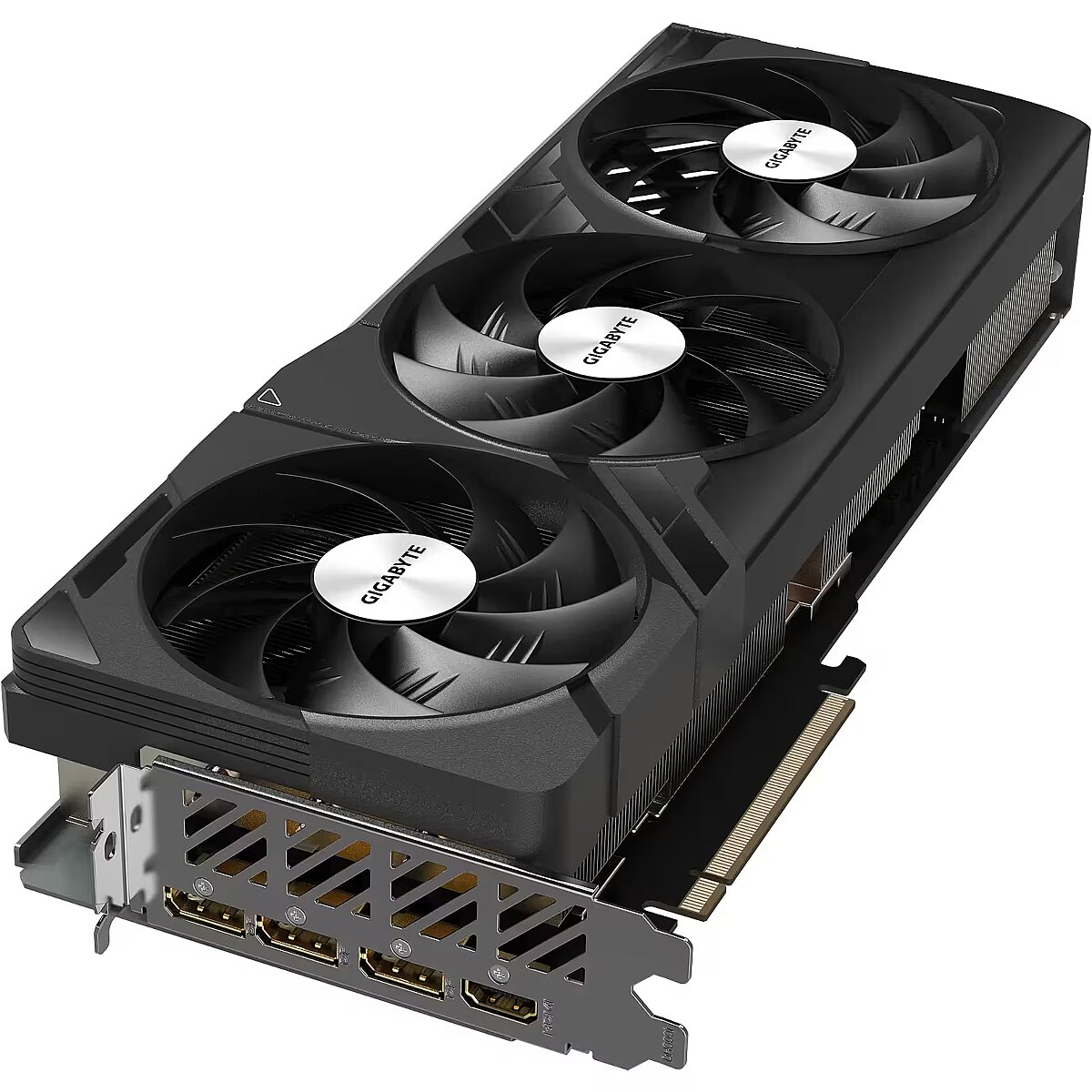

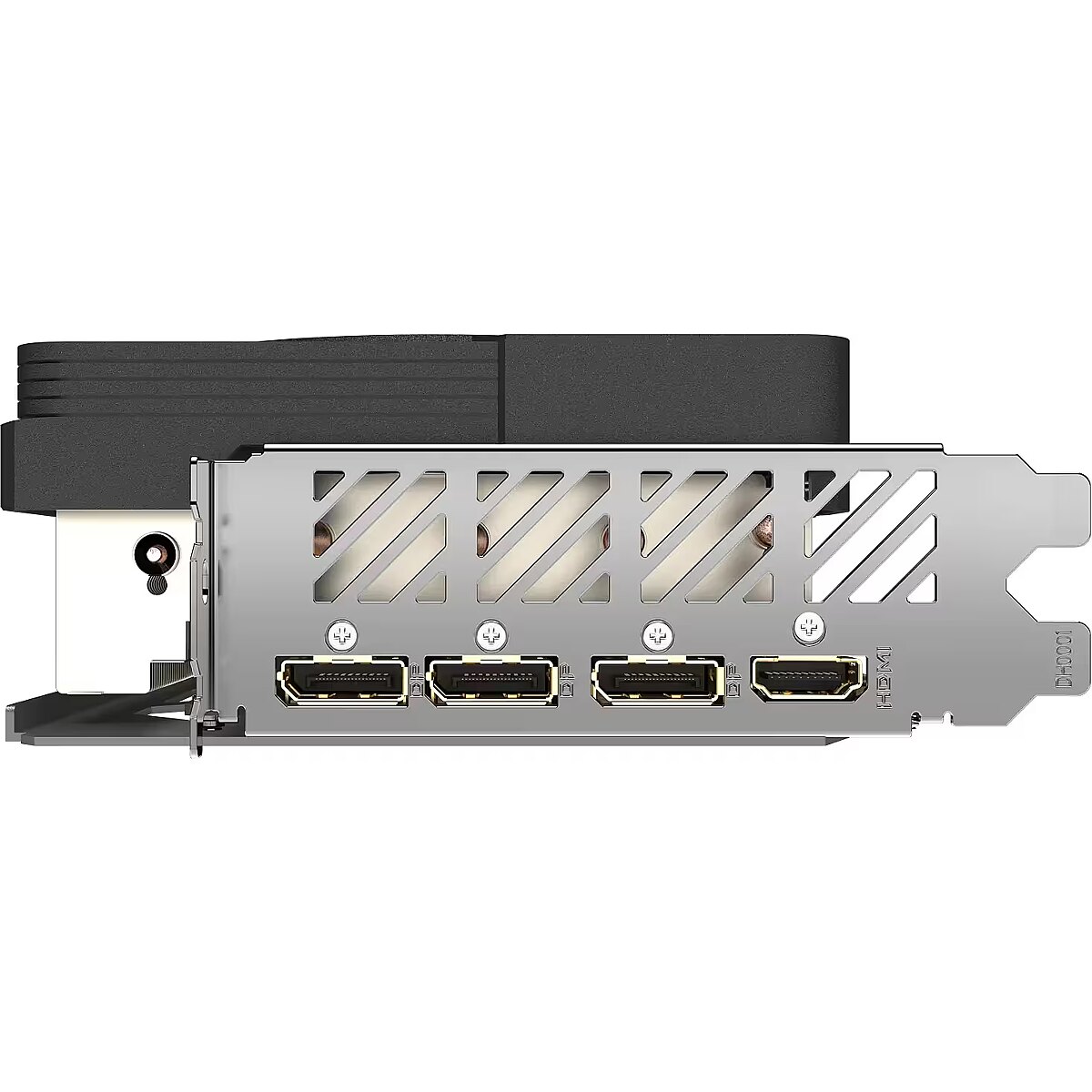

Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 16 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 Years
warrantyLength - 36
warrantyType - G
Weight - 1.98
weight - 1950
Weight & dimensions - Depth - 58 mm
Weight & dimensions - Depth - 330 mm
Weight & dimensions - Height - 58 mm
Weight & dimensions - Height - 136 mm
Weight & dimensions - Weight - 1.36 kg
Weight & dimensions - Width - 136 mm
