Accessories included - A quick guide Warranty registration Bracket to prevent sagging Anti-sag bracket installation instructions One 16-pin power supply for three 8-pin ones AORUS metal sticker
Brand - GIGABYTE
BrandPartCode - GV-N407TSAORUS M-16GD
Card's length - > 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA
Category - Root/Electronics/PC parts/Graphic cards
Category Code - VGP
Chipset - GeForce RTX 4070 Ti SUPER
Chipset - NVIDIA GeForce RTX 4070 Ti SUPER
Chipset manufacturer - NVIDIA
code - GV-N407TSAORUS M-16GD
Code - GV-N407TSAORUS M-16GD 1.0
Cooling - Active
Cooling system - Triple slot Fansink
CUDA Cores - 8448

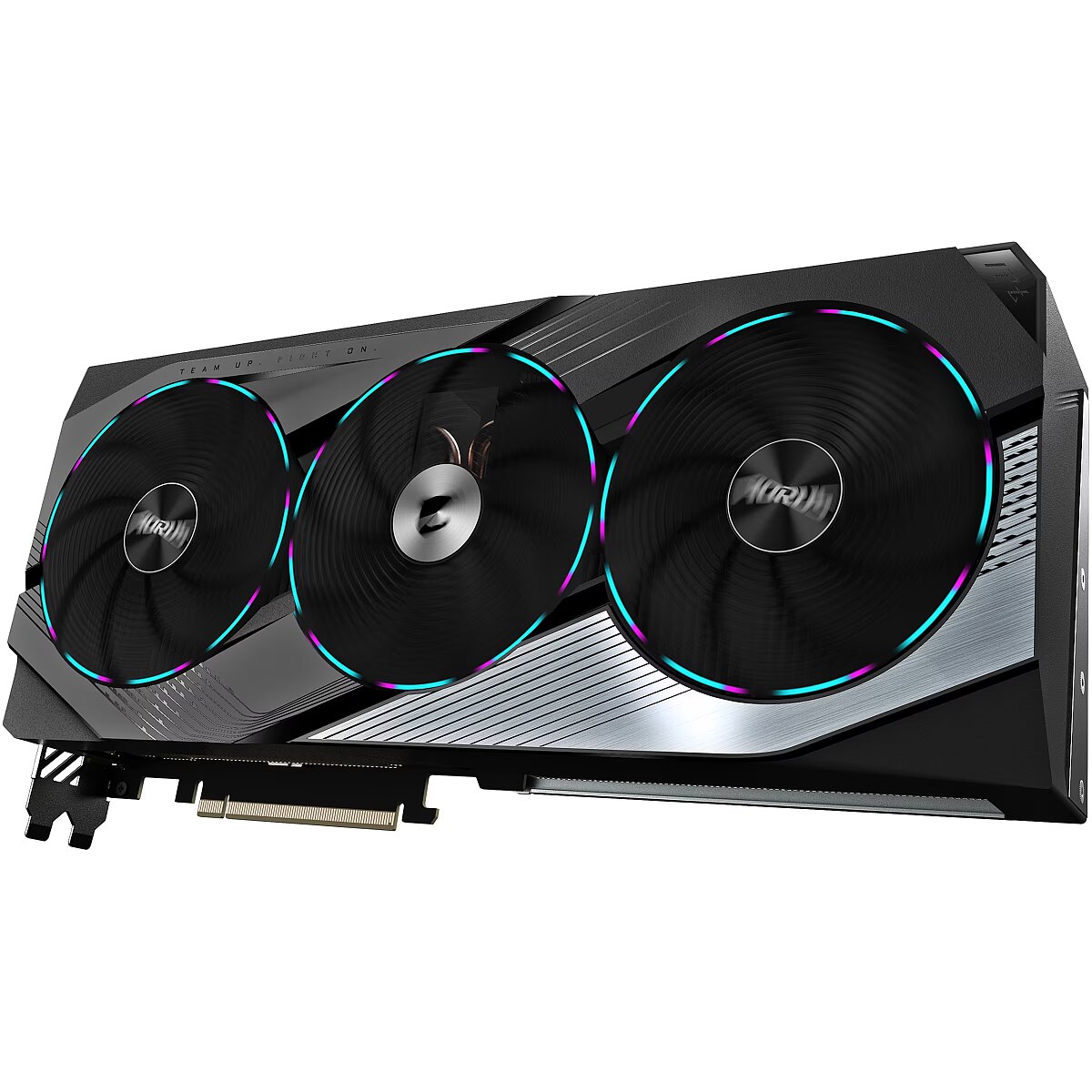

Description - AORUS GeForce RTX™ 4070 Ti SUPER MASTER 16G GV-N407TSAORUS M-16GD - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing - 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - Powered by GeForce RTX™ 4070 Ti SUPER - Integrated with 16GB GDDR6X 256bit memory interface - WINDFORCE cooling system - RGB Fusion - Dual BIOS - Protection metal back plate - Anti-sag bracket - 4 Years Warranty (Online registration required) CORE CLOCK - 2670 MHz (Reference card: 2610 MHz)
Description - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace Arc and full ray tracing 4th Gen Tensor Cores: Up to 4x faster performance with DLSS 3 rendering compared to brute-force rendering 3rd Gen RT Cores: Up to 2X ray tracing performance Powered by the GeForce RTX 4070 Ti SUPER card Integrated with 16GB GDDR6X 256bit memory interface WINDFORCE cooling system RGB fusion Dual BIOS Metal back plate for protection Bracket to prevent sagging 4-year warranty (online registration required)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
dimension depth - 130 mm
dimension height - 460 mm
Dimensions - 342 x 153 x 70.6 mm
dimension weight - 2578 g
dimension width - 280 mm
DisplayPort Input/Output connectors - 3
EAN - 4719331354084
ean - 4719331354084
Eans - 4719331354084
Full Description Line - NVIDIA GeForce RTX 4070 Ti SUPER|Graphics memory size 16 GB|GDDR6X|256 bit|PCIE 4.0 16x|Memory CLK 21 Gbps|GPU clock 2670 MHz|7680x4320|Cooling Triple slot Fansink|1xHDMI|3xDisplayPort|Included Accessories 1. Quick guide2. Warranty registration3. Anti-sag bracket4. Anti-sag bracket installation guide5. One 16-pin to three 8-pin power adaptor6. AORUS Metal sticker
GPU clock - 2670 MHz
Graphics card connector - PCI-E ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 16 GB
Graphics memory type - GDDR6X
Gross Weight Kg - 2,96
GTIN - 4719331354084
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - 1. Quick guide
2. Warranty registration
3. Anti-sag bracket
4. Anti-sag bracket installation guide
5. One 16-pin to three 8-pin power adaptor
6. AORUS Metal sticker
Link - https://www.gigabyte.com/Graphics-Card/GV-N407TSAORUS-M-16GD#kf
LongDesc - WINDFORCE COOLING SYSTEMTHE EVOLVING POWER OF WINDFORCEThe WINDFORCE cooling system features three 108mm newly designed bionic shark fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.COOLING, UPSCALED.AORUS BIONIC FAN TECHThe sharks’ dermal denticles surrounding their body grant them significant advantages in fluid dynamics. Now AORUS features new Bionic Fan Tech that mimics the scale micro-surfacing and efficiently increases airflow by reducing micro turbulence.DOUBLE BALL BEARINGThe double ball bearing structure has better heat endurance and efficiency than sleeve structure.DIRECTLY.SO FAST.LARGE VAPOR CHAMBER & HEAT-PIPEThe large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.THE OTHER WAY AROUND.ALTERNATE SPINNINGEach fan rotates in different direction to the adjacent one. This special mechanism reduces turbulence and increases air pressure by minimizing the offset occurred between airflows.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.CHANNELED AIRFLOW.ANGULAR FIN DESIGNThe angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.MAKE ROOM FOR THE AIRFLOW.SCREEN COOLINGTo create more space for airflow to pass through, the heatsink extends over the PCB and therefore increase the ventilation. This Screen Cooling design provides better heat dissipation.RGB FUSIONThe legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .DUAL BIOSThe factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.PROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.ANTI-SAG BRACKETThe new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.POWER INDICATORWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.EXTREME OVERCLOCKINGThe graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.ULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.4-YEAR WARRANTYWe want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.POWER THROUGH THE GAMEGIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - NVIDIA GeForce RTX 4070 Ti SUPER, 16GB GDDR6X, 256 bit, 21000MHz, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6
LongSummaryDescription - GIGABYTE AORUS GeForce RTX 4070 Ti SUPER MASTER 16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070 Ti SUPER. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6X, Memory bus: 256 bit, Memory clock speed: 21000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer Code - GV-N407TSAORUS M-16GD
Manufacturer Name - Gigabyte
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bandwidth (max) - 21 GB/s
Memory - Memory bus - 256 bit
Memory - Memory clock speed - 21000 MHz
Memory > Discrete graphics adapter memory - 16 GB
Memory > Graphics adapter memory type - GDDR6X
Memory > Memory clock speed - 2670 MHz
Memory bus - 256 bit
Memory bus - 256-bit
Memory CLK - 21 Gbps
Memory frequency - 21 Gbps
Memory type - DDR6X
Model - GV-N407TSAORUS M-16GD
name - GIGABYTE Aorus GeForce RTX 4070 Ti Super Master 16G, 16384 MB GDDR6X
Name - Gigabyte GeForce RTX 4070 Ti SUPER AORUS MASTER 16GB DLSS 3
Name - GIGABYTE GV-N407TSAORUS M-16GD 1.0 | Gigabyte | AORUS GeForce RTX 4070 Ti SUPER MASTER 16G - graphics card - GeForce RTX 4070 Ti Super - 16 GB | NVIDIA | 16 GB | GeForce RTX 4070 Ti SUPER | GDDR6X | HDMI ports quantity 1 | PCI Express 4.0 | Memory clock speed 2670 MHz
name - Graphics card RTX 4070 Ti SUPER MASTER 16G GDDR6X 256bit 3DP
Other features - Core clock speed TBD CUDA Cores TBD Maximum digital resolution 7680x4320 Multi-monitor 4 ATX PCB size Recommended PSU power supply: 750W Power Connectors 16 pin *1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 330.00 mm
Package features > Gross height (mm) - 58.00 mm
Package features > Gross width (mm) - 136.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 332 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging data - Package depth - 454 mm
Packaging data - Package height - 110 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.96 kg
Packaging data - Package width - 273 mm
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI Express 4.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 1x 16-pin
Power connectors - 16 pin
Processor - CUDA - Yes
Processor - Graphics processor - GeForce RTX 4070 Ti SUPER
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor > Graphics processor - GeForce RTX 4070 Ti SUPER
Processor > Graphics processor family - NVIDIA
producer - Gigabyte
Producer - Gigabyte
ProducerCode - GV-N407TSAORUS M-16GD
Producer product name - AORUS GeForce RTX 4070 Ti SUPER MASTER 16G - graphics card - GeForce RTX 4070 Ti Super - 16 GB
ProductName - AORUS GeForce RTX 4070 Ti SUPER MASTER 16G
Shipping Box Depth Shipping/Package Box Dimensions - 65 cm
Shipping Box Height Shipping/Package Box Dimensions - 50 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 15 kg
Shipping Box Width Shipping/Package Box Dimensions - 33 cm
ShortDescription - Chipset NVIDIA RTX 4070 Ti SUPER | 16GB
Short description - GIGA VGA 16GB RTX4070Ti SUPER AORUS MASTER 16G 3xDP/HDMI AORUS GeForce RTX 4070 Ti SUPER MASTER 16G
ShortSummaryDescription - GIGABYTE AORUS GeForce RTX 4070 Ti SUPER MASTER 16G, GeForce RTX 4070 Ti SUPER, 16 GB, GDDR6X, 256 bit, 7680 x 4320 pixels, PCI Express 4.0
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Technical details > Gross weight - 2.10 kg
Technical details > Net weight - 2.00 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE AORUS GeForce RTX 4070 Ti SUPER MASTER 16G NVIDIA 16 GB GDDR6X
Unit Box Height - 0.12
Unit Box Length - 0.465
Unit Box Width - 0.28
Unit Brutto Volume - 0.02145 cubm
Unit Gross Weight - 3 kg
Unit Net Weight - 1.5 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N407TSAORUS-M-16GD#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N407TSAORUS-M-16GD#kf
vendpn - GV-N407TSAORUS M-16GD
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 16 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3+1 Year (Registration required within 30 days)
Weight & dimensions - Depth - 70.6 mm
Weight & dimensions - Height - 153 mm
Weight & dimensions - Length - 342 mm
