Brand - ASUS
BrandPartCode - 90YV0ID7-M0NM00
Category - Graphics Cards
Design - Bracket height - Full-Height (FH)
Design - Cooling type - Hybrid/All-in-one
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Illumination colour - Multi
Design - Number of fans - 3 fan(s)
Design - Number of slots - 2.5
Design - Product colour - Black
GTIN - 4711387329467

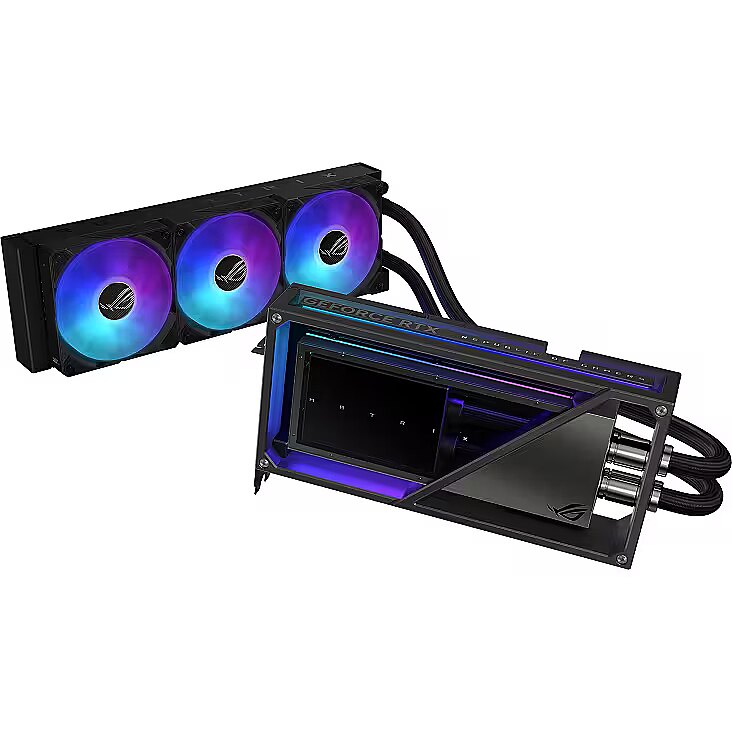

LongDesc - ROG Matrix GeForce RTX™ 4090The ROG Matrix GeForce RTX™ 4090 delivers absolute pinnacle performance while maintaining quiet thermal operation, via liquid metal thermal compound on the GPU die, a premium 360 mm AIO cooler and a stunning hollow metal frame design.BREAKTHROUGH METALLURGYThe Matrix GeForce RTX 4090 features a metal frame design with a semi-hollow chamber where the main coldplate, PCB and pump shroud are protected by a larger aluminum body. Aura Sync lighting effects pair with this distinctively minimalist exoskeleton to deliver a modern style that you won’t find anywhere else.LIQUID METAL GPU COOLINGHarness the incredible thermal efficiency of liquid metal on the GPU die to achieve breakthrough performance. With an exclusive production method that securely limits the liquid to the die area, this graphics card can be mounted in any orientation.Harness the incredible thermal efficiency of liquid metal on the GPU die to achieve breakthrough performance. With an exclusive production method that securely limits the liquid to the die area, this graphics card can be mounted in any orientation.LARGER COPPER PLATEThe full-coverage copper coldplate covers all the heat producing components on the PCB, allowing the radiator to efficiently dissipate the heat without the need for an additional fan and result in quieter operation.POWERFUL PUMPA customized and powerful pump optimized for water flow, feeding ample coolant through 700 mm of tubing to the radiator to maximize cooling on the die, keeping the ROG Matrix GeForce RTX 4090 running at peak efficiency.360 MM RADIATORAn extra-thick 360 mm radiator combines forces with a trio of high-end fans to ensure excellent heat dissipation.DAISY-CHAINABLE FANSThe daisy-chainable fans snap together with a magnetic connector that links the fans and transmits control signals and power, making installation and cable management a breeze.AURA SYNCWith indirect Aura ARGB lighting, the ROG Matrix provides endless possibilities for personalization with color or functional effects. Pair up with a vast range of compatible system components and coordinate the glow to create a build that’s uniquely you.CUSTOM SOFTWARE FOR EASY MONITORINGEmbedded sensors across the VRMs, chokes and memories collect data in the Thermal Map, empowering you to check real-time temperatures in each area and to easily adjust system settings for optimized performance.Power Detector+ can detect anomalies across any of the six power pins from the 12VHPWR cable. If a fault is detected, you’ll be notified immediately to reseat the power cable accordingly.The mileage feature tracks use at different power levels, so you can keep an eye on what kind of load you’ve used across multiple game sessions.FANCONNECT IITwo PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.PREMIUM POWER DELIVERYDigital power control, an array of high-current power stages and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.Auto−Extreme TechnologyAuto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.REINFORCEMENTSA GPU bracket provides extra stability to the critical connection between die and heat spreader. The rear I/O bracket is made from stainless steel to help prevent corrosion in humid climates and to provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.NVIDIA DLSS 3Max FPS. Max Quality. Powered by AI.DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.
LongProductName - 24 GB, GDDR6X, 384-bit, PCI Express 4.0, 2700 MHz OC mode clock, 2x HDMI, 3x DisplayPort, 1x 16-pin, ARGB
LongSummaryDescription - ASUS ROG Matrix - -RTX4090-P24G-GAMING. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4090, Processor frequency: 2670 MHz. Discrete graphics card memory: 24 GB, Graphics card memory type: GDDR6X, Memory bus: 384 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Hybrid/All-in-one, Number of fans: 3 fan(s), Illumination colour: Multi
Memory - Data transfer rate - 21 Gbit/s
Memory - Discrete graphics card memory - 24 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bus - 384 bit
Packaging content - Manual - Yes
Packaging data - Package type - Box
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NVIDIA Ansel - Yes
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Performance - Virtual Reality (VR) ready - Yes
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 1000 W
Power - Supplementary power connectors - 1x 16-pin
Processor - CUDA - Yes
Processor - CUDA cores - 16384
Processor - Graphics processor - GeForce RTX 4090
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 2670 MHz
Processor - Processor frequency (OC mode) - 2700 MHz
ProductName - ROG-MATRIX-RTX4090-P24G-GAMING
ShortSummaryDescription - ASUS ROG Matrix - -RTX4090-P24G-GAMING, GeForce RTX 4090, 24 GB, GDDR6X, 384 bit, 7680 x 4320 pixels, PCI Express 4.0
System requirements - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Title - ASUS ROG Matrix - -RTX4090-P24G-GAMING NVIDIA GeForce RTX 4090 24 GB GDDR6X
URL - https://rog.asus.com/graphics-cards/graphics-cards/rog-matrix/rog-matrix-rtx4090-p24g-gaming/
WarrantyInfo -
Weight & dimensions - Depth - 24.5 mm
Weight & dimensions - Height - 148.3 mm
Weight & dimensions - Length - 286.5 mm
Weight & dimensions - Radiator depth - 12 cm
Weight & dimensions - Radiator height - 6.5 cm
Weight & dimensions - Radiator width - 40 cm
