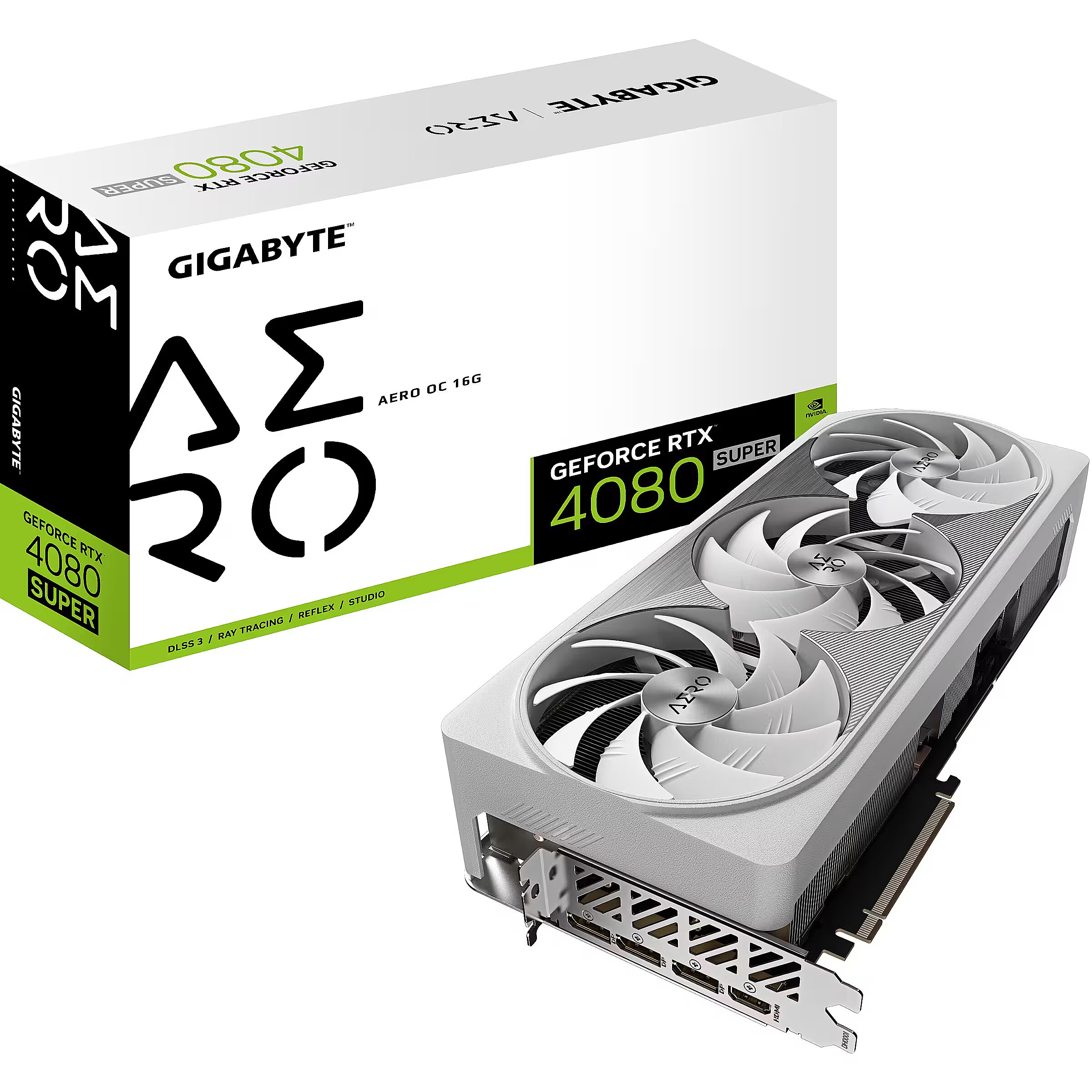

Gigabyte GeForce RTX 4080 SUPER, 16GB GDDR6X, AERO OC (DLSS 3)

Accessories included - A quick guide Warranty registration Bracket to prevent sagging Anti-sag bracket installation instructions One 16-pin to triple 8-pin power supply
Brand - GIGABYTE
BrandPartCode - GV-N408SAERO OC-16GD
Card's length - > 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA|GeForce RTX 4080
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Chipset - GeForce RTX 4080 SUPER
Chipset - NVIDIA GeForce RTX 4080 SUPER
Chipset manufacturer - NVIDIA
code - GV-N408SAERO OC-16GD
Code - GV-N408SAERO OC-16GD 1.0
Cooling - Active
Cooling system - Triple slot Fansink
Core Boost frequency - 2595 MHz
Core frequency - 2550 MHz
CUDA Core - 10240
CUDA Cores - 10240
Description - GeForce RTX™ 4080 SUPER AERO OC 16G KEY FEATURE - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing - 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - Powered by GeForce RTX™ 4080 SUPER - Integrated with 16GB GDDR6X 256-bit memory interface - WINDFORCE Cooling System - RGB Fusion - Dual BIOS - Protection metal back plate - Anti-sag bracket - 4 Years Warranty (Online registration required) - CORE CLOCK 2595 MHz (Reference card: 2550 MHz)
Description - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace Arc and full ray tracing 4th Gen Tensor Cores: Up to 4X faster performance with DLSS 3 rendering compared to brute-force rendering 3rd Gen RT Cores: Up to 2X ray tracing performance Powered by GeForce RTX 4080 SUPER Integrated with 16GB GDDR6X 256-bit memory interface WINDFORCE cooling system RGB fusion Dual BIOS Metal back plate for protection Bracket to prevent sagging 4-year warranty (online registration required)
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Illumination - Yes
Design - Number of fans - 3 fan(s)
Design - Product colour - White
dimensionalWeight - 2613
dimension depth - 440 mm
dimension height - 275 mm
Dimensions - 342 x 150 x 75 mm
dimension weight - 2550 g
dimension width - 120 mm
DisplayPort Input/Output connectors - 3
EAN - 4719331354206
ean - 4719331354206
Eans - 4719331354206
Full Description Line - NVIDIA GeForce RTX 4080 SUPER|Graphics memory size 16 GB|GDDR6X|256 bit|PCIE 4.0 16x|Memory CLK 23 Gbps|GPU clock 2595 MHz|7680x4320|Cooling Triple slot Fansink|1xHDMI|3xDisplayPort|Included Accessories 1. Quick guide2. Warranty registration3. Anti-sag bracket4. Anti-sag bracket installation guide5. One 16 pin to triple 8-pin power adaptor
GPU clock - 2595 MHz
Graphic card features - Overclock Edition
Graphics card connector - PCI-E ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 16 GB
Graphics memory type - GDDR6X
Gross Weight Kg - 3,1
GTIN - 0889523041352
GTIN - 889523041352
GTIN - 4719331354206
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - 1. Quick guide
2. Warranty registration
3. Anti-sag bracket
4. Anti-sag bracket installation guide
5. One 16 pin to triple 8-pin power adaptor
Link - https://www.gigabyte.com/Graphics-Card/GV-N408SAERO-OC-16GD#kf
LongDesc - WINDFORCE COOLING SYSTEMThe WINDFORCE cooling system features three 110mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink design allows air flow to pass through, providing better heat dissipation.LARGE COPPER PLATE & HEAT-PIPEThe large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.RGB FUSIONWith 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.PROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.DUAL BIOSThe factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.POWER INDICATORWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.ANTI-SAG BRACKETThe new anti-sag bracket is tailored to each graphics card. It provides the optimized reinforcement and better overall visual appearance.ULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.4-YEAR WARRANTYWe want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.Power Through The GameGIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - NVIDIA GeForce RTX 4080 SUPER, 16GB GDDR6X, 256 bit, 23000MHz, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6
LongSummaryDescription - GIGABYTE AERO GeForce RTX 4080 SUPER OC 16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4080 SUPER, Processor frequency: 2595 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6X, Memory bus: 256 bit, Memory clock speed: 23000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - Gigabyte
Manufacturer Code - GV-N408SAERO OC-16GD
Manufacturer Name - Gigabyte
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bandwidth (max) - 23 GB/s
Memory - Memory bus - 256 bit
Memory - Memory clock speed - 23000 MHz
Memory > Discrete graphics adapter memory - 16 GB
Memory > Graphics adapter memory type - GDDR6X
Memory > Memory clock speed - 2670 MHz
Memory bus - 256 bit
Memory bus - 256-bit
Memory CLK - 23 Gbps
Memory frequency - 23 Gbps
Memory type - DDR6X
Model - GV-N408SAERO OC-16GD
MPN - GV-N408SAERO OC-16GD
name - GIGABYTE GeForce RTX 4080 Super Aero OC 16G, 16384 MB GDDR6X
Name - Gigabyte GeForce RTX 4080 SUPER AERO OC 16GB DLSS 3
Name - GIGABYTE GV-N408SAERO OC-16GD 1.0 | Gigabyte | GeForce RTX 4070 Ti SUPER MASTER 16G | NVIDIA | 16 GB | GeForce RTX 4070 Ti SUPER | GDDR6X | HDMI ports quantity 1 | PCI Express 4.0 | Memory clock speed 2670 MHz
Name - RTX 4080 Super 16GB Gigabyte Aero OC GDDR6X 3Fan
name - RTX 4080 SUPER AERO OC 16GB GDDR6X 256bit HDMI
Other features - Maximum digital resolution 7680x4320 PCB Form ATX Recommended 850W power supply Power connectors 16 pins * 1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 475.00 mm
Package features > Gross height (mm) - 115.00 mm
Package features > Gross width (mm) - 279.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 57 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 200.00 g
Package features > Tare weight (kg) - 0.80 kg
Package features > Volume (m3) - 0.02 m³
Package features > WEEE tax - No
Packaging data - Package depth - 427 mm
Packaging data - Package height - 105 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.1 kg
Packaging data - Package width - 264 mm
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI Express 4.0
Power - Minimum system power supply - 850 W
Power - Supplementary power connectors - 1x 16-pin
Power connectors - 16 pin
Power consumption - 850 Watts
Processor - CUDA - Yes
Processor - Graphics processor - GeForce RTX 4080 SUPER
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor frequency - 2595 MHz
Processor > Graphics processor - GeForce RTX 4070 Ti SUPER
Processor > Graphics processor family - NVIDIA
producer - Gigabyte
Producer - Gigabyte
producerCode - GV-N408SAERO OC-16GD
ProducerCode - GV-N408SAERO OC-16GD
Producer product name - GeForce RTX 4070 Ti SUPER MASTER 16G
ProductName - GeForce RTX 4080 SUPER AERO OC 16G
productName - GIGABYTE AERO GeForce RTX 4080 SUPER OC 16G NVIDIA 16 GB GDDR6X
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 65 cm
Shipping Box Height Shipping/Package Box Dimensions - 49.5 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 15.37 kg
Shipping Box Width Shipping/Package Box Dimensions - 34 cm
ShortDescription - Chipset NVIDIA RTX 4080 SUPER | 16GB
Short description - GIGA VGA 16GB RTX4080 SUPER AERO-OC-16G 3xDP/HDMI GeForce RTX 4080 SUPER AERO OC 16G
ShortSummaryDescription - GIGABYTE AERO GeForce RTX 4080 SUPER OC 16G, GeForce RTX 4080 SUPER, 16 GB, GDDR6X, 256 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 440
sizeY - 110
sizeZ - 270
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Technical details > Gross weight - 2.84 kg
Technical details > Net weight - 2.04 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE AERO GeForce RTX 4080 SUPER OC 16G NVIDIA 16 GB GDDR6X
Unit Box Height - 0.27
Unit Box Length - 0.44
Unit Box Width - 0.11
Unit Brutto Volume - 0.02188 cubm
Unit Gross Weight - 3.07 kg
Unit Net Weight - 2.6 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N408SAERO-OC-16GD#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N408SAERO-OC-16GD#kf
vendpn - GV-N408SAERO OC-16GD
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 16 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3+1 Year (Registration required within 30 days)
warrantyLength - 36
warrantyType - G
Weight - 2.58
weight - 2200
Weight & dimensions - Depth - 75 mm
Weight & dimensions - Depth - 342 mm
Weight & dimensions - Height - 75 mm
Weight & dimensions - Height - 150 mm
Weight & dimensions - Weight - 1.36 kg
Weight & dimensions - Width - 150 mm
