Gigabyte GeForce RTX 4070 Ti SUPER, 16GB GDDR6X, Eagle OC (DLSS 3)

Accessories included - A quick guide One 16-pin power supply for two 8-pin ones
Brand - GIGABYTE
BrandPartCode - GV-N407TSEAGLE OC-16GD
Card's length - 240 to 280 mm
Category - Graphics Cards
category - PC Components|Graphics Cards|NVIDIA
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Chipset - GeForce RTX 4070 Ti SUPER
Chipset - NVIDIA GeForce RTX 4070 Ti SUPER
Chipset manufacturer - NVIDIA
CnCode CnCode - 84718000
code - GV-N407TSEAGLE OC-16GD
Code - GV-N407TSEAGLE OC-16GD 1.0
Cooling - Active
CUDA Cores - 8448
Description - GeForce RTX™ 4070 Ti SUPER EAGLE OC 16G KEY FEATURE - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing - 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - Powered by GeForce RTX™ 4070 Ti SUPER - Integrated with 16GB GDDR6X 256bit memory interface - WINDFORCE Cooling System - RGB Fusion - Dual BIOS - Protection metal back plate
Description - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace Arc and full ray tracing 4th Gen Tensor Cores: Up to 4x faster performance with DLSS 3 rendering compared to brute-force rendering 3rd Gen RT Cores: Up to 2X ray tracing performance Powered by the GeForce RTX 4070 Ti SUPER card Integrated with 16GB GDDR6X 256bit memory interface WINDFORCE cooling system RGB fusion Dual BIOS Metal back plate for protection
Design - Cooling technology - GIGABYTE WINDFORCE 3X
Design - Cooling type - Active
Design - Form factor - Full-Height/Full-Length (FH/FL)
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
dimensionalWeight - 1161
dimension depth - 80 mm
dimension height - 330 mm
Dimensions - 261 x 126 x 50 mm
Dimensions - 261x126x50mm
dimension weight - 1400 g
dimension width - 230 mm

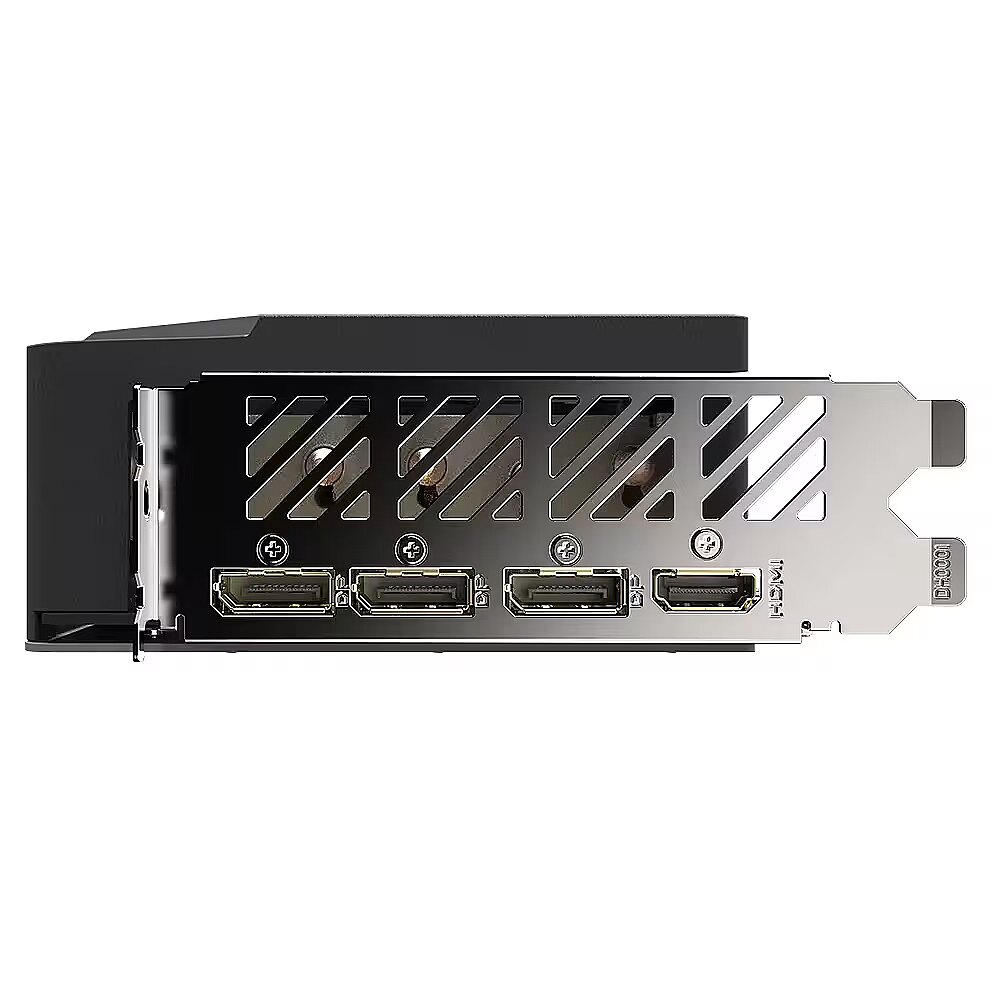

DisplayPort Input/Output connectors - 3
EAN - 4719331354114
ean - 4719331354114
Eans - 4719331354114
Full Description Line - NVIDIA GeForce RTX 4070 Ti SUPER|Graphics memory size 16 GB|GDDR6X|256 bit|PCIE 4.0 16x|Memory CLK 21 Gbps|GPU clock 2640 MHz|7680x4320|1xHDMI|3xDisplayPort
GPU clock - 2640 MHz
Graphic card features - Gaming/Overclock Edition
Graphics card connector - PCI-E ver. 4.0
Graphics connector - PCIE 4.0 16x
Graphics memory size - 16 GB
Graphics memory type - GDDR6X
Gross Weight Kg - 1,52
GTIN - 4719331354114
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Link - https://www.gigabyte.com/Graphics-Card/GV-N407TSEAGLE-OC-16GD#kf
LongDesc - WINDFORCECOOLING SYSTEMThe WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure.3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.LARGE COPPER PLATE & HEAT-PIPEThe large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.RGB FUSIONWith 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.PROTECTION METAL BACK PLATE The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.DUAL BIOS The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.POWER INDICATORS When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.ULTRA DURABLEUltra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.FRIENDLY PCB DESIGNFully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.Power Through The GameGIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - NVIDIA GeForce RTX 4070 Ti SUPER, 16GB GDDR6X, 256 bit, 21000MHz, PCI Express 4.0, 1 x HDMI (2.1a), 3 x DP (1.4a), CUDA, DirectX 12 Ultimate, OpenGL 4.6
LongSummaryDescription - GIGABYTE EAGLE GeForce RTX 4070 Ti SUPER OC 16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4070 Ti SUPER. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6X, Memory bus: 256 bit, Memory clock speed: 21000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 3 fan(s)
Manufacturer - Gigabyte
Manufacturer Code - GV-N407TSEAGLE OC-16GD
Manufacturer Name - Gigabyte
Max resolution - 7680x4320
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6X
Memory - Memory bandwidth (max) - 21 GB/s
Memory - Memory bus - 256 bit
Memory - Memory clock speed - 21000 MHz
Memory > Discrete graphics adapter memory - 16 GB
Memory > Graphics adapter memory type - GDDR6X
Memory > Memory clock speed - 2640 MHz
Memory bus - 256 bit
Memory bus - 256-bit
Memory CLK - 21 Gbps
Memory frequency - 21 Gbps
Memory type - DDR6X
Model - GeForce RTX 4070 Ti SUPER EAGLE OC 16G
Model - GV-N407TSEAGLE OC-16GD
MPN - GV-N407TSEAGLE OC-16GD
name - GIGABYTE GeForce RTX 4070 Ti Super Eagle OC 16G, 16384 MB GDDR6X
Name - Gigabyte GeForce RTX 4070 Ti SUPER EAGLE OC 16GB DLSS 3
Name - Gigabyte | GeForce RTX 4070 Ti SUPER EAGLE OC 16G | NVIDIA | 16 GB | GeForce RTX 4070 Ti SUPER | GDDR6X | HDMI ports quantity 1 | PCI-E 4.0 | Memory clock speed 2640 MHz
name - Graphics card RTX 4070 Ti SUPER EAGLE OC 16G GDDR6X 256bit 3D
Name - RTX 4070 Ti Super 16GB Gigabyte Eagle OC GDDR6X 3Fan
Other features - Core clock speed TBD CUDA Cores TBD Maximum digital resolution 7680x4320 Multi-monitor 4 ATX PCB size Recommended PSU power supply: 750W Power Connectors 16 pin *1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 475.00 mm
Package features > Gross height (mm) - 115.00 mm
Package features > Gross width (mm) - 279.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 57 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 200.00 g
Package features > Tare weight (kg) - 0.80 kg
Package features > Volume (m3) - 0.02 m³
Package features > WEEE tax - No
Packaging data - Package depth - 322 mm
Packaging data - Package height - 75 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.52 kg
Packaging data - Package width - 214 mm
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI-E 4.0
Power - Minimum system power supply - 750 W
Power - Supplementary power connectors - 1x 16-pin
Power connectors - 16 pin
Power consumption - 750 Watts
Processor - CUDA - Yes
Processor - Graphics processor - GeForce RTX 4070 Ti
Processor - Graphics processor - GeForce RTX 4070 Ti SUPER
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor > Graphics processor - GeForce RTX 4070 Ti SUPER
Processor > Graphics processor family - NVIDIA
producer - Gigabyte
Producer - Gigabyte
producerCode - GV-N407TSEAGLE OC-16GD
ProducerCode - GV-N407TSEAGLE OC-16GD
Producer product name - GeForce RTX 4070 Ti SUPER EAGLE OC 16G
ProductName - GeForce RTX 4070 Ti SUPER EAGLE OC 16G
productName - Gigabyte EAGLE GeForce RTX 4070 Ti SUPER OC 16G NVIDIA 16 GB GDDR6X
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 33 cm
Shipping Box Height Shipping/Package Box Dimensions - 22 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.435 kg
Shipping Box Width Shipping/Package Box Dimensions - 8 cm
ShortDescription - Chipset NVIDIA RTX 4070 Ti SUPER | 16GB
Short description - GIGA VGA 16GB RTX4070Ti SUPER EAGLE OC 16G 3xDP/HDMI GeForce RTX 4070 Ti SUPER EAGLE OC 16G
ShortSummaryDescription - GIGABYTE EAGLE GeForce RTX 4070 Ti SUPER OC 16G, GeForce RTX 4070 Ti SUPER, 16 GB, GDDR6X, 256 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 330
sizeY - 80
sizeZ - 220
Supported standards - DirectX 12 Ultimate
Supported standards - OpenGL 4.6
Technical details > Gross weight - 2.84 kg
Technical details > Net weight - 2.04 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE EAGLE GeForce RTX 4070 Ti SUPER OC 16G NVIDIA 16 GB GDDR6X
Unit Box Height - 0.22
Unit Box Length - 0.33
Unit Box Width - 0.08
Unit Brutto Volume - 0.005808 cubm
Unit Gross Weight - 1.44 kg
Unit Net Weight - 1 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N407TSEAGLE-OC-16GD#kf
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N407TSEAGLE-OC-16GD#kf
vendpn - GV-N407TSEAGLE OC-16GD
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
VRAM memory size - 16 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 Years
warrantyLength - 36
warrantyType - G
Weight - 1.41
weight - 1405
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Depth - 261 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Height - 126 mm
Weight & dimensions - Length - 261 mm
Weight & dimensions - Width - 126 mm
