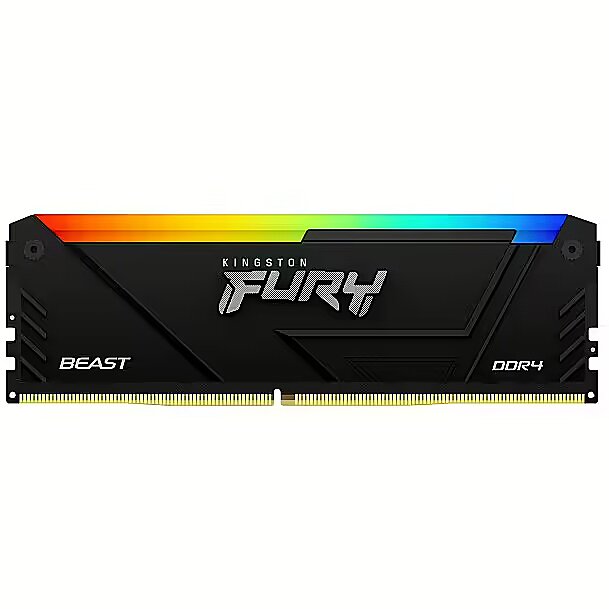

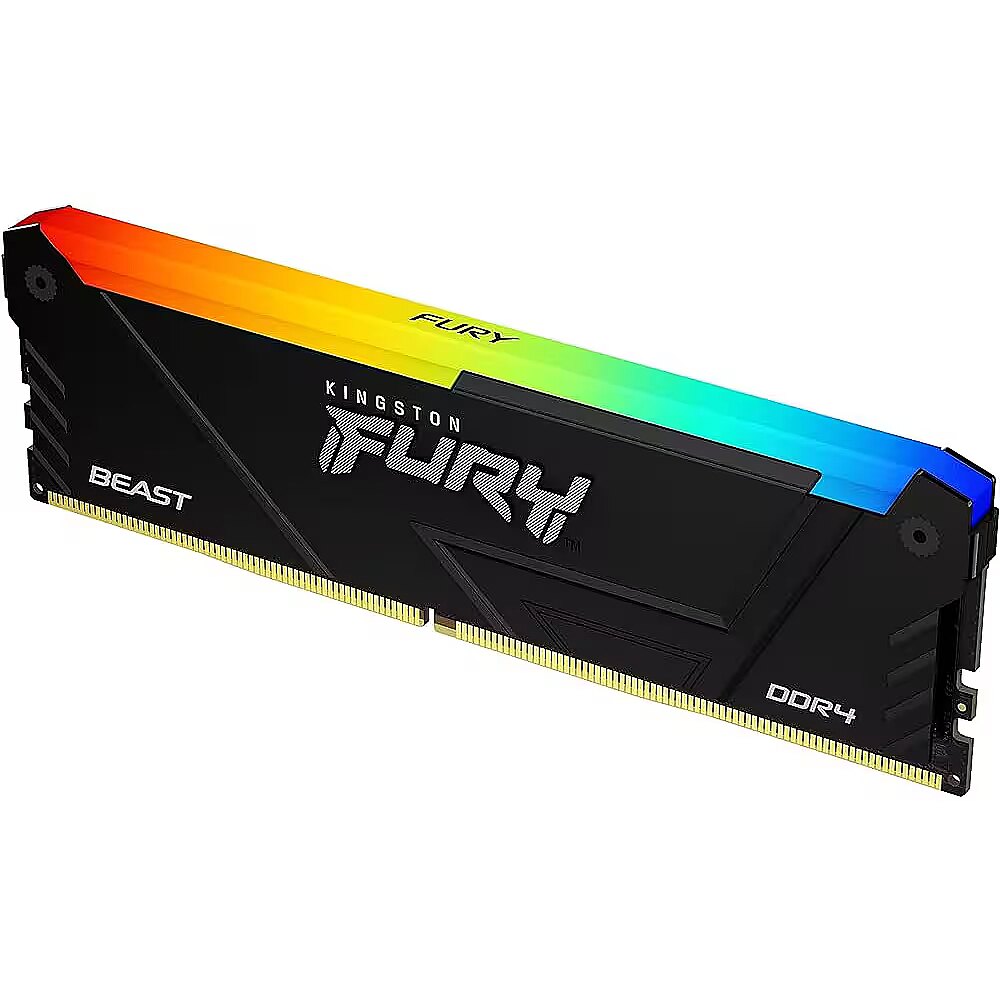

Kingston 32GB, DDR4, 3200MHz, CL16, Single Stick, Fury Beast RGB

ARTIKEL1 - 32GB DDR4-3200MT/S CL16
ARTIKEL2 - DIMM FURY BEAST RGB
Brand - Kingston Technology
BrandPartCode - KF432C16BB2A/32
Breite - 0.05
CAS Latency - CL16
Category - Memory Modules
Category Code - MEM
Category_1 - Computer Memory
Category_2 - DDR4-3000+
Chip Organization - 4096Mx64
CL - 16
Code - KF432C16BB2A/32
Colour - Black
Description - DDR4 Fury Beast RGB Kingston FURY Beast DDR4 RGB memory improves the appearance and performance of any computer. Eye-catching RGB lighting matches the elegant black heatsink and impressive speeds of up to 3733MT/s. Take advantage of Intel XMP Certified and XMP-Ready profiles, AMD Ryzen processor compatibility, or Plug N Play automatic overclocking at 2666MT/s to get the acceleration you need for work and gaming.
Description - Kingston FURY KF432C16BB2A/32 is a 4G x 64-bit (32GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-3200 at a low latency timing of 16-20-20 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
dimension depth - 20 mm
dimension height - 170 mm
Dimensions - 133,4 x 8,1 x 42,9 mm
dimension weight - 65 g
dimension width - 60 mm
EAN - 740617337488
ean - 740617337488
EANCode - 0740617337488
EAN_code - 0740617337488
ECC support - No
Features - Backlight - Yes
Features - Backlight colour - Red/Green/Blue
Features - Buffered memory type - Unregistered (unbuffered)
Features - CAS latency - 16
Features - Component for - PC/Server
Features - Cooling type - Heatsink
Features - Country of origin - China, Taiwan
Features - ECC - No
Features - Intel Extreme Memory Profile (XMP) - Yes
Features - Intel Extreme Memory Profile (XMP) version - 2.0
Features - Internal memory - 32 GB
Features - Internal memory type - DDR4
Features - JEDEC standard - Yes
Features - Lead plating - Gold
Features - Memory data transfer rate - 3200 MT/s
Features - Memory form factor - 288-pin DIMM
Features - Memory layout (modules x size) - 1 x 32 GB
Features - Memory ranking - 2
Features - Memory voltage - 1.35 V
Features - Module configuration - 4096M x 64
Features - Programming power voltage (VPP) - 2.5 V
Features - Refresh row cycle time - 350 ns
Features - Row active time - 32 ns
Features - Row cycle time - 45.75 ns
Features - SPD profile - Yes
Frequency speed - 3200 MHz
Full Description Line - Fury Beast|Performance Gaming|DDR4|Module capacity 32GB|Quantity 1|3200 MHz|288-pin DIMM|CL 16|Memory timings 16-20-20|Nominal voltage 1.35 V|Chip Organization 4096Mx64|Colour Black
Gewicht - 0.06
GRUPPE1 - Memory & Processors
GRUPPE2 - Generic Memory
GTIN - 0740617337488
GTIN - 740617337488
guarantee - 0
guarantee_type - perpetual
HERSTELLER - KINGSTON
Hoehe - 0.02
HSTNUMMER - KF432C16BB2A/32
Laenge - 0.14
Logistics data - Master (outer) case gross weight - 1.68 kg
Logistics data - Master (outer) case height - 88.9 mm
Logistics data - Master (outer) case length - 325.1 mm
Logistics data - Master (outer) case width - 193 mm
Logistics data - Products per master (outer) case - 25 pc(s)
LongDesc - Kingston FURY™ Beast DDR4 RGB memory upgrades the style and performance of any system. Featuring stunning RGB lighting* to complement the sleek black heat spreader and impressive speeds of up to 3733MT/s[*]. Choose between Intel® XMP Certified & XMP-Ready profiles, Ready for AMD Ryzen™ or go for Plug N Play** automatic overclocking at 2666MT/s to get the boost you need for work and play.Customisable RGB lighting* with sleek stylingTransform your system using Kingston FURY™ CTRL to choose from over a dozen lighting patterns or customise RGB effects on the sleek heat spreader.Kingston FURY™ Infrared Sync Technology™Keep RGB lighting effects in sync with patented Kingston FURY Infrared Sync Technology.Intel® XMP Certified and XMP-ReadyOur engineers have predefined [Intel Extreme Memory Profiles] to reach speeds of up to 3733MT/s[*] to get the most out of your memory.Ready for AMD Ryzen™Trust your AMD-based system to get down to business in-app or in-game with memory that’s ready for Ryzen.Plug N Play – Automatic overclocking up to 2666MT/s**For a reliable and compatible upgrade, Kingston FURY Beast DDR4 RGB Plug N Play modules will auto-overclock to the highest listed speed allowed by system BIOS.
LongProductName - 32GB 3200MT/s DDR4 CL16 DIMM FURY Beast RGB
LongSummaryDescription - Kingston Technology FURY 32GB 3200MT/s DDR4 CL16 DIMM Beast RGB. Component for: PC/Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR4, Memory form factor: 288-pin DIMM, CAS latency: 16
Manufacturer - Kingston
Manufacturer_code - KF432C16BB2A/32
Memory > CAS latency - CL16
Memory > Component for - PC/server
Memory > ECC - No
Memory > Internal memory type - DDR4
Memory > Memory clock speed - 1600 MHz
Memory > Memory form factor - 288-Pin DIMM
Memory > Memory layout (modules x size) - 1x32 GB
Memory > Registered - No
Memory bus frequency - 3200 MHz
Memory features - UDIMM/UDIMM
Memory module capacity - 32GB
Memory series - Fury Beast
Memory timings - 16-20-20
Memory type - DDR4
Memory type - DDR4
Model - KF432C16BB2A/32
Module form factor - 288-pin DIMM
Name - Kingston FURY DDR4 - 32GB - 3200 - CL - 16, Sinlge RAM (black, KF432C16BB2A/32, Beast RGB, INTEL XMP)
Name - Kingston | 32 GB | DDR4 | 1600 MHz | PC/server | Registered No | ECC No
name - Memory DDR4 Fury Beast RGB 32GB(1*32GB)/3200 CL16
Nominal voltage - 1.35 V
Number of memory cards in set - 1
Number of modules - 1
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 8.50 mm
Package features > Gross height (mm) - 43.00 mm
Package features > Gross width (mm) - 133.35 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 10526 pc(s)
Package features > Paper/Pasteboard - 24.00 g
Package features > Plastic (No PET) - 8.00 g
Package features > Tare weight (kg) - 0.03 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Packaging data - Package depth - 14 mm
Packaging data - Package height - 171.5 mm
Packaging data - Package weight - 57.7 g
Packaging data - Package width - 63.5 mm
Performance - Gaming
Performance > Capacity - 32 GB
producer - Kingston
Producer product name - FURY Beast RGB
ProductName - 32GB 3200MT/s DDR4 CL16 DIMM FURY Beast RGB
Radiator - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 17 cm
Shipping Box Height Shipping/Package Box Dimensions - 6 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.069 kg
Shipping Box Width Shipping/Package Box Dimensions - 1.5 cm
ShortSummaryDescription - Kingston Technology FURY 32GB 3200MT/s DDR4 CL16 DIMM Beast RGB, 32 GB, 1 x 32 GB, DDR4, 288-pin DIMM
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Technical details > Gross weight - 0.10 kg
Technical details > Net weight - 0.06 kg
Technical details > Producer - Kingston
Technical_details - The Kingston FURY KF432C16BB2A/32 is a 32 GB DDR4-3200 memory module (PC4-25600) from the Beast RGB series. The module supports 16-20-20 timing at 3200 MHz and requires 1.35 V voltage. A feature of the Beast RGB series is the adjustable RGB LED lighting. Intel's XMP version 2.0 is supported. Item no.: 100016440 Type SDRAM-DDR4 Color: Black EAN 0740617337488 Manufacturer no. KF432C16BB2A/32 Beast RGB series Capacity 32GB Number 1 piece DIMM design Equipped on two sides Channel suitable for single channel Profiles INTEL XMP (version 2.0) 288-pin connector Voltage 1.2 volts (from 1.2 to 1.35 volts) Standard DDR4-3200 (PC4-25600) Physical clock 1600 MHz Timings CAS Latency (CL) 16 RAS Precharge Time (tRP) 20 Further information DDR4 is the further development of DDR3 and offers a number of innovations and advantages compared to its predecessor, such as up to 40% lower energy consumption, higher speeds, higher data density (enables memory modules with a capacity of up to 128 GB, in the future up to 512 GB ) as well as improved operational stability through advanced error correction techniques such as CRC (Cyclic Redundancy Check), CMD/ADD (On-chip parity detection) and "Per DRAM Addressability". Note Dual Rank
Title - Kingston Technology FURY 32GB 3200MT/s DDR4 CL16 DIMM Beast RGB
Total capacity - 32GB
Total memory capacity - 32 GB
Unit Box Height - 0.06
Unit Box Length - 0.17
Unit Box Width - 0.015
Unit Brutto Volume - 0.000153 cubm
Unit Gross Weight - 0.069 kg
Unit Net Weight - 0.04 kg
URL - https://www.kingston.com/en/memory/search?partid=KF426C16BB2A%2F8
Vendor Homepage - www.kingston.com/datasheets/KF432C16BB2A_32.pdf
vendpn - KF432C16BB2A/32
Warranty - 36
Warranty - 36 month(s)
Warranty - X months
WarrantyInfo - Lifetime
Weight - 0,07
Weight - 47.75 g
Weight & dimensions - Depth - 133.4 mm
Weight & dimensions - Height - 41.1 mm
Weight & dimensions - Weight - 38.8 g
Weight & dimensions - Width - 7.1 mm
