ID: 1204468
Tuotekoodi: TEG1110PF-8-120W
Voidaan tilata 3 yksiköt Saatavuus: 14 päivää tilauksen hyväksymisestä
Takuu: 2 vuotta

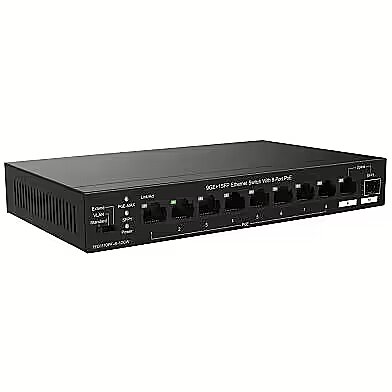

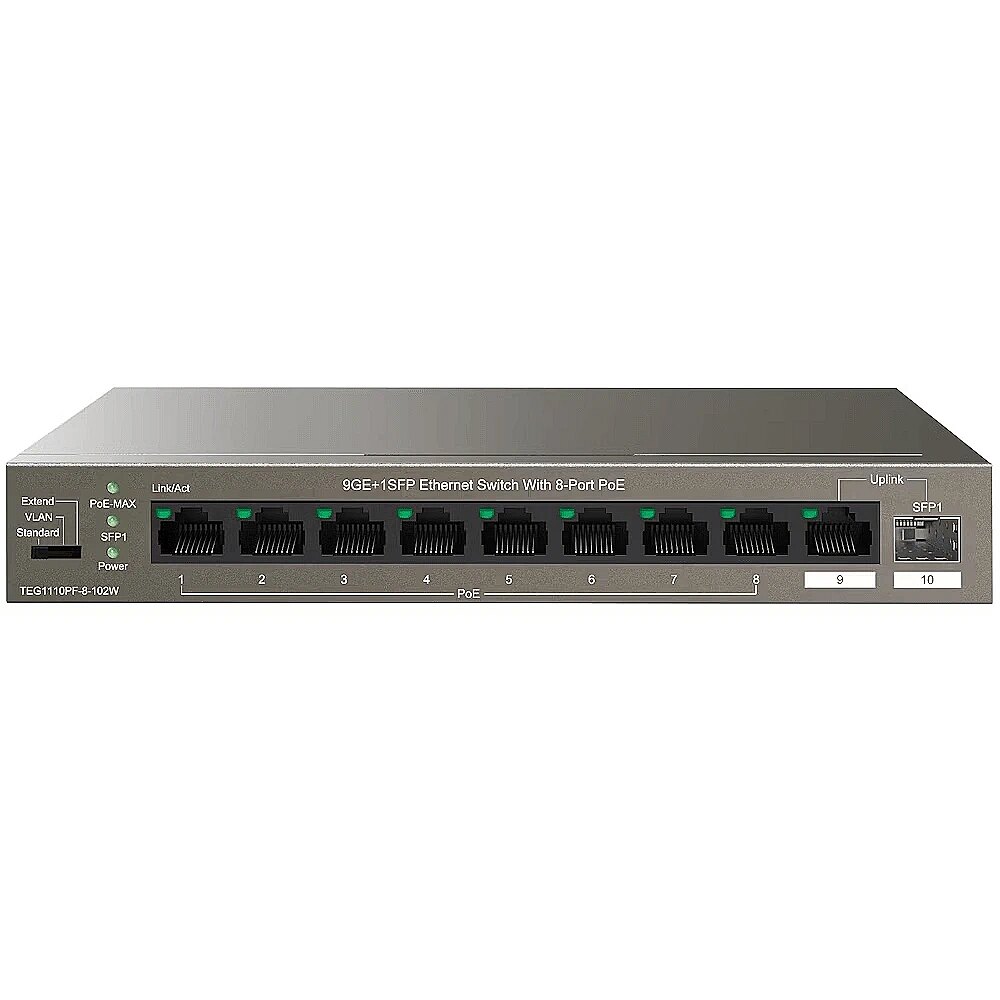

Tenda TEG1110PF-8-120W, 9x1G PoE
Kuva voi poiketa todellisesta tuotteesta, ja tuotteessa voi olla lisävarusteita ja osia, joita ei toimiteta varsinaisen tuotteen mukana.
Toimitusvaihtoehdot
- Toimitus Smartpostille 6,99 €: 14.05.2025
- Kuriiritoimitus 11,99 €: 14.05.2025
Tärkeimmät tuoteparametrit Kaikki parametrit
- Base-T-nopeus: 10/100/1000
- RJ-45-portit: 9
Satamat ja laitteet
Base-T-nopeus
: 10/100/1000
PoE-portit
: 8
RJ-45-portit
: 9
SFP-portit
: 1
Tekniset tiedot
Fanien määrä
: Fanless
Paino (g)
: 930 g
PoE Kokonaisenergiabudjetti
: 120 W
PoE Per-Port Virran Budjetti
: 30 W
PoE Tuki
: Ir
Verkkokortit
Yksityiskohtaisempi erittely
Certificates - Certification - FC, CE, RoHS
Data transmission - Forwarding rate - 14.9 Mpps
Data transmission - MAC address table - 8000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 20 Gbit/s
Design - LED indicators - Activity
Design - LED indicators - Link
Design - LED indicators - PoE
Design - LED indicators - Power
Design - Product colour - Black
Design - Wall mountable - Yes
dimensionalWeight - 504
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Performance - Mean time between failures (MTBF) - 100000 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 9
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - SFP module slots quantity - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (typical) - 120 W
Power - Power source - DC/PoE
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 15.4 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 92 W
producerCode - TEG1110PF-8-120W
productName - Tenda TEG1110PF-8-120W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
productSize - Normal
sizeX - 240
sizeY - 140
sizeZ - 75
warrantyLength - 24
warrantyType - G
weight - 935
Weight & dimensions - Depth - 104 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Width - 177.5 mm
Data transmission - Forwarding rate - 14.9 Mpps
Data transmission - MAC address table - 8000 entries
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 20 Gbit/s
Design - LED indicators - Activity
Design - LED indicators - Link
Design - LED indicators - PoE
Design - LED indicators - Power
Design - Product colour - Black
Design - Wall mountable - Yes
dimensionalWeight - 504
Management features - Switch type - Unmanaged
Network - 10G support - No
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Performance - Mean time between failures (MTBF) - 100000 h
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 9
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - SFP module slots quantity - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (typical) - 120 W
Power - Power source - DC/PoE
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 8
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 15.4 W
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 92 W
producerCode - TEG1110PF-8-120W
productName - Tenda TEG1110PF-8-120W network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
productSize - Normal
sizeX - 240
sizeY - 140
sizeZ - 75
warrantyLength - 24
warrantyType - G
weight - 935
Weight & dimensions - Depth - 104 mm
Weight & dimensions - Height - 26 mm
Weight & dimensions - Width - 177.5 mm
