TP-LINK ES205GP, 5x1Gb 4 POE+

10/100/1000/2500 Mbps ports - None
10/100/1000M LAN Ports - 5
10Base-T / 100Base-TX / 1000Base-T Ports - 5
Accessories included -
Application - Home and small office
ARTIKEL1 - 5-PORT 1G EASY MANAGED SWITCH
ARTIKEL2 - WITH 4-PORT POE+
Brand - TP-Link
BrandPartCode - ES205GP
Breite - 0
Category - Network Switches
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Certificates -
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - CE, Federal Communications Commission (FCC), RoHS
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RoHS
Chassis type - Rack
Console port - No
Data transmission - Forwarding rate - 7.4 Mpps
Data transmission - Jumbo frames - 15
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 8000 entries
Data transmission - Packet buffer memory - 4 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 10 Gbit/s
Description - ES205GP Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+ - 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+) - 65W Power Budget, with up to 30W for each PoE port* - Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features - Centralized Cloud Management via the web or the Omada app† - Up to 250m PoE**, QoS?, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking - Automatic Loop Prevention, VLAN, and IGMP Snooping - Fanless design for silent operation - Durable metal casing and desktop/wall mounting design
Description - ES205GP
Przełącznik Omada Easy Managed, 5 portów gigabitowych, w tym 4 porty PoE+ 5 portów RJ45 o prędkości 10/100/1000 Mb/s (w tym 4 porty zgodne z 802.3at/af) Łączna moc zasilania do 65W. Do 30W zasilania na każdym porcie PoE. Łatwy w użytkowaniu dzięki działaniu na zasadzie Plug-and-Play, które umożliwia uzyskanie natychmiastowego połączenia, a prosta konfiguracja daje dostęp do dodatkowych funkcji Scentralizowane zarządzanie w Chmurze przez stronę Web lub aplikację Omada Do 250m zasięgu zasilania PoE, QoS, PoE Auto Recovery i Izolacja portów zapewniające niezawodność sieci monitoringu Automatyczne zapobieganie pętlom, VLAN i IGMP Snooping Bezwentylatorowa konstrukcja zapewniająca bezgłośną pracę Wytrzymała metalowa obudowa z możliwością montażu na blacie lub ścianie
Design - LED indicators - Yes
Design - Product colour - Black

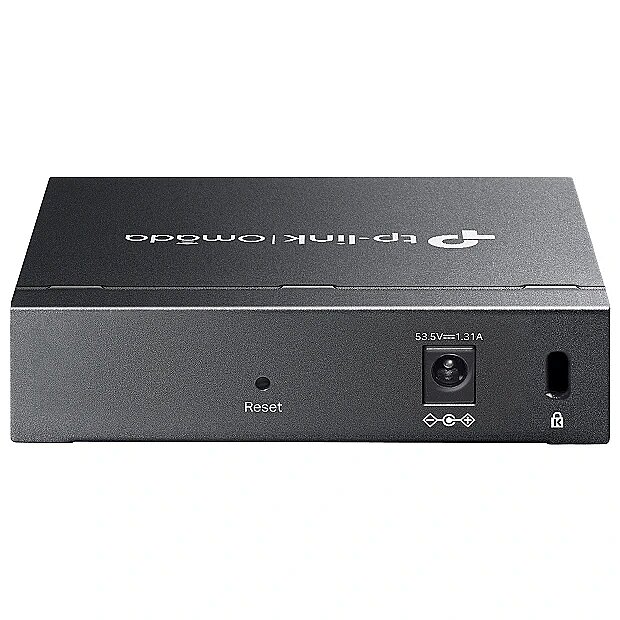

Design - Reset button - Yes

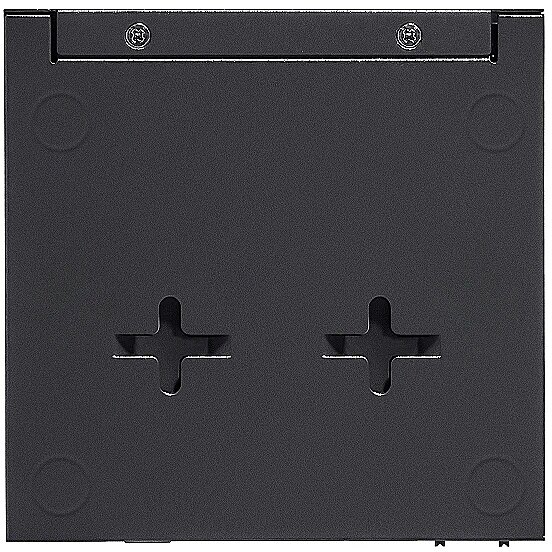

Design - Wall mountable - Yes
Designation - CE+WEEE
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 608
dimension depth - 120 mm
dimension height - 120 mm
Dimensions -
Dimensions - 100×98×25 mm
dimension weight - 775 g
dimension width - 197 mm
ean - 8885020620931
EAN - 8885020620931
EANCode - 8885020620931
Environment requirements -
Fan - No
Forwarding mode - Store-and-forward
Forwarding rate - 7.4 Mpps
Forwarding rate - 7.4 Mpps
Full Description Line - Desktop/pedestal|5x10Base-T / 100Base-TX / 1000Base-T|5x10/100/1000M|IEEE 802.3af|IEEE 802.3at|PoE ports 4|Switching capacity 10 Gbps|Forwarding rate 7.4 Mpps|Power supply External|Dimensions 100×98×25 mm|Unit Net Weight 0.3 kg
Gewicht - 0
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 8885020620917
GTIN - 8885020620931
GTIN - 8885020620948
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - ES205GP
IEEE 802.3af Network standard - Yes
IEEE 802.3at Network standard - Yes
Jumbo frame size - 15 KB
L2 features -
L3 features -
Laenge - 0
LongDesc - Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+Software Defined Networking (SDN) with Cloud AccessRemotely manage your access points, switches, and gateways across multiple sites all from a single interface.- Easy to Use- Hardware, Software, or Cloud-Based Controllers- Centralized Management via Web or Omada App- Zero-Touch Provisioning (ZTP)Abundant Functions for Reliable Surveillance Networking- Transmission Distance up to 250 m- Priority Video Quality Guaranteed- Secure Traffic Separation via Port Isolation- PoE Auto RecoveryMultiple Application ScenariosSurveillanceWorks with IP Cameras Conference CallWorks with IP Phones Wi-Fi CoverageWorks with Access Points Wired ConnectionsWorks with Non-PoE Devices such as PCs and PrintersCompact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
LongProductName - 5× 10/100/1000Mbps RJ-45, 4x 802.3at PoE+ / 802.3af PoE (Total 65W), AUTO Negotiation/AUTO MDI/MDIX, 10 Gbps, 8K MAC, 53.5VDC / 1.31A
LongSummaryDescription - TP-Link Omada ES205G. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
MAC address table size - 8000
Management, monitoring, configuration -
Management features - Cloud-managed - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Switch type - Managed
Manufacturer - TP-Link
Mean time between failures (MTBF) - 559597 h
Model - ES205GP
MPN - ES205GP(UN)
name - Switch managed ES205GP Omada 5-Port Gigabit Easy 4-Port PoE+
Name - TP-Link Omada Switch 5x GE ES205GP 4-Port PoE+
Network - 10G support - No
Network - Auto-negotiation - Yes
Network - Auto MDI/MDI-X - Yes
Network - Flow control support - Yes
Network - Link aggregation - Yes
Network - Networking standards - IEEE 802.1ab
Network - Networking standards - IEEE 802.1p
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3x
Network - Port mirroring - Yes
Network - Virtual LAN features - MTU VLAN
Network - Virtual LAN features - MTU VLAN, Port-based VLAN, Tagged VLAN
Network - Virtual LAN features - Port-based VLAN
Network - Virtual LAN features - Tagged VLAN
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 5
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of ports 25Gb - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - None
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Optical fiber - Transmission distance (max) - 0.25 km
Other features -
Other functions -
Packaging content - User guide - Yes
Packaging data - Package type - Box
Performance - Fanless - Yes
PoE ports - 4
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Power - DC input voltage - 53.5 V
Power - Power source - AC/DC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) ports quantity - 4
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 4
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 65 W
Power supply -
Power supply - External
Power supply - External
Primary port count - 5
producer - TP-LINK
producerCode - ES205GP
ProductName - ES205G
productName - TP-Link Omada ES205G Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
productSize - Normal
QoS -
Security -
Security - DHCP features - DHCP client
Security - IGMP snooping - Yes
Security - Loop protection - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 19.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 12.7 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.76 kg
Shipping Box Width Shipping/Package Box Dimensions - 12 cm
ShortSummaryDescription - TP-Link Omada ES205G, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
sizeX - 195
sizeY - 130
sizeZ - 120
Stackability - No
Stck_Kart - 12
Stck_Pal - 0
Storno - Y
Supported protocols and standards -
Support for Jumbo frames - Yes
Switch class - Managed
Switching capacity - 10 Gbps
Switch layer - L2
Throughput - 10 Gb/s
Title - TP-Link Omada ES205G Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Unit Box Height - 0.127
Unit Box Length - 0.195
Unit Box Width - 0.12
Unit Brutto Volume - 0.0029718 cubm
Unit Gross Weight - 0.76 kg
Unit Net Weight - 0.3 kg
URL - https://www.tp-link.com/au/business-networking/omada-switch-easy-managed/es205g/#highlights
Vendor Homepage - www.tp-link.com/en/business-networking/omada-switch-easy-managed/es205gp/
vendpn - ES205GP
VLAN - MTU VLAN VLAN oparty na portach Tagowanie 802.1Q VLAN: Maks 32 grupy VLAN; 4K VID
Warranty - 60 months
WarrantyInfo -
warrantyLength - 60
warrantyType - G
weight - 765
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Width - 100 mm
