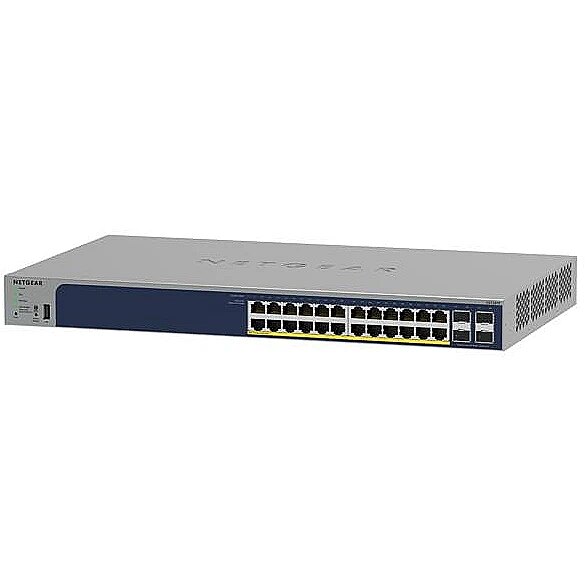

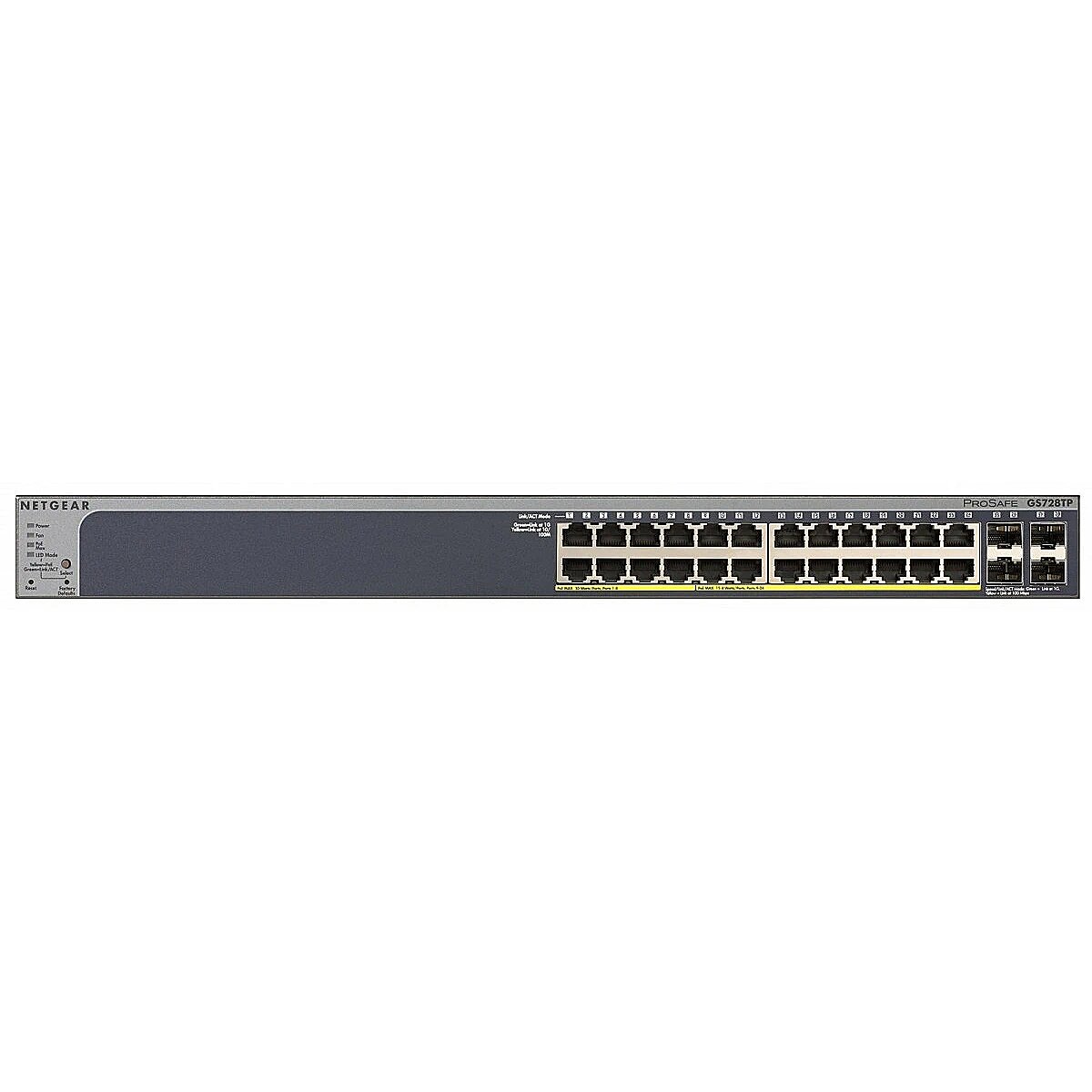

Netgear GS728TP, 24X 1GE POE+ 4SFP

10/100/1000/2500 Mbps ports - None
Accessories included - ProSAFE Gigabit PoE/PoE+ Smart Przełącznik Kabel zasilający Zestaw do montażu w stojaku Płyta CD z łączami do dokumentacji online, instrukcjami instalacji, podręcznikiem użytkownika do zarządzania przez Internet, oprogramowaniem Smart Control Center (SCC) i podręcznikiem użytkownika
Application - Medium and large companies
ARTIKEL1 - 28PORT POE+ GB SMART MGD SWITCH
ARTIKEL2 - 24X 1G POE + 4X SFP
Brand - NETGEAR
BrandPartCode - GS728TP-300EUS
Breite - 0.35
Category - Network Switches
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certificates -
Certificates - Certification - CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA
Chassis type - Rack
Data transmission - Latency (1 Gbps) - 4.691 µs
Data transmission - Latency (10-100 Mbps) - 8.864 µs
Data transmission - MAC address table - 16000 entries
Data transmission - Packet buffer memory - 1.5 MB
Data transmission - Switching capacity - 56 Gbit/s
Description - Nowa generacja inteligentnych przełączników zarządzanych Gigabit PoE/PoE+ firmy NETGEAR oferuje zaawansowane funkcje L2+/Layer 3 Lite, lepsze funkcje PoE oraz zwiększoną wydajność i użyteczność. Zostały zaprojektowane specjalnie dla sieci konwergentnych, w których głos, wideo i dane są przesyłane na jednej platformie sieciowej, co zapewnia wydajność sieci, oszczędność kosztów operacyjnych i łatwość zarządzania.
Design - Certification - CE, FCC Class A, RCM, ICES Class A, VCCI, KC, BSMI, UKCA
Design - Number of fans - 2 fan(s)
Design - Product colour - Grey
Design - Rack mounting - Yes
Design - Redundant fans support - Yes
Designation - CE+WEEE
dimensionalWeight - 3640
dimension depth - 100 mm
dimension height - 520 mm
Dimensions - 440 x 257 x 44 mm
dimension weight - 4835 g
dimension width - 350 mm
ean - 606449162257
EAN - 10606449162254
EANCode - 0606449162257
EAN_code - 0606449162257
Environment requirements - Temperatura pracy: 0° do 50°C Temperatura przechowywania: od20° do 70°C Wysokość: maksymalnie 3000 m Wilgotność: maksymalna wilgotność względna 95%, bez kondensacji
Forwarding mode - Store-and-forward
Gewicht - 4.86
Gross Weight Kg - 5,41
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 606449162257
GTIN - 0606449162257
guarantee - 0
guarantee_type - perpetual
HERSTELLER - NETGEAR
Hoehe - 0.1
HSTNUMMER - GS728TP-300EUS
Jumbo frame size - 9 KB
L2 features -
L3 features -
Laenge - 0.53
LongDesc - All ports PoE+ with up to 760W PoE budget and Remote/Cloud Management option - Select your new network engine!As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains. The GS728TP, GS728TPP, GS752TP and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR standalone Smart switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TP supports quiet rack mounting operation with a maximum of 26.80dBA even at full PoE power with traffic on all ports and 25°C (77°F) ambient. Following the same measurements, the GS728TPP is rated at 33.30dBA, the GS752TP at 36.60dB and the GS752TPP at 39.30dBA.HighlightsThe NETGEAR PoE+ Gigabit Smart switches with Remote/Cloud Management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoEbased VoIP phones, IP cameras, videoover-IP endpoints and Wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks.Key features include:- Quiet rack mounting operation with 26.80 to 39.30dBA at 25°C (77°F) ambient- Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing- Advanced VLAN and Private VLAN support for better network segmentation- L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication- Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, LED lighting, secure access door locks, IoT devices…)- Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based- Auto “denial-of-service” (DoS) prevention- IGMP Snooping and Querier for multicast optimization- Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment- Dynamic ARP for increased security targeting a class of Man in the Middle attack- Rate limiting and priority queuing for better bandwidth allocation- Port mirroring for network monitoring- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings- Cable test to troubleshoot connection issues- SNMP v1, v2c, v3 and RMON remote monitoringBuild a future-proof network with NETGEAR:- Solid performance with non-blocking architecture, 16K MAC addresses, 256 VLANs, 100 shared (ingress) ACLs and 512 Multicast groups- Comprehensive IPv6 supporting management, QoS, ACL and routing, ensuring investment protection and a smooth migration to IPv6-based network- PoE+ support on all models and on all ports- 4 Dedicated SFPs, not only providing fiber uplinks, but also uplink redundancy and failover, improving reliability and availability for the networkFully-integrated cloud-manageable devices- Remote/Cloud Management capability with NETGEAR Insight. Instantly activate NETGEAR Insight Cloud management from the web GUI, for simpler configuration and deployment from anywhere using the NETGEAR Insight app on mobile devices or the Insight Cloud portal through a web browserSmart IT, not Big IT- Easy-to-use Web browser-based management GUI - Network Management System (NMS300), allowing all NETGEAR business products to be deployed and managed through this single interface - Dual firmware images improve reliability and uptime to your network - Text-based Lite Command-line Interface (CLI)NETGEAR quality and reliability- Worry-free NETGEAR Limited Lifetime Warranty*, online technical chat support and Next Business Day (NBD) replacement - 90-days Free 24x7 Advanced Technical Phone Support**
LongProductName - 24 x RJ45, 4 x SFP, 24 x PoE+ (190W), 440 x 257 x 43.2 mm, 3.78 kg
LongSummaryDescription - NETGEAR GS728TP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting
MAC address table size - 8000
Management, monitoring, configuration -
Management features - ARP inspection - Yes
Management features - Switch layer - L2/L3/L4
Management features - Switch type - Managed
Manufacturer - Netgear
Manufacturer Code - GS728TP-300EUS
Manufacturer Name - Netgear
Manufacturer_code - GS728TP-300EUS
Mean time between failures (MTBF) - 345901 h
Multicast features - Multicast support - Yes
Multicast features - Number of multicast groups filtered - 512
Name - Netgear GS728TP, Switch (grey, 190W PoE Budget)
name - Netgear GS728TP Smart Switch 24xGE PoE 4xSFP
Network - IPv4 routes - 32
Network - IPv6 routes - 32
Network - Networking standards - IEEE 802.1D
Network - Networking standards - IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
Network - Networking standards - IEEE 802.1Q
Network - Networking standards - IEEE 802.1s
Network - Networking standards - IEEE 802.1w
Network - Networking standards - IEEE 802.3ad
Network - Networking standards - IEEE 802.3x
Network - Number of VLANs - 256
Network - Port mirroring - Yes
Network - VLAN support - Yes
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - None
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE++ ports - 1
Number of PoE+ ports - 24
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - 4
Number of VLAN groups - 256
Operational conditions - Heat dissipation - 772.9 BTU/h
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features -
Other functions -
Packet buffer - 8 MB
Performance - Built-in processor - Yes
Performance - Flash memory - 64 MB
Performance - Internal memory - 512 MB
Performance - Mean time between failures (MTBF) - 1751613 h
Performance - Noise level - 26.8 dB
Performance - Processor frequency - 800 MHz
Performance - Processor manufacturer - ARM
Performance - Processor model - ARM Cortex-A55
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 24
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Installed SFP modules quantity - 4
Ports & interfaces - USB Type-A ports quantity - 1
Power - Power consumption (max) - 226 W
Power - Power consumption (typical) - 24 W
Power - Power source - AC
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 190 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 24
Power supply -
Power supply - Internal
producer - Netgear
producerCode - GS728TP-300EUS
ProductName - GS728TP
productName - NETGEAR GS728TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
productSize - Normal
QoS - Access Lists L2 MAC, L3 IP and L4 Port ACLs Ingress rate limiting Egress rate limiting Support for IPv6 fields DiffServ QoS IEEE 802.1p COS Dst MAC and IP IPv4 and v6 DSCP IPv4 and v6 TOS WRR (Weighted Round Robin) Strict Priority queue technology Auto-VoIP: Yes, based on protocols (SIP, H323 and SCCP) or on OUI bytes (default database and user-based OUIs) in the phone source MAC address Auto Video
Port Mirroring
Security -
Security - Access Control List (ACL) - Yes
Security - Access Control List (ACL) IPv4 entries - 100
Security - DHCP features - DHCP snooping
Security - DHCP features - DHCP snooping, DHCPv6 client
Security - DHCP features - DHCPv6 client
SFP28 ports - 1
Short description - Netgear 28Port PoE+ Switch 10/100/1000 GS728TP
ShortSummaryDescription - NETGEAR GS728TP, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
sizeX - 520
sizeY - 350
sizeZ - 100
Stck_Kart - 1
Stck_Pal - 40
Storno - Y
Supported protocols and standards - IEEE 802.3 Ethernet IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.1Q VLAN Tagging IEEE 802.3x full-duplex flow control IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3ae 10-Gigabit Ethernet IEEE 802.3ad Trunking (LACP) IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED) IEEE 802.1p Class of Service IEEE 802.3 af (PoE) IEEE 802.1D Spanning Tree (STP) IEEE 802.1s Multiple Spanning Tree (MSTP) IEEE 802.1w Rapid Spanning Tree (RSTP) IEEE 802.1x Radius network access control IEEE 802.3 at (PoE Plus)
Support for Jumbo frames - Yes
Switch class - Managed
Switch layer - L2+
Switch layer - L3
Throughput - 56 Gb/s
Title - NETGEAR GS728TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
URL - https://www.netgear.com/business/wired/switches/smart-cloud/gs752tppv3/
vendpn - GS728TP-300EUS
VLAN -
WarrantyInfo -
warrantyType - W
Weight - 3.73 kg
Weight - 5,22
weight - 4835
Weight & dimensions - Depth - 257 mm
Weight & dimensions - Height - 432 mm
Weight & dimensions - Weight - 3.78 kg
Weight & dimensions - Width - 440 mm
