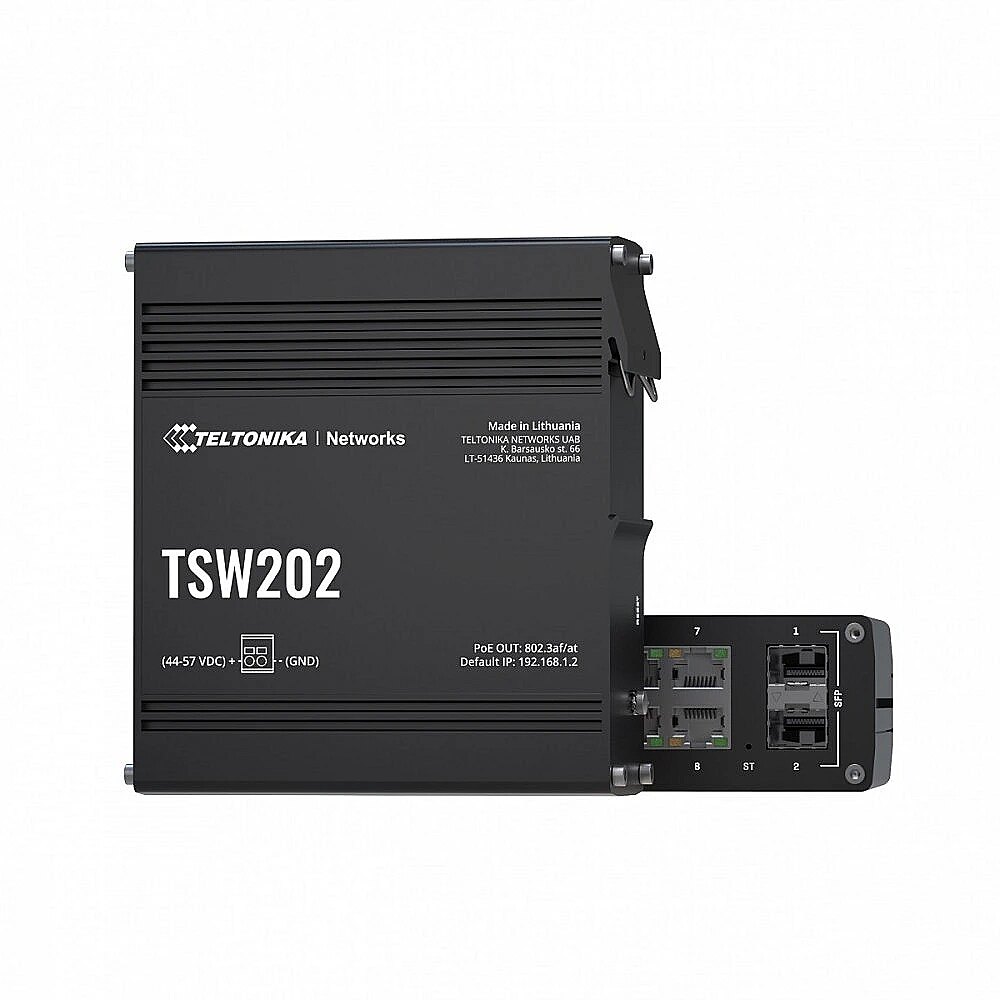

Teltonika TSW202, 8x1Gb POE+ 2SFP

10/100/1000/2500 Mbps ports - None
Accessories included -
Application - Home and small office
Auto MDI/MDI-X - Yes
Bandwidth, Gbit/s - 20
Buffer size, KB - 512
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Certificates - CE, CB, RCM, FCC, IC,EAC, UCRF
Chassis type - Desktop
Chassis type - Rack
Code - TSW202000000
Console port - No
Description - TELTONIKA MANAGED IOT SWITCH TSW202 POE+ 8X1GB RJ45 2X1GB SFP
Description - TSW202 is a managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralising power distribution. This PoE+ switch enables flexibility over management and power supply and supports protocols, including EtherNet/IP, PROFINET, and MRP. The TSW202 has 2 SFP ports and 8 Gigabit Ethernet ports providing 30 W of power each.
Description - TSW202 is the first managed industrial switch from Teltonika Networks, offering greater control over the flow of data on your network and the role of ports in your solution. PoE+ with a maximum power of 30 W per port and a total power of 240 W for PSE makes the TSW202 centralize power. PoE management gives you greater control over power distribution in your solution, allowing you to enable or disable PoE on selected ports. The switch is equipped with 8 Gigabit Ethernet LAN ports, allowing you to manage, configure and monitor your network. Additional software features, such as QoS, increase effective bandwidth management and the classification and prioritization of network traffic. Designed for industrial environments, the TSW202 features an integrated DIN rail mount, a robust aluminum housing, and resistance to extreme temperatures and vibration, ensuring maximum durability with ease of installation.
Design > Form factor - Wall-mountable
Designation - CE+WEEE
dimension depth - 50 mm
dimension height - 140 mm
Dimensions - 132 x 44.2 x 122.2 mm
Dimensions W x D x H, mm - 132 x 122.2 x 44.2
dimension weight - 645 g
dimension width - 140 mm
EAN - 4779051840281
ean - 4779051840281
Environment requirements - Operating temperature: -40°C to 75°C
Ethernet LAN (RJ-45) PoE ports quantity - 8
Ethernet LAN data transfer rates, Mbit/s - 10/100/1000
Fan - No
Fiber ports quantity - 2
Fiber type - SFP
Forwarding rate - 14.88 Mpps
Full Description Line - Type L2|2xSFP|8xRJ45|PoE+ ports 8|PoE power budget 240 Watts|Switching capacity 20 Gbps|Forwarding rate 14.88 Mpps|Dimensions 132 x 44.2 x 122.2 mm|Unit Net Weight 0.5 kg
Green certifications - REACH
Green certifications - RoHS compliant
guarantee - 24
guarantee_type - normal
Height - 139.000000
IP classification - IP30
Jumbo frame size - 10 KB
Jumbo Frames support - 10000 bytes
L2 features -
L3 features -
Length - 48.000000
Link - https://teltonika-networks.com/products/ethernet-switches/tsw202
MAC address table, entries - 8K
MAC address table size - 8000
Management, monitoring, configuration -
Management features > Switch type - L2 managed
Manufacturer - Teltonika
ManufacturerPartNumber - TSW202000000
Model name - TSW202
MPN - TSW202000000
Name - 8+2P Teltonika TSW202 POE+ SFP M
name - Managed switch TSW202 2xSFP 8xPoE+ Ethernet L2/L3
Name - Teltonika Switch, 8 ports | TSW202 | L2 managed | Wall-mountable | SFP ports quantity 2
Network architecture - GigabitEthernet
Networking standards - 802.3i, 802.3u, 802.3ab, 802.3x
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - 8
Number of SFP+ ports - None
Number of SFP56 ports - None
Number of SFP ports - 2
Operating temperature range (T-T), °C - - 40 - 75
Other features -
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 130 mm
Package features > Gross height (mm) - 50 mm
Package features > Gross width (mm) - 140 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 949 pc(s)
Package features > Paper/Pasteboard - 100 g
Package features > Tare weight (kg) - 0.1 kg
Package features > Volume (m3) - 0.00091 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packet buffer - 512 KB
PeriodofWarranty - 2 Y
PoE+ ports - 8
PoE capasity per port W - 30
PoE power budget - 240 Watts
Ports & interfaces > POE - PoE+ 802.3at/af
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Ports & interfaces > SFP ports quantity - 2
Ports quantity - 8
Power consumption - 240 W
Power over Ethernet (PoE), W - 240
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) Support - Yes
Power supply - Input voltage range: 7 - 57 VDC Input voltage range for PoE: 44 - 57 VDC
Power supply - External
Primary port count - 8
producer - TELTONIKA
QoS -
Quality of Service (QoS) support - Yes
RAM memory - 128 MB
RJ45 Ports - 8
Security -
SFP Ports - 2
Shipping Box Depth Shipping/Package Box Dimensions - 13.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 13.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.64 kg
Shipping Box Width Shipping/Package Box Dimensions - 5 cm
Stackability - No
Supported protocols and standards - IEEE 802.3af IEEE 802.3at
Support for Jumbo frames - Yes
Switch class - Managed
Switching capacity - 20 Gbps
Switch layer - L2+
Switch type - L2
Switch type - Managed
Technical details > Gross weight - 0.71 kg
Technical details > Net weight - 0.61 kg
Technical details > Producer - Teltonika
Technical details > Producer product family - Switch, 8 ports
Technical details > Producer product name - TSW202
Throughput - 20 Gb/s
Unit Box Height - 0.135
Unit Box Length - 0.135
Unit Box Width - 0.05
Unit Brutto Volume - 0.0009112 cubm
Unit Gross Weight - 0.64 kg
Unit Net Weight - 0.5 kg
Vendor Homepage - teltonika-networks.com/products/ethernet-switches/tsw202
vendpn - TSW202000000
VLAN -
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
Weight - 0.64
Weight - 0.650000
Weight - 610 g
Weight, g - 610
Width - 138.000000
