Axagon PCEE-GRL LAN card PCIe 1x Gigabit Realtek 8111

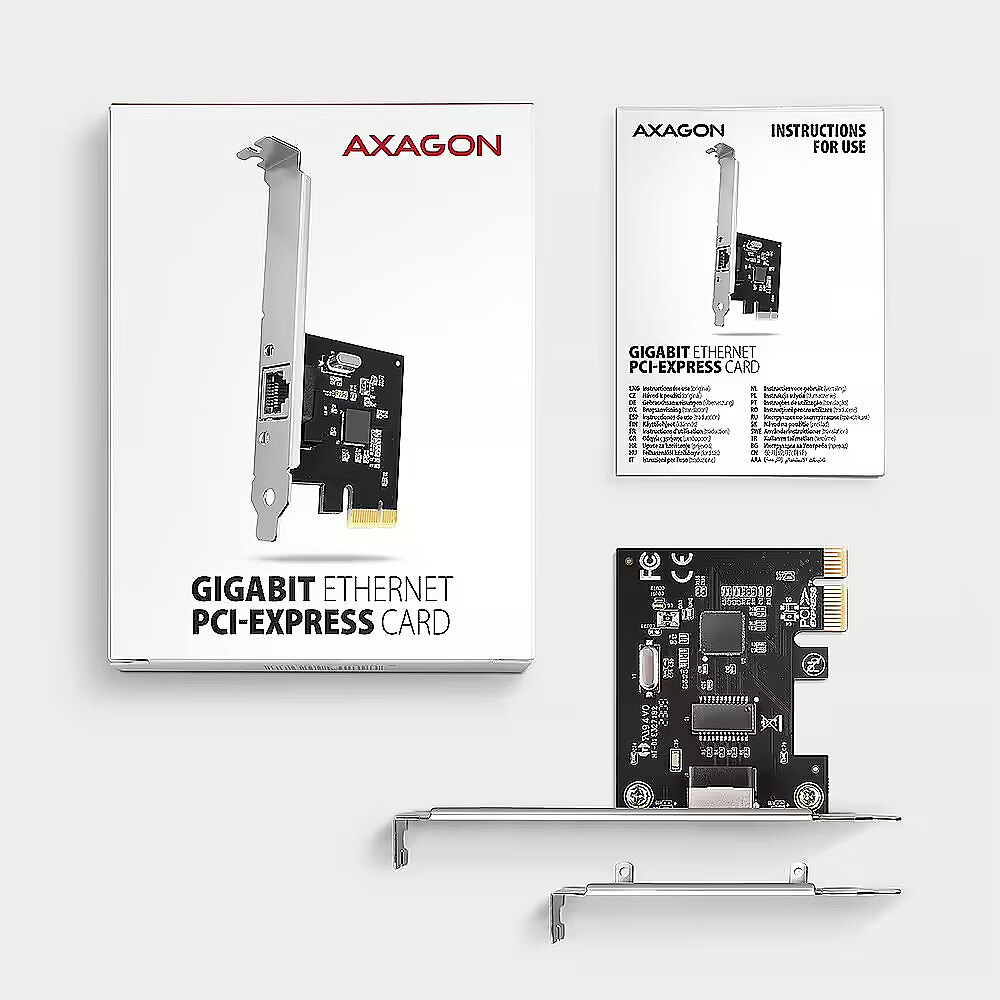

Accessories included - PCI-Express Gigabit Ethernet card with a standard bracket, low profile bracket, multilanguage guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA, packed in a cardboard box.
Antenna - Not applicable
Box Weight Brutto (kg) - 8.1 kg
category - Communication Network
Chipset type - Realtek RTL8111L
code - PCEE-GRL
Data Bit Rate - 1 Gbps
Data Link Protocol Supports - Gigabit Ethernet/Fast Ethernet/Ethernet

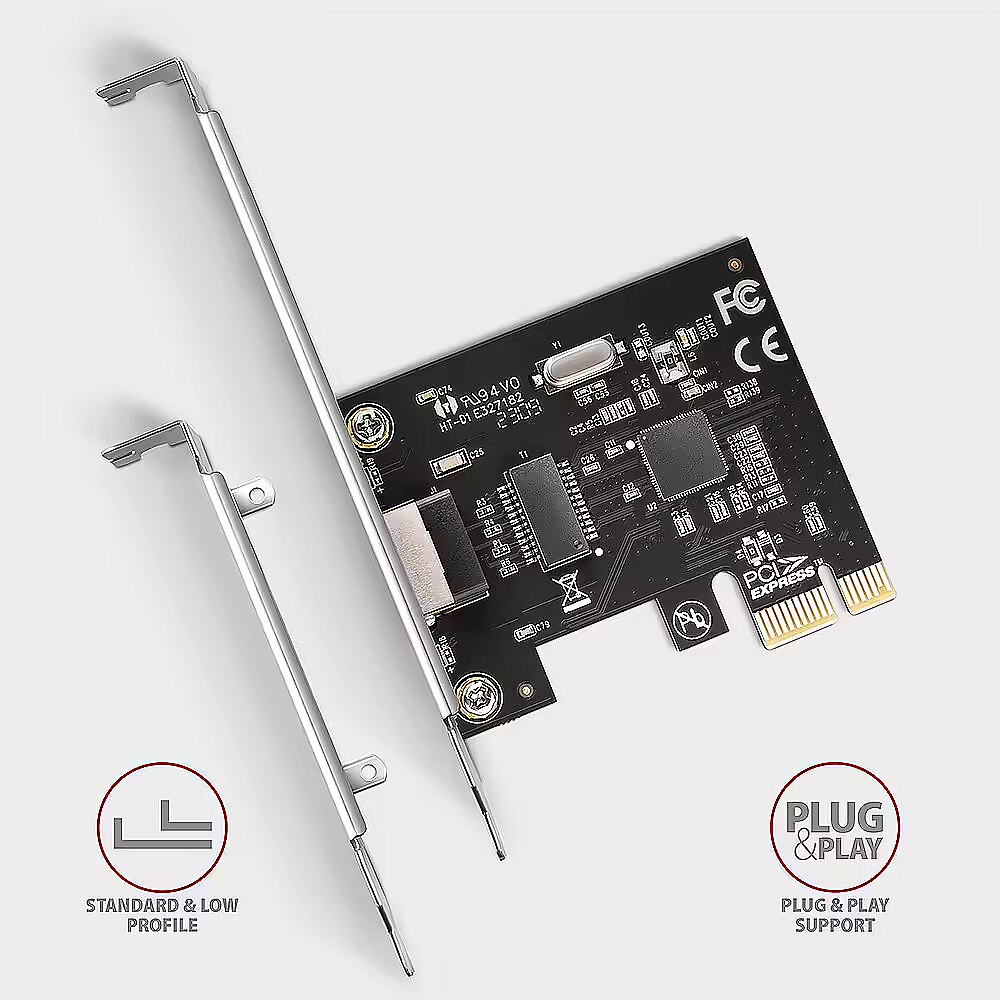

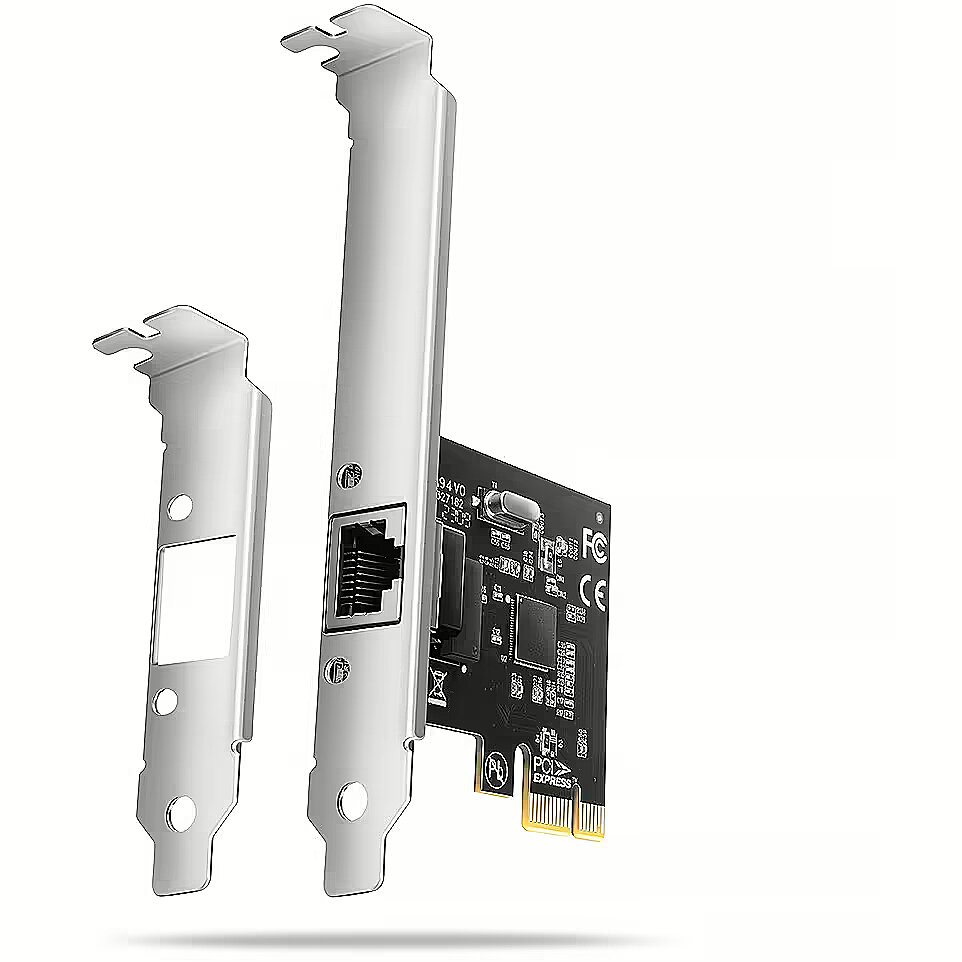

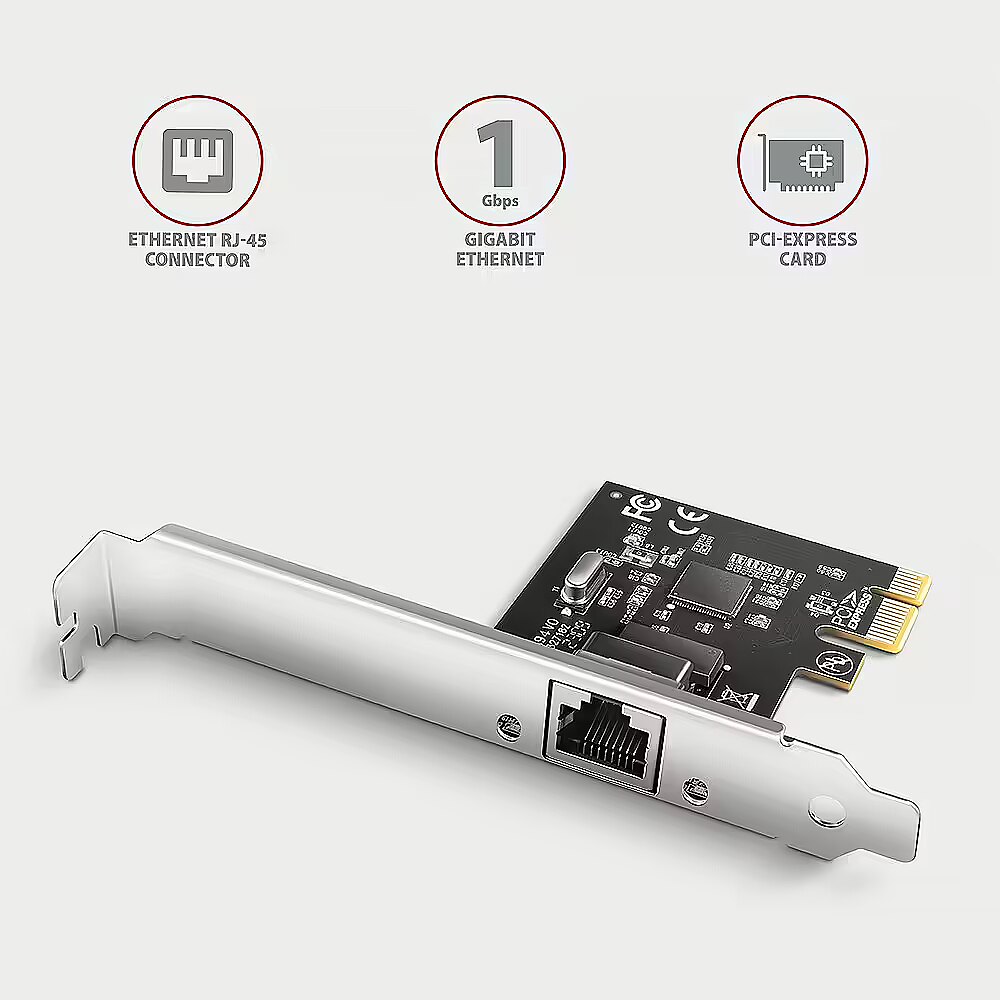

Description - AXAGON PCEE-GRL PCI-Express network card adds high speed Gigabit Ethernet connection to your desktop computer. Enables transmission rates of 10/100/1000 Mbit/s. The card is fitted with the new L version from the proven Realtek RTL8111 chip series ensures seamless compatibility with the most operating systems. Gigabit network card connects the computer to the Internet or a computer network, adds the missing RJ-45 connector, add another network card or replaces the original non-functional network connection.  In addition to an adapter with a standard size bracket, the package also includes a low profile bracket which allows the adapter to be mounted into low profile cases. Input:  PCI-Express 2.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.1. / 3.0. Number of 1-Lane lines (x1), compatible with x1 / x4 / x8 / x16 PCIe slots. The bandwidth of 1-Lane PCI-Express 2.0 bus 5 Gb/s. Output: Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection. Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s. Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications. Other features: Full Plug and Play support. 10/100/1000 Mbit/s auto-detection. Supports Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) to reduce processor load. Supports Segmentation Task-offload (Large send v1 and Large send v2). Supports full-duplex transmission s IEEE 802.3x flow control. Supports IEEE 802.1P Layer 2 priority encoding. Supports IEEE 802.1Q VLAN tagging. Supports IEEE 802.3az-2010 (EEE) Energy Efficient Ethernet - reduce power consumption at standby. Supports Auto MDI/MDIX - crossover detection and auto-correction eliminate the need for crossover cables. Supports hardwar ECC (Error Correction Code), CRC (Cyclic Redundancy Check). Supports Pair Swap/Polarity/Skew Correction. Two LEDs for indicating network activity and connection. The Realtek RTL8111L chipset is used.   Wake-on-LAN feature support in different modes: Supports sleep mode and remote Wake Up via Magic Packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection and Link Change Wake-up. Supports ECMA-393 proxZzzy standard for sleeping hosts to manage the network connection of sleeping guests using proxy servers. Advanced Power Management features: The network card supports advanced power management to reduce losses during standby. It also supports advanced power saving when the Ethernet cable has been disconnected. Supports Advanced Configuration Power management Interface (ACPI). Supports Power Management offload (ARP & NS). Supports PCI MSI (Message Signaled Interrupt) and MSI-X. Supported OS: MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 a and later (supported are all 32- and 64-bit versions of OS Windows), MS DOS, MacOS X 10.4.x and higher, Linux kernel 2.4.x / 2.6.x / 3.x / 4.x, FreeBSD 7.x / 8.0 / 9.0, SCO Unix 5.0.6 / 5.0.7, SCO OpenServer 6, UnixWare 7.1.x, Novell server OS 5.x / 6.x, Novell client for DOS (ODI driver). Package contains: PCI-Express Gigabit Ethernet card with a standard bracket, low profile bracket, multilanguage guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA, packed in a cardboard box.
dimension depth - 25 mm
dimension height - 145 mm
Dimensions -
dimension weight - 64 g
dimension width - 110 mm
ean - 8595247907752
EAN Code - 8595247907752
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 10/100/1000 Mbit/s
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/240426140014967952.jpg
Included Accessories - Low Profile BracketĪsa lietotāja rokasgrāmata
Interface - Ethernet
Interface - PCIe
LAN - 1 (RJ-45)
LAN Chipset - Realtek RTL8111L
Local Area Network Architecture - 10Base-T/100Base-TX/1000Base-T
name - AXAGON PCEE-GRL PCI-Express Gigabit Ethernet Realtek 8111L + LP
name - PCEE-GRL LAN card PCIe 1x Gigabit Realtek 8111
Network/Transport Protocol - IPv4 TCP/IP UDP IPv6
Networking Compliant Standards - IEEE 802.1p(QoS), IEEE 802.1Q(VLAN), IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3az
Networking Features - MDI/MDI-X switch
Networking Form Factor - Plug-in-card
Networking Type - Network Adapter
Number of antennas - Not applicable
Number of Ports - 1
Other features -
Package Type - Retail
Packs in Box - 100
Pack Weight Brutto (kg) - 0.07 kg
Pack Weight Netto (kg) - 0.01 kg
Pieces in pack - 1
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=230908063014700819&THEME=asbis&LANG=lv
ProductCategory - Tīkla produkti
ProductCode - PCEE-GRL
ProductDescription - Axagon Gigabit Ethernet PCI-Express network card with new version of Realtek chipset RTL8111L.
ProductType - Network Interface Card
Requires Expansion Slot Standard - PCI Express x1
Requires Operating System - Linux, Windows
Retail Packaging Net Weight Carton - 0.01 kg
Retail Packaging Net Weight Plastic - 0.01 kg
Security -
Standards - 802.3ab
Standards - 802.3az
Standards - 802.3u
Standards - 802.11a
Status Indicator - Activity Status
Supported operating systems - FreeBSD
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Novell NetWare
Supported operating systems - SCO OpenServer
Supported operating systems - Unix
Supported operating systems - Windows
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 10 Home
Supported operating systems - Windows 10 Pro
Supported operating systems - Windows 11
Supported operating systems - Windows 11 Home
Supported operating systems - Windows 11 Pro
Supported operating systems - Windows Server 2003
Supported operating systems - Windows Server 2008
Supported operating systems - Windows Server 2012
Supported operating systems - Windows Server 2016
Supported operating systems - Windows Server 2019
Supported operating systems - Windows Server 2022
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements -
Type - LAN
Vendor - AXAGON
vendpn - PCEE-GRL
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 33 g
