ARTIKEL1 - PCI-EXPRE FIBER ADAPTER CARD
ARTIKEL2 - WOL SFP FED 100FX/1G LF TAA IN
Brand - Allied Telesis
BrandPartCode - AT-2914SP-901
Breite - 0.18
Category - Network Cards
Design - Certification - UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
Design - Internal - Yes
Design - LED indicators - Yes
EANCode - 0767035210384
Gewicht - 0.09
GRUPPE1 - Network
GRUPPE2 - Network Adapters
GTIN - 0767035210384
GTIN - 767035210384
HERSTELLER - ALLIED TELESIS
Hoehe - 0.03
HSTNUMMER - AT-2914SP-901
Laenge - 0.24
Logistics data - Harmonized System (HS) code - 85176990

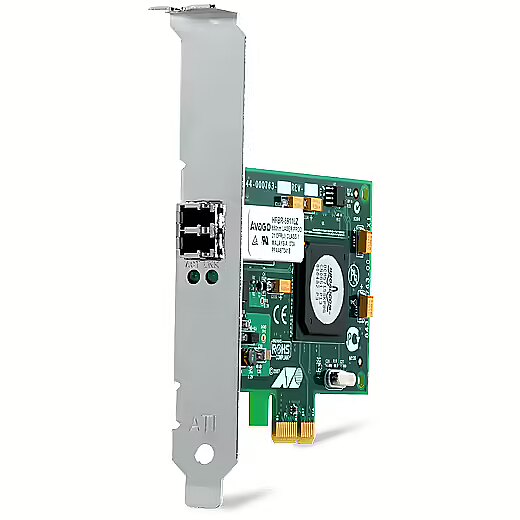

LongDesc - The Allied Telesis 2914SP is a gigabit PCIe x1 network adapter with an open SFP port. This port supports both Fast Ethernet and Gigabit SFP’s. This adapter supports Wake-on-LAN without the use of an external power supply.
LongProductName - PCI Express Gigabit Network Adapters with Wake-on-LAN (WoL) Support, 1x 100/1000 Mbit/s SFP
LongSummaryDescription - Allied Telesis 2914SP. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 1000 Mbit/s
Network - Auto-negotiation - Yes
Network - Ethernet LAN data rates - 100,1000 Mbit/s
Network - Jumbo frames - 9600
Network - Jumbo frames support - Yes
Network - Load balancing system - Yes
Network - Maximum data transfer rate - 1000 Mbit/s
Network - Networking standards - IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Network - Quality of Service (QoS) support - Yes
Network - Wake-on-LAN ready - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -25 - 70 °C
Other features - Flow control support - Yes
Other features - Priority queuing supported - Yes
Packaging data - Low-profile bracket - Yes
Packaging data - Quantity - 1
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Fiber optic connector - SFP
Ports & interfaces - Fiber ports quantity - 1
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - Fiber
Power - Output voltage - 3.3 V
ProductName - 2914SP
ShortSummaryDescription - Allied Telesis 2914SP, Internal, Wired, PCI Express, Fiber, 1000 Mbit/s
Stck_Kart - 20
Stck_Pal - 60
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
System requirements - Windows operating systems supported - Windows 10, Windows 7, Windows 8, Windows Vista
Technical details - Compliance certificates - RoHS
Title - Allied Telesis 2914SP Internal Fiber 1000 Mbit/s
URL - https://www.alliedtelesis.com/products/network-adapters/2914-series/2914sp#
WarrantyInfo -
Weight & dimensions - Height - 69 mm
Weight & dimensions - Weight - 68 g
Weight & dimensions - Width - 88 mm
