i-tec USB 3.0 / USB-C / Thunderbolt Dual Display Docking Station, PD 85W

Accessories included - Docking Station USB-C cable USB-C to USB 3.0 adapter
ARTIKEL1 - I-TEC USB 3.0/USB-C/TB 2X HDMI
ARTIKEL2 - DOCKING STATION + PD 100W
Brand - i-tec
BrandPartCode - CADUALHDMIDOCKPD
Breite - 0
Category - Laptop Docks & Port Replicators
Category - Root/Accessories | Exploitation/Cables and adapters/Docking stations and port replicators
Color - Black
Compatible with - Devices with an available USB-A, USB-C, USB4 or Thunderbolt 3/4 port.

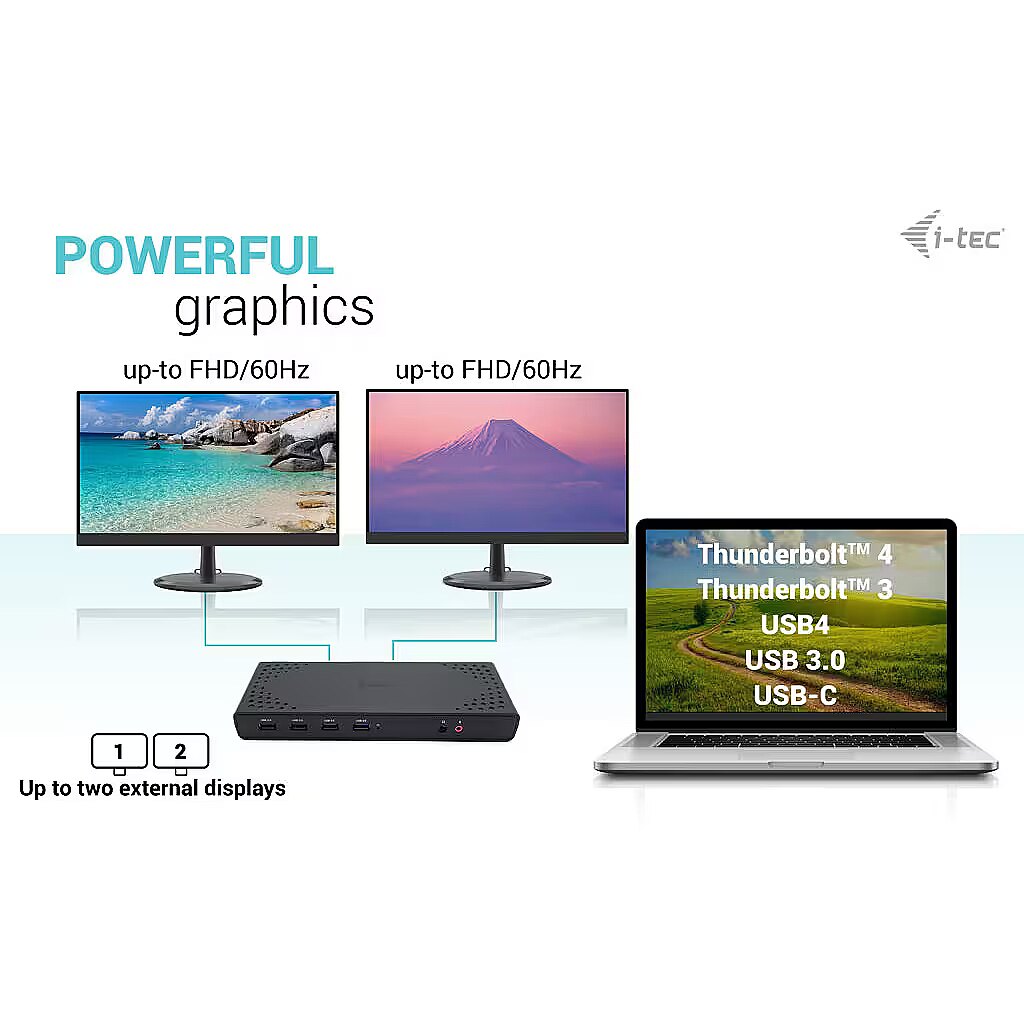

Description - Universal docking station, compatible with laptops and tablets with USB-C, USB-A and Thunderbolt connectors. 2x HDMI with support for up to two FHD/60Hz displays (including the Apple M1 platform) or a single 1440/50Hz display. 6 USB ports, including 2x USB-A 3.2 Gen 1 (5 Gb/s) and 4x USB 2.0, which makes it easy to connect multiple USB devices and peripherals. Delivers up to 100W of power to compatible USB-C and Thunderbolt laptops and tablets (host device must support USB-C Power Delivery). GLAN Ethernet supports network speeds of 10/100/1000 Mbps, ensuring a solid and fast Internet connection. Separate 3.5mm audio inputs and outputs for easy connection of headsets or speakers. The available VESA mount allows you to keep your desk tidy and cable-free, and the K-lock lock provides additional security.
dimension depth - 50 mm
dimension height - 250 mm
Dimensions - 224 x 88 x 27 mm
dimension weight - 1130 g
dimension width - 250 mm
Docking connector - Yes
ean - 8595611706295
EANCode - 8595611706295
Eans - 8595611706295
Gewicht - 1.13
GRUPPE1 - Accessories
GRUPPE2 - Port
GTIN - 8595611706295
guarantee - 24
guarantee_type - normal
HERSTELLER - I-TEC
Hoehe - 0
HSTNUMMER - CADUALHDMIDOCKPD

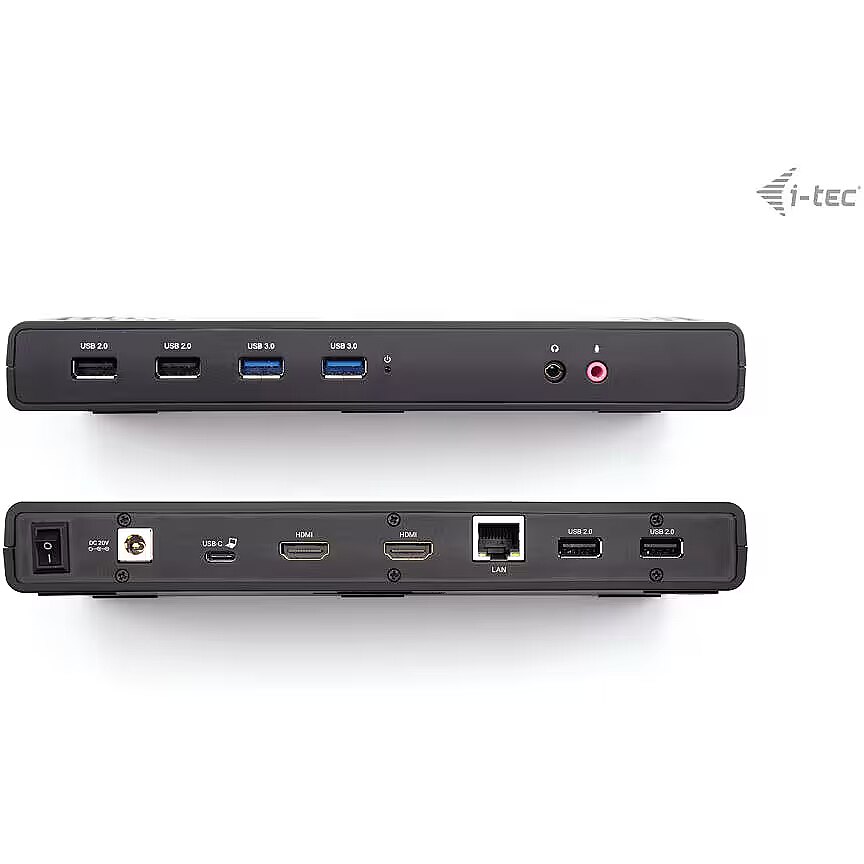

I/O ports - 1 x 3,5 mm minijack (Headphones)
I/O ports - 1 x 3,5 mm minijack (Microphone)
I/O ports - 1 x RJ-45 (LAN)
I/O ports - 1 x USB 3.1 Type C
I/O ports - 2 x HDMI Type A
I/O ports - 2 x USB 3.0 Type A
I/O ports - 4 x USB 2.0 Type A
Laenge - 0
LongDesc - Enhance your notebook, tablet or smartphone, by utilising USB-C or USB-A connectivity. This Thunderbolt-compatible dual monitor docking station features the DisplayLink DL3900 chipset and offers the flexibility of both USB-C and USB-A host interfaces. A connecting cable with both ends (USB-C for C, USB-C for A) is a part of the package. As far as the docking station is connected either to a laptop or to a tablet that supports charging-up at its USB-C or Thunderbolt 3 port, then it is able to provide the power supply (Power Delivery) up to 100W .2x USB-A 3.0 ports and 4x USB 2.0 make it easy to connect all of your existing hardware and the Gigabit Ethernet RJ45 port provides a reliable, robust and high-speed internet connection, supporting 10/100/1000 Mbps speeds. 3.5 mm audio jacks can be found on the front panel and an easily accessible power-saving on/off switch can be found on the rear panel. The addition of a Kensington lock slot provides additional security, especially for those working regularly in public spaces.i-tec docking stations are compatible with the vast majority of notebook brands and platforms, making it easier than ever to connect your favourite hardware. The unit is extremely compact, perfect for use at home or in the office. Due to the hybrid interface option especially hot desk use, due to the USB-C or USB-A interface options.- Connect your notebook, tablet or smartphone to additional monitors and your favourite hardware via a single USB-C or USB-A port (cable included)- 2x HDMI support the connection of max. 2 monitors (max. resolution 2x FHD/60 Hz or single 1440p/50 Hz)- 6x USB-A ports (2x USB 3.0 and 4x USB 2.0) for connecting all existing hardware and accessories.- Fast network and Internet access with Gigabit Ethernet RJ-45 port, supporting 10/100/1000 Mbps speeds- Kensington lock slot to discourage theft- Separate 3.5 mm audio input/output jacks- Power-saving on / off switch allowing a quick and easy reset of the docking station.- 1x power supply input – external power adapter (output: DC 20V/6.75A)- Cross-brand and cross-platform compatibilityIf the docking station is connected via USB 3.0, charging of laptops and tablets is not supported
LongProductName - USB 3.0 / USB-C / Thunderbolt Dual Display Docking Station + Power Delivery 100W
LongSummaryDescription - i-tec USB 3.0 / USB-C / Thunderbolt Dual Display Docking Station + Power Delivery 100W. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum refresh rate: 60 Hz. Output voltage: 20 V, Output current: 6.75 A, Compatible power plug types: EU. Other operating systems supported: Android, ChromeOS
Name - i-tec USB 3.0 / USB-C / Thunderbolt 2x HDMI Dual Display LAN Audio Power Delivery 100W
name - USB 3.0 / USB-C / Thunderbolt 2x HDMI + Power Delivery 100W docking station
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Other features -
Packaging content - AC adapter included - Yes
Packaging content - Cables included - AC, DC, USB Type-C to USB Type-A
Packaging content - Manual - Yes
Packaging data - Package depth - 250 mm
Packaging data - Package height - 50 mm
Packaging data - Package weight - 1.17 kg
Packaging data - Package width - 250 mm
Performance - Cable lock slot - Yes
Performance - Cable lock slot type - Kensington
Performance - Card reader integrated - No
Performance - Data transfer rate - 5 Gbit/s
Performance - Maximum refresh rate - 60 Hz
Performance - Number of displays supported - 2
Performance - Product colour - Black
Performance - VESA mounting - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ports & interfaces - Microphone in - Yes
Ports & interfaces - USB 2.0 ports quantity - 4
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces - USB Power Delivery - Yes
Ports & interfaces - USB Power Delivery up to - 100 W
Power - Compatible power plug types - EU
Power - Output current - 6.75 A
Power - Output voltage - 20 V
Power - Power cable length - 1.7 m
Power - USB cable length - 1 m
producer - i-tec
Producer - i-tec
ProducerCode - CADUALHDMIDOCKPD
ProductName - USB 3.0 / USB-C / Thunderbolt Dual Display Docking Station + Power Delivery 100W
ShortDescription - i-tec USB3.0/USB-C/TB 2x HDMI Dock PD85W
ShortSummaryDescription - i-tec USB 3.0 / USB-C / Thunderbolt Dual Display Docking Station + Power Delivery 100W, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 3.5 mm, 10,100,1000 Mbit/s, Black
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Other operating systems supported - Android, ChromeOS
Software - Windows operating systems supported - Yes
Stck_Kart - 1
Stck_Pal - 20
Storno - Y
System Requirements - Operating system: Windows 10/11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu.
Title - i-tec USB 3.0 / USB-C / Thunderbolt Dual Display Docking Station + Power Delivery 100W
URL - https://i-tec.pro/en/produkt/cadualhdmidockpd-2/
vendpn - CADUALHDMIDOCKPD
WarrantyInfo -
Weight - 314 g
Weight & dimensions - Depth - 88 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Weight - 314 g
Weight & dimensions - Width - 224 mm
