Accessories included -
Brand - ICY BOX
BrandPartCode - 20850
Category - Laptop Docks & Port Replicators
Category - Root/Accessories | Exploitation/Cables and adapters/Docking stations and port replicators
Category 1 - Notebooks & Zubehör
Category 2 - Zubehör Notebooks
Category 3 - Dockingstations
Category_1 - Computers and Laptops
Category_2 - Laptop - Accessories
Code - IB-DK2241AC
Color - Black
Compatible with -

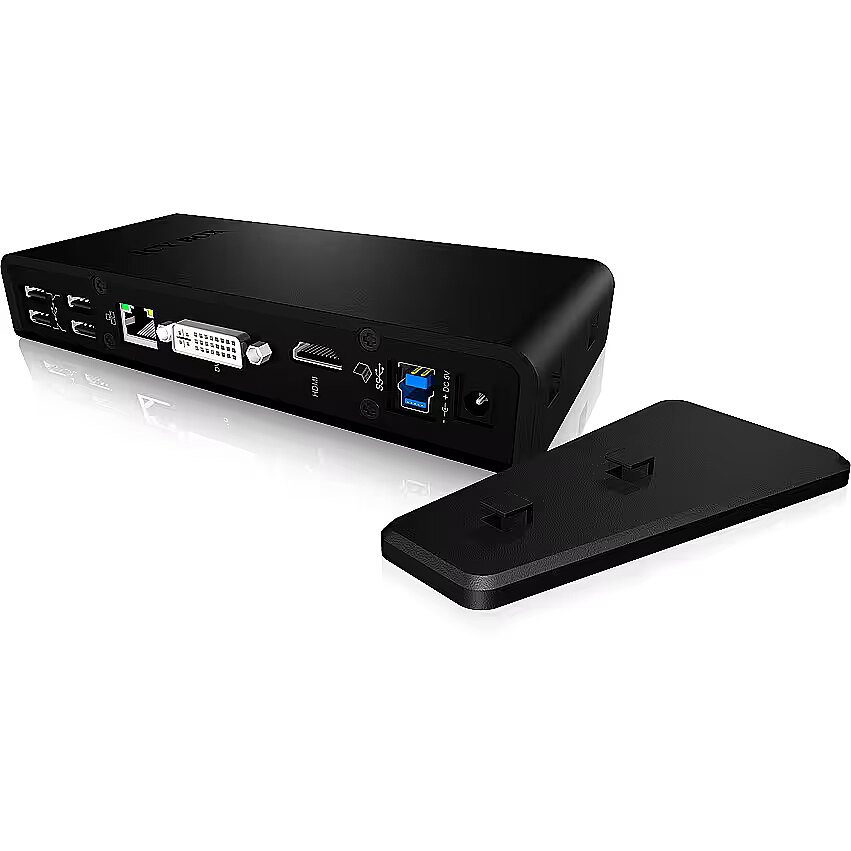

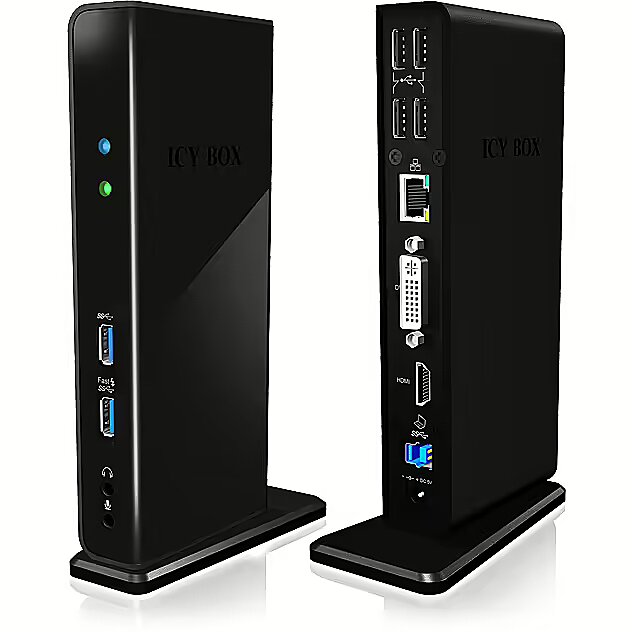

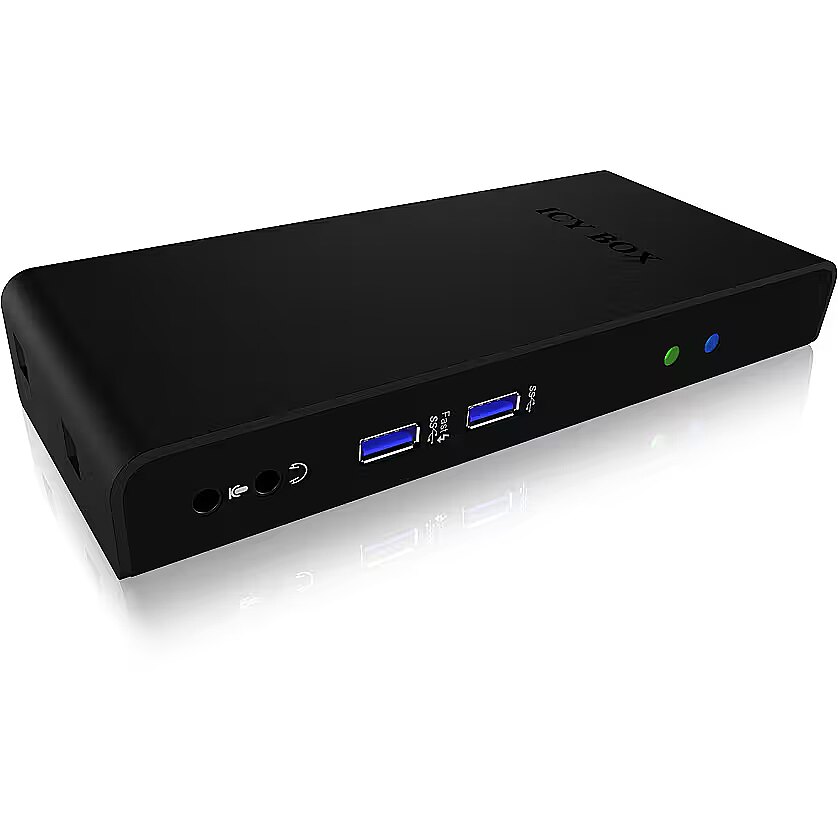

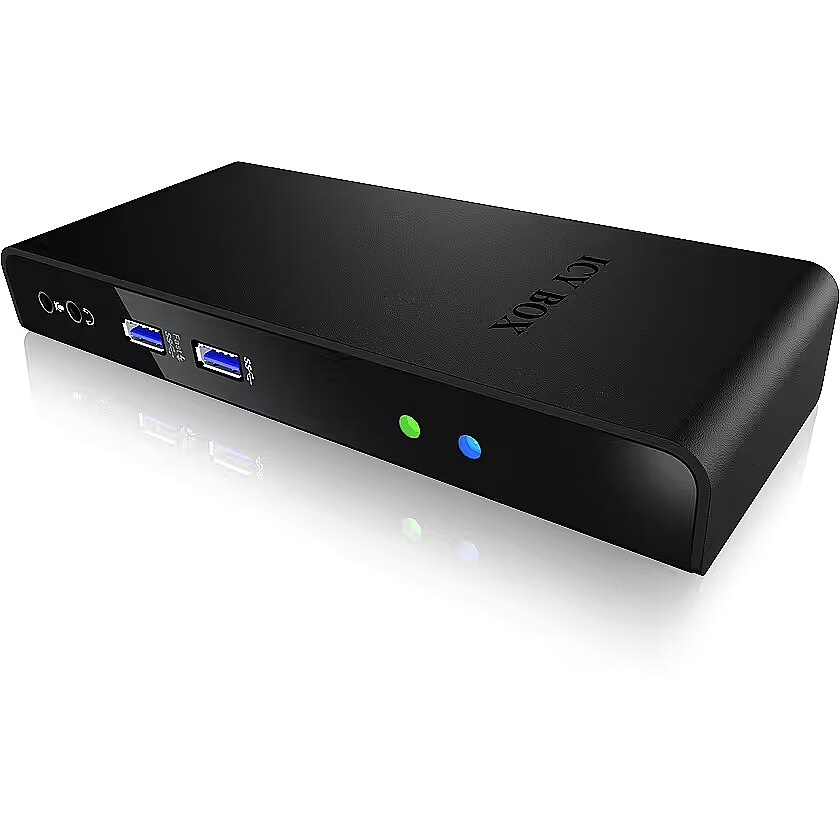

Description - IB-DK2241AC USB, HDMI, LAN, DVI-I, Mic
Notebooks and other mobile devices are getting thinner and smaller. Unfortunately, this happens at the expense of ports - even a very popular LAN RJ45 port and USB inputs are often removed. Not to mention the possibilities offered by video ports - DVI or VGA, which are required to connect a huge number of devices.
With the device IB-DK2241AC you do not fear the number of ports on your computer. Our docking station allows you to extend the capabilities of your laptop. Thanks to our product it is possible to obtain up to eleven additional ports, such as 4x USB 2.0, 2x USB 3.0, Gigabit LAN, DVI-I, HDMI, headphones and a microphone. This high quality adapter can be used with Windows and Mac operating systems.
Thus, ICY BOX IB-DK2241AC is the perfect companion for travel enthusiasts, business and multimedia enthusiasts who want to be prepared for any eventuality.
Warning:
This device can be used in the following operating systems:
Windows, Mac OS X, Android, Ubuntu
To get the latest driver update, check the following link:
http://www.displaylink.com/downloads/index.php
dimension depth - 65 mm
dimension height - 200 mm
Dimensions - 182 x 78 x 32 mm
dimension weight - 790 g
dimension width - 150 mm
EAN - 4250078189800
ean - 4250078189800
Eans - 4250078189800
EAN_code - 4250078189800
Gross weight - 0.765 kg
GTIN - 4250078189800
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 3,5 mm minijack (Headphones)
I/O ports - 1 x 3,5 mm minijack (Microphone)
I/O ports - 1 x DVI-I
I/O ports - 1 x HDMI Type A
I/O ports - 2 x USB 3.0 Type A
I/O ports - 4 x USB 2.0 Type A
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Master (outer) case gross weight - 8.5 kg
Logistics data - Master (outer) case height - 330 mm
Logistics data - Master (outer) case length - 357 mm
Logistics data - Master (outer) case width - 215 mm
Logistics data - Products per master (outer) case - 10 pc(s)
LongDesc - Bring diversity to the office everydayWith just one USB 3.0 host connector, you receive four further USB 2.0 ports, two USB 3.0 ports, one DVI-I and one HDMI connector as well as a Gigabit Ethernet connection and audio ports.Multitasking for allThanks to the graphic interfaces DVI-I and HDMI, two additional screens can be connected, both in Full HD quality. The many available USB 2.0 and USB 3.0 ports make sure you will never have a need to compensate one device over the other.Hands and feetThe high-quality metal stand makes sure the IB-DK2241AC is always in balance. Adding all the available ports, this device will make order in every situation.
LongProductName - 11-in-1 USB 3.0 Type-A Dock with two video interfaces
LongSummaryDescription - ICY BOX IB-DK2241AC. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Data transfer rate: 5 Gbit/s, HD type: 2K. Power source type: AC, AC input voltage: 100-240 V, Output voltage: 5 V. Width: 80 mm, Depth: 30 mm, Height: 183 mm
Manufacturer - Icy Box
Manufacturer - RaidSonic
Manufacturer_code - 20850
MPN - IB-DK2241AC
name - IB-DK2241AC USB,HDMI,LAN,DVI-I,Mic
Name - ICY BOX IB-DK2241AC - Docking station for laptop - USB 3.0 DVI HDMI RJ45
Name - ICY BOX IB-DK2241AC USB 3.0 11-in-1 DockingStation
Name - Icy Box USB 3.0
Name - Raidsonic | ICY BOX | IB-DK2241AC Multi Docking Station | USB-A Dock | Warranty 12 month(s)
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Other features - - Rozszerza 1x interfejs USB 3.0 do 11 dodatkowych interfejsów
- Wejście: (do Notebooka/PC): żeński USB 3.0 typu B
Wyjścia:
2x USB 3.0 typu A
Zawiera 1x USB 3.0 5V do ładowania smartfona/tabletu
1x gniazdo mikrofonu 3,5 mm
1x gniazdo słuchawkowe 3,5 mm
1x złącze HDMI
1x DVI-I (Dual-Link) 24 + 5 żeńskie
1x gniazdo Gigabit LAN RJ45
4x USB 2.0 typu A żeńskie
- Zawiera adapter DVI-VGA
- Porty HDMI i DVI obsługują:
Odbicie lustrzane i rozciągnięcie ekranu,
Rozdzielczość do 2048 x 1152 pikseli
- USB 3.0 wstecznie kompatybilny z USB 2.0
- Ustawienie pionowe (ze stojakiem) i poziome
- Plug & Play i Hot Swap
- Zasilacz (100 - 240 V), 5 V/4 A, 20 W
Other features - Number of microphone inputs - 1
Other features > I/O ports - Input: (to Notebook / PC): USB 3.0 type-B female Output: 2x USB 3.0 type-A female Including 1x USB 3.0 5 V charger for Smartphone / Tablet 1x Microphone 3.5 mm jack 1x Earphone 3.5 mm jack 1x HDMI® Connector 1x DVI-I (Dual-Link) 24+5 female 1x Gigabit LAN RJ45 female 4x USB 2.0 type A female • Including DVI to VGA adapter • HDMI® and DVI ports support: mirroring and extending of the display, Resolution up to 2048x1152 Pixel • USB 3.0 backwards compatible with USB 2.0 • Vertical (with stand foot) and horizontal settable • Plug & Play and Hot Swap • Power adapter (100 – 240V), 5 V/4 A, 20 W
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150 mm
Package features > Gross height (mm) - 200 mm
Package features > Gross width (mm) - 65 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 443 pc(s)
Package features > Paper/Pasteboard - 173.00 g
Package features > Plastic (No PET) - 7.00 g
Package features > Tare weight (kg) - 0.18 kg
Package features > Volume (m3) - 0.00195 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Cables included - USB
Packaging content - Manual - Yes
Packaging data - Package depth - 68 mm
Packaging data - Package height - 204 mm
Packaging data - Package weight - 800 g
Packaging data - Package width - 154 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Brand compatibility - Any brand
Performance - Card reader integrated - No
Performance - Charging function - Yes
Performance - Country of origin - China
Performance - Data transfer rate - 5 Gbit/s
Performance - HD type - 2K
Performance - Hot-Plug support - Yes
Performance - Housing material - Acrylonitrile butadiene styrene (ABS), Metal, Polycarbonate (PC)
Performance - LED indicators - Yes
Performance - Maximum digital resolution - 2048 x 1152 pixels
Performance - Number of displays supported - 2
Performance - Plug and Play - Yes
Performance - Product colour - Black
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DVI-I ports quantity - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ports & interfaces - Microphone in - Yes
Ports & interfaces - USB 2.0 ports quantity - 4
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Power - AC input voltage - 100-240 V
Power - Output current - 4 A
Power - Output voltage - 5 V
Power - Power consumption (max) - 20 W
Power - Power source type - AC
producer - IcyBox
Producer - ICY Box
ProducerCode - IB-DK2241AC
Producer product family - ICY BOX
Producer product name - IB-DK2241AC Multi Docking Station
ProductName - IB-DK2241AC
ShortDescription -
ShortSummaryDescription - ICY BOX IB-DK2241AC, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, 3.5 mm, 10,100,1000 Mbit/s, Black, 5 Gbit/s
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Yes
System Requirements -
Technical details > Net weight - 0.585 kg
Technical details > Other features - Extends 1x USB 3.0 to 11 further interfaces
Technical details > Producer - Raidsonic
Technical details > Type - USB-A Dock
Technical details > Warranty - 12 month(s)
Technical_details - Aluminuium 4 port USB 3.0 Hub with integrated cable - Aluminium case with integrated USB 3.0 cable to connect to your PC.
- Provides 4x USB 3.0 ports up to 5 Gbit/s.
- With 5 V DC Jack for optional power supply.
- Plug & Play and Hot Swap.
- Downwards compatible to USB 2.0, 1.1. First: Faster, Second: Fourfold! USB 3.0 has a bandwidth of up to 5 Gbit/s. That makes it up to 10 times faster than USB 2.0.
With this hub you can use the fast USB 3.0 for four devices. USB 3.0 is downwardly compatible, it fits also USB 2.0 cables and devices (with their transfer
rates). The Hub is buspowered. There is a 5 V DC jack on the case. If you want to run more
external HDDs you can buy a 5 V power supply to get enough power. Weight & dimensions Width 90 mm Depth 40 mm Height 15 mm Weight 65 g Package width 36 mm Package depth 134 mm Package height 90 mm Package weight 114 g Ports & interfaces Ports quantity 4 Hub interfaces USB 3.0 DC-in jack Yes Power Y Design Material Aluminium Colour of product Aluminium, Silver LED indicators Power Packaging content N Performance Maximum Data Transfer Rate 5000 Mbit/s Hot-swap Yes Plug and Play Yes
Title - ICY BOX IB-DK2241AC Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-A Black
URL - https://www.raidsonic.de/en/home.php?we_objectID=9243
vendpn - IB-DK2241AC
Warranty - 12
WarrantyInfo -
Weight - 0,77
Weight - 0.21 kg
Weight - 0.76
Weight & dimensions - Depth - 30 mm
Weight & dimensions - Height - 183 mm
Weight & dimensions - Weight - 220 g
Weight & dimensions - Width - 80 mm
