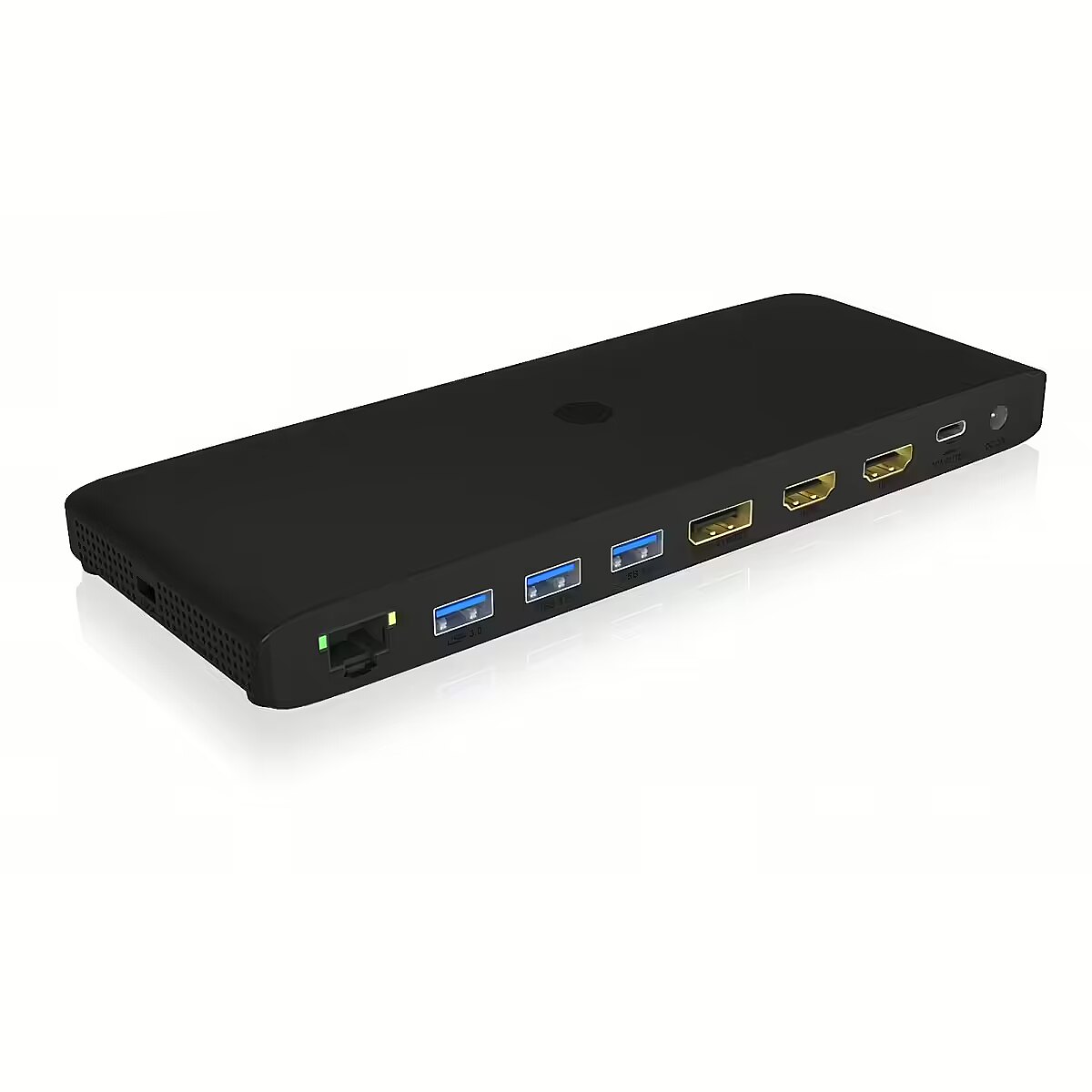

Raidsonic IB-DK2416-C 11in1,HDMI,DP,USB,LAN

Accessories included - 1x IB-DK2416-C 1x external power supply 1x power cable (EU) 1x USB Type-C to Type-C cable 1x VESA mounting bracket (75x75, 100x100) 6x screw 1x screwdriver 1x manual
Brand - ICY BOX
BrandPartCode - 61006
Category - Laptop Docks & Port Replicators
Category_1 - Computers and Laptops
Category_2 - Laptop - Accessories
Color - Black
Compatible with -
Description - 11-in-1
USB Type-C DockingStation with triple video output IB-DK2416-C PRODUCTIVITY: can be increased by connecting multiple screens. This way, several browser windows can be displayed at the same time beyond your notebook screen  MIRROR AND EXPAND: your notebook display to one, two or three monitors via two HDMI ports and DisplayPort (up to 3x 4K@30 Hz or 3x 2K@60 Hz). Please note the specs of your computer  65 WATTS POWER DELIVERY: charges your host computer via a USB-C interface. Mac and PC users no longer need a notebook charger, just a single USB-C cable to power the device   ETHERNET UP TO 1000 MBIT/S: Wired network connections are faster and more reliable than any WLAN. With this DockingStation you can use the full performance via the integrated Gigabit Ethernet port  UP TO 5 GBIT/S: on four Super Speed ports. Extend the usability of your notebook and also use mouse, keyboard, controller, printer, external GPU and more
dimension depth - 95 mm
dimension height - 140 mm
Dimensions - 88x208x19 mm
dimension weight - 1590 g
dimension width - 270 mm
ean - 4250078173397
EAN_code - 4250078173397
GTIN - 4250078173397
guarantee - 24
guarantee_type - normal

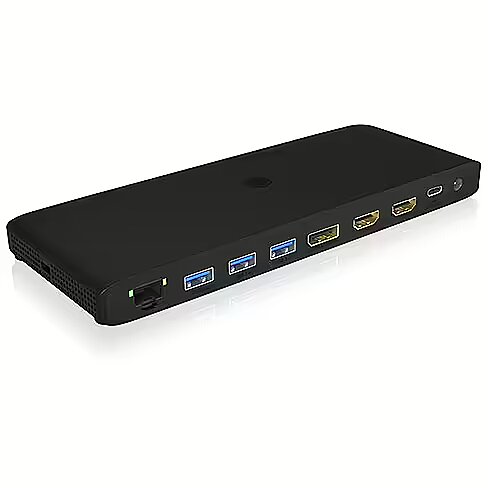

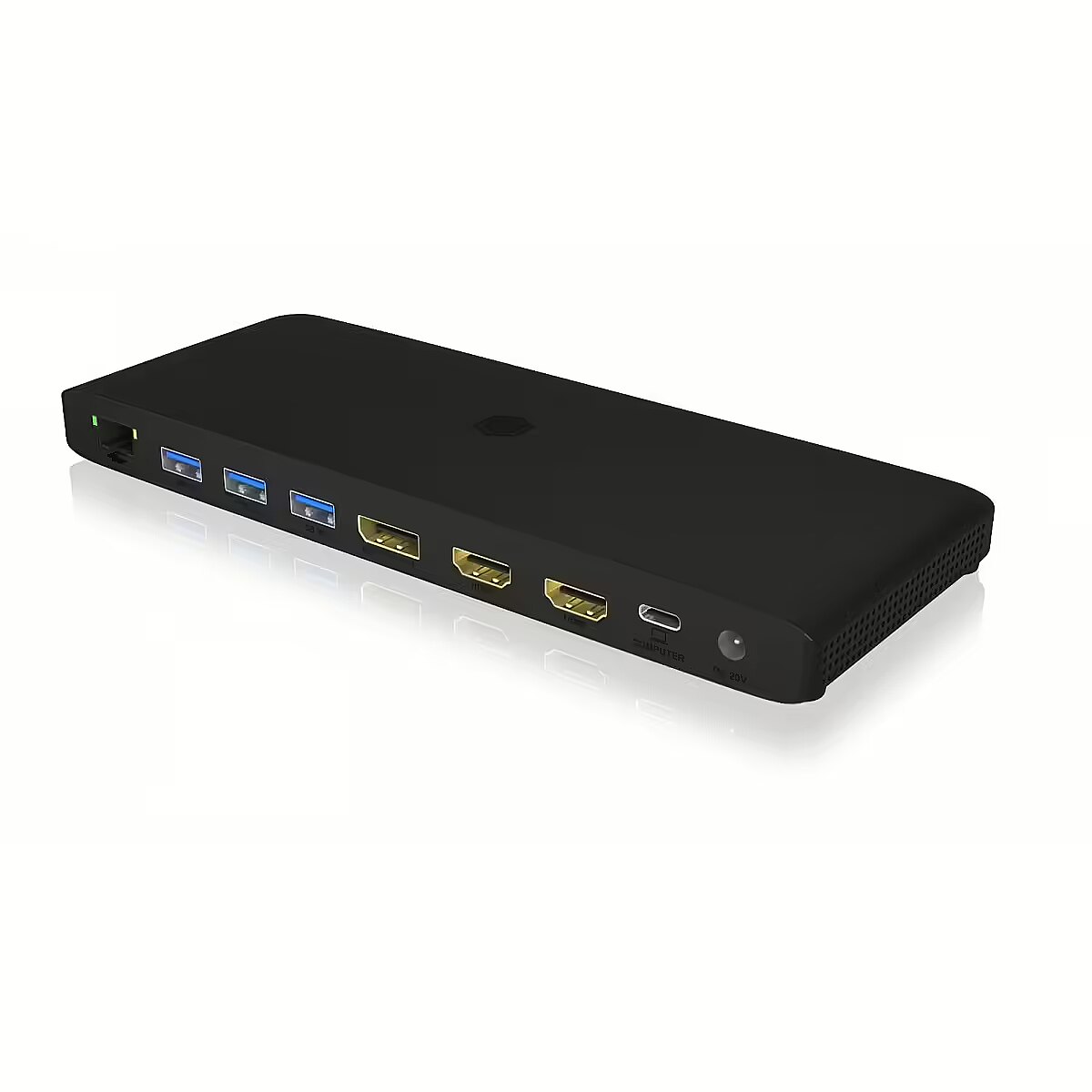

I/O ports - 1 x 3,5 mm minijack (Combo)
I/O ports - 1 x DisplayPort
I/O ports - 1 x RJ-45 (LAN)
I/O ports - 1 x USB power

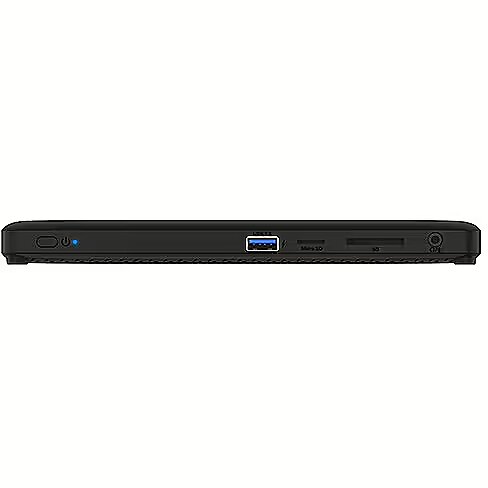

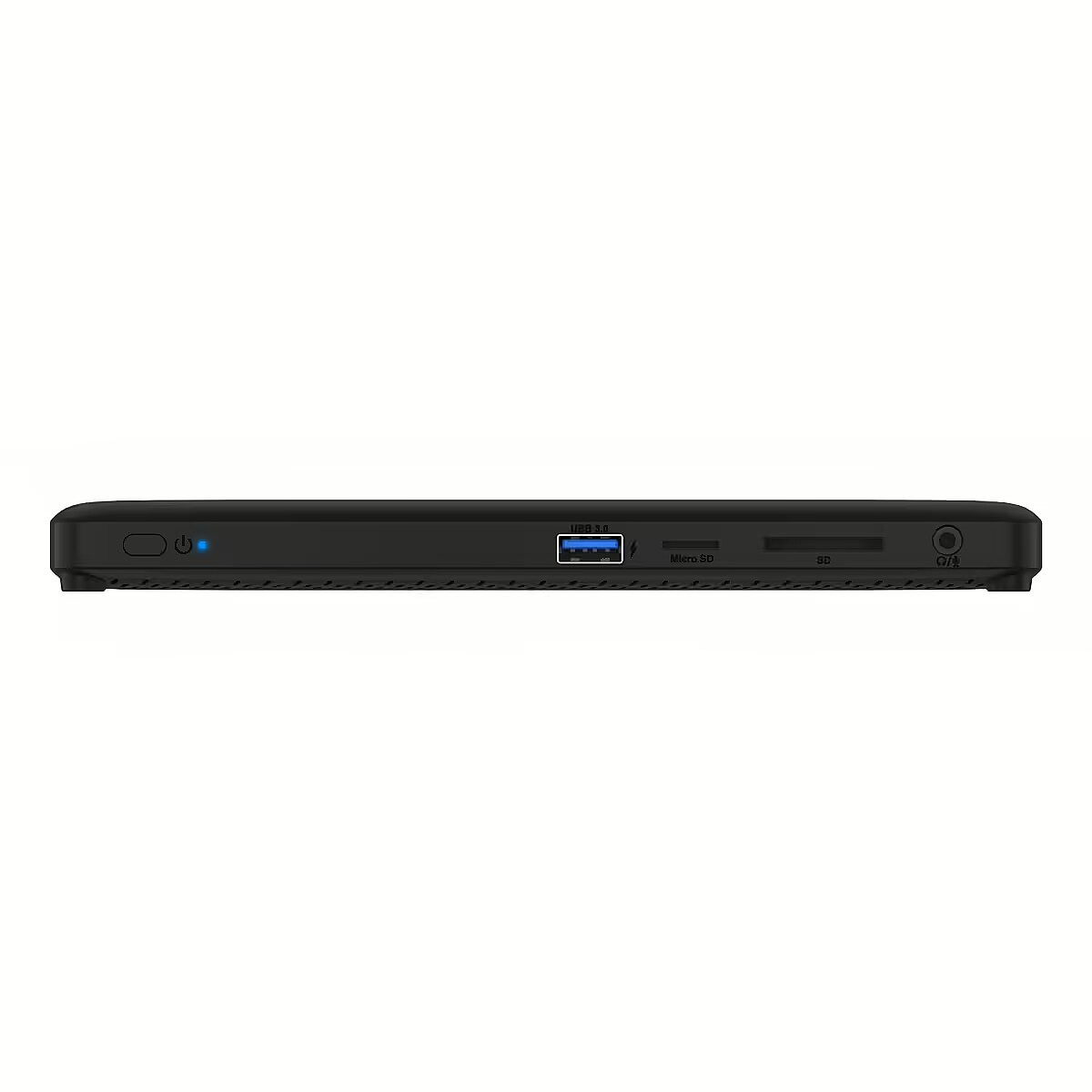

I/O ports - 2 x Card reader
I/O ports - 2 x HDMI Type A
I/O ports - 4 x USB 3.0 Type A
Logistics data - Master (outer) case gross weight - 16.8 kg
Logistics data - Master (outer) case height - 315 mm
Logistics data - Master (outer) case length - 495 mm
Logistics data - Master (outer) case width - 285 mm
Logistics data - Products per master (outer) case - 10 pc(s)

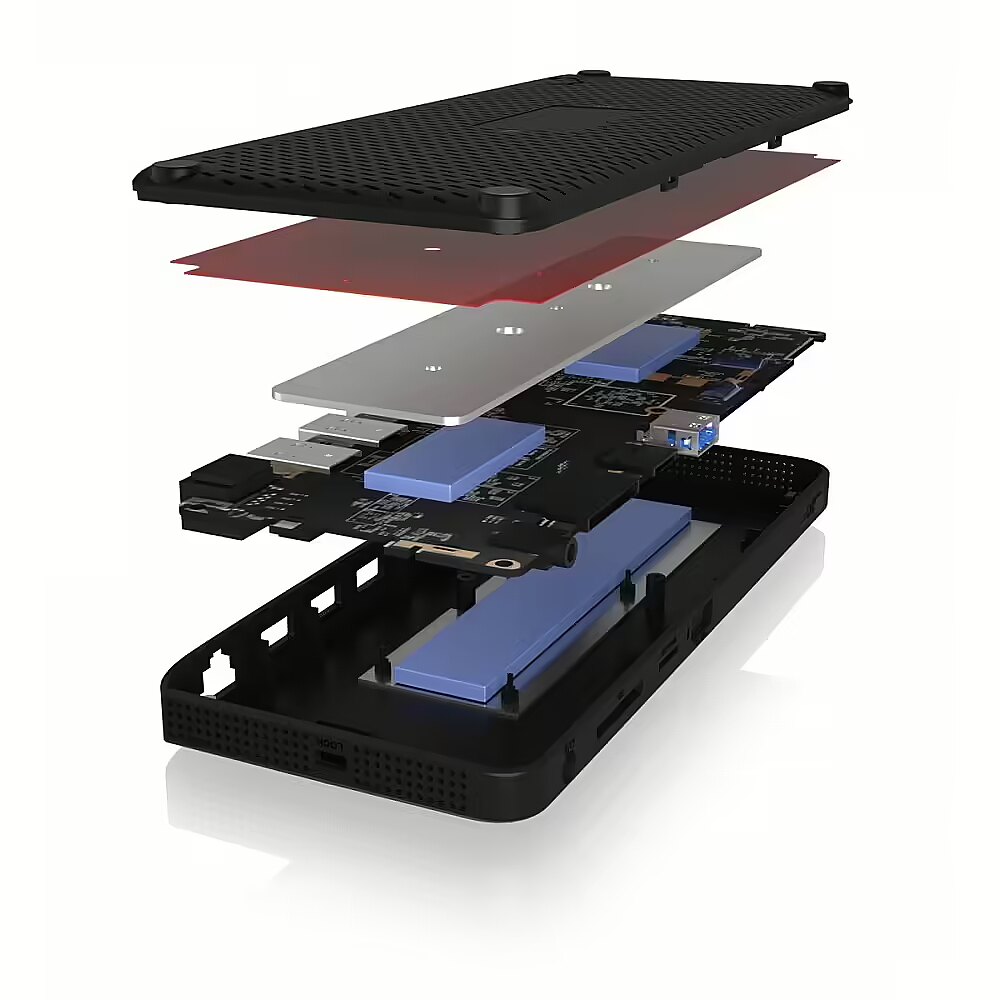

LongDesc - Mixed cardsThe SD and microSD 3.0 card readers support memory cards such as SD, SDHC, SDXC, microSD and MMC in multi-LUN mode. Simply insert the card into the appropriate slot and swiftly transfer information from the camera or smartphone to the computer or display it on the screen.Cool headEfficient cooling concept thanks to convection: the bottom and sides of the enclosure have dust protected ventilation grilles through which the heat generated by operation is dissipated. At the same time, cooler air flows in from below, which cools the interior by passing over the builtin circuit board and additional heat sinks.Portable designChic design to show off or smartly stored? Both is possible. The DockingStation comes with a VESA®mount that allows it to be neatly attached to the back of a monitor. This saves space on the desk and creates a tidy working environment. Easy accessibility is always a given.

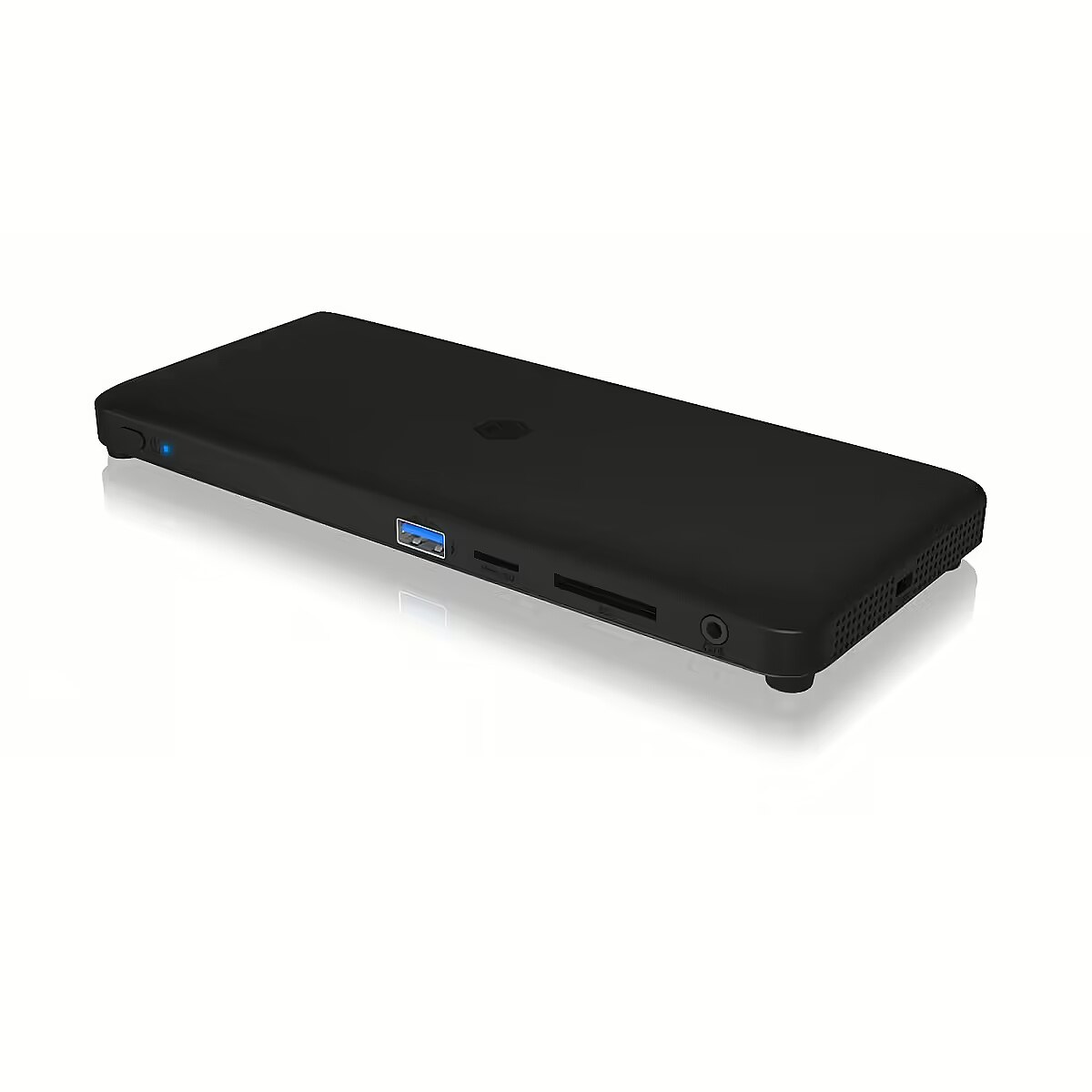

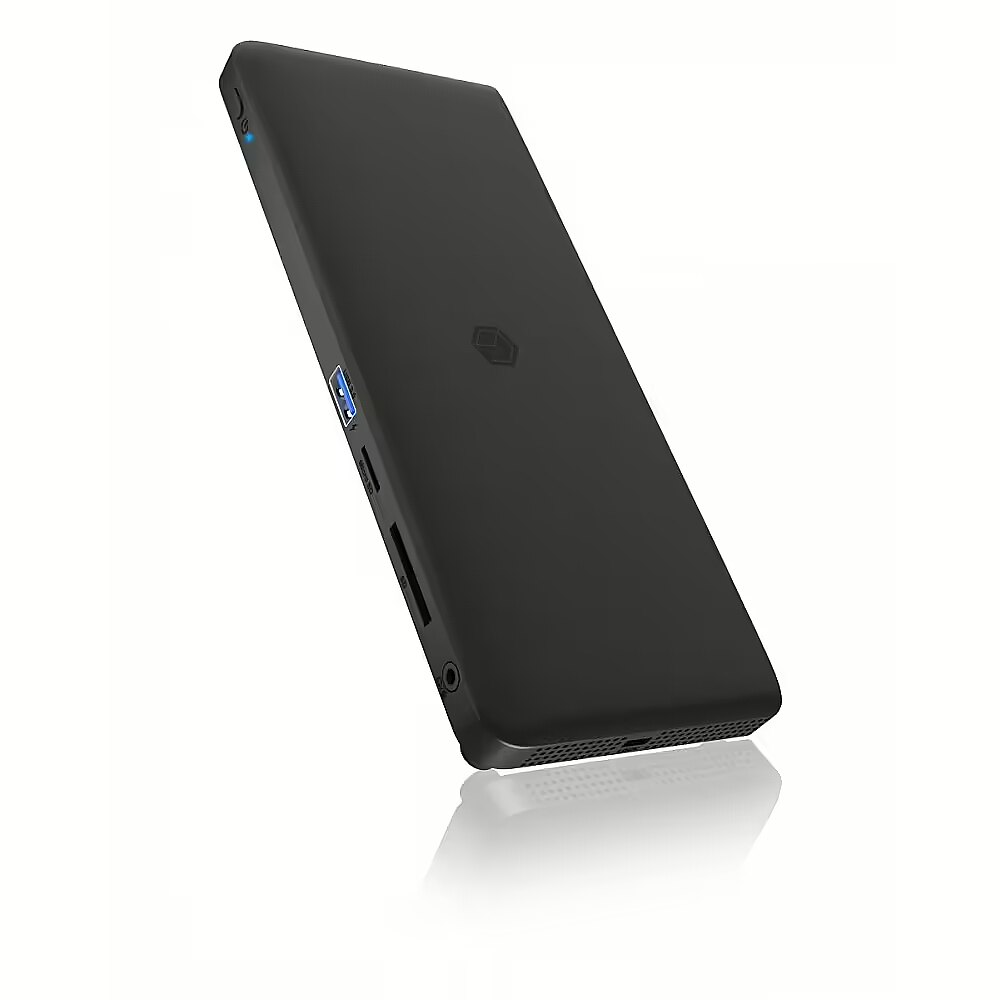

LongProductName - USB Type-C DockingStation with triple video output
LongSummaryDescription - ICY BOX IB-DK2416-C USB Type-C DockingStation with triple video output. Connectivity technology: Wired, USB Power Delivery up to: 65 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: AC, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Other operating systems supported: ChromeOS
Manufacturer - Icy Box
Manufacturer_code - 61006
Name - ICY BOX IB-DK2416-C, docking station (black, USB-C, HDMI, DisplayPort, card reader, USB-A, Gigabit LAN)
name - ICY BOX IB-DK2416-C 11in1,HDMI,DP,USB,LAN
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Other features -
Packaging data - Package depth - 269 mm
Packaging data - Package height - 95 mm
Packaging data - Package weight - 1.58 kg
Packaging data - Package width - 140 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Card reader integrated - Yes
Performance - Compatible memory cards - MicroSD (TransFlash), SD
Performance - Country of origin - China
Performance - Housing material - Acrylonitrile butadiene styrene (ABS)
Performance - LED indicators - Power
Performance - Maximum digital resolution - 3840 x 2160 pixels
Performance - Maximum refresh rate - 60 Hz
Performance - On/off switch - Yes
Performance - Product colour - Black
Performance - UASP support - Yes
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Ports & interfaces - USB Power Delivery - Yes
Ports & interfaces - USB Power Delivery up to - 65 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Output current - 5 A
Power - Output voltage - 20 V
Power - Power source type - AC
Power - Power supply - 100 W
producer - IcyBox
ProductName - IB-DK2416-C USB Type-C DockingStation with triple video output
ShortSummaryDescription - ICY BOX IB-DK2416-C USB Type-C DockingStation with triple video output, Wired, 65 W, 10,100,1000 Mbit/s, Black, MicroSD (TransFlash), SD, 3840 x 2160 pixels
Software - Mac operating systems supported - Yes
Software - Other operating systems supported - ChromeOS
Software - Windows operating systems supported - Yes
System Requirements - Windows / macOS / Chrome OS USB Type-C Thunderbolt 3/4 Type-C DisplayPort Alt Mode and Power Delivery support required

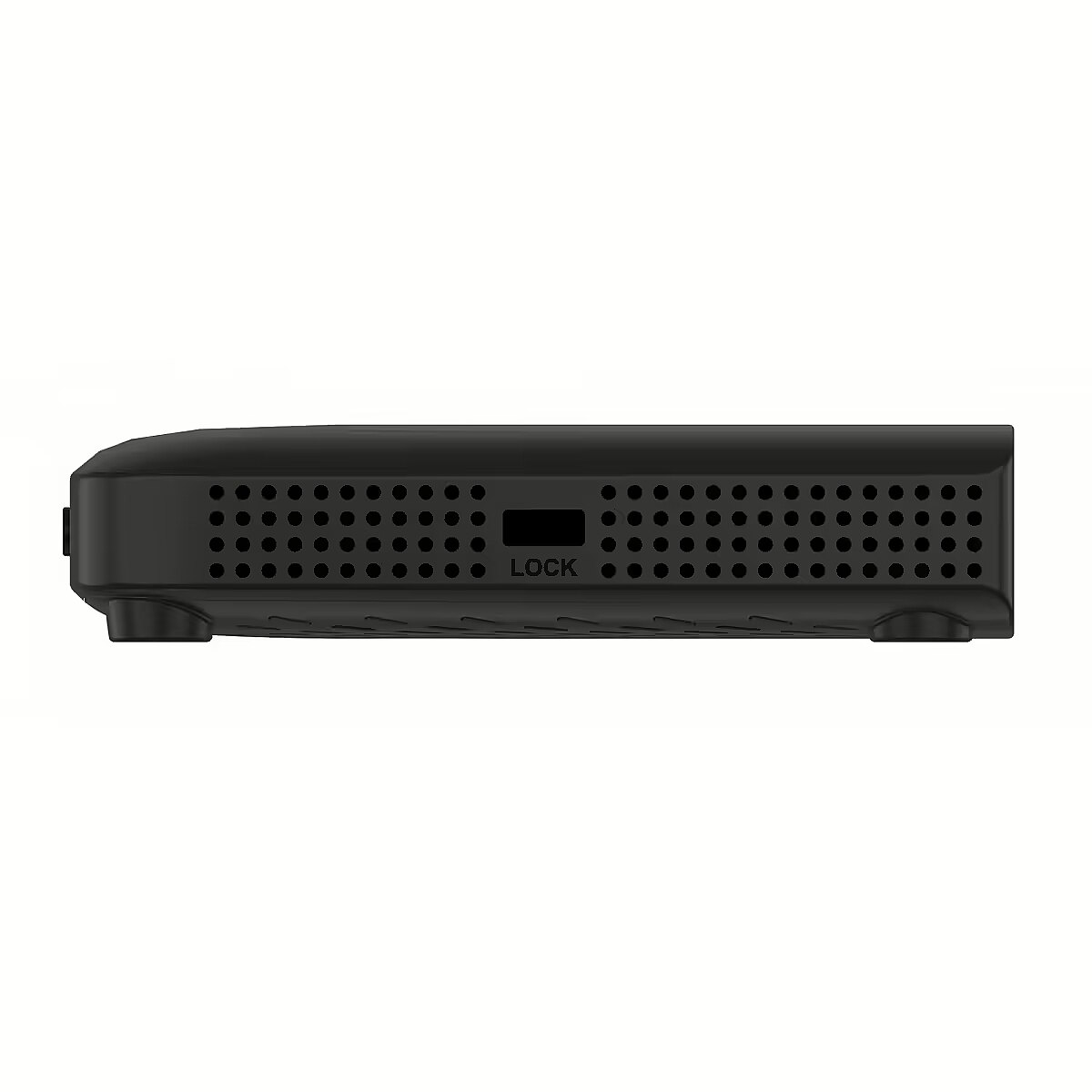

Technical_details - With the ICY BOX DockingStation IB-DK2408-C you can expand your workplace. Connect three additional monitors via HDMI and DisplayPort and enjoy a resolution of up to 4k@30 Hz. USB 3.2 Gen 2 Type-C® and USB 3.2 Gen 1 Type-A ports are also available. Gigabit LAN, dual card reader for SD/micro SD and a 3.5 mm stereo combo jack are also integrated. Item no.: 100003731 Docking station type Color: Black EAN 4250078173397 Manufacturer no. 61006 Connections 1x DisplayPort output, 2x HDMI output, 1x headphone/microphone combo port, 1x RJ-45, 4x USB-A 3.2 Gen 1 (5 Gbit/s) Card reader SD cards, microSD cards Features Kensington Lock Power supply Mains operation Feature DisplayPort Alt Mode, 65W Power Delivery Accessories Available 1x external power supply, 1x power cable (EU), 1x USB Type-C to Type-C cable (100 cm), 1x VESA mounting bracket (75x75, 100x100), 6x screws, 1x screwdriver, 1x manual Dimensions Width: 208mm x Height: 19mm x Depth/Length: 88mm
Title - ICY BOX IB-DK2416-C USB Type-C DockingStation with triple video output
URL - https://icybox.de/en/dockingstation/IB-DK2416-C
vendpn - IB-DK2416-C
WarrantyInfo -
Weight - 0.31 kg
Weight - 1,59
Weight & dimensions - Depth - 208 mm
Weight & dimensions - Height - 19 mm
Weight & dimensions - Weight - 310 g
Weight & dimensions - Width - 88 mm
