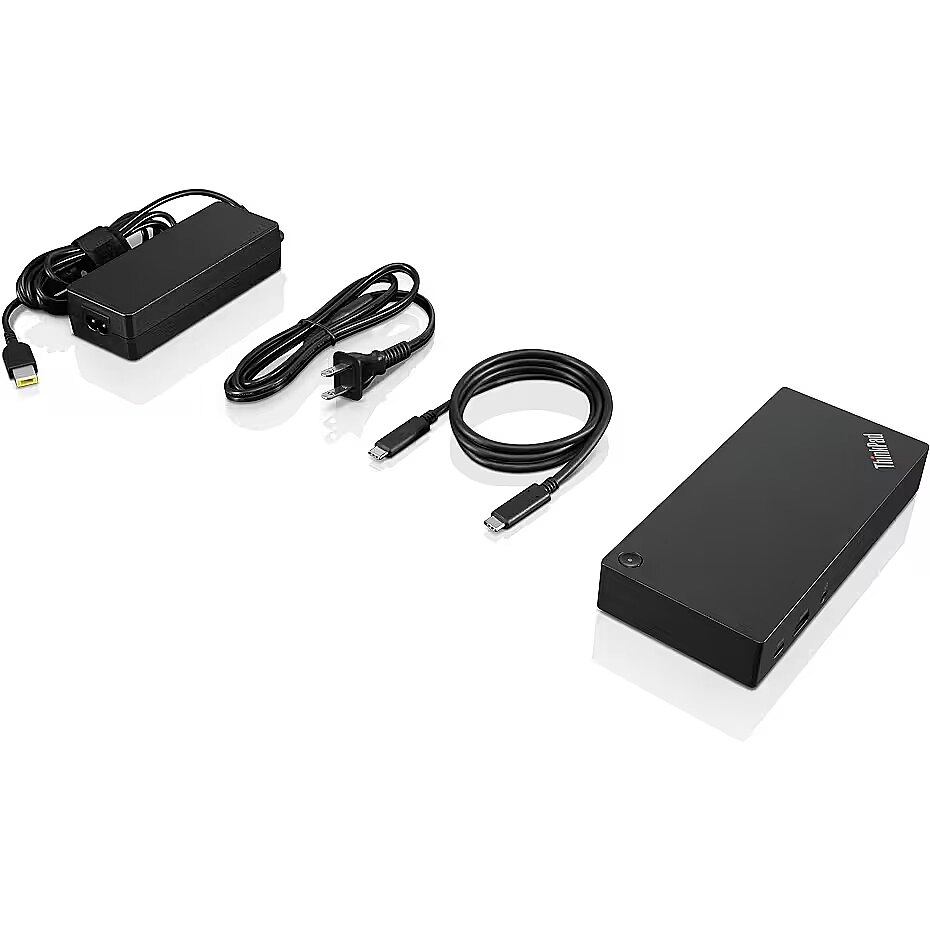

Accessories included - Uniwersalna Dock ThinkPad USB -C (40AY) Zasilacz Think ThinkPad 90 W AC (wąska końcówka) Kabel zasilający Instrukcje Kabel USB -C (1 metr; 30 cali)
ARTIKEL1 - TP UNIVERSAL USB-C DOCK
ARTIKEL2 - EU
Brand - Lenovo
BrandCode - LENOVO
BrandPartCode - 40AY0090EU
Cable lock slot - Yes
Category - Laptop Docks & Port Replicators
Category - Root/Accessories | Exploitation/Cables and adapters/Docking stations and port replicators
Category 1 - Notebooks & Zubehör
Category 2 - Zubehör Notebooks
Category 3 - Dockingstations
Category_1 - Computers and Laptops
Category_2 - Laptop - Accessories
Charging - Yes
Code - 40AY0090EU
Color - Black
Compatibility - -
Compatible with - Lenovo ThinkPad L13 Gen 2 21AC Lenovo ThinkPad P14s Gen 2 20VX, 20VY Lenovo ThinkPad P15s Gen 2 20W6, 20W7 Lenovo ThinkPad T14 Gen 2 20W0, 20W1 Lenovo ThinkPad T14s Gen 1 20T0, 20T1 Lenovo ThinkPad T14s Gen 2 20WM, 20WN Lenovo ThinkPad X1 Carbon Gen 8 20U9, 20UA Lenovo ThinkPad X1 Carbon Gen 9 20XW, 20XX Lenovo ThinkPad X1 Nano Gen 1 20UN, 20UQ Lenovo ThinkPad X1 Titanium Yoga Gen 1 20QA, 20QB Lenovo ThinkPad X1 Yoga Gen 5 20UB, 20UC Lenovo ThinkPad X1 Yoga Gen 6 20XY, 20Y0 Lenovo ThinkPad X13 Gen 1 20T2, 20T3 Lenovo ThinkPad X13 Gen 2 20WK, 20WL Lenovo ThinkPad X13 Yoga Gen 2 20W8, 20W9
Connections - Audio (3.5mm)
Connections - DisplayPort
Connections - Ethernet (RJ-45)
Connections - HDMI
Connections - USB-A (USB 2.0)
Connections - USB-A (USB 3.x)
Connections - USB-C
Depth - 80 mm
Description - Docking Station ThinkPad Universal USB-C Dock 40AY0090EU (successor 40AS0090EU)
Description - LENOVO THINKPAD UNIVERSAL USB-C DOCK 90W (2021)
dimensionalWeight - 488
dimension depth - 210 mm
dimension height - 80 mm
Dimensions - 171 x 80 x 31 mm
Dimensions - depth - 8
Dimensions - height - 3.075
Dimensions - weight - 0.955
Dimensions - width - 17.1
Dimensions W x D x H, mm - 171 x 80 x 30.75
dimension weight - 1005 g
dimension width - 155 mm
DisplayPorts quantity - 1
Docking connector - Yes
EAN - 195348192095
ean - 195348192095
EAN - 0195348192095
EANCode - 0195348192095
Eans - 0195348192095
EAN_code - 0195348192095
Ethernet LAN (RJ-45) ports quantity - 1
General parameters - colour - black
General parameters - IT accessory type - laptop dock
General parameters - manufacturer - Lenovo
Gewicht - 1
GrossWeight - 0.9610
GrossWeight - 1.000 kg
Group - IT > IT ACCESSORIES > PC ACCESSORIES > DOCKING STATIONS
GRUPPE1 - Accessories
GRUPPE2 - Port
GTIN - 0195348192095
GTIN - 195348192095
GTIN - 3523210096924
GTIN - 3523210101703
guarantee - 36
guarantee_type - external
HDMI ports quantity - 1
Height - 0.1570
Height - 30.75 mm
Height - 70.000000
HERSTELLER - LENOVO
HSTNUMMER - 40AY0090EU
I/O ports - 1 x 3,5 mm minijack (Combo)
I/O ports - 1 x HDMI Type A
I/O ports - 1 x USB 3.0 Type C
I/O ports - 2 x DisplayPort
I/O ports - 2 x USB 2.0 Type A
I/O ports - 3 x USB 3.0 Type A
Interface -
3x USB 3.12x USB 2.0USB-C2x DisplayPortHDMIRJ-45Audio jack2x Lock slot
Interfaces - DisplayPort
Interfaces - HDMI
Interfaces - LAN (network, RJ45)
Interfaces - USB-A 2.0
Interfaces - USB-C
Length - 0.0750
Length - 210.000000
Logistics data - Harmonized System (HS) code - 84733020
LongDesc -
LongDesc - The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100w to notebooks, Automated firmware updates, Next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving user's the freedom to connect any USB Type C industray standard Notebooks.One Dock. No Limits.Engineered for performance, the ThinkPad Universal USB-C Dock quickly pays for itself with increased productivity, enhanced dynamic power charging to Notebook, max 100W charging. If you can think it, your dock can do it.One Cable. No Hassle.With 11+ thoughtfully placed ports, the ThinkPad Universal USB-C Dock delivers unmatched performance while decluttering your desk.Entire Fleet. One Manager.The ThinkPad Universal USB-C Dock comes packed with basic and advanced solutions engineered to make managing an entire fleet of docks effortlessly efficient. It could support tranditional IT tools like: PXE boot, WOL, and MAC address Pass Through on ThinkPad Notebooks, but also provide silent firmware updates. Silent reboots. Remote device queries. It's an IT manager's dream.
LongProductName - 2 x DisplayPort, 1 x HDMI, 3 x USB 3.1, 2 x USB 2.0, 1 x USB Type C, 1 x Gigabit LAN, 90W
LongSummaryDescription - Lenovo ThinkPad Universal USB-C Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, HD type: 4K Ultra HD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: USB, Power connector: USB Type-C, Power supply: 90 W. Windows operating systems supported: Windows 10, Windows 7
Manufacturer - LENOVO
Manufacturer - Lenovo
ManufacturerPartNumber - 40AY0090EU
Manufacturer_code - 40AY0090EU
MANUFDATASHEET - https://www.lenovo.com/us/en/p/accessories-and-software/docking/docking_usb-docks-(universal-cable-docks)/40ay0090us?orgRef=https%253A%252F%252Fwww.google.com%252F#tech_specs
Maximum display resolution - 3840 x 2160
MediumDescription EN - The ThinkPad Universal USB-C Dock is a welcome innovation docking that takes users beyond tradition and into the realm of limitless potential. Experience universal compatibility with dynamic power charging max as 100w to notebooks***, Automated firmware updates, Next-level plug-and-play. Everything you'd want from the future of docking is here. It's perfect for mixed PC environments too, giving user's the freedom to connect any USB Type C industray standard Notebooks.
MediumDescription ET - ThinkPad Universal USB-C on suurepärane võimalus oma sülearvuti võimaluste laiendamiseks. Ühenda selle külge rohkem seadmeid ning vii oma produktiivsus uuele tasandile. Toetab maksimaalselt kolme monitori ühendamist (2x 3840x2160 @60Hz; 1x 3840x2160 @30Hz). • 2x DisplayPort, 1x HDMI
• 3x USB3.1; 2x USB2.0; 1x USB-C
• 1x Heliväljund
• 1x Gigabit Ethernet
MediumDescription LV - ThinkPad Universal USB-C dokstacija nodrošina lielisku veidu, kā paplašināt portatīvā datora iespējas. Pievienojiet vairāk ierīču un paceliet savu produktivitāti jaunā līmenī.Atbalsta līdz trim monitoriem (2x 3840x2160 @ 60Hz; 1x 3840x2160 @ 30Hz).• 2x DisplayPort, 1x HDMI;
• 3x USB3.1; 2x USB2.0; 1x USB-C;
• 1x audio izeja;
• 1x Gigabit Ethernet.
MPN - 40AY0090EU
Name - D Lenovo ThinkPad universal USB-C DOCK 90W
name - Docking Station ThinkPad Universal USB-C Dock 40AY0090EU (successor 40AS0090EU)
Name - Lenovo Dock USB-C 90W
Name - Lenovo ThinkPad Universal USB-C Dock, docking station
Name - Lenovo | ThinkPad Universal USB-C Dock - EU | Docking station | Ethernet LAN (RJ-45) ports 1 | VGA (D-Sub) ports quantity 1 | DisplayPorts quantity 2 | USB 3.0 (3.1 Gen 1) Type-C ports quantity 1 | USB 3.0 (3.1 Gen 1) ports quantity 3 | USB 2.0 ports quantity 2 | HDMI ports quantity 1 | 65 W | Warranty 36 month(s)
Name EN - Docking Station ThinkPad Universal USB-C, Lenovo / 90W
Name ET - Sülearvuti Dokk ThinkPad Universal USB-C, Lenovo / 90W
NameInWeb EN - Notebook dock Lenovo ThinkPad Universal USB-C (90 W)
NameInWeb ET - Sülearvuti dokk Lenovo ThinkPad Universal USB-C (90 W)
NameInWeb LV - Lenovo ThinkPad Universal USB-C Dock, 90 W, melna - Portatīvā datora dokstacija
Name LV - Docking Station ThinkPad Universal USB-C, Lenovo / 90W
NetWeight - 0.3250
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Operational conditions - Operating relative humidity (H-H) - 20 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 35 °C
Other features -
PackageContents - -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 207 mm
Package features > Gross height (mm) - 75 mm
Package features > Gross width (mm) - 155 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 359 pc(s)
Package features > Paper/Pasteboard - 201 g
Package features > Plastic (No PET) - 56 g
Package features > Tare weight (kg) - 0.257 kg
Package features > Volume (m3) - 0.002406375 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - USB Type-C
Packaging data - Package depth - 158 mm
Packaging data - Package height - 75 mm
Packaging data - Package weight - 955 g
Packaging data - Package width - 210 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Cable lock slot - Yes
Performance - Cable lock slot type - Kensington
Performance - Card reader integrated - No
Performance - Certification - FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV- Mark, Kvalitet, LoA, Israel SII, DoC, NOM
Performance - HD type - 4K Ultra HD
Performance - Maximum digital resolution - 3840 x 2160 pixels
Performance - Number of displays supported - 3
Performance - On/off switch - Yes
Performance - Product colour - Black
PeriodofWarranty - 36 M
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Host interface - USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ports & interfaces - Microphone in - No
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Ports & interfaces > Audio output - Stereo/Mic Combo Audio Port
Ports & interfaces > DisplayPorts quantity - 2
Ports & interfaces > Ethernet LAN (RJ-45) ports - 1
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > USB 2.0 ports quantity - 2
Ports & interfaces > USB 3.0 (3.1 Gen 1) ports quantity - 3
Ports & interfaces > USB 3.0 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces > VGA (D-Sub) ports quantity - 1
Power - Power connector - USB Type-C
Power - Power source type - USB
Power - Power supply - 90 W
Power > Output power - 65 W
Power supply, W - 90
ProdDesc - Lenovo ThinkPad Universal USB-C dock
producer - Lenovo
Producer - Lenovo
producerCode - 40AY0090EU
ProducerCode - 40AY0090EU
Producer product family - ThinkPad Universal USB-C Dock - EU
ProductCode - 40AY0090EU
ProductionCountry - CN
productName - Lenovo 40AY0090EU notebook dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
ProductName - ThinkPad Universal USB-C Dock
ProductPicture - http://www.tdbaltic.ee/images/ds4/40AY0090EU-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/40AY0090EU-02.jpg
ProductPicture3 -
ProductPicture4 -
productSize - Normal
SalesUnitOfMeasureCode - tk
ShortDescription - stacja dokująca Lenovo USB-C 3x USB 3.1 2x USB 2.0 2x DP 1x HDMI 1x rj-45 90W
ShortSummaryDescription - Lenovo ThinkPad Universal USB-C Dock, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 10,100,1000 Mbit/s, Black, 4K Ultra HD, 3840 x 2160 pixels
sizeX - 155
sizeY - 210
sizeZ - 75
Software - Windows operating systems supported - Windows 7
Software - Windows operating systems supported - Windows 10
Software - Windows operating systems supported - Windows 10, Windows 7
Stck_Kart - 14
Stck_Pal - 336
Storno - Y
Sustainability - Sustainability certificates - CE
System Requirements -
SystemRequirements - -
TariffNo - 84718000
Technical details - Compliance certificates - CE
Technical details > Gross weight - 1.002 kg
Technical details > Net weight - 0.745 kg
Technical details > Other features - Output power 65W with 90W Power Adapter; Output power 100W with 135W Power Adapter
Technical details > Producer - Lenovo
Technical details > Type - Docking station
Technical details > Warranty - 36 month(s)
Technology - Input Power: 90 WOutput Power: 65 W with 90 W power adapter connected; 100 W with 135 W power adapter connectedMonitor support: 2x 3840x2160 @60Hz, 1x 3840x2160 @30Hz
Title - Lenovo ThinkPad Universal USB-C Dock Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
Type - Docking station 90 W
UnitOfMeasureCode - tk
UnitsPerPackage - 1
URL - https://support.lenovo.com/ie/en/solutions/pd500519
USB-A (USB 2.0) ports quantity - 2
USB-A (USB 3.1) ports quantity - 3
USB Type-C ports quantity - 1
vendpn - 40AY0090EU
Volume - 0.00247275
Warranty - -
Warranty - 36
WarrantyInfo - 3 Years Customer Replaceable Unit
warrantyLength - 12
warrantyType - G
Weight - 0.340 kg
Weight - 1,02
Weight - 1.000000
Weight - 1.02
Weight - 340 g
weight - 916
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 30.8 mm
Weight & dimensions - Weight - 340 g
Weight & dimensions - Width - 171 mm
Weight, g - 340
Width - 0.2100
Width - 150.000000
Width - 171 mm
